sheath_adjust.hpp File Reference

#include "push_controls.hpp"
#include "plasma.hpp"
#include "magnetic_field.hpp"
#include "grid.hpp"
#include "neutrals.hpp"
#include "heat_diagnostics.hpp"
#include "sheath.hpp"

Include dependency graph for sheath_adjust.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	sheath_adjust_mode1 (bool axisymmetric_sheath_pot, Plasma &plasma, const Grid< DeviceType > &grid, const MagneticField< DeviceType > &magnetic_field, Sheath< DeviceType > &sheath, SheathDiag &diag, int gstep)
void	sheath_adjust_mode2 (const Simulation< DeviceType > &sml, Plasma &plasma, const Grid< DeviceType > &grid, const MagneticField< DeviceType > &magnetic_field, Sheath< DeviceType > &sheath, const Neutrals &neutrals, const HeatDiagnostics< DeviceType > &heat_diag, SheathDiag &diag, int gstep, int ipc)

Function Documentation

sheath_adjust_mode1()

void sheath_adjust_mode1	(	bool	axisymmetric_sheath_pot,
		Plasma &	plasma,
		const Grid< DeviceType > &	grid,
		const MagneticField< DeviceType > &	magnetic_field,
		Sheath< DeviceType > &	sheath,
		SheathDiag &	diag,
		int	gstep
	)

Old sheath calculation (sheath_mode==1) Based on the electron and ion losses at the wall nodes a new value of the sheath potential is determined by adjusting the previous value by a certain amount --> feedback control loop

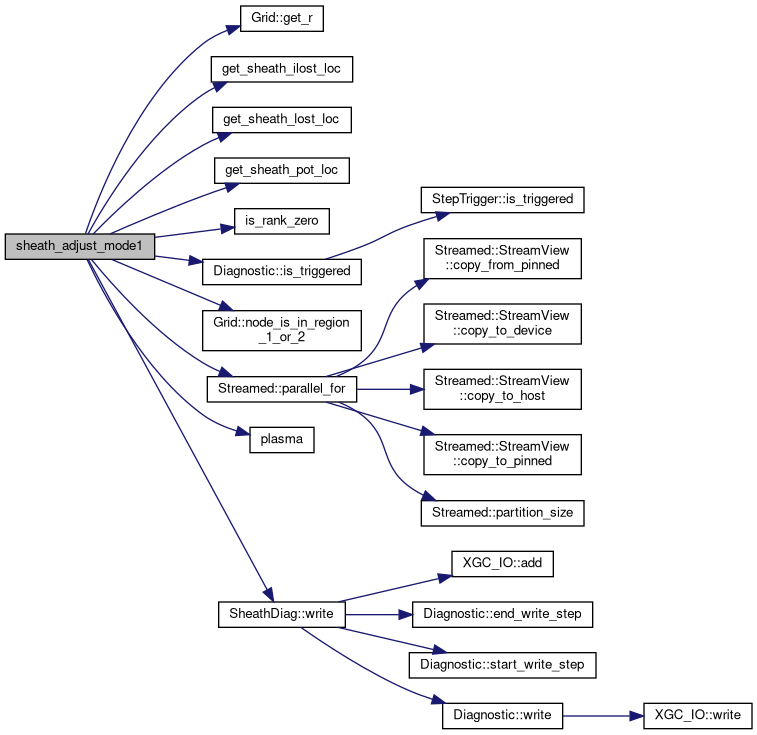

Here is the call graph for this function:

Here is the caller graph for this function:

sheath_adjust_mode2()

void sheath_adjust_mode2	(	const Simulation< DeviceType > &	sml,
		Plasma &	plasma,
		const Grid< DeviceType > &	grid,
		const MagneticField< DeviceType > &	magnetic_field,
		Sheath< DeviceType > &	sheath,
		const Neutrals &	neutrals,
		const HeatDiagnostics< DeviceType > &	heat_diag,
		SheathDiag &	diag,
		int	gstep,
		int	ipc
	)

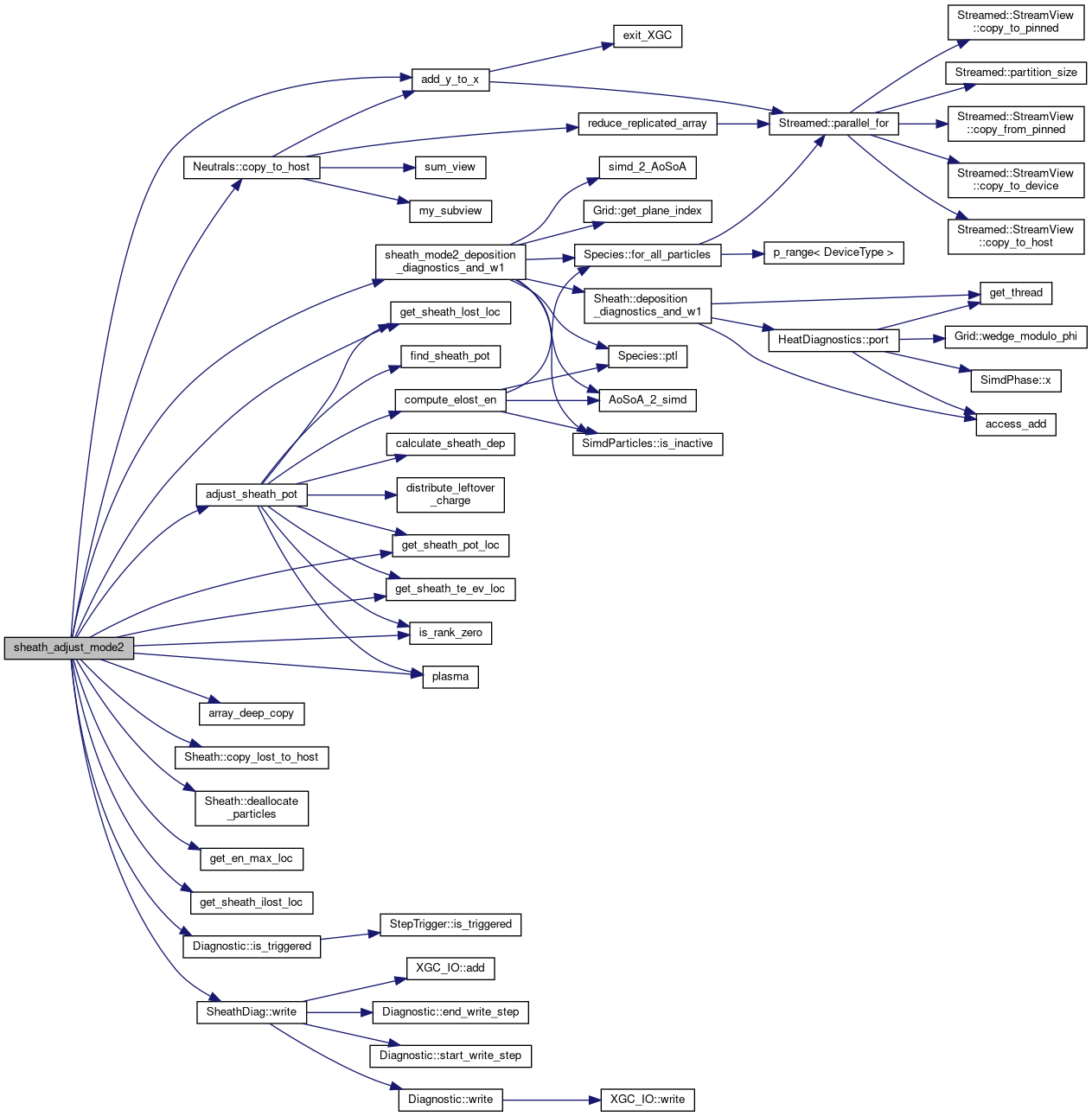

Here is the call graph for this function:

Here is the caller graph for this function:
