neutral_totalf.F90 File Reference
#include "t_coeff_mod_macro.h"
Include dependency graph for neutral_totalf.F90:

Functions/Subroutines

subroutine neutral_totalf (istep, grid, sp)
 Calculates kinetic source due to interaction of plasma with neutral species via a test particle Monte Carlo method. Presently only hydrogen atom ionization and charge exchange processes are considered. The neutral background, characterized by a Maxwellian density and temperature, is computed and updated by the Monte Carlo algorithm implemented in subroutine neutral_totalf_step. More...

subroutine neutral_totalf_setup (grid)
 Sets up neutral_totalf variables, and birth locations. More...

subroutine neutral_totalf_step (grid, mass)
 2D Monte Carlo neutral transport calculation to establish the background used in subroutine neutral_totalf. The neutral birth locations are now at the material boundaries, an improvement over past versions. More...

subroutine maxwell_neut (tn, vr, vz, vangle)
 Return a particle with velocities sampled from a Maxwellian distribution. More...

subroutine neut_fluid (grid, r, z, vr, vz, weight, vparan)
 Adds neutral particle weight contribution, to eventually calculate neutral fluid quantities (density, temperature, velocity). Calls search_tr2 to determine triangle. More...

subroutine neut_fluid_final
 Sums the neutral particle weights over all MPI processes, distributes to all compute nodes, then calculates the actual neutral fluid quantities (neutral density, temperature, velocity), also calculating relative standard deviation). More...

subroutine plasma (grid, itr, p, dene_out, deni_out, Te_out, Ti_out, Vparai_out)
 Calculate the plasma density, temperature, and parallel velocity for a point in triangle itr using plasma moments from mom_module subroutine mom_module::calc_moments. More...

subroutine neut_pos_test (grid, r, z, ptest, itr, p)
 Determine whether neutral particle at a point (R,Z) is in the simulation domain or not. More...

subroutine startrz (iwall, iwall_next, wall_frac, wall_length, r, z, wall_angle, Lwalli)
 Determines the starting (R,Z) position to launch a MC neutral particle. More...


Function/Subroutine Documentation

subroutine neutral_totalf_step::maxwell_neut ( real(kind=8), intent(in)  tn,
real(kind=8), intent(out)  vr,
real(kind=8), intent(out)  vz,
real(kind=8), intent(out)  vangle
)

Return a particle with velocities sampled from a Maxwellian distribution.

Parameters
tn(in) real(8), Neutral temperature, units eV
vr(out) real(8), Neutral velocity R-direction
vz(out) real(8), Neutral velocity Z-direction
vangle(out) real(8), Neutral velocity angle

Here is the caller graph for this function:

subroutine neutral_totalf_step::neut_fluid ( type(grid_type)  grid,
real (kind=8), intent(in)  r,
real (kind=8), intent(in)  z,
real (kind=8), intent(in)  vr,
real (kind=8), intent(in)  vz,
real (kind=8), intent(in)  weight,
real (kind=8), intent(in)  vparan
)

Adds neutral particle weight contribution, to eventually calculate neutral fluid quantities (density, temperature, velocity). Calls search_tr2 to determine triangle.

Parameters
grid(in) real(8), Neutral temperature, units eV
r(in) real(8), Neutral particle R position
z(in) real(8), Neutral particle Z position
vr(in) real(8), Neutral velocity R-direction
vz(in) real(8), Neutral velocity Z-direction
weight(in) real(8), Neutral Monte-Carlo weight
vparan(in) real(8), Neutral parallel velocity

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine neutral_totalf_step::neut_fluid_final ( )

Sums the neutral particle weights over all MPI processes, distributes to all compute nodes, then calculates the actual neutral fluid quantities (neutral density, temperature, velocity), also calculating relative standard deviation).

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine neutral_totalf_step::neut_pos_test ( type(grid_type)  grid,
real (kind=8), intent(in)  r,
real (kind=8), intent(in)  z,
integer, intent(out)  ptest,
integer, intent(out)  itr,
real (kind=8), dimension(3), intent(out)  p
)

Determine whether neutral particle at a point (R,Z) is in the simulation domain or not.

Parameters
grid(in) type(grid_type), XGC grid information
r(in) real(8), Neutral particle R position
z(in) real(8), Neutral particle Z position
ptest(out) integer, 1 if neutral in simulation domain, -1 otherwise
itr(out) integer, Triangle containing point
p(out) real(8) [3], Triangle weights for interpolating node quantities onto point

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine neutral_totalf ( integer, intent(in)  istep,
type(grid_type)  grid,
type(species_type)  sp
)

Calculates kinetic source due to interaction of plasma with neutral species via a test particle Monte Carlo method. Presently only hydrogen atom ionization and charge exchange processes are considered. The neutral background, characterized by a Maxwellian density and temperature, is computed and updated by the Monte Carlo algorithm implemented in subroutine neutral_totalf_step.

Parameters
istep(in) integer, Global XGC step
grid(in) type(grid_type), XGC grid information
sp(in)type(species_type), XGC species information

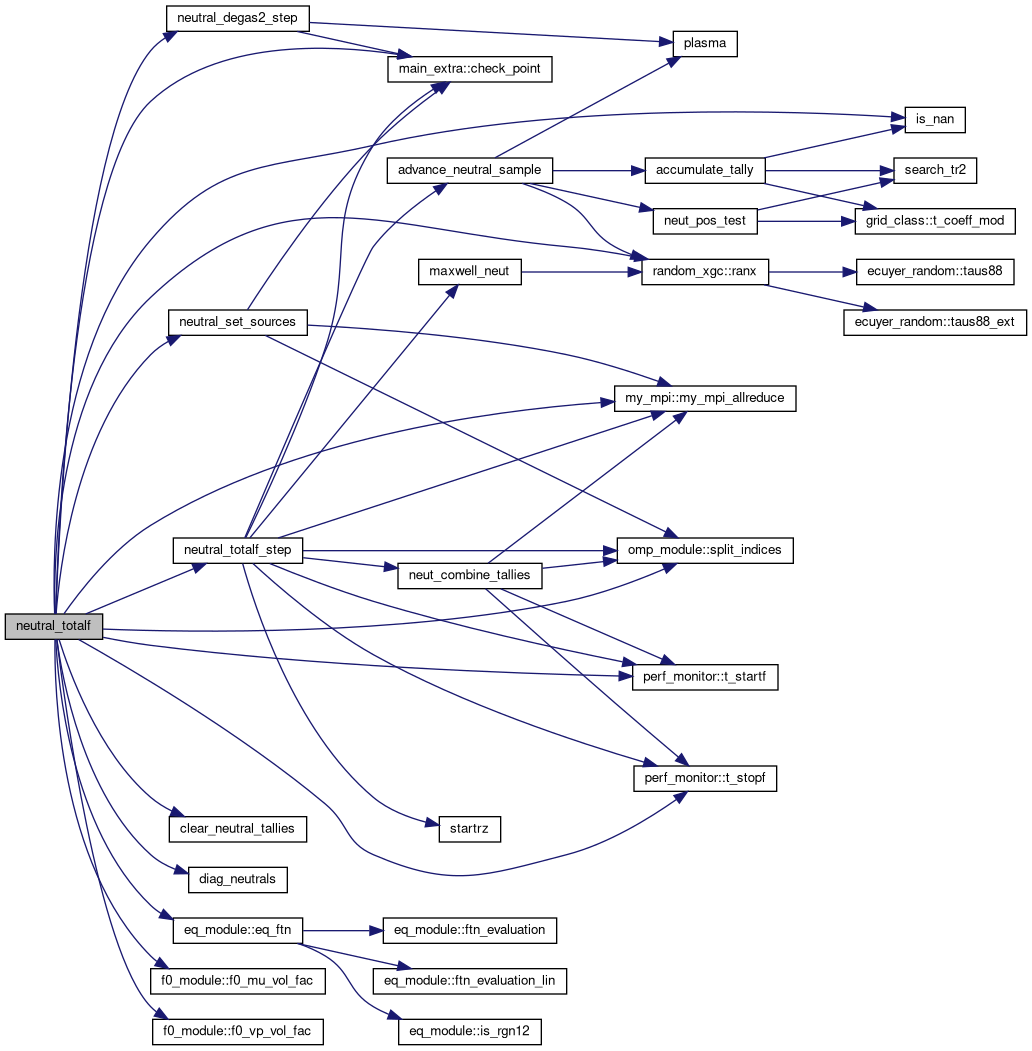

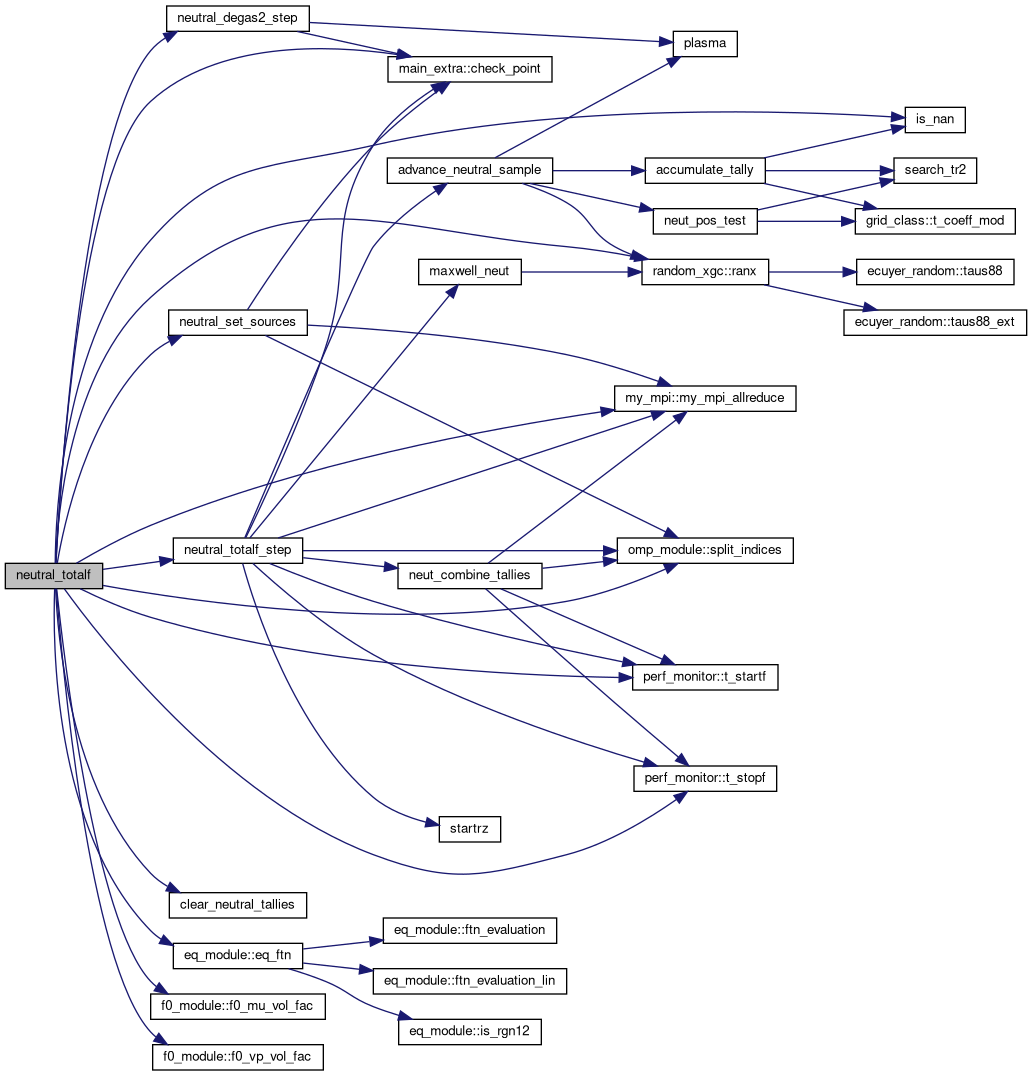

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine neutral_totalf_setup ( type(grid_type)  grid)

Sets up neutral_totalf variables, and birth locations.

Parameters
grid(in) type(grid_type), XGC grid information

Here is the caller graph for this function:

subroutine neutral_totalf_step ( type(grid_type)  grid,
real (kind=8), intent(in)  mass
)

2D Monte Carlo neutral transport calculation to establish the background used in subroutine neutral_totalf. The neutral birth locations are now at the material boundaries, an improvement over past versions.

Parameters
grid(in) type(grid_type), XGC grid information
mass(in) real(8), neutral mass

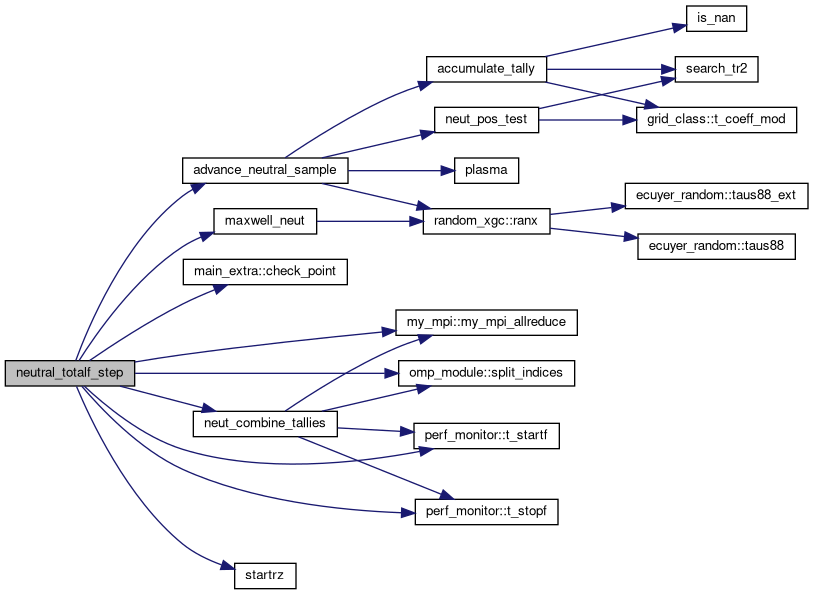

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine neutral_totalf_step::plasma ( type(grid_type)  grid,
integer, intent(in)  itr,
real (kind=8), dimension(3), intent(in)  p,
real (kind=8), intent(out)  dene_out,
real (kind=8), intent(out)  deni_out,
real (kind=8), intent(out)  Te_out,
real (kind=8), intent(out)  Ti_out,
real (kind=8), intent(out)  Vparai_out
)

Calculate the plasma density, temperature, and parallel velocity for a point in triangle itr using plasma moments from mom_module subroutine mom_module::calc_moments.

Parameters
grid(in) type(grid_type), XGC grid information
itr(in) integer, Triangle for point to calculate plasma quantities
p(in) real(8) [3], Triangle weights for interpolating node quantities onto point
dene_out(out) real(8), Electron density at point
deni_out(out) real(8), Ion density at point
Te_out(out) real(8), Electron temperature at point
Ti_out(out) real(8), Ion temperature at point
Vparai_out(out) real(8), Ion parallel velocity at point

Here is the caller graph for this function:

subroutine neutral_totalf_step::startrz ( integer, intent(in)  iwall,
integer, intent(in)  iwall_next,
real (kind=8), intent(in)  wall_frac,
real (kind=8), dimension(neu_nbirth), intent(in)  wall_length,
real (kind=8), intent(out)  r,
real (kind=8), intent(out)  z,
real (kind=8), intent(out)  wall_angle,
real (kind=8), intent(out)  Lwalli
)

Determines the starting (R,Z) position to launch a MC neutral particle.

Parameters
iwall(in) integer, Start index of wall node bouding position to launch from
iwall_next(in) integer, End index of wall node bounding position to launch from
wall_frac(in) real(8), Fraction of the distance between iwall and iwall_next to launch neutral at
wall_length(in) real(8) [neu_nbirth], Array of wall lengths for each node point (taken as sum of half distance to each neighboring wall node)
r(out) real(8), Neutral particle R position of launch
z(out) real(8), Neutral particle Z position of launch
wall_angle(out) real(8), Neutral particle launch angle w.r.t. wall
Lwalli(out) real(8), Wall length for (R,Z) position

Here is the caller graph for this function:
