#include <current_drive.hpp>

Inheritance diagram for CurrentDrive:

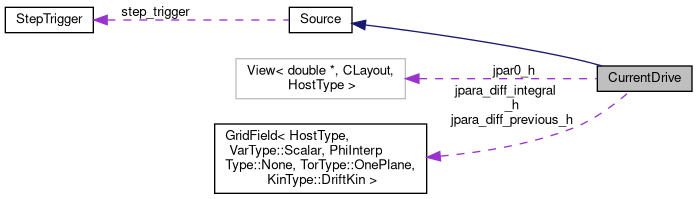

Collaboration diagram for CurrentDrive:

[legend]

Public Member Functions
	CurrentDrive ()

	CurrentDrive (NLReader::NamelistReader &nlr, const Grid< DeviceType > &grid, const MagneticField< DeviceType > &magnetic_field)

void	apply (const Grid< DeviceType > &grid, Plasma &plasma, Smoothing &smoothing, const Moments &f0_moments, const DomainDecomposition< DeviceType > &pol_decomp, const MagneticField< DeviceType > &magnetic_field, const GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::OnePlane, KinType::DriftKin > &loop_voltage_h, LoopVolDiagnostics &loop_vol_diag, int gstep, double time)

Public Member Functions inherited from Source
bool	is_triggered (int step)

Public Attributes
GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::OnePlane, KinType::DriftKin >	jpara_diff_previous_h

GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::OnePlane, KinType::DriftKin >	jpara_diff_integral_h

View< double *, CLayout, HostType >	jpar0_h

double	loop_voltage_psimax
	Inductive current drive: outer boundary (in pol. flux) of the loop voltage. More...

bool	loop_voltage_fsa
	Make loop voltage and current drive flux-functions if true (default: true) More...

double	current_drive_p
	Current drive PID controller: factor for proportional controller ( \(P\)) More...

double	current_drive_i
	Current drive PID controller: factor for integral controller ( \(I\)) More...

double	current_drive_d
	Current drive PID controller: factor for derivative controller ( \(D\)) More...

Public Attributes inherited from Source
StepTrigger	step_trigger

Constructor & Destructor Documentation

◆ CurrentDrive() [1/2]

CurrentDrive::CurrentDrive ( )

inline

◆ CurrentDrive() [2/2]

CurrentDrive::CurrentDrive	(	NLReader::NamelistReader &	nlr,
		const Grid< DeviceType > &	grid,
		const MagneticField< DeviceType > &	magnetic_field
	)

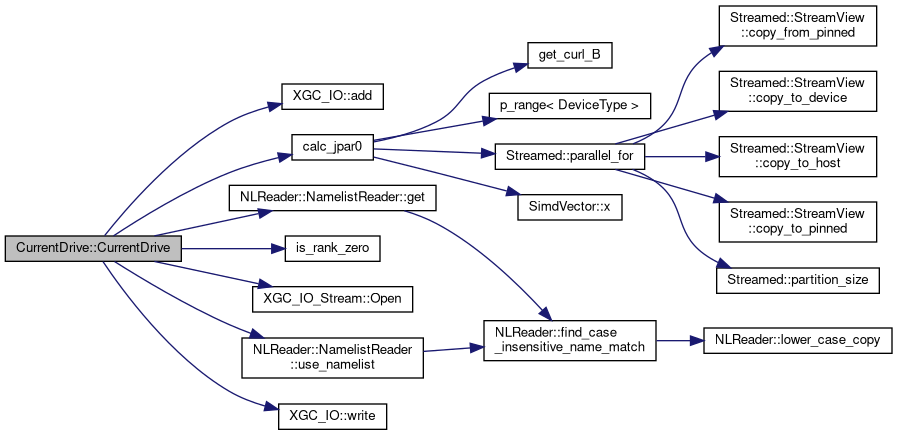

Here is the call graph for this function:

Member Function Documentation

◆ apply()

void CurrentDrive::apply	(	const Grid< DeviceType > &	grid,
		Plasma &	plasma,
		Smoothing &	smoothing,
		const Moments &	f0_moments,
		const DomainDecomposition< DeviceType > &	pol_decomp,
		const MagneticField< DeviceType > &	magnetic_field,
		const GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::OnePlane, KinType::DriftKin > &	loop_voltage_h,
		LoopVolDiagnostics &	loop_vol_diag,
		int	gstep,
		double	time
	)

Drives electron current such that the plasma current required by the Grad-Shafranov equilibrium magnetic field is maintained. The plasma current is \(j_{\parallel,0} = \hat{\boldsymbol{b}}\cdot\left(\nabla\times\boldsymbol{B}_0\right)/\mu_0 \), or \(j_{\parallel,0} = \sum_s (q_s n_s u_{\parallel,s}) \). Therefore, \(u_{\parallel,e}=j_{\parallel,0}-\sum_{ions}(q_s n_s u_{\parallel,s}) \). The actual electron flow is stored in f0_moments.u_local). Any difference between the targeted and actual flow is damped away with an exponential damping \(\partial u/\partial t = \gamma (u_{target}-u_{actual}) \).

Parameters

[in]	sml	Simulation object (runtime parameters), class Simulation
[in]	grid	Grid object, class Grid
[in,out]	plasma	XGC plasma object; class plasma
[in]	f0_moments	Current low-order plasma moments, struct Moments
[in]	pol_decomp	Domain decomposition object (patch boundaries, etc.), class DomainDecomposition
[in]	loop_vol_diag	Diagnostic ouput object for the loop voltage, class LoopVolDiagnostics

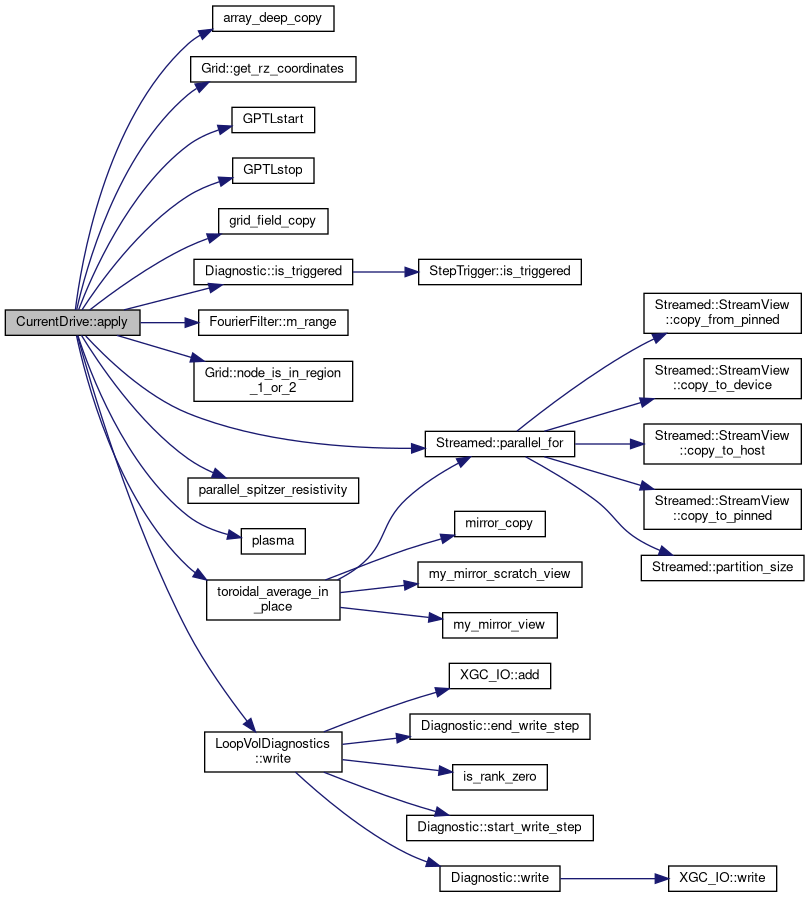

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ current_drive_d

double CurrentDrive::current_drive_d

Current drive PID controller: factor for derivative controller ( \(D\))

◆ current_drive_i

double CurrentDrive::current_drive_i

Current drive PID controller: factor for integral controller ( \(I\))

◆ current_drive_p

double CurrentDrive::current_drive_p

Current drive PID controller: factor for proportional controller ( \(P\))

◆ jpar0_h

View<double*,CLayout,HostType> CurrentDrive::jpar0_h

◆ jpara_diff_integral_h

GridField<HostType,VarType::Scalar,PhiInterpType::None,TorType::OnePlane,KinType::DriftKin> CurrentDrive::jpara_diff_integral_h

◆ jpara_diff_previous_h

GridField<HostType,VarType::Scalar,PhiInterpType::None,TorType::OnePlane,KinType::DriftKin> CurrentDrive::jpara_diff_previous_h

◆ loop_voltage_fsa

bool CurrentDrive::loop_voltage_fsa

Make loop voltage and current drive flux-functions if true (default: true)

◆ loop_voltage_psimax

double CurrentDrive::loop_voltage_psimax

Inductive current drive: outer boundary (in pol. flux) of the loop voltage.

The documentation for this class was generated from the following files:

/p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/current_drive.hpp
/p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/current_drive.cpp
