FGridCoarseGraining Class Reference

#include <fgrid_coarse_graining.hpp>

Inheritance diagram for FGridCoarseGraining:

Collaboration diagram for FGridCoarseGraining:

Public Member Functions
	FGridCoarseGraining ()
	FGridCoarseGraining (NLReader::NamelistReader &nlr)
	Construct and configure FGridCoarseGraining from the f0_param namelist. More...
void	apply (Plasma &plasma, VGridDistribution< DeviceType > &df0g) const
	Apply the coarse‑graining operation to all non‑adiabatic species. More...
Public Member Functions inherited from Source
bool	is_triggered (int step)

Private Attributes
double	alpha
bool	enabled

Additional Inherited Members
Public Attributes inherited from Source
StepTrigger	step_trigger

Constructor & Destructor Documentation

FGridCoarseGraining() [1/2]

FGridCoarseGraining::FGridCoarseGraining ( )

inline

FGridCoarseGraining() [2/2]

FGridCoarseGraining::FGridCoarseGraining ( NLReader::NamelistReader &  nlr )

inline

Construct and configure FGridCoarseGraining from the f0_param namelist.

Parameters

[in]

nlr

Reference to an active NamelistReader.

The following keys are read (defaults in parentheses):

• f0_coarse_graining_on (.false.)
• f0_coarse_graining_alpha (1.0e‑3)

The internal StepTrigger is set to a period of 1 (i.e. apply is called in f_source every time). Note that the constructor is called only if enabled==true (see sources.hpp).

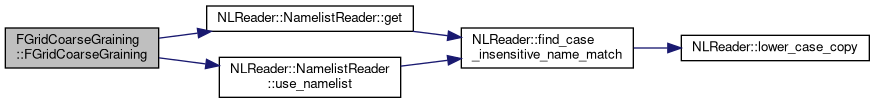

Here is the call graph for this function:

Member Function Documentation

apply()

void FGridCoarseGraining::apply ( Plasma &  plasma, VGridDistribution< DeviceType > &  df0g  ) const

inline

Apply the coarse‑graining operation to all non‑adiabatic species.

Parameters

[in,out]	plasma	Full plasma state (provides f0g for each species).
[in,out]	df0g	Reference to the cumulative delta-f container (same layout as species.f0.f0g). The kernel adds alpha*f0g into this view.

The routine loops over all non-adiabatic species and then over the configuration space vertices (parallelized with Kokkos), and the two velocity dimensions to move a fraction alpha·f0g from the background grid distribution species.f0.f0g into the cumulative source container df0g and removes the same amount from f0g

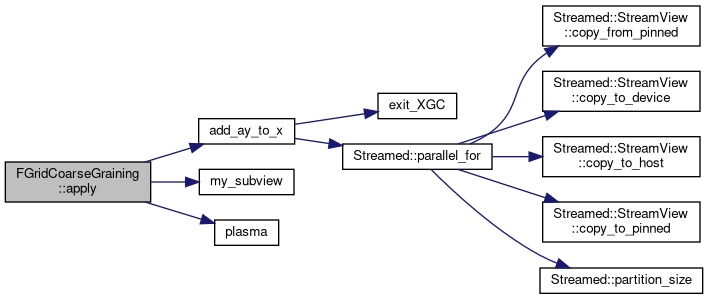

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

alpha

double FGridCoarseGraining::alpha

private

enabled

bool FGridCoarseGraining::enabled

private

---

The documentation for this class was generated from the following file:

• /p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/fgrid_coarse_graining.hpp
