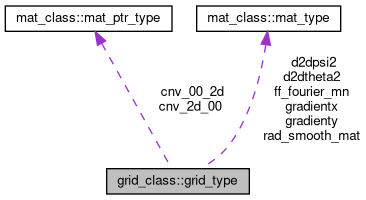

Collaboration diagram for grid_class::grid_type:
Public Attributes | |
| integer | nnode |
| integer | ntriangle |
| integer, dimension(:), pointer | rgn |
| real(kind=8), dimension(:), pointer | psi |
| real(kind=8), dimension(:,:), pointer | x |
| integer, dimension(:,:), pointer | nd |
| real(kind=8), dimension(:,:,:), pointer | mapping |
| integer, dimension(:,:), allocatable | tr_node |
| integer, dimension(:), allocatable | num_t_node |
| real(kind=8), dimension(:,:,:), allocatable | unit_vecs |
| integer, dimension(:), pointer | basis |
| type(mat_type) | gradientx |
| type(mat_type) | gradienty |
| type(mat_type) | d2dtheta2 |
| type(mat_type) | d2dpsi2 |
| type(mat_type) | rad_smooth_mat |
| integer, dimension(2) | guess_n |
| real(kind=8), dimension(2) | guess_min |
| real(kind=8), dimension(2) | guess_max |
| real(kind=8), dimension(2) | inv_guess_d |
| integer, dimension(:), pointer | guess_list |
| integer, dimension(:,:), pointer | guess_xtable |
| integer, dimension(:,:), pointer | guess_count |
| integer | iphi_offset |
| integer | nphi |
| real(kind=8) | delta_phi |
| real(kind=8) | inv_delta_phi |
| real(kind=8) | phimin |
| real(kind=8) | phimax |
| integer, dimension(0:ptl_nsp_max) | nrho |
| real(8), dimension(0:ptl_nsp_max) | rhomax |
| real(8), dimension(0:ptl_nsp_max) | drho |
| integer | npsi_surf |
| integer | npsi_surf2 |
| type(mat_ptr_type) | cnv_2d_00 |
| type(mat_ptr_type) | cnv_00_2d |
| real(8), dimension(:), pointer | psi_surf |
| real(8), dimension(:), pointer | psi_surf2 |
| integer, dimension(:), pointer | psi_surf_map |
| mapping from psi_surf2 --> psi_surf More... | |
| integer | surf_maxlen |
| Maximum number of vertices per flux-surface. More... | |
| integer, dimension(:), allocatable | surf_len |
| Lengths (# of vertices) for each flux-surface. More... | |
| integer, dimension(:,:), allocatable | surf_idx |
| Vertex indices for each flux-surface. More... | |
| integer | num_non_aligned |
| Number of non-surface-aligned vertices. More... | |
| integer, dimension(:), allocatable | non_aligned_vert |
| Indices of non-aligned vertices. More... | |
| integer, dimension(:), allocatable | non_aligned_nsurf |
| Number of adjacent flux-surfaces for each non-aligned vertex. More... | |
| integer, dimension(:,:), allocatable | non_aligned_surf_idx |
| Indices of the flux-surfaces adjacent to each non-aligned vertex. More... | |
| integer, dimension(:,:), allocatable | non_aligned_ff_idx |
| Vertex indices of interpolation stencil for field-line following Fourier-filter. More... | |
| integer, dimension(:,:), allocatable | non_aligned_ff_s_idx |
| Surface indices of interpolation stencil for field-line following Fourier-filter. More... | |
| integer, dimension(:,:), allocatable | strikep |
| Indices of the strike points of the open flux-surfaces. More... | |
| real(kind=8), dimension(:,:), allocatable | non_aligned_ff_w |
| Interpolation weights for field-line following Fourier-filter. More... | |
| real(kind=8), dimension(:), allocatable | theta |
| generalized poloidal angle (currently only for closed surfaces) More... | |
| integer, dimension(:,:), allocatable | theta_sort_idx |
| index set that sorts the generalized pol. angle in ascending order on each flux_surface More... | |
| real(kind=8), dimension(:), allocatable | surf_arc_len |
| poloidal arc-length of the complete flux-surfaces (currently only for closed surfaces) More... | |
| real(kind=8), dimension(:,:), allocatable | sol_fourier_win |
| poloidal window for Fourier smoothing of the electrostatic potential in the SOL More... | |
| integer | len_sep |
| integer | j0_sep |
| length and start index of upper part of separatrix surface More... | |
| integer | len_sep2 |
| integer | j0_sep2 |
| length and start index of lower part of second separatrix surface More... | |
| type(mat_type) | ff_fourier_mn |
| integer(kind=8), dimension(:), allocatable | ft_plan_1d |
| integer(kind=8), dimension(:), allocatable | ft_plan2_1d |
| FFTW3 plans for FFTs on flux-surfaces (1D, r2c) More... | |
| integer(kind=8), dimension(:), allocatable | ft_plan_1d_c2c |
| integer(kind=8), dimension(:), allocatable | ft_plan2_1d_c2c |
| FFTW3 plans for FFTs on flux-surfaces (1D, c2c) More... | |
| integer, dimension(:), allocatable | fft_isurf_beg |
| integer, dimension(:), allocatable | fft_isurf_end |
| Start and end flux-surface indices for this MPI rank. More... | |
| complex(kind=8), dimension(:,:), allocatable | fft_tor_exp |
| Pre-computed exponentials for toroidal FFT. More... | |
| integer | fft_num_ntor |
| Number of toroidal Fourier modes. More... | |
| real(kind=8), dimension(:), allocatable | fft_ntor |
| Toroidal mode numbers retained. More... | |
| real(kind=8), dimension(:,:,:), allocatable | spl_coef |
| Grid coefficients for spline interpolation between uniform and non-uniform theta* grids. More... | |
| integer, dimension(:,:,:), allocatable | spl_idx |
| Indices of points on non-uniform theta* grid adjacent to each point on uniform theta* grid. More... | |
| integer | uniform_max |
| Maximum size of uniform theta* grid. More... | |
| integer | n_x_point |
| integer | i_x1 |
| integer | i_x2 |
| integer | nsurf1 |
| integer | nsurf2 |
| integer | nsurf3a |
| integer | nsurf3b |
| integer | isurf_sep1 |
| integer | isurf_sep2 |
| real(kind=8), dimension(:), pointer | node_area |
| real(kind=8), dimension(:), pointer | node_vol |
| real(kind=8), dimension(:), pointer | tr_vol |
| real(kind=8), dimension(:), pointer | tr_area |
| real(8), dimension(:,:), pointer | node_vol_ff |
| real(8), dimension(:), pointer | node_vol_nearest |
| real(kind=8), dimension(:,:), allocatable | bfield |
| B vector: second dimension --> 1-3 => R,Z,phi components, 4 => |B|. More... | |
| real(kind=8), dimension(:,:), allocatable | v_curv |
| curl(B) More... | |
| real(kind=8), dimension(:,:), allocatable | v_gradb |
| Bxgrad(B) More... | |
| real(kind=8), dimension(:), allocatable | v_curv_avg |
| Flux-avg of radial curvature drift <1/(|grad(psi)|*B^2) curl(B)> |grad(psi)| B^2. More... | |
| real(kind=8), dimension(:), allocatable | v_gradb_avg |
| Flux-avg of radial grad(B) drift <1/(|grad(psi)|*B^3) Bxgrad(B)> |grad(psi)| B^3. More... | |
| real(kind=8), dimension(:,:), allocatable | curl_nb |
| Curl of normalized B, i.e., curl(B/|B|) More... | |
| real(kind=8), dimension(:), allocatable | nb_curl_nb |
| b.curl(b) More... | |
| real(kind=8), dimension(:,:), allocatable | gradpsi |
| grad(psi)=dpsi/dr R_hat + dpsi/dz Z_hat More... | |
| real(kind=8), dimension(:), allocatable | absgradpsi |
| |grad(psi)| More... | |
| real(kind=8), dimension(:), allocatable | absgradpsi_avg |
| Flux-avg of absgradpsi. More... | |
| real(kind=8), dimension(:), allocatable | trapped |
| Trapped particle fraction on uniform psi-grid. More... | |
| real(kind=8), dimension(:,:), allocatable | epspar |
| Neoclassical inv. aspect ratio (R_min/R_maj) on uniform psi-grid. More... | |
| real(kind=8), dimension(:), allocatable | qsafety |
| Safety factor from qevaluateandtrapped.F90 on uniform psi-grid. More... | |
| real(kind=8), dimension(:), allocatable | rmin |
| Minor radius on flux-surfaces. More... | |
| real(kind=8), dimension(:), allocatable | rmaj |
| Major radius on flux-surfaces. More... | |
| integer | nsurf |
| integer, dimension(:), allocatable | itheta0 |
| integer, dimension(:), allocatable | ntheta0 |
| integer | nwall =0 |
| Number of wall vertices. More... | |
| integer, dimension(:), pointer | wall_nodes |
| Mapping from wall vertices to grid vertices (length: nwall) More... | |
| integer, dimension(:), pointer | node_to_wall |
| Mapping from grid vertices to wall vertices (length: nnode), -1 if not a wall node. More... | |
| real(kind=8), dimension(:), allocatable | wall_length |
| Length of the segments of the wall curve. More... | |
| integer, dimension(:), allocatable | m_max_surf |
| Maximum poloidal mode number supported by the flux surface. More... | |
| logical | old_flx_aif_format |
Member Data Documentation
◆ absgradpsi
| real (kind=8), dimension(:), allocatable grid_class::grid_type::absgradpsi |
|grad(psi)|
◆ absgradpsi_avg
| real (kind=8), dimension(:), allocatable grid_class::grid_type::absgradpsi_avg |
Flux-avg of absgradpsi.
◆ basis
| integer, dimension(:), pointer grid_class::grid_type::basis |
◆ bfield
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::bfield |
B vector: second dimension --> 1-3 => R,Z,phi components, 4 => |B|.
◆ cnv_00_2d
| type(mat_ptr_type) grid_class::grid_type::cnv_00_2d |
◆ cnv_2d_00
| type(mat_ptr_type) grid_class::grid_type::cnv_2d_00 |
◆ curl_nb
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::curl_nb |
Curl of normalized B, i.e., curl(B/|B|)
◆ d2dpsi2
| type (mat_type) grid_class::grid_type::d2dpsi2 |
◆ d2dtheta2
| type (mat_type) grid_class::grid_type::d2dtheta2 |
◆ delta_phi
| real (kind=8) grid_class::grid_type::delta_phi |
◆ drho
| real (8), dimension(0:ptl_nsp_max) grid_class::grid_type::drho |
◆ epspar
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::epspar |
Neoclassical inv. aspect ratio (R_min/R_maj) on uniform psi-grid.
◆ ff_fourier_mn
| type(mat_type) grid_class::grid_type::ff_fourier_mn |
◆ fft_isurf_beg
| integer, dimension(:), allocatable grid_class::grid_type::fft_isurf_beg |
◆ fft_isurf_end
| integer, dimension(:), allocatable grid_class::grid_type::fft_isurf_end |
Start and end flux-surface indices for this MPI rank.
◆ fft_ntor
| real (kind=8), dimension(:), allocatable grid_class::grid_type::fft_ntor |
Toroidal mode numbers retained.
◆ fft_num_ntor
| integer grid_class::grid_type::fft_num_ntor |
Number of toroidal Fourier modes.
◆ fft_tor_exp
| complex (kind=8), dimension(:,:), allocatable grid_class::grid_type::fft_tor_exp |
Pre-computed exponentials for toroidal FFT.
◆ ft_plan2_1d
| integer (kind=8), dimension(:), allocatable grid_class::grid_type::ft_plan2_1d |
FFTW3 plans for FFTs on flux-surfaces (1D, r2c)
◆ ft_plan2_1d_c2c
| integer (kind=8), dimension(:), allocatable grid_class::grid_type::ft_plan2_1d_c2c |
FFTW3 plans for FFTs on flux-surfaces (1D, c2c)
◆ ft_plan_1d
| integer (kind=8), dimension(:), allocatable grid_class::grid_type::ft_plan_1d |
◆ ft_plan_1d_c2c
| integer (kind=8), dimension(:), allocatable grid_class::grid_type::ft_plan_1d_c2c |
◆ gradientx
| type (mat_type) grid_class::grid_type::gradientx |
◆ gradienty
| type (mat_type) grid_class::grid_type::gradienty |
◆ gradpsi
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::gradpsi |
grad(psi)=dpsi/dr R_hat + dpsi/dz Z_hat
◆ guess_count
| integer, dimension(:,:), pointer grid_class::grid_type::guess_count |
◆ guess_list
| integer, dimension(:), pointer grid_class::grid_type::guess_list |
◆ guess_max
| real (kind=8), dimension(2) grid_class::grid_type::guess_max |
◆ guess_min
| real (kind=8), dimension(2) grid_class::grid_type::guess_min |
◆ guess_n
| integer, dimension(2) grid_class::grid_type::guess_n |
◆ guess_xtable
| integer, dimension(:,:), pointer grid_class::grid_type::guess_xtable |
◆ i_x1
| integer grid_class::grid_type::i_x1 |
◆ i_x2
| integer grid_class::grid_type::i_x2 |
◆ inv_delta_phi
| real (kind=8) grid_class::grid_type::inv_delta_phi |
◆ inv_guess_d
| real (kind=8), dimension(2) grid_class::grid_type::inv_guess_d |
◆ iphi_offset
| integer grid_class::grid_type::iphi_offset |
◆ isurf_sep1
| integer grid_class::grid_type::isurf_sep1 |
◆ isurf_sep2
| integer grid_class::grid_type::isurf_sep2 |
◆ itheta0
| integer, dimension(:), allocatable grid_class::grid_type::itheta0 |
◆ j0_sep
| integer grid_class::grid_type::j0_sep |
length and start index of upper part of separatrix surface
◆ j0_sep2
| integer grid_class::grid_type::j0_sep2 |
length and start index of lower part of second separatrix surface
◆ len_sep
| integer grid_class::grid_type::len_sep |
◆ len_sep2
| integer grid_class::grid_type::len_sep2 |
◆ m_max_surf
| integer, dimension(:), allocatable grid_class::grid_type::m_max_surf |
Maximum poloidal mode number supported by the flux surface.
◆ mapping
| real (kind=8), dimension(:,:,:), pointer grid_class::grid_type::mapping |
◆ n_x_point
| integer grid_class::grid_type::n_x_point |
◆ nb_curl_nb
| real (kind=8), dimension(:), allocatable grid_class::grid_type::nb_curl_nb |
b.curl(b)
◆ nd
| integer, dimension(:,:), pointer grid_class::grid_type::nd |
◆ nnode
| integer grid_class::grid_type::nnode |
◆ node_area
| real (kind=8), dimension(:), pointer grid_class::grid_type::node_area |
◆ node_to_wall
| integer, dimension(:), pointer grid_class::grid_type::node_to_wall |
Mapping from grid vertices to wall vertices (length: nnode), -1 if not a wall node.
◆ node_vol
| real (kind=8), dimension(:), pointer grid_class::grid_type::node_vol |
◆ node_vol_ff
| real (8), dimension(:,:), pointer grid_class::grid_type::node_vol_ff |
◆ node_vol_nearest
| real (8), dimension(:), pointer grid_class::grid_type::node_vol_nearest |
◆ non_aligned_ff_idx
| integer, dimension(:,:), allocatable grid_class::grid_type::non_aligned_ff_idx |
Vertex indices of interpolation stencil for field-line following Fourier-filter.
◆ non_aligned_ff_s_idx
| integer, dimension(:,:), allocatable grid_class::grid_type::non_aligned_ff_s_idx |
Surface indices of interpolation stencil for field-line following Fourier-filter.
◆ non_aligned_ff_w
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::non_aligned_ff_w |
Interpolation weights for field-line following Fourier-filter.
◆ non_aligned_nsurf
| integer, dimension(:), allocatable grid_class::grid_type::non_aligned_nsurf |
Number of adjacent flux-surfaces for each non-aligned vertex.
◆ non_aligned_surf_idx
| integer, dimension(:,:), allocatable grid_class::grid_type::non_aligned_surf_idx |
Indices of the flux-surfaces adjacent to each non-aligned vertex.
◆ non_aligned_vert
| integer, dimension(:), allocatable grid_class::grid_type::non_aligned_vert |
Indices of non-aligned vertices.
◆ nphi
| integer grid_class::grid_type::nphi |
◆ npsi_surf
| integer grid_class::grid_type::npsi_surf |
◆ npsi_surf2
| integer grid_class::grid_type::npsi_surf2 |
◆ nrho
| integer, dimension(0:ptl_nsp_max) grid_class::grid_type::nrho |
◆ nsurf
| integer grid_class::grid_type::nsurf |
◆ nsurf1
| integer grid_class::grid_type::nsurf1 |
◆ nsurf2
| integer grid_class::grid_type::nsurf2 |
◆ nsurf3a
| integer grid_class::grid_type::nsurf3a |
◆ nsurf3b
| integer grid_class::grid_type::nsurf3b |
◆ ntheta0
| integer, dimension(:), allocatable grid_class::grid_type::ntheta0 |
◆ ntriangle
| integer grid_class::grid_type::ntriangle |
◆ num_non_aligned
| integer grid_class::grid_type::num_non_aligned |
Number of non-surface-aligned vertices.
◆ num_t_node
| integer, dimension(:), allocatable grid_class::grid_type::num_t_node |
◆ nwall
| integer grid_class::grid_type::nwall =0 |
Number of wall vertices.
◆ old_flx_aif_format
| logical grid_class::grid_type::old_flx_aif_format |
◆ phimax
| real (kind=8) grid_class::grid_type::phimax |
◆ phimin
| real (kind=8) grid_class::grid_type::phimin |
◆ psi
| real (kind=8), dimension(:), pointer grid_class::grid_type::psi |
◆ psi_surf
| real (8), dimension(:), pointer grid_class::grid_type::psi_surf |
◆ psi_surf2
| real (8), dimension(:), pointer grid_class::grid_type::psi_surf2 |
◆ psi_surf_map
| integer, dimension(:), pointer grid_class::grid_type::psi_surf_map |
mapping from psi_surf2 --> psi_surf
◆ qsafety
| real (kind=8), dimension(:), allocatable grid_class::grid_type::qsafety |
Safety factor from qevaluateandtrapped.F90 on uniform psi-grid.
◆ rad_smooth_mat
| type (mat_type) grid_class::grid_type::rad_smooth_mat |
◆ rgn
| integer, dimension(:), pointer grid_class::grid_type::rgn |
◆ rhomax
| real (8), dimension(0:ptl_nsp_max) grid_class::grid_type::rhomax |
◆ rmaj
| real (kind=8), dimension(:), allocatable grid_class::grid_type::rmaj |
Major radius on flux-surfaces.
◆ rmin
| real (kind=8), dimension(:), allocatable grid_class::grid_type::rmin |
Minor radius on flux-surfaces.
◆ sol_fourier_win
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::sol_fourier_win |
poloidal window for Fourier smoothing of the electrostatic potential in the SOL
◆ spl_coef
| real (kind=8), dimension(:,:,:), allocatable grid_class::grid_type::spl_coef |
Grid coefficients for spline interpolation between uniform and non-uniform theta* grids.
◆ spl_idx
| integer, dimension(:,:,:), allocatable grid_class::grid_type::spl_idx |
Indices of points on non-uniform theta* grid adjacent to each point on uniform theta* grid.
◆ strikep
| integer, dimension(:,:), allocatable grid_class::grid_type::strikep |
Indices of the strike points of the open flux-surfaces.
◆ surf_arc_len
| real (kind=8), dimension(:), allocatable grid_class::grid_type::surf_arc_len |
poloidal arc-length of the complete flux-surfaces (currently only for closed surfaces)
◆ surf_idx
| integer, dimension(:,:), allocatable grid_class::grid_type::surf_idx |
Vertex indices for each flux-surface.
◆ surf_len
| integer, dimension(:), allocatable grid_class::grid_type::surf_len |
Lengths (# of vertices) for each flux-surface.
◆ surf_maxlen
| integer grid_class::grid_type::surf_maxlen |
Maximum number of vertices per flux-surface.
◆ theta
| real (kind=8), dimension(:), allocatable grid_class::grid_type::theta |
generalized poloidal angle (currently only for closed surfaces)
◆ theta_sort_idx
| integer, dimension(:,:), allocatable grid_class::grid_type::theta_sort_idx |
index set that sorts the generalized pol. angle in ascending order on each flux_surface
◆ tr_area
| real (kind=8), dimension(:), pointer grid_class::grid_type::tr_area |
◆ tr_node
| integer, dimension(:,:), allocatable grid_class::grid_type::tr_node |
◆ tr_vol
| real (kind=8), dimension(:), pointer grid_class::grid_type::tr_vol |
◆ trapped
| real (kind=8), dimension(:), allocatable grid_class::grid_type::trapped |
Trapped particle fraction on uniform psi-grid.
◆ uniform_max
| integer grid_class::grid_type::uniform_max |
Maximum size of uniform theta* grid.
◆ unit_vecs
| real (kind=8), dimension(:,:,:), allocatable grid_class::grid_type::unit_vecs |
◆ v_curv
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::v_curv |
curl(B)
◆ v_curv_avg
| real (kind=8), dimension(:), allocatable grid_class::grid_type::v_curv_avg |
Flux-avg of radial curvature drift <1/(|grad(psi)|*B^2) curl(B)> |grad(psi)| B^2.
◆ v_gradb
| real (kind=8), dimension(:,:), allocatable grid_class::grid_type::v_gradb |
Bxgrad(B)
◆ v_gradb_avg
| real (kind=8), dimension(:), allocatable grid_class::grid_type::v_gradb_avg |
Flux-avg of radial grad(B) drift <1/(|grad(psi)|*B^3) Bxgrad(B)> |grad(psi)| B^3.
◆ wall_length
| real (kind=8), dimension(:), allocatable grid_class::grid_type::wall_length |
Length of the segments of the wall curve.
◆ wall_nodes
| integer, dimension(:), pointer grid_class::grid_type::wall_nodes |
Mapping from wall vertices to grid vertices (length: nwall)
◆ x
| real (kind=8), dimension(:,:), pointer grid_class::grid_type::x |
The documentation for this type was generated from the following file:
- /p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/search.F90
