Data Types | |
| type | grid_type |
Functions/Subroutines | |
| subroutine | set_fortran_flx_aif_format (old_flx_aif_format_int) |
| subroutine | init_fortran_grid (grid_nnode_in, grid_ntriangle_in, grid_nwall_in, grid_x_in, grid_rgn_in, grid_nd_in, grid_mapping_in, grid_wall_nodes_in, grid_node_to_wall_in, basis_in) |
| subroutine | init_fortran_grid_surf (n_xpt, i_x1, i_x2, nsurf1, nsurf2, nsurf3a, nsurf3b, isurf_sep1, isurf_sep2, npsi_surf, surf_maxlen, num_non_aligned, surf_len, surf_idx, non_aligned_vert, non_aligned_nsurf, non_aligned_surf_idx) |
| subroutine | init_secondary_grid_arrays (grid_psi_in, grid_grad_psi_in, grid_bfield_in) |
| subroutine | init_guess_table_from_cpp (guess_n1, guess_list_len, guess_n_in, guess_min_in, guess_max_in, inv_guess_d_in, guess_list_in, guess_xtable_in, guess_count_in) |
| subroutine | init_fortran_vols_and_areas (tr_area_h, tr_vol_h, node_vol_ff_h, node_vol_nearest_h, node_vol_h, node_area_h) |
| subroutine | init_fortran_psi_grid_props (npsi_surf, psi_surf, npsi_surf2, psi_surf2, psi_surf_map) |
| subroutine | alloc_fortran_gradient_mat_unit_vec (m, n, width) |
| subroutine | set_fort_fsamat_ptr (m, n, width, value, eindex, nelement, m2, n2, width2, value2, eindex2, nelement2) |
| subroutine | init_grid (grid) |
| Initializes the grid data structure from input files containing i) The (R,Z) coordinates of all vertices including whether they are wall vertices (.node file), ii) the connectivity of the vertices defining the triangles of the unstructured mesh (.ele file), iii) the flux-surface connectivity, i.e. which vertices are on the same flux-surface, and for vertices not aligned on flux-surfaces between which flux-surfaces those vertices lie. More... | |
| subroutine | init_triangle (grid) |
| subroutine | t_coeff (grid, itr, x, p) |
| subroutine | t_coeff_mod (grid, xy, psiin, itr, p) |
| subroutine | calc_gen_theta_psi (grid) |
| Calculates the average psi on the complete flux-surfaces and the generalized poloidal angle (=normalized poloidal arc length) More... | |
| subroutine | init_wall (grid) |
| integer function | get_nsurfs_for_avg () |
Variables | |
| integer, parameter | grid_rgn_wall = 100 |
| real(8), parameter | grid_search_tr2_psi_null = -1D10 |
| integer, parameter | grid_min_surf_size = 5 |
| type(grid_type), target | grid_global |
Function/Subroutine Documentation
◆ alloc_fortran_gradient_mat_unit_vec()
| subroutine grid_class::alloc_fortran_gradient_mat_unit_vec | ( | integer(c_int), intent(in), value | m, |
| integer(c_int), intent(in), value | n, | ||
| integer(c_int), intent(in), value | width | ||
| ) |
Here is the call graph for this function:
◆ calc_gen_theta_psi()
| subroutine grid_class::calc_gen_theta_psi | ( | type(grid_type), intent(inout) | grid | ) |
Calculates the average psi on the complete flux-surfaces and the generalized poloidal angle (=normalized poloidal arc length)
- Parameters
-
grid (inout) type(grid_type), grid information

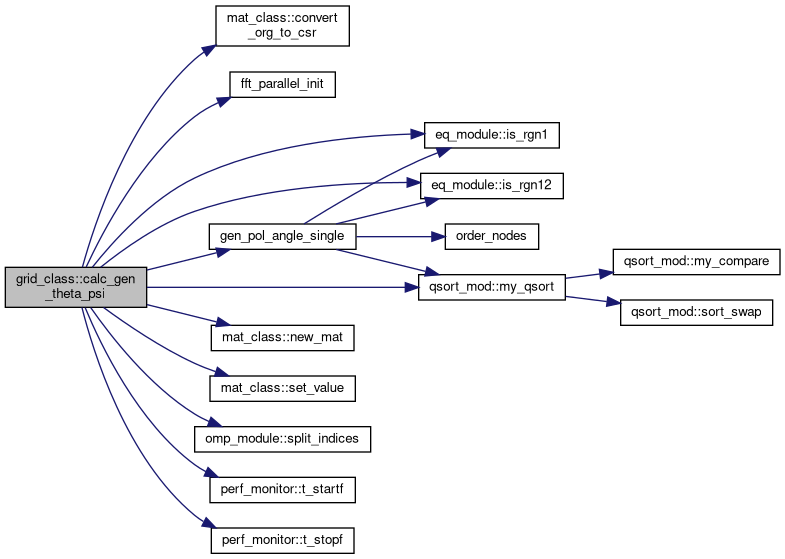

Here is the call graph for this function:

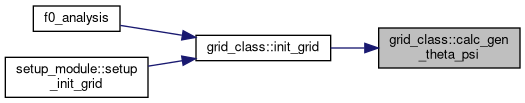

Here is the caller graph for this function:
◆ get_nsurfs_for_avg()
| integer function grid_class::get_nsurfs_for_avg |
◆ init_fortran_grid()
| subroutine grid_class::init_fortran_grid | ( | integer(c_int), intent(in), value | grid_nnode_in, |
| integer(c_int), intent(in), value | grid_ntriangle_in, | ||
| integer(c_int), intent(in), value | grid_nwall_in, | ||
| real (kind=8), dimension(2,grid_nnode_in), target | grid_x_in, | ||
| integer(c_int), dimension(grid_nnode_in), target | grid_rgn_in, | ||
| integer(c_int), dimension(3,grid_ntriangle_in), target | grid_nd_in, | ||
| real (kind=8), dimension(2,3,grid_ntriangle_in), target | grid_mapping_in, | ||
| integer(c_int), dimension(grid_nwall_in), target | grid_wall_nodes_in, | ||
| integer(c_int), dimension(grid_nnode_in), target | grid_node_to_wall_in, | ||
| integer(c_int), dimension(grid_nnode_in), target | basis_in | ||
| ) |
◆ init_fortran_grid_surf()
| subroutine grid_class::init_fortran_grid_surf | ( | integer(c_int), intent(in), value | n_xpt, |
| integer(c_int), intent(in), value | i_x1, | ||
| integer(c_int), intent(in), value | i_x2, | ||
| integer(c_int), intent(in), value | nsurf1, | ||
| integer(c_int), intent(in), value | nsurf2, | ||
| integer(c_int), intent(in), value | nsurf3a, | ||
| integer(c_int), intent(in), value | nsurf3b, | ||
| integer(c_int), intent(in), value | isurf_sep1, | ||
| integer(c_int), intent(in), value | isurf_sep2, | ||
| integer(c_int), intent(in), value | npsi_surf, | ||
| integer(c_int), intent(in), value | surf_maxlen, | ||
| integer(c_int), intent(in), value | num_non_aligned, | ||
| integer(c_int), dimension(npsi_surf), target | surf_len, | ||
| integer(c_int), dimension(surf_maxlen, npsi_surf), target | surf_idx, | ||
| integer(c_int), dimension(num_non_aligned), target | non_aligned_vert, | ||
| integer(c_int), dimension(num_non_aligned), target | non_aligned_nsurf, | ||
| integer(c_int), dimension(4,num_non_aligned), target | non_aligned_surf_idx | ||
| ) |
◆ init_fortran_psi_grid_props()
| subroutine grid_class::init_fortran_psi_grid_props | ( | integer(c_int), intent(in), value | npsi_surf, |
| real(c_double), dimension(npsi_surf), target | psi_surf, | ||
| integer(c_int), intent(in), value | npsi_surf2, | ||
| real(c_double), dimension(npsi_surf2), target | psi_surf2, | ||
| integer(c_int), dimension(npsi_surf2), target | psi_surf_map | ||
| ) |
◆ init_fortran_vols_and_areas()
| subroutine grid_class::init_fortran_vols_and_areas | ( | real(c_double), dimension(grid_global%ntriangle), target | tr_area_h, |
| real(c_double), dimension(grid_global%ntriangle), target | tr_vol_h, | ||
| real(c_double), dimension(grid_global%nnode, 0:1), target | node_vol_ff_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_vol_nearest_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_vol_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_area_h | ||
| ) |
◆ init_grid()
| subroutine grid_class::init_grid | ( | type(grid_type), intent(inout) | grid | ) |
Initializes the grid data structure from input files containing i) The (R,Z) coordinates of all vertices including whether they are wall vertices (.node file), ii) the connectivity of the vertices defining the triangles of the unstructured mesh (.ele file), iii) the flux-surface connectivity, i.e. which vertices are on the same flux-surface, and for vertices not aligned on flux-surfaces between which flux-surfaces those vertices lie.
- Parameters
-
[in,out] grid memory for grid data, type(grid_type) [in] filename3 File containing the flux-surface connectivity

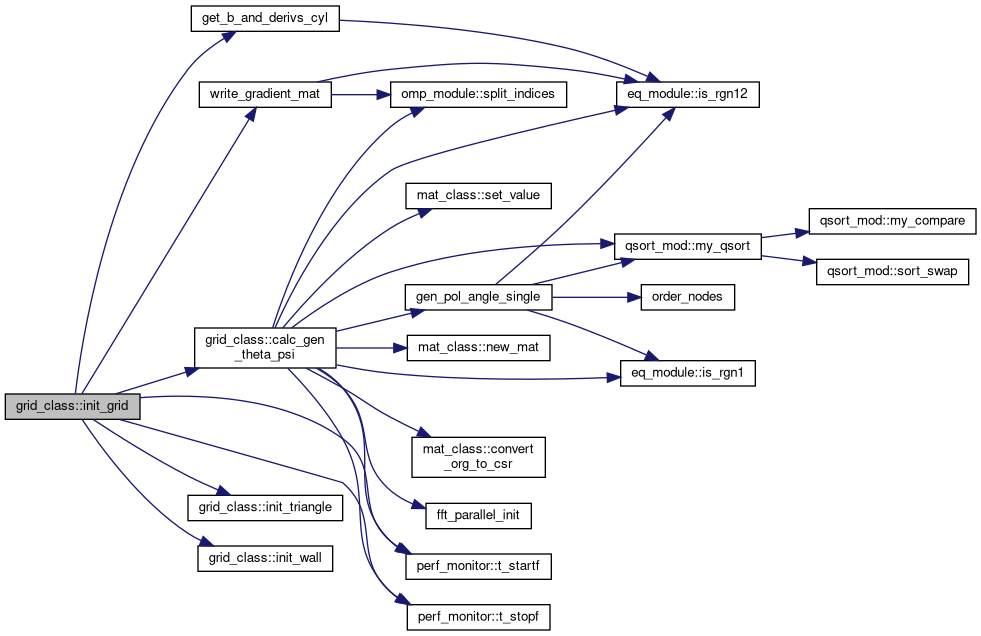

Here is the call graph for this function:

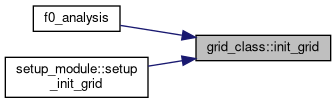

Here is the caller graph for this function:
◆ init_guess_table_from_cpp()
| subroutine grid_class::init_guess_table_from_cpp | ( | integer(c_int), intent(in), value | guess_n1, |
| integer(c_int), intent(in), value | guess_list_len, | ||
| integer(c_int), dimension(2) | guess_n_in, | ||
| real (kind=8), dimension(2) | guess_min_in, | ||
| real (kind=8), dimension(2) | guess_max_in, | ||
| real (kind=8), dimension(2) | inv_guess_d_in, | ||
| integer(c_int), dimension(guess_list_len), target | guess_list_in, | ||
| integer(c_int), dimension(guess_n1,guess_n1), target | guess_xtable_in, | ||
| integer(c_int), dimension(guess_n1,guess_n1), target | guess_count_in | ||
| ) |
◆ init_secondary_grid_arrays()
| subroutine grid_class::init_secondary_grid_arrays | ( | real (kind=8), dimension(grid_global%nnode), target | grid_psi_in, |
| real (kind=8), dimension(grid_global%nnode, 2) | grid_grad_psi_in, | ||
| real (kind=8), dimension(grid_global%nnode, 4) | grid_bfield_in | ||
| ) |
◆ init_triangle()
| subroutine grid_class::init_triangle | ( | type(grid_type) | grid | ) |

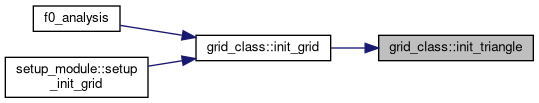

Here is the caller graph for this function:
◆ init_wall()
| subroutine grid_class::init_wall | ( | type(grid_type) | grid | ) |

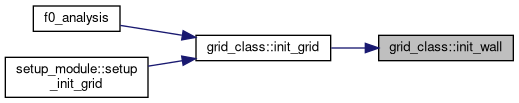

Here is the caller graph for this function:
◆ set_fort_fsamat_ptr()
| subroutine grid_class::set_fort_fsamat_ptr | ( | integer(c_int), intent(in), value | m, |
| integer(c_int), intent(in), value | n, | ||
| integer(c_int), intent(in), value | width, | ||
| real(8), dimension(width,m), intent(in), target | value, | ||
| integer(c_int), dimension(width,m), intent(in), target | eindex, | ||
| integer(c_int), dimension(m), intent(in), target | nelement, | ||
| integer(c_int), intent(in), value | m2, | ||
| integer(c_int), intent(in), value | n2, | ||
| integer(c_int), intent(in), value | width2, | ||
| real(8), dimension(width2,m2), intent(in), target | value2, | ||
| integer(c_int), dimension(width2,m2), intent(in), target | eindex2, | ||
| integer(c_int), dimension(m2), intent(in), target | nelement2 | ||
| ) |
◆ set_fortran_flx_aif_format()
| subroutine grid_class::set_fortran_flx_aif_format | ( | integer(c_int), intent(in), value | old_flx_aif_format_int | ) |
◆ t_coeff()
| subroutine grid_class::t_coeff | ( | type(grid_type), intent(in) | grid, |
| integer, intent(in) | itr, | ||
| real (kind=8), dimension(2), intent(in) | x, | ||
| real (kind=8), dimension(3), intent(out) | p | ||
| ) |

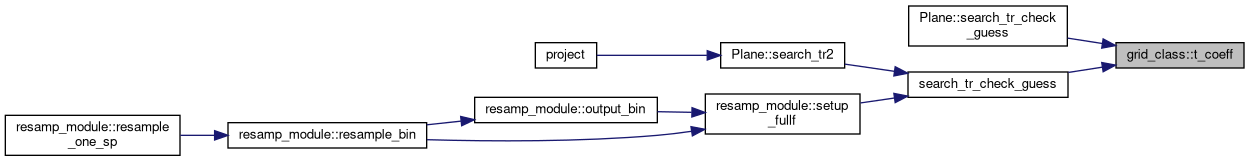

Here is the caller graph for this function:
◆ t_coeff_mod()
| subroutine grid_class::t_coeff_mod | ( | type (grid_type), intent(in) | grid, |
| real (kind=8), dimension(2), intent(in) | xy, | ||
| real (kind=8), intent(in) | psiin, | ||
| integer, intent(in) | itr, | ||
| real (kind=8), dimension(3), intent(out) | p | ||
| ) |

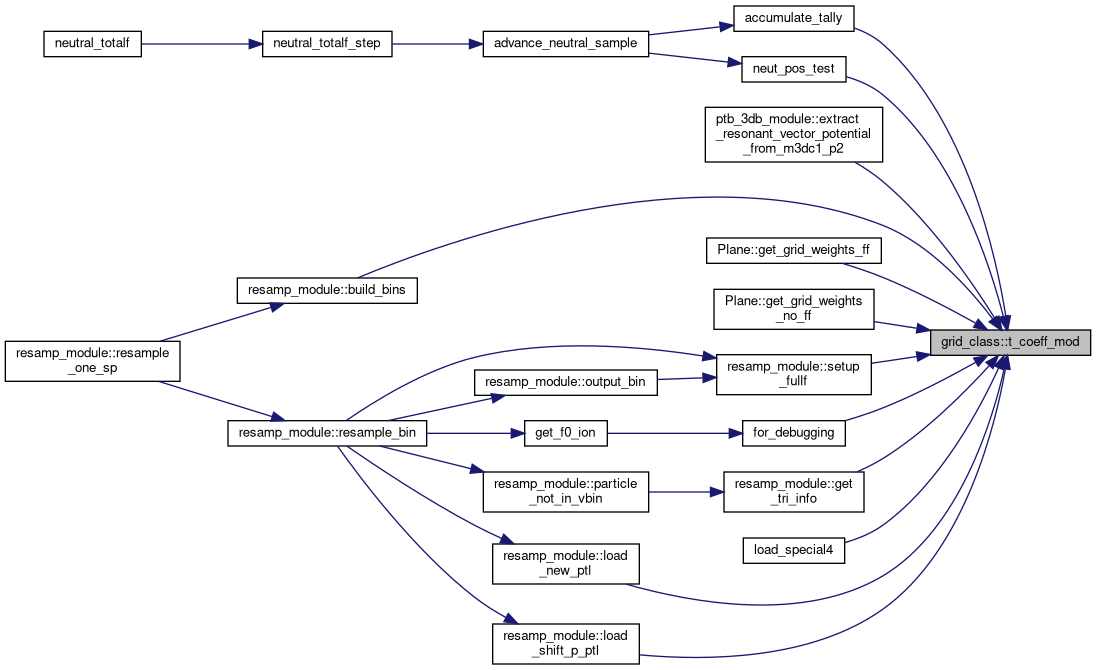

Here is the caller graph for this function:
Variable Documentation
◆ grid_global
| type(grid_type), target grid_class::grid_global |
◆ grid_min_surf_size
| integer, parameter grid_class::grid_min_surf_size = 5 |
◆ grid_rgn_wall
| integer, parameter grid_class::grid_rgn_wall = 100 |
◆ grid_search_tr2_psi_null
| real (8), parameter grid_class::grid_search_tr2_psi_null = -1D10 |
