#include <poly_basis.hpp>

Collaboration diagram for PolynomialBasis< Device >:

Public Member Functions
View< double ***, CLayout, Device >	compute_inner_product (const View< double ***, CLayout, Device > &dist_in) const

PolynomialBasisDistribution < Device >	get_coefficients (const View< double ***, CLayout, Device > &inner_prod_matrix) const

template<typename F >
void	add_basis (int &basis_ind, F func)

template<typename... Fs>
	PolynomialBasis (const UniformRange &xrange_in, const UniformRange &yrange_in, Fs...funcs)

PolynomialBasisDistribution < Device >	get_distribution (const View< double ***, CLayout, Device > &dist_in) const

template<typename F >
View< double **, CLayout, Device >	get_moments (const int nnode, F lambda_func) const

View< double ***, CLayout, Device >	get_scaling (const PolynomialBasisDistribution< Device > &polynom, const View< double **, CLayout, Device > &g_mom) const

Private Types
using	exec_space = typename Device::execution_space

Private Attributes
int	n_poly

UniformRange	xrange

UniformRange	yrange

View< double ***, CLayout, Device >	bases

View< double ***, CLayout, HostType >	bases_h

View< double ****, CLayout, Device >	matrix

Member Typedef Documentation

template<class Device>

using PolynomialBasis< Device >::exec_space = typename Device::execution_space

private

Constructor & Destructor Documentation

template<class Device>

template<typename... Fs>

PolynomialBasis< Device >::PolynomialBasis	(	const UniformRange &	xrange_in,
		const UniformRange &	yrange_in,
		Fs...	funcs
	)

inline

Constructor for a polynomial basis with one polynomial per provided function, evaluated with the range and resolution specified by xrange_in and yrange_in. The resulting basis will be able to evaluate all given functions at any point within the specified ranges.

Parameters

[in]	xrange_in	A uniform range object specifying the interval on which the polynomials should have support in the first dimension
[in]	yrange_in	A uniform range object specifying the interval on which the polynomials should have support in the second dimension
[in]	funcs	The desired basis functions on two dimensions

Here is the call graph for this function:

Member Function Documentation

template<class Device>

template<typename F >

void PolynomialBasis< Device >::add_basis	(	int &	basis_ind,
		F	func
	)

inline

Adds a new basis for the polynomial representation

Parameters

[in,out]	basis_ind	Offset index that is incremented so that the next basis is added to the next index in bases_h
[in]	func	Function representating the new basis on two dimensions (x, y)

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>

View<double***, CLayout, Device> PolynomialBasis< Device >::compute_inner_product ( const View< double ***, CLayout, Device > & dist_in ) const

inline

Sets up a moment matrix of the current plasma distribution function and computes orthonormal polynomial basis for scaling of the plasma distribution function Polynomials: lambda_i = sum_[j=1]^4 c_[i,j] gamma_j where gamma_1 = 1, gamma_2 = v_||, gamma_3 = v_pe, gamma_4 = v_||^2, gamma_5 = v_pe^2 Inner product <lambda_i,lambda_j> = int[lambda_i lambda_j f d^3 v] Moment matrix defined by inner products <gamma_i,gamma_j> Gamma = | <1,1> <1 ,v_||> <1 ,v_pe> <1 ,v_||^2> <1 ,v_pe^2> | | <v_||,v_||> <v_||,v_pe> <v_|| ,v_||^2> <v_|| ,v_pe^2> | | <v_pe,v_pe> <v_pe ,v_||^2> <v_pe ,v_pe^2> | | <v_||^2,v_||^2> <v_||^2,v_pe^2> | | <v_pe^2,v_pe^2> | or Gamma = | <1,1> <1 ,v_||> <1 ,v_||^2> <1 ,v_pe^2> | | <v_||,v_||> <v_|| ,v_||^2> <v_|| ,v_pe^2> | | <v_||^2,v_||^2> <v_||^2,v_pe^2> | | <v_pe^2,v_pe^2> |

===> <lambda_i,lambda_j> = sum_[k,l=1]^5 c_[i,k] Gamma_[k,l] c_[j,l] ==> lambda_i^T.A.lambda_k The coefficients c_[i,l] are calculated with Gram-Schmidt process lambda_i = gamma_i - sum_[j=1]^[i-1] <gamma_i,lambda_j>/<lambda_j,lambda_j> lambda_j

The coefficients of the basis polynomials are stored in a 4x4 matrix, The inner products in the matrix A are stored in a 10-element vector starting with the main diagonal, then going through the upper side diagonals.

The moments in the matrix Gamma are evaluated from the global variable storing the distribution function –> f0_f

The coefficients c_[i,j] of the basis polynomials are stored in a PolynomialBasisDistribution struct.

Parameters

[in] dist_in The distribution function to be represented by polynomials return The inner product representation of dist_in

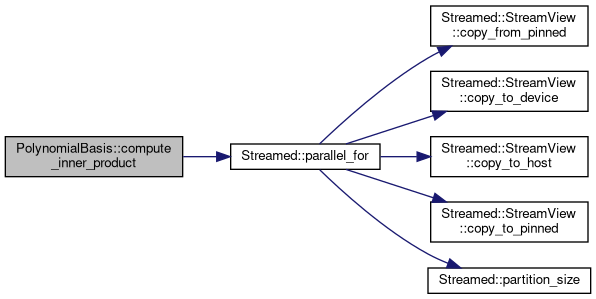

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>

PolynomialBasisDistribution<Device> PolynomialBasis< Device >::get_coefficients ( const View< double ***, CLayout, Device > & inner_prod_matrix ) const

inline

Given the inner product matrix built from an input distribution, calculate and return the distribution with polynomial representation

Parameters

[in] inner_prod_matrix The inner product matrix

Returns: The polynomial representation of the distribution used to calculate the inner product matrix

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>

PolynomialBasisDistribution<Device> PolynomialBasis< Device >::get_distribution ( const View< double ***, CLayout, Device > & dist_in ) const

inline

Constructs a polynomial representation of the input distribution

Parameters

[in] dist_in The distribution function to be represented by polynomials return The polynomial representation of the distribution used to calculate the inner product matrix

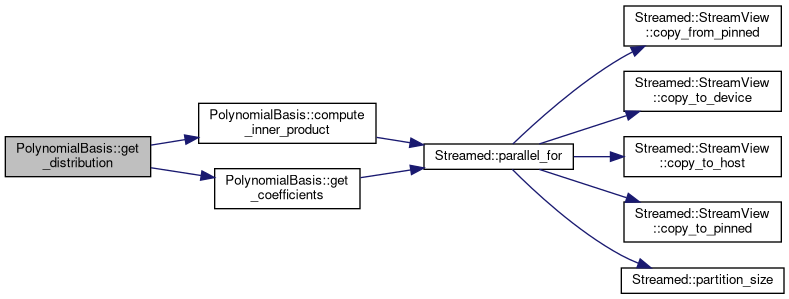

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>

template<typename F >

View<double**, CLayout, Device> PolynomialBasis< Device >::get_moments	(	const int	nnode,
		F	lambda_func
	)		const

inline

Computes moments of the distribution using a user-defined kernel function

Parameters

[in]	nnode	Number of mesh nodes to loop over
[in]	lambda_func	User defined kernel function for a single mesh node return The array of new moments

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>

View<double***, CLayout, Device> PolynomialBasis< Device >::get_scaling	(	const PolynomialBasisDistribution< Device > &	polynom,
		const View< double **, CLayout, Device > &	g_mom
	)		const

inline

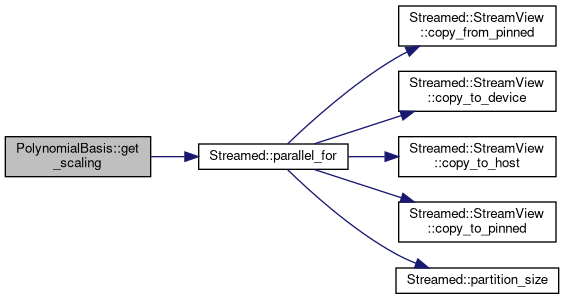

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

template<class Device>

View<double***, CLayout, Device> PolynomialBasis< Device >::bases

private

template<class Device>

View<double***, CLayout, HostType> PolynomialBasis< Device >::bases_h

private

template<class Device>

View<double****, CLayout, Device> PolynomialBasis< Device >::matrix

private

template<class Device>

int PolynomialBasis< Device >::n_poly

private

template<class Device>

UniformRange PolynomialBasis< Device >::xrange

private

template<class Device>

UniformRange PolynomialBasis< Device >::yrange

private

The documentation for this class was generated from the following file:

/u/gitlab-xgc/builds/YGMz2TJ8/0/xgc/XGC-Devel/XGC_core/cpp/poly_basis.hpp
