get_potential_grad.hpp File Reference

#include "sml.hpp"
#include "grid.hpp"
#include "domain_decomposition.hpp"
#include "magnetic_field.hpp"
#include "my_mirror_view.hpp"
#include "gradparx2.hpp"
#include "field_following_coordinates.hpp"
#include "gradient_matrices.hpp"
#include "gyro_avg_mat.hpp"
#include "task_group.hpp"
#include "grid_field.hpp"
#include "grid_deriv.hpp"
#include "em_field_filter.hpp"
#include "smoothing.hpp"

Include dependency graph for get_potential_grad.hpp:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	AlternatingStorage< Device >
struct	GetPotentialGradTemp< Device, DeviceOut >
struct	Field00< Device >
struct	EMParField< Device, DeviceOut >
struct	GetPotGradFieldArgs< DeviceIn, DeviceOut, VT, PIT, TT, KT >

Functions
void	get_pot_epar_em_filter (double *tmp, double *E_para_em, double *spitzer_res, int *bndry)
void	get_field_Ah_cv_ff (const Grid< DeviceType > &grid, const DomainDecomposition< DeviceType > &pol_decomp, const GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::MultiplePlanes, KinType::DriftKin > &Ah_cv_h, const GridField< HostType, VarType::Scalar, PhiInterpType::Planes, TorType::OnePlane, KinType::DriftKin > &Ah_cv_ff)
template<class DeviceIn , class DeviceOut , VarType VT, PhiInterpType PIT, TorType TT, KinType KT>
void	get_field_grad (const Simulation< DeviceType > &sml, const Grid< DeviceType > &grid, const DomainDecomposition< DeviceType > &pol_decomp, const MagneticField< DeviceType > &magnetic_field, Smoothing &smoothing, GetPotGradFieldArgs< DeviceIn, DeviceOut, VT, PIT, TT, KT > &field_args, GetPotentialGradTemp< DeviceType, DeviceOut > &tmp)

Function Documentation

void get_field_Ah_cv_ff	(	const Grid< DeviceType > &	grid,
		const DomainDecomposition< DeviceType > &	pol_decomp,
		const GridField< HostType, VarType::Scalar, PhiInterpType::None, TorType::MultiplePlanes, KinType::DriftKin > &	Ah_cv_h,
		const GridField< HostType, VarType::Scalar, PhiInterpType::Planes, TorType::OnePlane, KinType::DriftKin > &	Ah_cv_ff
	)

Here is the call graph for this function:

Here is the caller graph for this function:

template<class DeviceIn , class DeviceOut , VarType VT, PhiInterpType PIT, TorType TT, KinType KT>

void get_field_grad	(	const Simulation< DeviceType > &	sml,
		const Grid< DeviceType > &	grid,
		const DomainDecomposition< DeviceType > &	pol_decomp,
		const MagneticField< DeviceType > &	magnetic_field,
		Smoothing &	smoothing,
		GetPotGradFieldArgs< DeviceIn, DeviceOut, VT, PIT, TT, KT > &	args,
		GetPotentialGradTemp< DeviceType, DeviceOut > &	tmp
	)

Calculates a gyro-averaged potential and its gradients, in field-following coordinates (if XGC1).

Parameters

[in]	grid	is the grid object
[in]	magnetic_field	is the magnetic field object
[in]	input_potential	is the input potential
[out]	psn_field_rho_ff	is the gyroaveraged potential (field-following if XGC1)
[out]	psn_gradient_rho_ff	is the gyroaveraged gradient (field-following if XGC1)
[in]	calculate_E_int	is 1 if calculating E, which has some extra steps compared to the As or Ah calculation

Returns

void

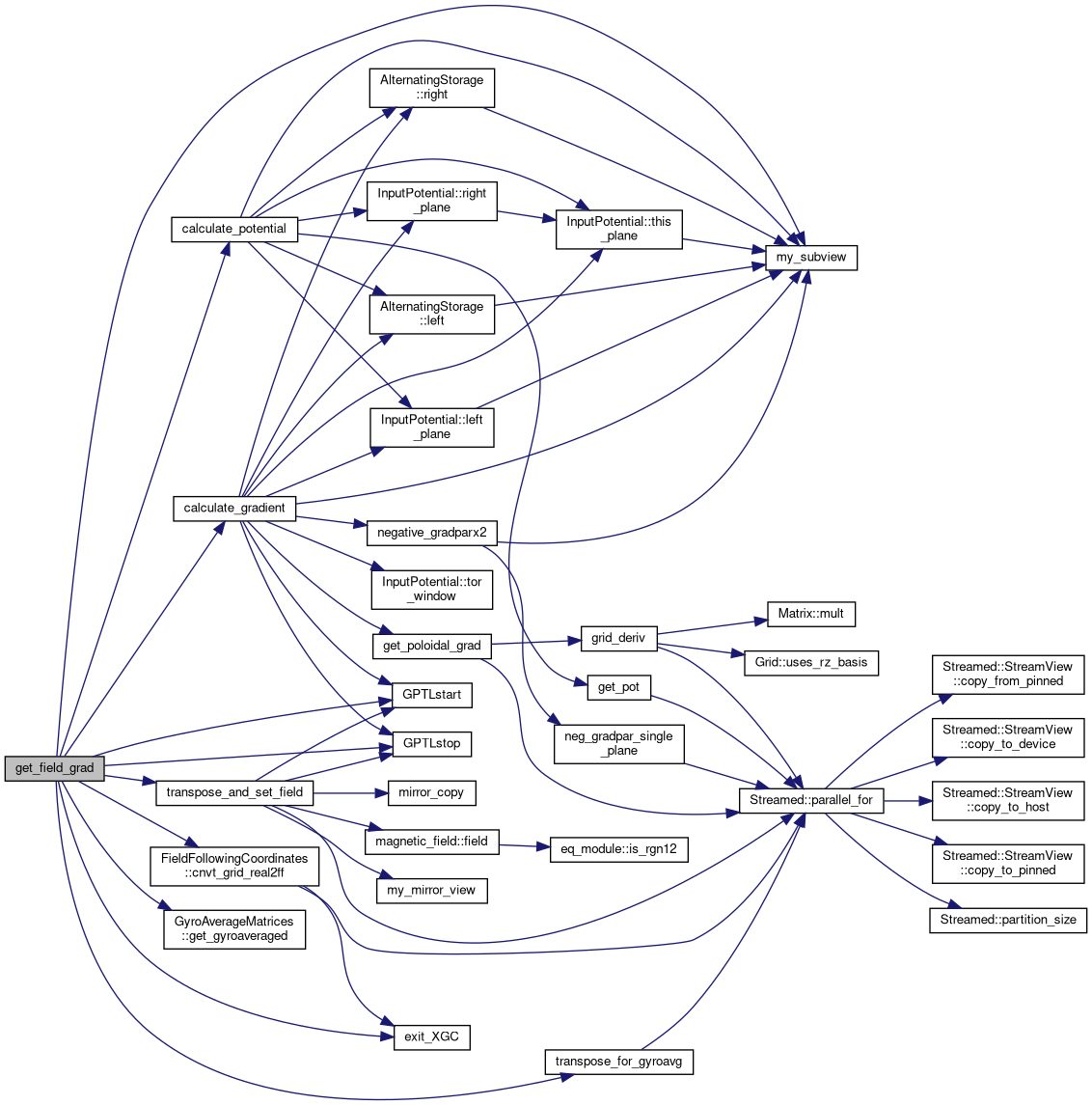

Here is the call graph for this function:

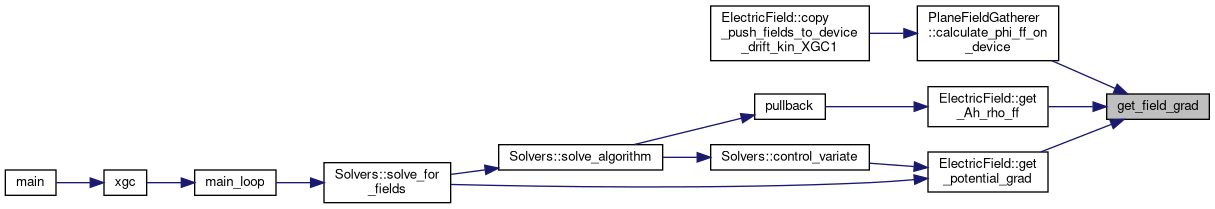

Here is the caller graph for this function:

void get_pot_epar_em_filter	(	double *	tmp,
		double *	E_para_em,
		double *	spitzer_res,
		int *	bndry
	)

Here is the caller graph for this function:
