Public Member Functions | Public Attributes | Private Attributes | Friends | List of all members
Grid< Device > Class Template Reference

#include <grid.hpp>

Collaboration diagram for Grid< Device >:
Collaboration graph
[legend]

Public Member Functions

 Grid (NLReader::NamelistReader &nlr, const GridFiles &grid_files, const MagneticField< DeviceType > &magnetic_field)

 Grid ()

template<class Device2 >
Grid< Device2 > mirror () const

void write_to_file () const

KOKKOS_INLINE_FUNCTION void t_coeff (const SimdVector2D &x, const Simd< int > &itr, SimdGridVec &p) const

KOKKOS_INLINE_FUNCTION void t_coeff_mod (const MagneticField< Device > &magnetic_field, const double r, const double z, const double psiin, const int itr, double(&p)[3]) const

KOKKOS_INLINE_FUNCTION void t_coeff_mod (const MagneticField< Device > &magnetic_field, const SimdVector2D &xy, const Simd< double > &psiin, const Simd< int > &itr, SimdGridVec &p) const

KOKKOS_INLINE_FUNCTION void search_tr2_no_precheck (const double r, const double z, int &itr, double(&p)[3]) const

KOKKOS_INLINE_FUNCTION void search_tr2 (const SimdVector2D &xy, Simd< int > &itr, SimdGridVec &pout) const

KOKKOS_INLINE_FUNCTION void search_tr_check_guess (const SimdVector2D &x, const Simd< int > &old_itr, Simd< int > &itr, SimdGridVec &p) const

KOKKOS_INLINE_FUNCTION void psi_search (double psi, double &wp, int &ip) const

KOKKOS_INLINE_FUNCTION void follow_field_to_midplane (const MagneticField< Device > &magnetic_field, const SimdVector2D &x, const Simd< double > &phi, SimdVector2D &xff) const

KOKKOS_INLINE_FUNCTION void get_grid_weights_ff (const MagneticField< Device > &magnetic_field, const SimdVector &v, const Simd< double > &psi_in, SimdVector2D &xff, SimdGridWeights< Order::One, PhiInterpType::Planes > &grid_wts) const

KOKKOS_INLINE_FUNCTION void get_grid_weights_no_ff (const MagneticField< Device > &magnetic_field, const SimdVector2D &x, const Simd< double > &psi_in, SimdGridWeights< Order::One, PhiInterpType::None > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void nearest_node (const SimdGridWeights< Order::One, PIT > &grid_wts, SimdGridWeights< Order::Zero, PIT > &grid_wts0) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, const Simd< double > &psi, SimdVector2D &xff, SimdGridWeights< Order::One, PIT > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, SimdVector2D &xff, SimdGridWeights< Order::One, PIT > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, const Simd< double > &psi_in, SimdGridWeights< Order::Zero, PIT > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, const Simd< double > &psi_in, SimdGridWeights< Order::One, PIT > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, SimdGridWeights< Order::Zero, PIT > &grid_wts) const

template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void get_grid_weights (const MagneticField< Device > &magnetic_field, const SimdVector &v, SimdGridWeights< Order::One, PIT > &grid_wts) const

KOKKOS_INLINE_FUNCTION void get_wall_index (const Simd< bool > &just_left_the_grid, const SimdVector2D &x, const SimdGridWeights< Order::One, PIT_GLOBAL > &grid_wts, Simd< int > &widx) const

KOKKOS_INLINE_FUNCTION void wedge_modulo_phi (Simd< double > &phi_mod) const

KOKKOS_INLINE_FUNCTION double wedge_modulo_phi (double phi) const

KOKKOS_INLINE_FUNCTION bool node_is_inside_psi_range (const MagneticField< Device > &magnetic_field, const int node) const

KOKKOS_INLINE_FUNCTION int get_plane_index (double phi) const

KOKKOS_INLINE_FUNCTION int get_node_index (int triangle_index, int tri_vertex_index) const

KOKKOS_INLINE_FUNCTION double node_area_to_volume (const MagneticField< Device > &magnetic_field, double area, int node_index) const

KOKKOS_INLINE_FUNCTION void get_triangle_area_and_volume (const MagneticField< Device > &magnetic_field, int i, double &area, double &volume) const

KOKKOS_INLINE_FUNCTION double get_r_center_of_mass (int itr) const

KOKKOS_INLINE_FUNCTION bool node_is_in_region_1_or_2_no_wall (const int inode) const

KOKKOS_INLINE_FUNCTION bool node_is_in_private_region_no_wall (const int inode) const

KOKKOS_INLINE_FUNCTION bool node_is_in_included_region (const int inode, const bool exclude_private_region) const

KOKKOS_INLINE_FUNCTION bool node_is_in_region_1_or_2 (const MagneticField< Device > &magnetic_field, const int inode) const

KOKKOS_INLINE_FUNCTION int uses_rz_basis (const int inode) const

KOKKOS_INLINE_FUNCTION double get_r (const int inode) const

KOKKOS_INLINE_FUNCTION double get_dist2_from_node (const int inode, const double r, const double z) const

KOKKOS_INLINE_FUNCTION double get_dist_from_node (const int inode, const double r, const double z) const

KOKKOS_INLINE_FUNCTION void get_rz_coordinates (const int inode, double &r, double &z) const

KOKKOS_INLINE_FUNCTION void get_rz_coordinates (const Simd< int > &grid_inds, SimdVector2D &x) const

KOKKOS_INLINE_FUNCTION void get_rz_coordinates (const int itr, const double(&p)[3], double &r, double &z) const

KOKKOS_INLINE_FUNCTION void get_rz_coordinates (const Simd< int > &itr, const SimdGridVec &p, SimdVector2D &x) const

KOKKOS_INLINE_FUNCTION int get_nearest_node (const Simd< int > &itr, const SimdGridVec &p, int i_simd) const

KOKKOS_INLINE_FUNCTION int get_nearest_node (const int itr, const double(&p)[3]) const

KOKKOS_INLINE_FUNCTION double get_nearest_midplane (double phi) const

KOKKOS_INLINE_FUNCTION void set_gradient_mat_triangle (const View< int *, CLayout, DeviceType > &num_t_node, const View< int **, CLayout, DeviceType > &tr_node, const View< double *, CLayout, DeviceType > &tr_area, const View< double ***, CLayout, DeviceType > &unit_vecs, const int i, const GradientMatrices< Device > &gradient_matrices) const

KOKKOS_INLINE_FUNCTION int get_characteristic_length (const View< int *, CLayout, DeviceType > &num_t_node, const View< int **, CLayout, DeviceType > &tr_node, const int i, double &dist_triangle, double &dist_psi, double &dist_theta) const

KOKKOS_INLINE_FUNCTION void set_grad_matrix_from_psi_theta (bool is_psi_dir, int itr_pos, int itr_neg, double(&p_pos)[3], double(&p_neg)[3], double dl_pos, double dl_neg, int inode, const Matrix< Device > &matrix) const

void draw_ascii_grid (MagneticField< Device > magnetic_field, double rmin, double rmax, double dr, double zmin, double zmax, double dz)

template<>
void write_to_file () const


Public Attributes

int ntriangle
 Number of grid triangles. More...

int nnode
 Number of grid nodes. More...

int nplanes
 Number of planes. More...

double wedge_angle
 The size of the wedge (the model is periodic in phi, a angle of e.g. pi means half the tokamak is modeled) More...

double delta_phi
 Distance between planes. More...

double inv_delta_phi
 1/delta_phi More...

Kokkos::View< double
*, Kokkos::LayoutRight, Device >
psi
 An array of psi coordinates. More...

Kokkos::View< double
*, Kokkos::LayoutRight, Device >
bfield
 Magnetic field magnitude at nodes. More...

int npsi_surf2

double minval_psi_surf2

double maxval_psi_surf2

Kokkos::View< double
*, Kokkos::LayoutRight, Device >
psi_surf2

UniformRange psi00

int nwall

Kokkos::View< int
*, Kokkos::LayoutRight, Device >
wall_nodes

Kokkos::View< int
*, Kokkos::LayoutRight, Device >
node_to_wall

double eps_flux_surface
 The minimum difference in psi that counts as being on two different flux surfaces. More...

VolumesAndAreas volumes_and_areas

Projection< HostTypehalf_plane_ff

Projection< HostTypeone_plane_ff


Private Attributes

Kokkos::View< int
*, Kokkos::LayoutRight, Device >
basis
 0 for Psi-theta, 1 for R-Z ; should be enum (and bool/char?) More...

Kokkos::View< Vertex
*, Kokkos::LayoutRight, Device >
nodes

Kokkos::View< VertexMap
*, Kokkos::LayoutRight, Device >
mapping

GuessTable< Device > guess

GuessList1D< Device > psi_guess

Kokkos::View< int
*, Kokkos::LayoutRight, Device >
rgn

Kokkos::View< RZPair
*, Kokkos::LayoutRight, Device >
gx

View< int **, CLayout, Device > adj
 The indices of the three adjacent triangles for each triangle. More...


Friends

template<class Device2 >
class Grid


Constructor & Destructor Documentation

template<class Device >
Grid< Device >::Grid ( NLReader::NamelistReader nlr,
const GridFiles grid_files,
const MagneticField< DeviceType > &  magnetic_field
)

< Simulate a wedge of 2pi/sml_wedge_n of the full torus

< Size of the hash table used to narrow down the number of triangles in which to search a particle

< Calculate node volume using Monte-Carlo method (true), or analytic method (false)

< If \(|\nabla\psi|\) is smaller than this threshold, \(\nabla\psi\) is computed

< Size of the uniform 1D psi-grid

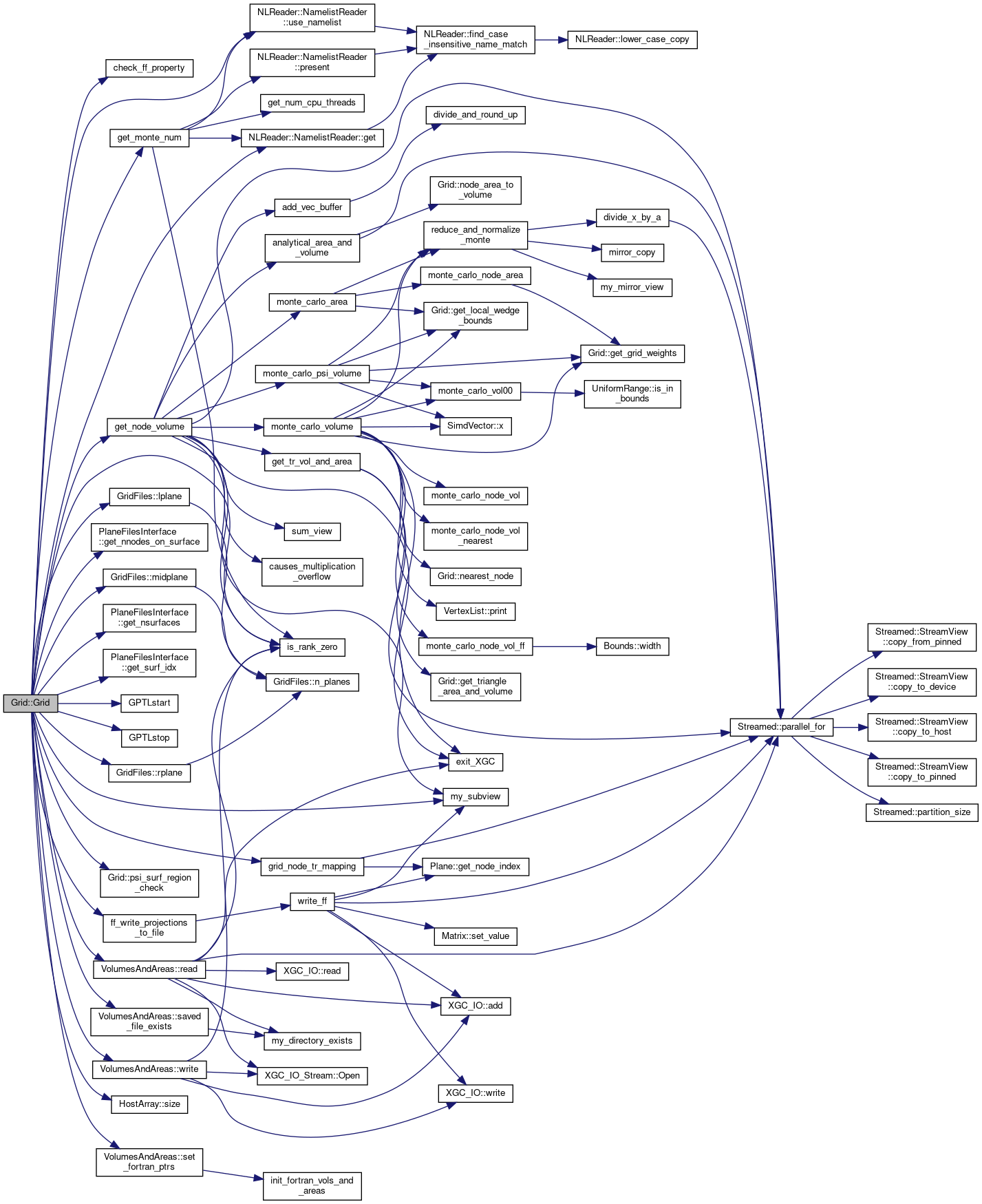

Here is the call graph for this function:

template<class Device>
Grid< Device >::Grid ( )
inline

Member Function Documentation

template<class Device>
void Grid< Device >::draw_ascii_grid ( MagneticField< Device >  magnetic_field,
double  rmin,
double  rmax,
double  dr,
double  zmin,
double  zmax,
double  dz
)
inline
template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::follow_field_to_midplane ( const MagneticField< Device > &  magnetic_field,
const SimdVector2D x,
const Simd< double > &  phi,
SimdVector2D xff
) const

Follow the magnetic field to the midplane

Parameters
[in]magnetic_fieldThe magnetic field object
[in]xVector of (r,z) coordinates
[in]phiVector of phi coordinates
[out]xffVector of (r,z) coordinates mapped along B-field to midplane

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::get_characteristic_length ( const View< int *, CLayout, DeviceType > &  num_t_node,
const View< int **, CLayout, DeviceType > &  tr_node,
const int  i,
double &  dist_triangle,
double &  dist_psi,
double &  dist_theta
) const

Determines characteristic distance in grad(psi) and grad(theta) direction

Parameters
[in]num_t_node
[in]tr_node
[in]inode index
[out]dist_triangle
[out]dist_psi
[out]dist_theta
Returns
int error code: -3 is fatal, -2 means all vertices are on the same surface, -1 means?

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::get_dist2_from_node ( const int  inode,
const double  r,
const double  z
) const

Gets the square of the distance from a grid vertex of the input (r,z) coordinates. The square of the distance is sufficient in some algorithms, and avoids a costly square root. If the distance itself is needed, use get_dist_from_node

Parameters
[in]inodegrid node
[in]rr coordinate of input point
[in]zz coordinate of input point
Returns
double the square of the distance

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::get_dist_from_node ( const int  inode,
const double  r,
const double  z
) const

Gets the distance from a grid vertex of the input (r,z) coordinates.

Parameters
[in]inodegrid node
[in]rr coordinate of input point
[in]zz coordinate of input point
Returns
double the distance

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
const Simd< double > &  psi_in,
SimdVector2D xff,
SimdGridWeights< Order::One, PIT > &  grid_wts
) const

Get the grid triangle and vertex weights for a vector of locations. Name is historical and should change

Parameters
[in]magnetic_fieldThe magnetic field object (currently global so technically unnecessary)
[in]vVector of (r,z, phi) coordinates
[in]phiVector of phi coordinates
[in]psi_inVector of psi coordinates
[out]xffVector of (r,z) coordinates mapped along B-field to midplane
[out]itrVector of grid triangles
[out]pVector of triangle vertex weights

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
SimdVector2D xff,
SimdGridWeights< Order::One, PIT > &  grid_wts
) const
template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
const Simd< double > &  psi_in,
SimdGridWeights< Order::Zero, PIT > &  grid_wts
) const

Here is the call graph for this function:

template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
const Simd< double > &  psi,
SimdGridWeights< Order::One, PIT > &  grid_wts
) const

Get the grid triangle and vertex weights for a vector of locations. Name is historical and should change

Parameters
[in]magnetic_fieldThe magnetic field object
[in]vVector of (r,z,phi) coordinates
[in]psiVector of psi coordinates
[out]itrVector of grid triangles
[out]pVector of triangle vertex weights

Here is the call graph for this function:

template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
SimdGridWeights< Order::Zero, PIT > &  grid_wts
) const

Here is the call graph for this function:

template<class Device>
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
SimdGridWeights< Order::One, PIT > &  grid_wts
) const

Get the grid triangle and vertex weights for a vector of locations. Name is historical and should change

Parameters
[in]magnetic_fieldThe magnetic field object
[in]vVector of (r,z,phi) coordinates
[out]itrVector of grid triangles
[out]pVector of triangle vertex weights

Here is the call graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights_ff ( const MagneticField< Device > &  magnetic_field,
const SimdVector v,
const Simd< double > &  psi_in,
SimdVector2D xff,
SimdGridWeights< Order::One, PhiInterpType::Planes > &  grid_wts
) const

Get the grid triangle and vertex weights for a vector of locations. Name is historical and should change

Parameters
[in]magnetic_fieldThe magnetic field object
[in]xVector of (r,z) coordinates
[in]phiVector of phi coordinates
[in]psi_inVector of psi coordinates
[out]xffVector of (r,z) coordinates mapped along B-field to midplane
[out]itrVector of grid triangles
[out]pVector of triangle vertex weights

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_grid_weights_no_ff ( const MagneticField< Device > &  magnetic_field,
const SimdVector2D x,
const Simd< double > &  psi_in,
SimdGridWeights< Order::One, PhiInterpType::None > &  grid_wts
) const

Get the grid triangle and vertex weights for a vector of locations. Name is historical and should change

Parameters
[in]magnetic_fieldThe magnetic field object
[in]xVector of (r,z) coordinates
[in]phiVector of phi coordinates
[in]psi_inVector of psi coordinates
[out]xffVector of (r,z) coordinates mapped along B-field to midplane
[out]itrVector of grid triangles
[out]pVector of triangle vertex weights

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::get_nearest_midplane ( double  phi) const

Returns nearest midplane for a given phi

Parameters
[in]phiinput phi coordinate
template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::get_nearest_node ( const Simd< int > &  itr,
const SimdGridVec p,
int  i_simd
) const

Returns nearest node given a triangle and barycentric coordinates

Parameters
[in]itrtriangle index (1-indexed)
[in]pbarycentric weights
[in]i_simdsimd index
Returns
nearest node (1-indexed)
template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::get_nearest_node ( const int  itr,
const double(&)  p[3]
) const

Returns nearest node given a triangle and barycentric coordinates

Parameters
[in]itrtriangle index (1-indexed)
[in]pbarycentric weights
Returns
nearest node (1-indexed)
template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::get_node_index ( int  triangle_index,
int  tri_vertex_index
) const

Returns the index of the node (0-indexed), for a given triangle and triangle vertex index

Parameters
[in]triangle_indexthe index of the triangle (1-indexed)
[in]tri_vertex_indexthe index of the requested vertex on the triangle
Returns
int the index of the node (0-indexed)

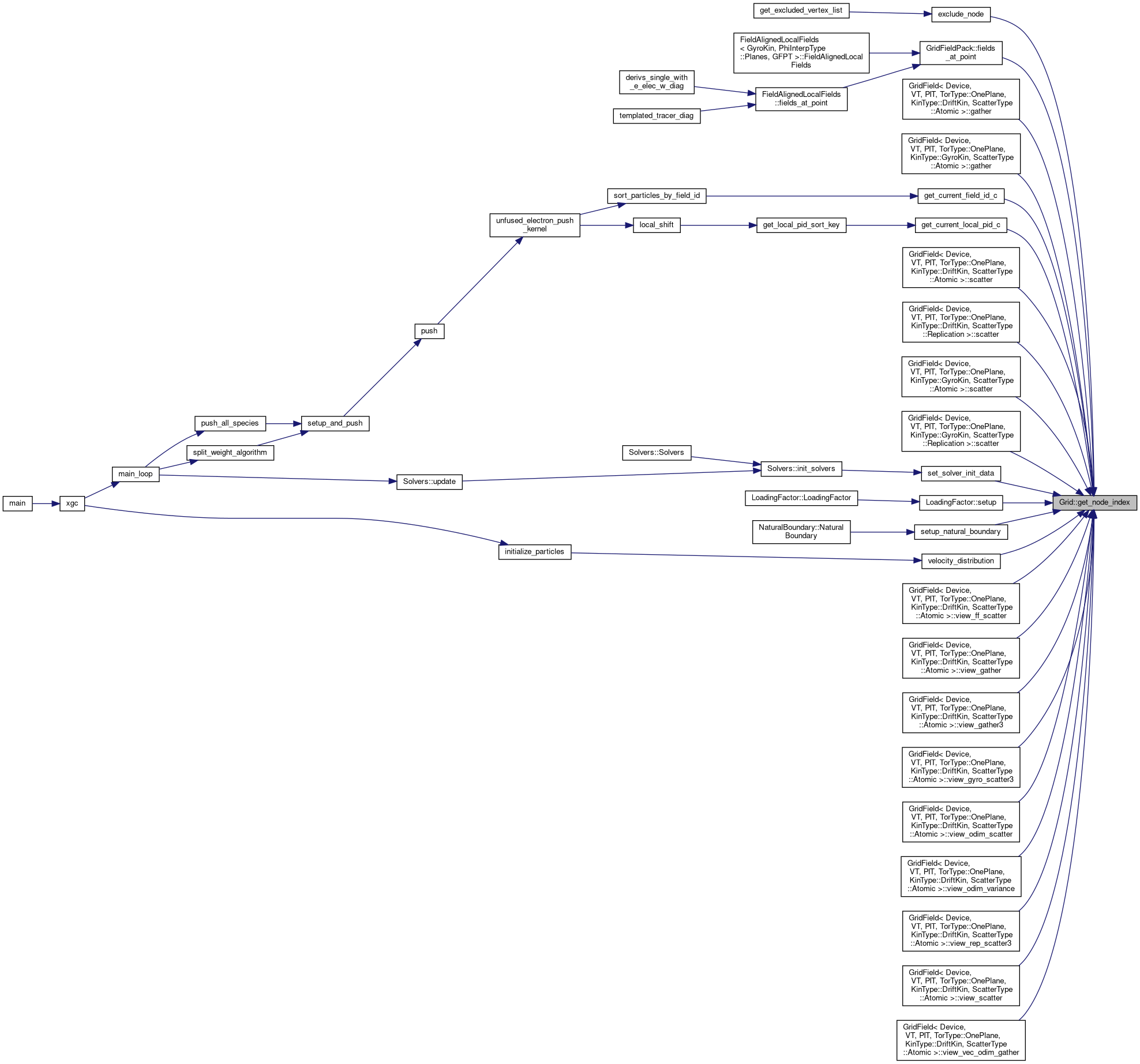

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::get_plane_index ( double  phi) const

Returns the index of the plane, rounded down.

Parameters
[in]phithe phi value
Returns
int the index of the plane

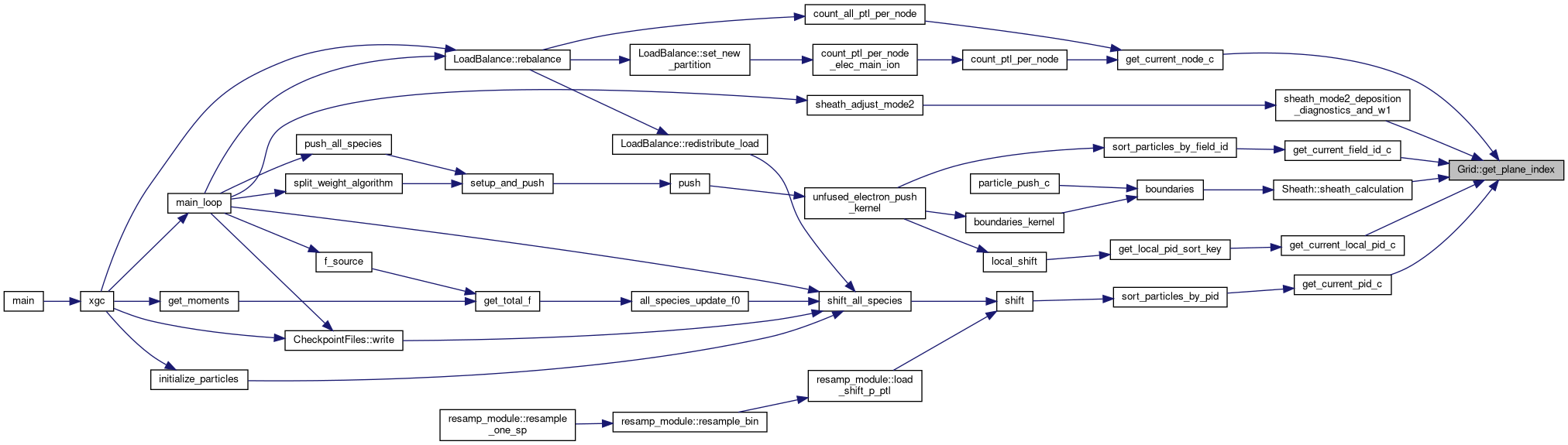

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::get_r ( const int  inode) const

Accesses the r coordinate of the grid node

Parameters
[in]inodegrid node to check
Returns
double the r coordinate

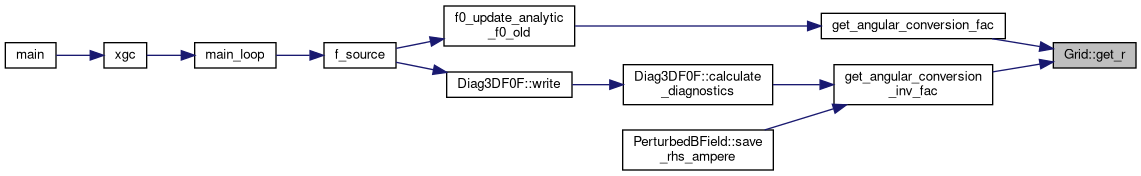

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::get_r_center_of_mass ( int  itr) const

Returns r coordinate of center of mass of a triangle

Parameters
[in]iis the triangle index (0-indexed)
Returns
double r_center_of_mass
template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_rz_coordinates ( const int  inode,
double &  r,
double &  z
) const

Returns rz coordinates of a single node

Parameters
[in]inodenode index
[out]rr coordinate
[out]zz coordinate

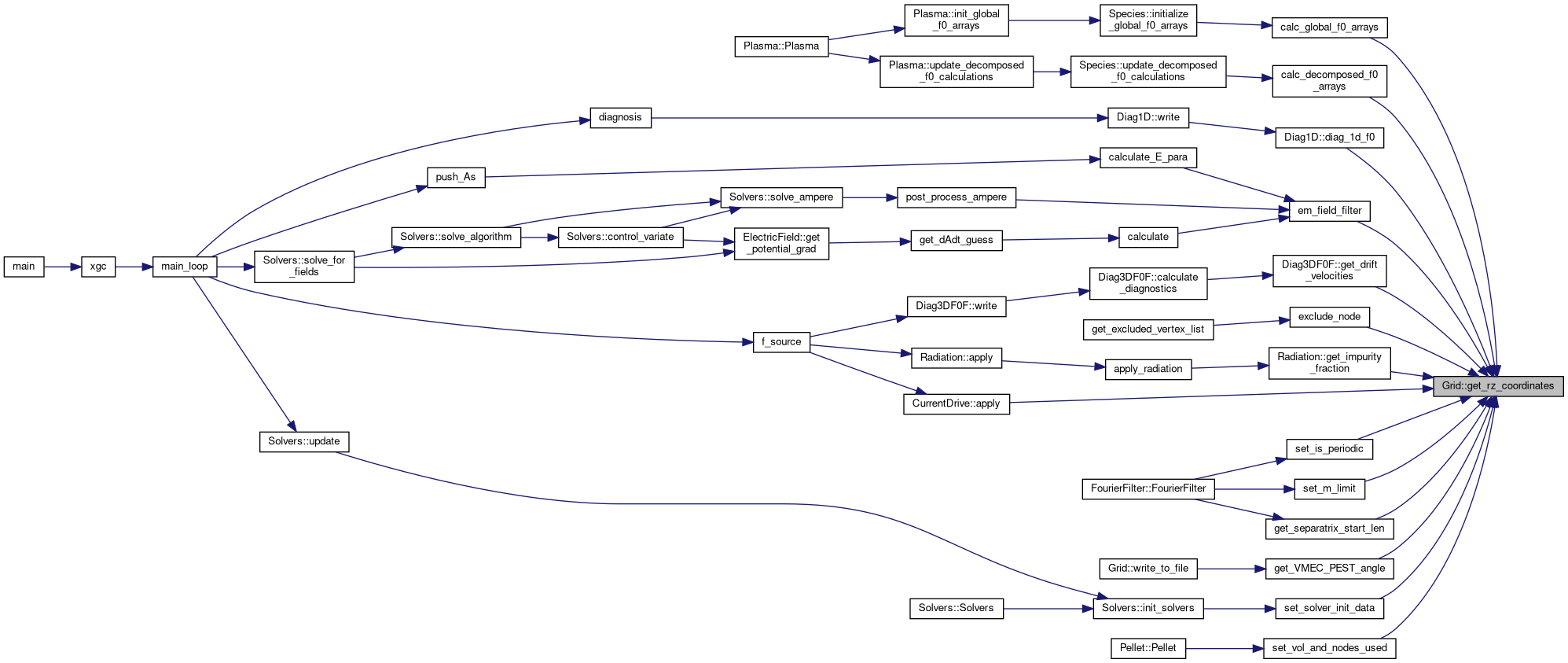

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_rz_coordinates ( const Simd< int > &  grid_inds,
SimdVector2D x
) const

Returns vector of rz coordinates of the input node indices

Parameters
[in]grid_indsVector of node indices
[out]xVector of rz coordinates
template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_rz_coordinates ( const int  itr,
const double(&)  p[3],
double &  r,
double &  z
) const

Returns rz coordinates given a triangle index and barycentric weights

Parameters
[in]itrtriangle index (1-indexed)
[in]pbarycentric weights
[out]rr coordinate of input point
[out]zz coordinate of input point

Here is the call graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_rz_coordinates ( const Simd< int > &  itr,
const SimdGridVec p,
SimdVector2D x
) const

Returns rz coordinates given a triangle index and barycentric weights

Parameters
[in]itrtriangle index (1-indexed)
[in]pbarycentric weights
[out]xr,z coordinates of input point

Here is the call graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_triangle_area_and_volume ( const MagneticField< Device > &  magnetic_field,
int  i,
double &  area,
double &  volume
) const

Returns analytical calculation of triangle area and projected volume

Parameters
[in]magnetic_fieldis the magnetic field
[in]iis the triangle index (0-indexed)
[out]areais the triangle area
[out]volumeis the triangle projected volume
Returns
void

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::get_wall_index ( const Simd< bool > &  just_left_the_grid,
const SimdVector2D x,
const SimdGridWeights< Order::One, PIT_GLOBAL > &  grid_wts,
Simd< int > &  widx
) const

Find nearest wall point for a vector of locations.

Parameters
[in]just_left_the_gridVector of whether particles have left the grid
[in]xVector of (r,z) coordinates
[in]itrVector of grid triangles the particles were last in
[in]pVector of the vertex weighting in those triangles
[out]widxVector of wall point indices

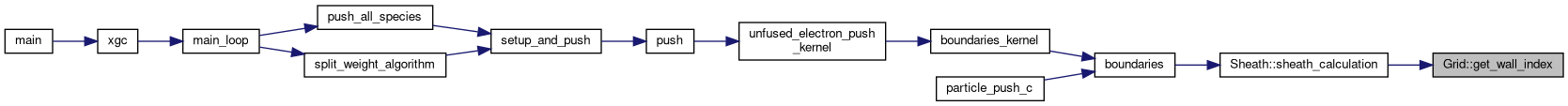

Here is the caller graph for this function:

template<class Device>
template<class Device2 >
Grid<Device2> Grid< Device >::mirror ( ) const
inline
template<class Device >
template<PhiInterpType PIT>
KOKKOS_INLINE_FUNCTION void Grid< Device >::nearest_node ( const SimdGridWeights< Order::One, PIT > &  grid_wts,
SimdGridWeights< Order::Zero, PIT > &  grid_wts0
) const

Here is the call graph for this function:

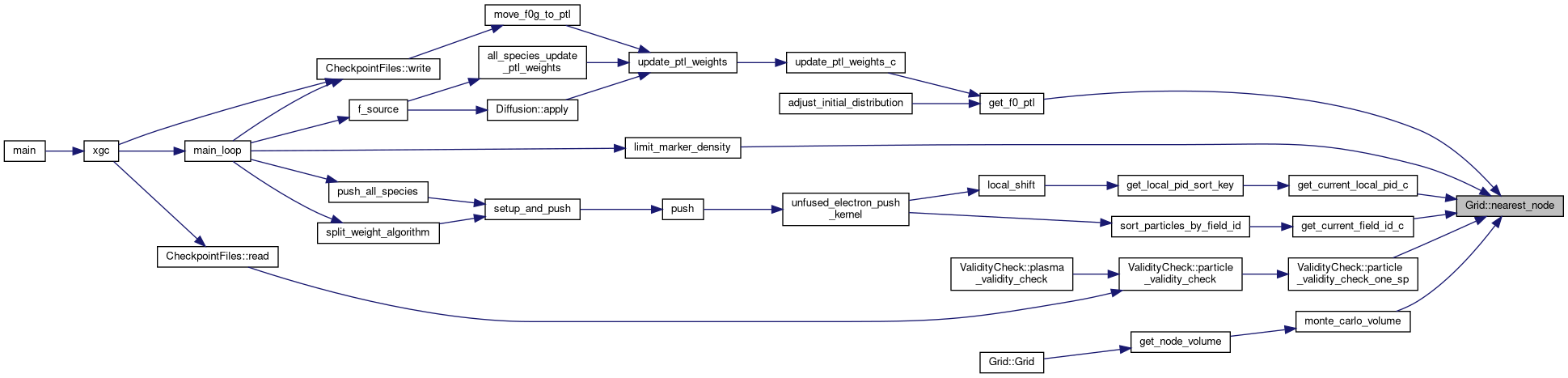

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION double Grid< Device >::node_area_to_volume ( const MagneticField< Device > &  magnetic_field,
double  area,
int  node_index
) const

Returns analytical calculation of node volume by projecting the node area into the toroidal direction Assumes the center of mass is the node

Parameters
[in]magnetic_fieldis the magnetic field
[in]areais the area of the node
[in]node_indexis the node index
Returns
double the area owned by the node

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION bool Grid< Device >::node_is_in_included_region ( const int  inode,
const bool  exclude_private_region
) const

Checks if a grid node lies within an included region. This excludes wall nodes and the private region if specified.

Parameters
[in]inodegrid node to check
[in]exclude_private_regionwhether to private region is excluded
Returns
bool true if in included region

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION bool Grid< Device >::node_is_in_private_region_no_wall ( const int  inode) const

Checks if a grid node lies within region 3. Excludes wall since rgn is a different value there

Parameters
[in]inodegrid node to check
Returns
bool true if in region 3

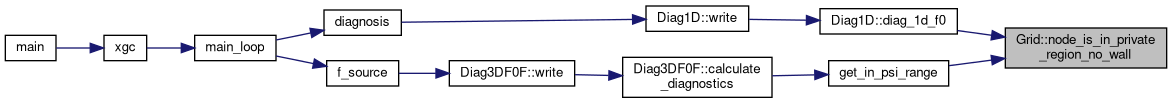

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION bool Grid< Device >::node_is_in_region_1_or_2 ( const MagneticField< Device > &  magnetic_field,
const int  inode
) const

Checks if a grid node lies within region 1 or 2. Note this is subtly different from rgn, because rgn also has a wall option

Parameters
[in]magnetic_fieldthe magnetic field object
[in]inodegrid node to check
Returns
bool true if in region 1 or 2

Here is the call graph for this function:

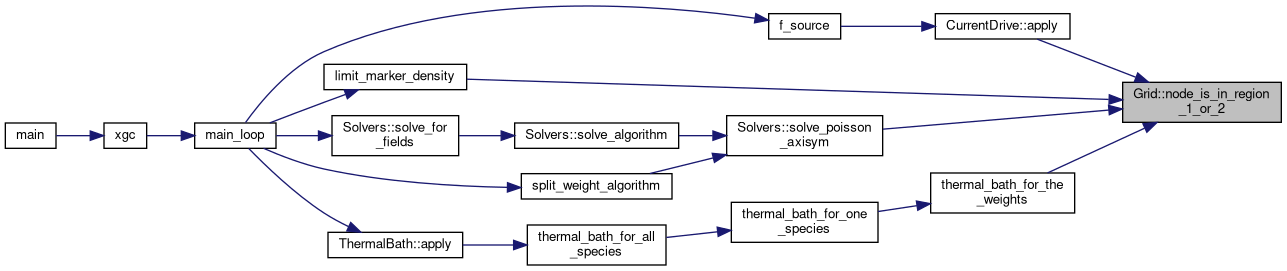

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION bool Grid< Device >::node_is_in_region_1_or_2_no_wall ( const int  inode) const

Checks if a grid node lies within region 1 or 2. Excludes wall since rgn is a different value there

Parameters
[in]inodegrid node to check
Returns
bool true if in region 1 or 2

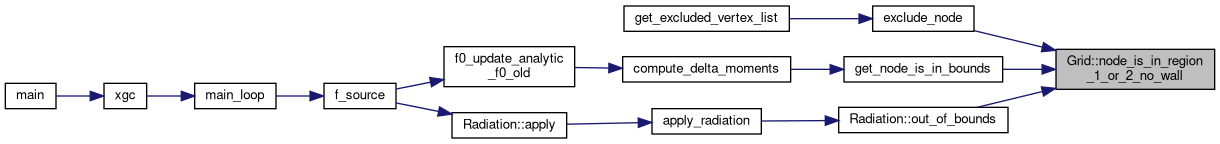

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION bool Grid< Device >::node_is_inside_psi_range ( const MagneticField< Device > &  magnetic_field,
const int  node
) const

Checks if a grid node lies within the simulation domain (radially).

Parameters
[in]magnetic_fieldthe magnetic field object (currently global so technically unnecessary)
[in]nodegrid node to check (0-indexed)
Returns
bool true if inside, false if outside

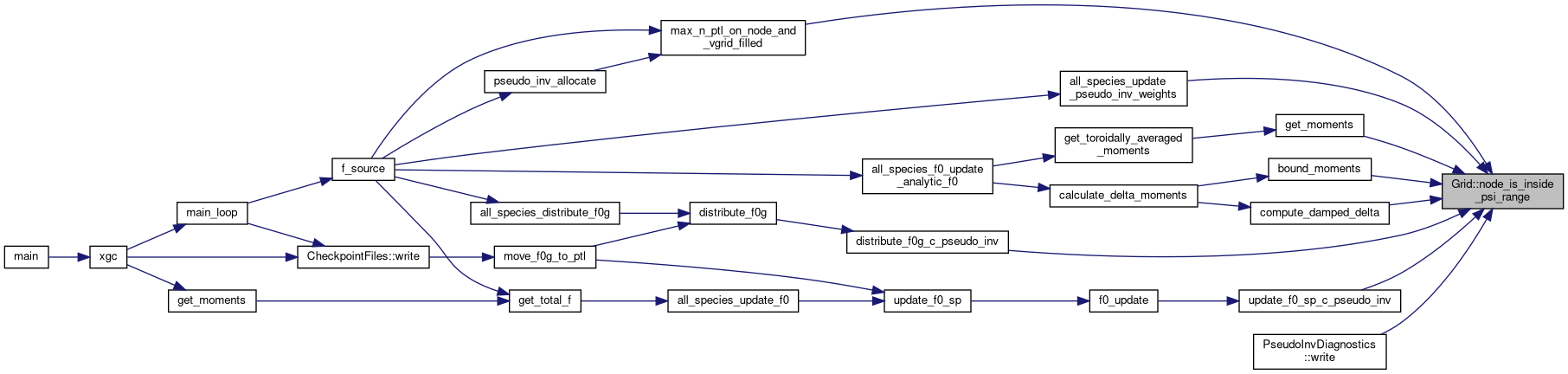

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::psi_search ( double  psi,
double &  wp,
int &  ip
) const

Here is the call graph for this function:

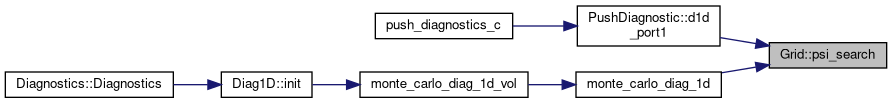

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::search_tr2 ( const SimdVector2D xy,
Simd< int > &  itr,
SimdGridVec pout
) const

Determine triangle location and triangle vertex weights of vector of locations, first checking the particles have left their previous triangle, and if so doing a search

Parameters
[in]xyVector of (r,z) coordinates
[out]itrVector of triangle locations
[out]poutVector of triangle vertex weights

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::search_tr2_no_precheck ( const double  r,
const double  z,
int &  itr,
double(&)  p[3]
) const

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::search_tr_check_guess ( const SimdVector2D x,
const Simd< int > &  old_itr,
Simd< int > &  itr,
SimdGridVec p
) const

A check to see if vector of particles has stayed in the same triangle since last time. If so just recalculate p weights

Parameters
[in]xVector of (r,z) coordinates
[in]old_itrVector of old triangle location
[out]itrVector of new triangle location (same as old if unchanged, -1 if search is needed)
[out]pVector of p weights if in same triangle

Here is the call graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::set_grad_matrix_from_psi_theta ( bool  is_psi_dir,
int  itr_pos,
int  itr_neg,
double(&)  p_pos[3],
double(&)  p_neg[3],
double  dl_pos,
double  dl_neg,
int  inode,
const Matrix< Device > &  matrix
) const

Sets gradient matrix values based on psi-theta triangle weights

Parameters
[in]is_psi_dirwhether the gradient matrix is psi or theta direction (just for the error message)
[in]itr_posthe triangle index in the positive direction
[in]itr_negthe triangle index in the negative direction
[in]p_posthe triangle weights in the positive direction
[in]p_negthe triangle weights in the negative direction
[in]dl_posthe distance in the positive direction
[in]dl_negthe distance in the negative direction
[in]inodethe node index
[out]matrixthe gradient matrix being updates

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::set_gradient_mat_triangle ( const View< int *, CLayout, DeviceType > &  num_t_node,
const View< int **, CLayout, DeviceType > &  tr_node,
const View< double *, CLayout, DeviceType > &  tr_area,
const View< double ***, CLayout, DeviceType > &  unit_vecs,
const int  i,
const GradientMatrices< Device > &  gradient_matrices
) const

Sets gradient matrix values for a given vertex

Parameters
[in]num_t_node
[in]tr_node
[in]tr_area
[in]unit_vecs
[in]inode index
[out]gradient_matricesGradient matrices

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::t_coeff ( const SimdVector2D x,
const Simd< int > &  itr,
SimdGridVec p
) const

Calculate a vector of barycentric coordinates p from real-space coordinates x in triangle itr.

Parameters
[in]xVector of (r,z) coordinates
[in]itrVector of triangles
[out]pVector of the weights of the triangle vertices

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::t_coeff_mod ( const MagneticField< Device > &  magnetic_field,
const double  r,
const double  z,
const double  psiin,
const int  itr,
double(&)  p[3]
) const

Here is the caller graph for this function:

template<class Device>
KOKKOS_INLINE_FUNCTION void Grid< Device >::t_coeff_mod ( const MagneticField< Device > &  magnetic_field,
const SimdVector2D xy,
const Simd< double > &  psiin,
const Simd< int > &  itr,
SimdGridVec p
) const
template<class Device >
KOKKOS_INLINE_FUNCTION int Grid< Device >::uses_rz_basis ( const int  inode) const

Whether the field uses an r-z or a psi-theta basis.

Parameters
[in]inodegrid node to check
Returns
int 1 if rz basis, 0 if psi-theta basis

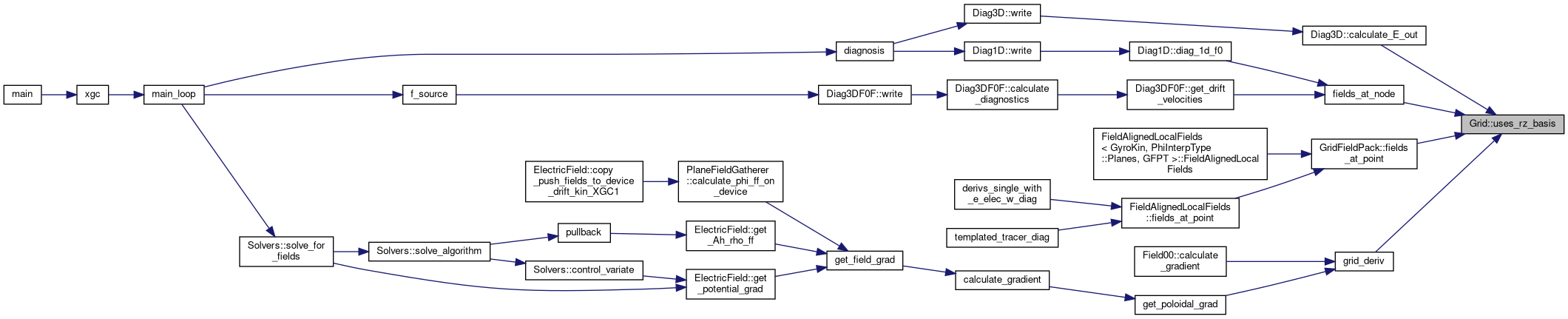

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION void Grid< Device >::wedge_modulo_phi ( Simd< double > &  phi_mod) const

Modulo phi in place: Keep phi between 0 and wedge_angle. Best algorithm as long as the particles haven't left the wedge multiple times over

Parameters
[in,out]phi_modVector of phi coordinates

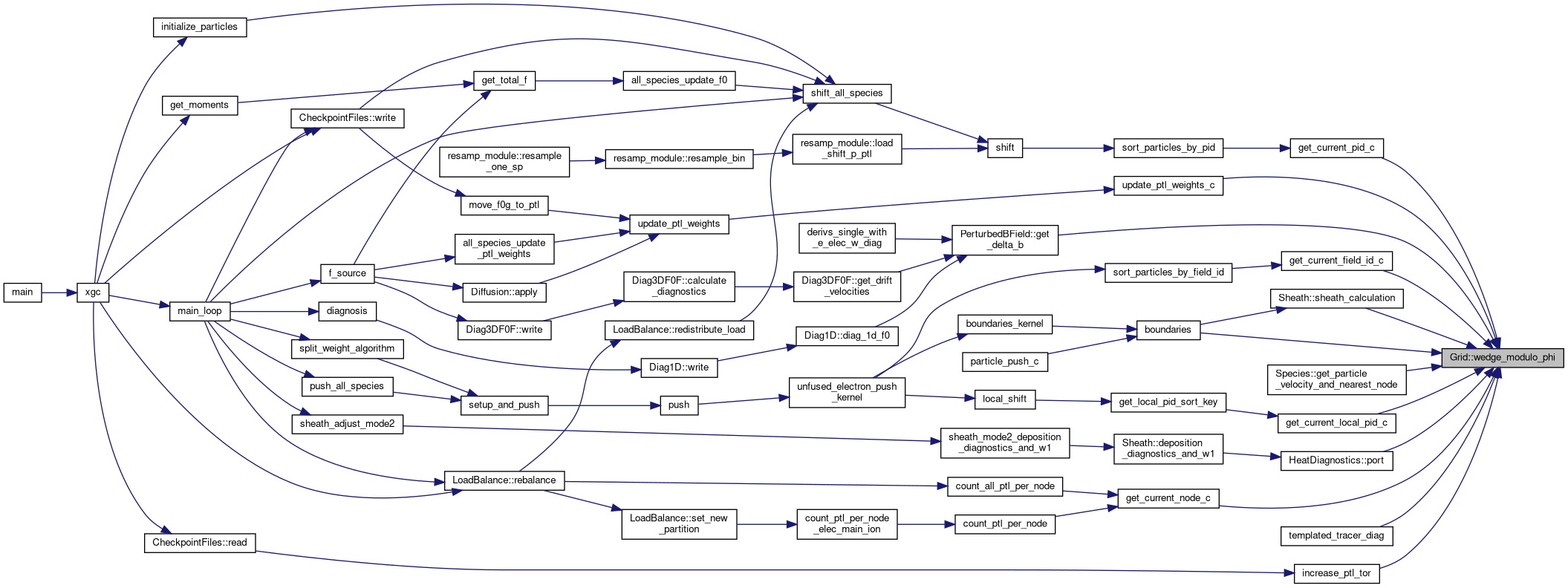

Here is the caller graph for this function:

template<class Device >
KOKKOS_INLINE_FUNCTION double Grid< Device >::wedge_modulo_phi ( double  phi) const

Modulo phi in place: Keep phi between 0 and wedge_angle. Best algorithm as long as the particles haven't left the wedge multiple times over

Parameters
[in,out]phi_modVector of phi coordinates
template<>
void Grid< HostType >::write_to_file ( ) const

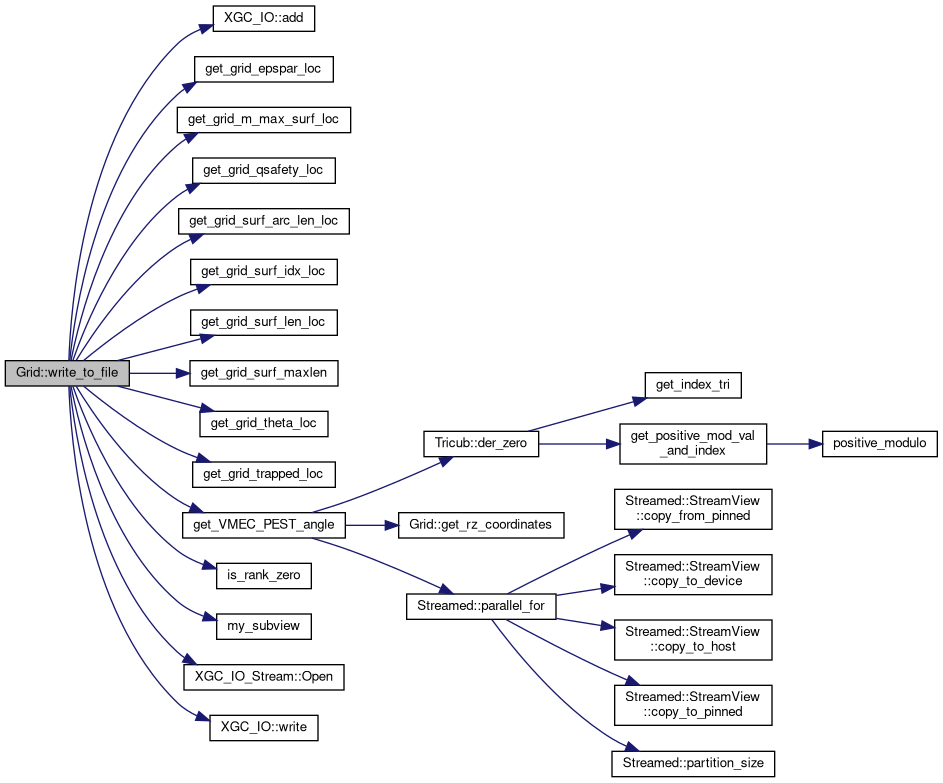

Here is the call graph for this function:

template<class Device>
void Grid< Device >::write_to_file ( ) const

Friends And Related Function Documentation

template<class Device>
template<class Device2 >
friend class Grid
friend

Member Data Documentation

template<class Device>
View<int**,CLayout,Device> Grid< Device >::adj
private

The indices of the three adjacent triangles for each triangle.

template<class Device>
Kokkos::View<int*, Kokkos::LayoutRight,Device> Grid< Device >::basis
private

0 for Psi-theta, 1 for R-Z ; should be enum (and bool/char?)

template<class Device>
Kokkos::View<double*,Kokkos::LayoutRight,Device> Grid< Device >::bfield

Magnetic field magnitude at nodes.

template<class Device>
double Grid< Device >::delta_phi

Distance between planes.

template<class Device>
double Grid< Device >::eps_flux_surface

The minimum difference in psi that counts as being on two different flux surfaces.

template<class Device>
GuessTable<Device> Grid< Device >::guess
private
template<class Device>
Kokkos::View<RZPair*,Kokkos::LayoutRight,Device> Grid< Device >::gx
private
template<class Device>
Projection<HostType> Grid< Device >::half_plane_ff
template<class Device>
double Grid< Device >::inv_delta_phi

1/delta_phi

template<class Device>
Kokkos::View<VertexMap*,Kokkos::LayoutRight,Device> Grid< Device >::mapping
private
template<class Device>
double Grid< Device >::maxval_psi_surf2
template<class Device>
double Grid< Device >::minval_psi_surf2
template<class Device>
int Grid< Device >::nnode

Number of grid nodes.

template<class Device>
Kokkos::View<int*,Kokkos::LayoutRight,Device> Grid< Device >::node_to_wall
template<class Device>
Kokkos::View<Vertex*,Kokkos::LayoutRight,Device> Grid< Device >::nodes
private
template<class Device>
int Grid< Device >::nplanes

Number of planes.

template<class Device>
int Grid< Device >::npsi_surf2
template<class Device>
int Grid< Device >::ntriangle

Number of grid triangles.

template<class Device>
int Grid< Device >::nwall
template<class Device>
Projection<HostType> Grid< Device >::one_plane_ff
template<class Device>
Kokkos::View<double*,Kokkos::LayoutRight,Device> Grid< Device >::psi

An array of psi coordinates.

template<class Device>
UniformRange Grid< Device >::psi00
template<class Device>
GuessList1D<Device> Grid< Device >::psi_guess
private
template<class Device>
Kokkos::View<double*,Kokkos::LayoutRight,Device> Grid< Device >::psi_surf2
template<class Device>
Kokkos::View<int*,Kokkos::LayoutRight,Device> Grid< Device >::rgn
private
template<class Device>
VolumesAndAreas Grid< Device >::volumes_and_areas
template<class Device>
Kokkos::View<int*,Kokkos::LayoutRight,Device> Grid< Device >::wall_nodes
template<class Device>
double Grid< Device >::wedge_angle

The size of the wedge (the model is periodic in phi, a angle of e.g. pi means half the tokamak is modeled)


The documentation for this class was generated from the following files:
