#include <flux_surface_average.hpp>

Collaboration diagram for FluxSurfaceAverage< Device >:

Public Member Functions
	FluxSurfaceAverage ()

template<class Device2 >
FluxSurfaceAverage< Device2 >	mirror () const

	FluxSurfaceAverage (NLReader::NamelistReader &nlr, const DomainDecomposition< DeviceType > &pol_decomp, const MagneticField< DeviceType > &magnetic_field, const Plane< HostType > &plane, const PlaneFiles &plane_files, const VolumesAndAreas &volumes_and_areas, const View< int , CLayout, DeviceType > &num_t_node, const View< int *, CLayout, DeviceType > &tr_node)

View< double *, CLayout, Device >	to_surf (const View< double *, CLayout, Device > &input) const

void	from_surf (const View< double , CLayout, Device > &input, const View< double , CLayout, Device > &output) const

View< double *, CLayout, Device >	average (const View< double *, CLayout, Device > &array) const

View< double *, CLayout, Device >	average (const View< double , CLayout, Device > &array, const View< double , CLayout, Device > &output_surf) const

void	average (const View< double , CLayout, Device > &array, const View< double , CLayout, Device > &output_surf, const View< double *, CLayout, Device > &tmp00) const

void	average (const View< double **, CLayout, Device > &array) const

View< double *, CLayout, Device >	average_3D (const DomainDecomposition< DeviceType > &pol_decomp, const View< double , CLayout, Device > &array, const View< double , CLayout, Device > &output_array) const

int	nsurfs () const

Private Member Functions
void	wall_nodes_strikep_method (NLReader::NamelistReader &nlr, const MagneticField< DeviceType > &magnetic_field, const Plane< HostType > &plane, const PlaneFiles &plane_files, const View< double , CLayout, HostType > &psi_surf, const View< int , CLayout, DeviceType > &num_t_node, const View< int **, CLayout, DeviceType > &tr_node)

template<>
void	wall_nodes_strikep_method (NLReader::NamelistReader &nlr, const MagneticField< DeviceType > &magnetic_field, const Plane< HostType > &plane, const PlaneFiles &plane_files, const View< double , CLayout, HostType > &psi_surf, const View< int , CLayout, DeviceType > &num_t_node_d, const View< int **, CLayout, DeviceType > &tr_node_d)

template<>
	FluxSurfaceAverage (NLReader::NamelistReader &nlr, const DomainDecomposition< DeviceType > &pol_decomp, const MagneticField< DeviceType > &magnetic_field, const Plane< HostType > &plane, const PlaneFiles &plane_files, const VolumesAndAreas &volumes_and_areas, const View< int , CLayout, DeviceType > &num_t_node, const View< int *, CLayout, DeviceType > &tr_node)

Private Attributes
Matrix< Device >	to_flux_surface

Matrix< Device >	from_flux_surface

View< double *, CLayout, Device >	surf_vol

View< double *, CLayout, Device >	surf_vol_3D

Friends
template<class Device2 >
class	FluxSurfaceAverage

Constructor & Destructor Documentation

template<class Device>

FluxSurfaceAverage< Device >::FluxSurfaceAverage ( )

inline

template<class Device>

FluxSurfaceAverage< Device >::FluxSurfaceAverage	(	NLReader::NamelistReader &	nlr,
		const DomainDecomposition< DeviceType > &	pol_decomp,
		const MagneticField< DeviceType > &	magnetic_field,
		const Plane< HostType > &	plane,
		const PlaneFiles &	plane_files,
		const VolumesAndAreas &	volumes_and_areas,
		const View< int *, CLayout, DeviceType > &	num_t_node,
		const View< int **, CLayout, DeviceType > &	tr_node
	)

template<>

FluxSurfaceAverage< HostType >::FluxSurfaceAverage	(	NLReader::NamelistReader &	nlr,
		const DomainDecomposition< DeviceType > &	pol_decomp,
		const MagneticField< DeviceType > &	magnetic_field,
		const Plane< HostType > &	plane,
		const PlaneFiles &	plane_files,
		const VolumesAndAreas &	volumes_and_areas,
		const View< int *, CLayout, DeviceType > &	num_t_node,
		const View< int **, CLayout, DeviceType > &	tr_node
	)

private

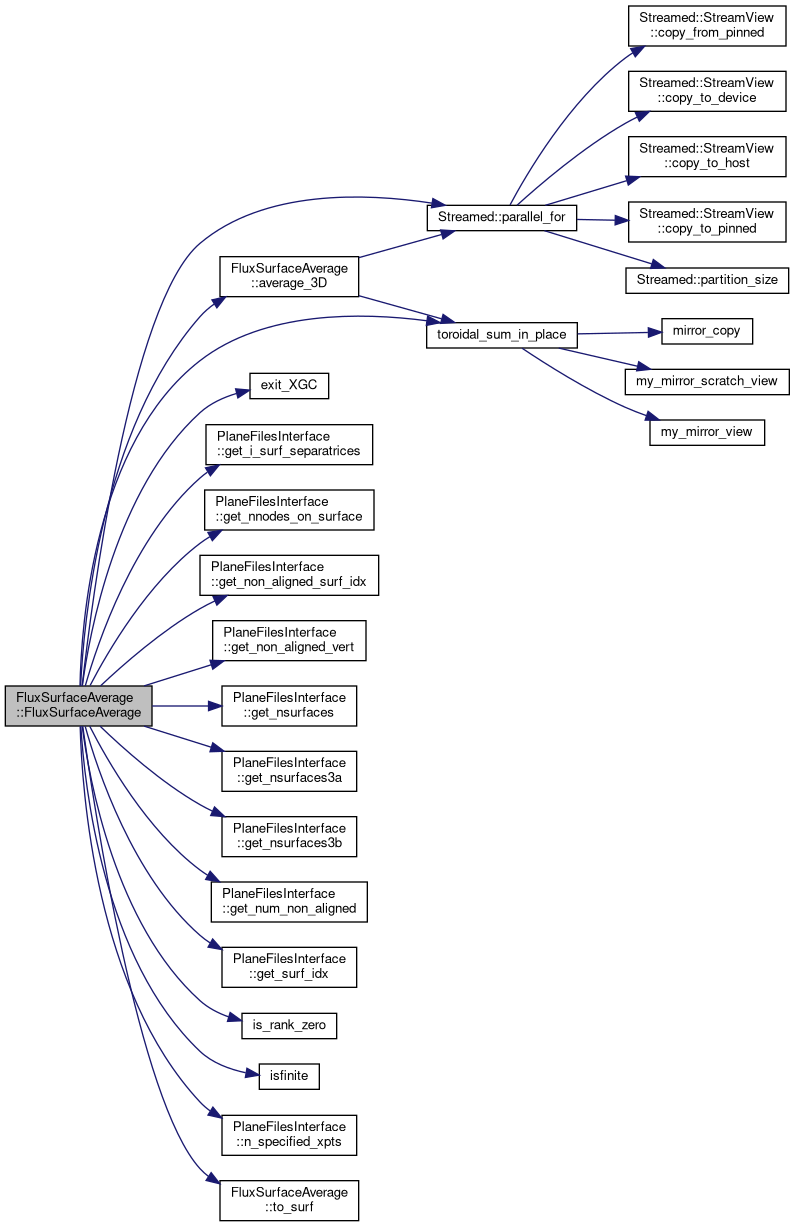

Here is the call graph for this function:

Member Function Documentation

template<class Device>

View< double *, CLayout, Device > FluxSurfaceAverage< Device >::average ( const View< double *, CLayout, Device > & array ) const

Conducts a flux-surface average on the poloidal plane in place

Parameters

[in] array View containing the input values at each vertex of the local plane

Returns: View of the results on each surface, i.e. not mapped back to vertices yet

Here is the caller graph for this function:

template<class Device>

View< double *, CLayout, Device > FluxSurfaceAverage< Device >::average	(	const View< double *, CLayout, Device > &	array,
		const View< double *, CLayout, Device > &	output_array
	)		const

Calculates the flux-surface average.

Parameters

[in]	array	View containing the input values at each vertex of the local plane
[out]	output_array	View containing the results of the flux-surface average

Returns: View of the results on each surface, i.e. not mapped back to vertices yet

template<class Device>

void FluxSurfaceAverage< Device >::average	(	const View< double *, CLayout, Device > &	array,
		const View< double *, CLayout, Device > &	output_array,
		const View< double *, CLayout, Device > &	tmp00
	)		const

Calculates the flux-surface average.

Parameters

[in]	array	View containing the input values at each vertex of the local plane
[out]	output_array	View with the results of the average for each vertex
[out]	tmp00	View used as scratch memory

template<class Device>

void FluxSurfaceAverage< Device >::average ( const View< double **, CLayout, Device > & array_set ) const

Conducts a flux-surface average on the poloidal plane of a set of arrays stored in a 2D View where the outer index is the number of arrays

Parameters

[in,out] array_set View containing the input values at each vertex for a set of arrays. The values are overwritten with the results.

Here is the call graph for this function:

template<class Device>

View< double *, CLayout, Device > FluxSurfaceAverage< Device >::average_3D	(	const DomainDecomposition< DeviceType > &	pol_decomp,
		const View< double *, CLayout, Device > &	array,
		const View< double *, CLayout, Device > &	output_array
	)		const

Calculates the 3D flux-surface average. The function assumes that each plane has the same psi surfaces in the same order.

Parameters

[in]	pol_decomp	The domain decomposition
[in]	array	View containing the input values at each vertex of the local plane
[out]	output_array	View with the results of the average for each vertex

Returns: View of the results on each surface, i.e. not mapped back to vertices yet

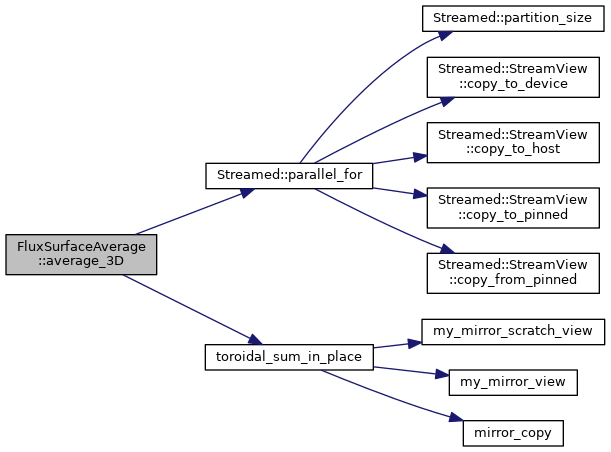

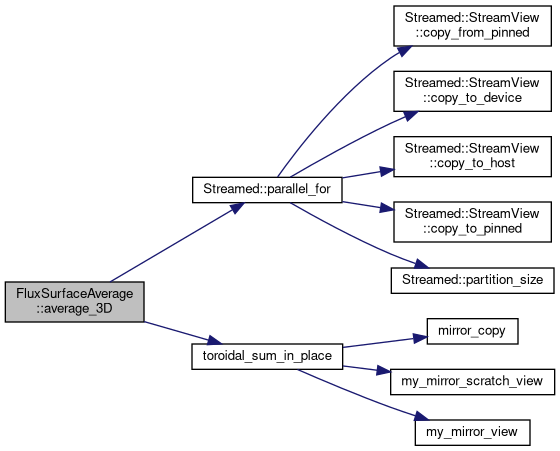

Here is the call graph for this function:

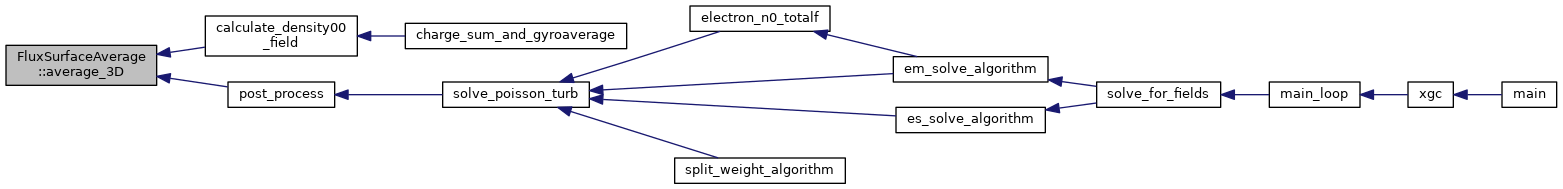

Here is the caller graph for this function:

template<class Device>

void FluxSurfaceAverage< Device >::from_surf	(	const View< double *, CLayout, Device > &	input_surf,
		const View< double *, CLayout, Device > &	output
	)		const

Maps flux-surface values back to the vertices.

Parameters

[in]	input_surf	View containing the values on each flux surface
[out]	output	View with the surface values mapped back to each vertex

Here is the caller graph for this function:

template<class Device>

template<class Device2 >

FluxSurfaceAverage<Device2> FluxSurfaceAverage< Device >::mirror ( ) const

inline

template<class Device >

int FluxSurfaceAverage< Device >::nsurfs ( ) const

Returns the number of surfaces mapped by the flux surface matrices

Returns: the number of surfaces

Here is the caller graph for this function:

template<class Device>

View< double *, CLayout, Device > FluxSurfaceAverage< Device >::to_surf ( const View< double *, CLayout, Device > & input ) const

Calculates the flux-surface average.

Parameters

[in] array View containing the input values at each vertex of the local plane

Returns: View of the results on each surface, i.e. not mapped back to vertices yet

Here is the caller graph for this function:

template<class Device>

void FluxSurfaceAverage< Device >::wall_nodes_strikep_method	(	NLReader::NamelistReader &	nlr,
		const MagneticField< DeviceType > &	magnetic_field,
		const Plane< HostType > &	plane,
		const PlaneFiles &	plane_files,
		const View< double *, CLayout, HostType > &	psi_surf,
		const View< int *, CLayout, DeviceType > &	num_t_node,
		const View< int **, CLayout, DeviceType > &	tr_node
	)

private

template<>

void FluxSurfaceAverage< HostType >::wall_nodes_strikep_method	(	NLReader::NamelistReader &	nlr,
		const MagneticField< DeviceType > &	magnetic_field,
		const Plane< HostType > &	plane,
		const PlaneFiles &	plane_files,
		const View< double *, CLayout, HostType > &	psi_surf,
		const View< int *, CLayout, DeviceType > &	num_t_node_d,
		const View< int **, CLayout, DeviceType > &	tr_node_d
	)

private

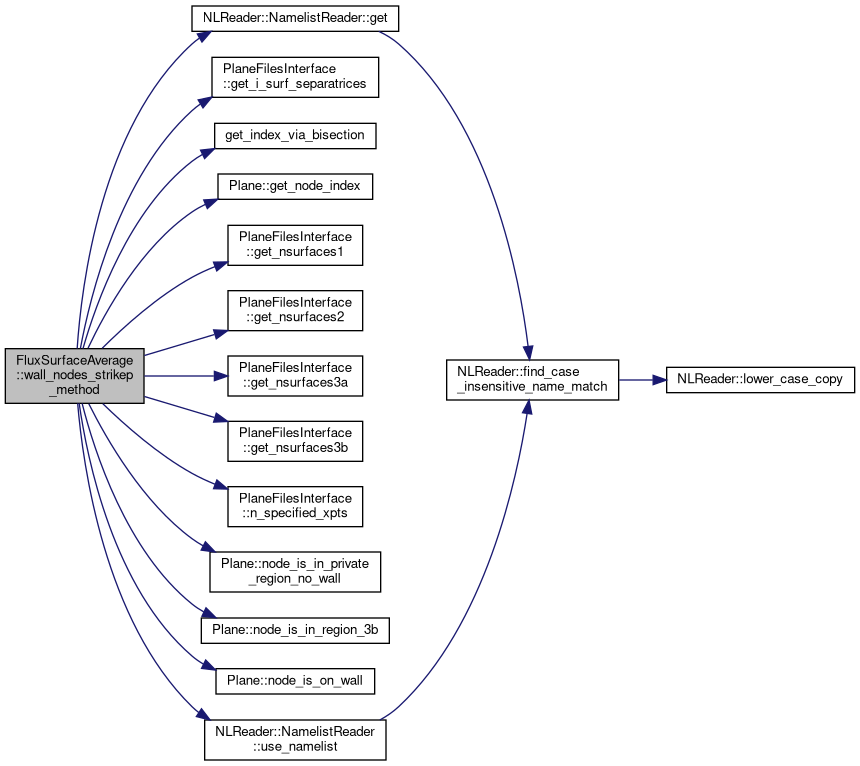

Here is the call graph for this function:

Friends And Related Function Documentation

template<class Device>

template<class Device2 >

friend class FluxSurfaceAverage

friend

Member Data Documentation

template<class Device>

Matrix<Device> FluxSurfaceAverage< Device >::from_flux_surface

private

template<class Device>

View<double*, CLayout, Device> FluxSurfaceAverage< Device >::surf_vol

private

template<class Device>

View<double*, CLayout, Device> FluxSurfaceAverage< Device >::surf_vol_3D

private

template<class Device>

Matrix<Device> FluxSurfaceAverage< Device >::to_flux_surface

private

The documentation for this class was generated from the following files:

/u/gitlab-xgc/builds/YGMz2TJ8/0/xgc/XGC-Devel/XGC_core/cpp/flux_surface_average.hpp
/u/gitlab-xgc/builds/YGMz2TJ8/0/xgc/XGC-Devel/XGC_core/cpp/flux_surface_average.cpp
