em_push_physics.tpp File Reference

#include "globals.hpp"
#include "push_controls.hpp"
#include "magnetic_field.hpp"
#include "grid.hpp"
#include "particles.hpp"
#include "species.hpp"
#include "perturbed_B_field.hpp"

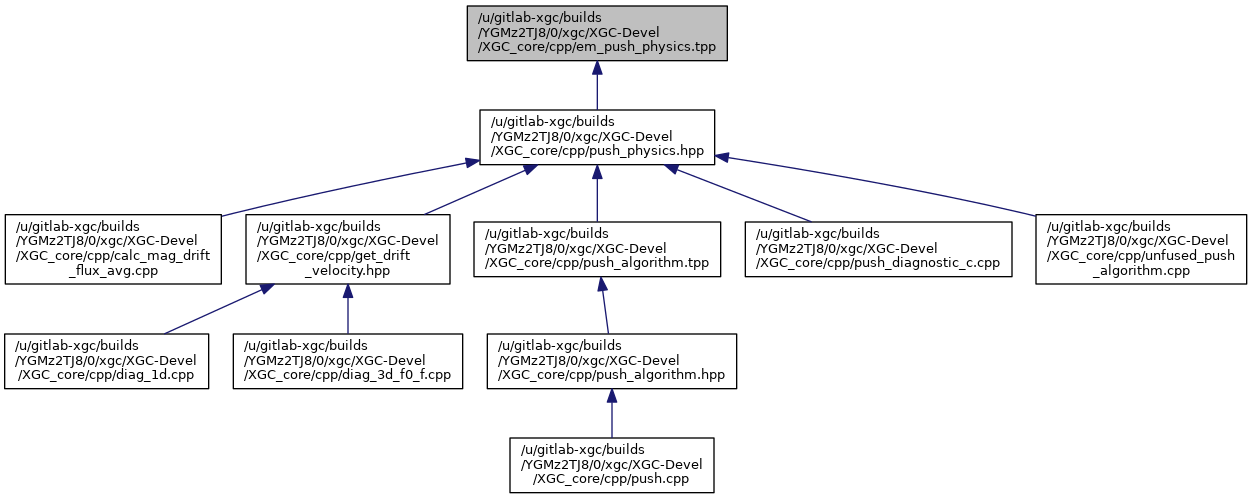

Include dependency graph for em_push_physics.tpp:

Functions
KOKKOS_INLINE_FUNCTION void	get_ExB_drift (double D, double drift_on, const SimdVector &bfield, const SimdVector &E, int i_simd, double over_B2, double inv_r, double(&yp_exb)[3])
KOKKOS_INLINE_FUNCTION double	get_denergy_dt_es (double charge, int i_simd, const SimdVector &bfield, const SimdVector &tdb, const SimdVector &E, double rho, double vp, double mu, double B, double c_m, double over_B, double over_B2, double dbdr, double dbdz, double dbdphi, const double(&curl_B)[3], const double drift_on, double D)
KOKKOS_INLINE_FUNCTION double	get_denergy_dt_em (double mass, int i_simd, const Simd< double > &f0flow, const Simd< double > &Epar_em, const double(&Bs)[3], const double(&Bsa)[3], const double(&dXdt)[3], double fr_pert, double fz_pert, double fp_pert, double fr_mag, double fz_mag, double fp_mag, double vp, double mu, double B, double c_m, double over_B, double dbdr, double dbdz, double dbdphi, double D)
template<MarkerType MT>
KOKKOS_INLINE_FUNCTION double	get_dfdp (double mass, double vp, double mu, double B, double inv_temp, const LocalEquilProfiles< MT > &local_equil_profiles, int i_simd)
KOKKOS_INLINE_FUNCTION double	get_dweight (double dfdp, const SimdVector2D &gradpsi, int i_simd, const double(&yp)[3], double dEdtT)
template<MarkerType MT>
KOKKOS_INLINE_FUNCTION double	get_dw1 (double mass, double charge, bool is_electron, const PushControls &push_controls, int i_simd, double w2, double r, const SimdVector &bfield, const SimdVector2D &gradpsi, const SimdVector &tdb, const LocalFields &fld, const LocalEquilProfiles< MT > &local_equil_profiles, const double(&Bs)[3], const double(&Bsa)[3], double fr_pert, double fz_pert, double fp_pert, double fr2, double fz2, double fp2, double inv_r, double rho, double vp, double mu, double B, double c_m, double over_B, double over_B2, double dbdr, double dbdz, double dbdphi, const double(&curl_B)[3], const double drift_on, double D, double yp_r, double yp_z, double yp_p)
KOKKOS_INLINE_FUNCTION void	get_yp_pert (double D, const double(&Bs)[3], const double(&Bsa)[3], const SimdVector &bfield, double vp, double c_m, const Simd< double > &Ah, double fr_pert, double fz_pert, double fp_pert, double over_B, double over_B2, double inv_r, int i_simd, double(&yp_pert)[3])
KOKKOS_INLINE_FUNCTION double	get_adiabatic_response (const SimdVector &E, const SimdVector &E00, const Simd< double > &ddpotdt, double yp_r, double yp_z, double yp_p, double r, double inv_temp, int i_simd)
template<>
KOKKOS_INLINE_FUNCTION double	get_dw1< MarkerType::ReducedDeltaF > (double mass, double charge, bool is_electron, const PushControls &push_controls, int i_simd, double w2, double r, const SimdVector &bfield, const SimdVector2D &gradpsi, const SimdVector &tdb, const LocalFields &fld, const LocalEquilProfiles< MarkerType::ReducedDeltaF > &local_equil_profiles, const double(&Bs)[3], const double(&Bsa)[3], double fr_pert, double fz_pert, double fp_pert, double fr2, double fz2, double fp2, double inv_r, double rho, double vp, double mu, double B, double c_m, double over_B, double over_B2, double dbdr, double dbdz, double dbdphi, const double(&curl_B)[3], const double drift_on, double D, double yp_r, double yp_z, double yp_p)
KOKKOS_INLINE_FUNCTION double	get_nb_curl_nb (double over_B2, const SimdVector &bfield, const SimdVector(&jacb)[3], double inv_r, int i_simd)
template<class Device , PushDiagToggle PDT>
KOKKOS_INLINE_FUNCTION void	derivs_elec (const PushControls &push_controls, const Species< Device > &species, const SimdParticles &part, const Simd< double > &inv_r_vec, const SimdVector &bfield, const Simd< double > &B_mag, const SimdVector(&jacb)[3], const Simd< double > &psi, const SimdVector2D &gradpsi, const SimdVector &tdb, const LocalFields &fld, const LocalEquilProfiles< MT_GLOBAL > &local_equil_profiles, SimdPhase &yprime, VFDiag< PDT > &vf_diag)

Function Documentation

template<class Device , PushDiagToggle PDT>

KOKKOS_INLINE_FUNCTION void derivs_elec	(	const PushControls &	push_controls,
		const Species< Device > &	species,
		const SimdParticles &	part,
		const Simd< double > &	inv_r_vec,
		const SimdVector &	bfield,
		const Simd< double > &	B_mag,
		const SimdVector(&)	jacb[3],
		const Simd< double > &	psi,
		const SimdVector2D &	gradpsi,
		const SimdVector &	tdb,
		const LocalFields &	fld,
		const LocalEquilProfiles< MT_GLOBAL > &	local_equil_profiles,
		SimdPhase &	yprime,
		VFDiag< PDT > &	vf_diag
	)

Get the phase derivatives of a vector of particles

Parameters

[in]	push_controls	Set of options/parameters used in the particle push
[in]	species	Contains species parameters
[in]	part	Vector of particles
[in]	inv_r_vec	Vector of 1/r (1/r_axis in cylindrical limit)
[in]	bfield	Vector of magnetic fields
[in]	B_mag	Vector of bfield magnitudes
[in]	jacb	Vector of jacobians
[in]	psi	Vector of psi coordinates
[in]	gradpsi	Vector of psi gradients (r,z)
[in]	tdb	Vector of perturbed magnetic field
[in]	fld	Contains electromagnetic fields at a set of points
[in]	local_equil_profiles	Contains f0 profile information is required for conventional delta-f method (in dw/dt)
[out]	yprime	Vector of derivatives of the particle phases
[out]	vf_diag	Optional vector of quantities for diagnostic

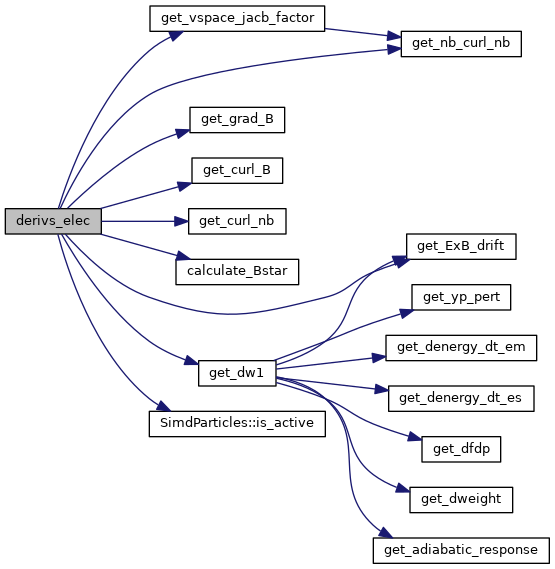

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double get_adiabatic_response	(	const SimdVector &	E,
		const SimdVector &	E00,
		const Simd< double > &	ddpotdt,
		double	yp_r,
		double	yp_z,
		double	yp_p,
		double	r,
		double	inv_temp,
		int	i_simd
	)

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double get_denergy_dt_em	(	double	mass,
		int	i_simd,
		const Simd< double > &	f0flow,
		const Simd< double > &	Epar_em,
		const double(&)	Bs[3],
		const double(&)	Bsa[3],
		const double(&)	dXdt[3],
		double	fr_pert,
		double	fz_pert,
		double	fp_pert,
		double	fr_mag,
		double	fz_mag,
		double	fp_mag,
		double	vp,
		double	mu,
		double	B,
		double	c_m,
		double	over_B,
		double	dbdr,
		double	dbdz,
		double	dbdphi,
		double	D
	)

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double get_denergy_dt_es	(	double	charge,
		int	i_simd,
		const SimdVector &	bfield,
		const SimdVector &	tdb,
		const SimdVector &	E,
		double	rho,
		double	vp,
		double	mu,
		double	B,
		double	c_m,
		double	over_B,
		double	over_B2,
		double	dbdr,
		double	dbdz,
		double	dbdphi,
		const double(&)	curl_B[3],
		const double	drift_on,
		double	D
	)

Here is the caller graph for this function:

template<MarkerType MT>

KOKKOS_INLINE_FUNCTION double get_dfdp	(	double	mass,
		double	vp,
		double	mu,
		double	B,
		double	inv_temp,
		const LocalEquilProfiles< MT > &	local_equil_profiles,
		int	i_simd
	)

Here is the caller graph for this function:

template<MarkerType MT>

KOKKOS_INLINE_FUNCTION double get_dw1	(	double	mass,
		double	charge,
		bool	is_electron,
		const PushControls &	push_controls,
		int	i_simd,
		double	w2,
		double	r,
		const SimdVector &	bfield,
		const SimdVector2D &	gradpsi,
		const SimdVector &	tdb,
		const LocalFields &	fld,
		const LocalEquilProfiles< MT > &	local_equil_profiles,
		const double(&)	Bs[3],
		const double(&)	Bsa[3],
		double	fr_pert,
		double	fz_pert,
		double	fp_pert,
		double	fr2,
		double	fz2,
		double	fp2,
		double	inv_r,
		double	rho,
		double	vp,
		double	mu,
		double	B,
		double	c_m,
		double	over_B,
		double	over_B2,
		double	dbdr,
		double	dbdz,
		double	dbdphi,
		const double(&)	curl_B[3],
		const double	drift_on,
		double	D,
		double	yp_r,
		double	yp_z,
		double	yp_p
	)

Here is the caller graph for this function:

template<>

KOKKOS_INLINE_FUNCTION double get_dw1< MarkerType::ReducedDeltaF >	(	double	mass,
		double	charge,
		bool	is_electron,
		const PushControls &	push_controls,
		int	i_simd,
		double	w2,
		double	r,
		const SimdVector &	bfield,
		const SimdVector2D &	gradpsi,
		const SimdVector &	tdb,
		const LocalFields &	fld,
		const LocalEquilProfiles< MarkerType::ReducedDeltaF > &	local_equil_profiles,
		const double(&)	Bs[3],
		const double(&)	Bsa[3],
		double	fr_pert,
		double	fz_pert,
		double	fp_pert,
		double	fr2,
		double	fz2,
		double	fp2,
		double	inv_r,
		double	rho,
		double	vp,
		double	mu,
		double	B,
		double	c_m,
		double	over_B,
		double	over_B2,
		double	dbdr,
		double	dbdz,
		double	dbdphi,
		const double(&)	curl_B[3],
		const double	drift_on,
		double	D,
		double	yp_r,
		double	yp_z,
		double	yp_p
	)

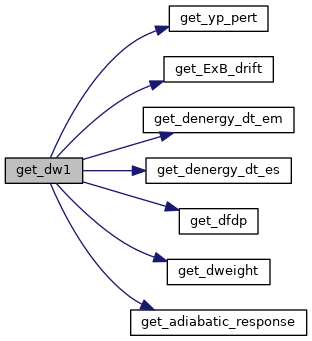

Here is the call graph for this function:

KOKKOS_INLINE_FUNCTION double get_dweight	(	double	dfdp,
		const SimdVector2D &	gradpsi,
		int	i_simd,
		const double(&)	yp[3],
		double	dEdtT
	)

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION void get_ExB_drift	(	double	D,
		double	drift_on,
		const SimdVector &	bfield,
		const SimdVector &	E,
		int	i_simd,
		double	over_B2,
		double	inv_r,
		double(&)	yp_exb[3]
	)

Get the phase derivatives of a vector of particles

Parameters

[in]	D
[in]	drift_on
[in]	bfield	Vector of magnetic fields
[in]	E
[in]	i_simd	vector index
[in]	over_B2	1/|B|^2
[in]	inv_r	1/r
[out]	yp_exb

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double get_nb_curl_nb	(	double	over_B2,
		const SimdVector &	bfield,
		const SimdVector(&)	jacb[3],
		double	inv_r,
		int	i_simd
	)

Get normalized b dot curl of normalized b

Parameters

[in]	over_B2	1/|B|^2
[in]	bfield	Vector of magnetic fields
[in]	jacb	Vector of jacobians
[in]	inv_r	1/r
[in]	i_simd	vector index

Returns

double normalized b dot curl of normalized b

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION void get_yp_pert	(	double	D,
		const double(&)	Bs[3],
		const double(&)	Bsa[3],
		const SimdVector &	bfield,
		double	vp,
		double	c_m,
		const Simd< double > &	Ah,
		double	fr_pert,
		double	fz_pert,
		double	fp_pert,
		double	over_B,
		double	over_B2,
		double	inv_r,
		int	i_simd,
		double(&)	yp_pert[3]
	)

Here is the caller graph for this function:
