Inheritance diagram for SolverPoissonAxisym:

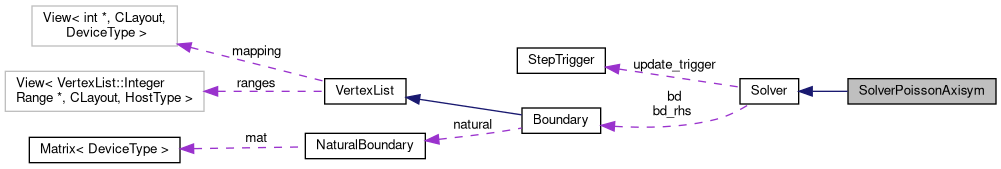

Collaboration diagram for SolverPoissonAxisym:

[legend]

Public Member Functions
bool	get_is_iter_solver (NLReader::NamelistReader &nlr) const

	SolverPoissonAxisym (NLReader::NamelistReader &nlr, bool is_XGCa, bool is_em, const MagneticField< DeviceType > &magnetic_field, const Grid< DeviceType > &grid, std::string label_in, bool spectral_in, bool use_pade_in, bool update_solver, int update_solver_nstep)

void	setup_boundaries (NLReader::NamelistReader &nlr, bool is_XGCa, bool explicit_electromagnetic, const MagneticField< DeviceType > &magnetic_field, const Grid< DeviceType > &grid)

Public Member Functions inherited from Solver
	Solver (std::string label_in, int solver_index_in, int spec_solver_index_in, bool spectral_in, int n_rhs_in, int n_triangle_in, bool use_pade_in, bool update_solver, int update_solver_nstep)

bool	update_is_triggered (int gstep) const

void	update_helm_solver (int isolver, const View< int , CLayout, HostType > &bd, const View< double , CLayout, HostType > &alpha, const View< double *, CLayout, HostType > &beta)

void	update (const View< int *, CLayout, DeviceType > &bd_d)

virtual	~Solver ()=default

Additional Inherited Members
Public Types inherited from Solver
enum	SOLVER_INT : int { A =0 , A_SPEC , A_CV , A_CV_SPEC , P0 , H , H_SPEC }

Public Attributes inherited from Solver
std::string	label

StepTrigger	update_trigger

bool	initialized

int	solver_index

int	spec_solver_index

bool	spectral

int	n_rhs

int	n_triangle

Boundary	bd_rhs

Boundary	bd

bool	use_pade

Constructor & Destructor Documentation

◆ SolverPoissonAxisym()

SolverPoissonAxisym::SolverPoissonAxisym	(	NLReader::NamelistReader &	nlr,
		bool	is_XGCa,
		bool	is_em,
		const MagneticField< DeviceType > &	magnetic_field,
		const Grid< DeviceType > &	grid,
		std::string	label_in,
		bool	spectral_in,
		bool	use_pade_in,
		bool	update_solver,
		int	update_solver_nstep
	)

inline

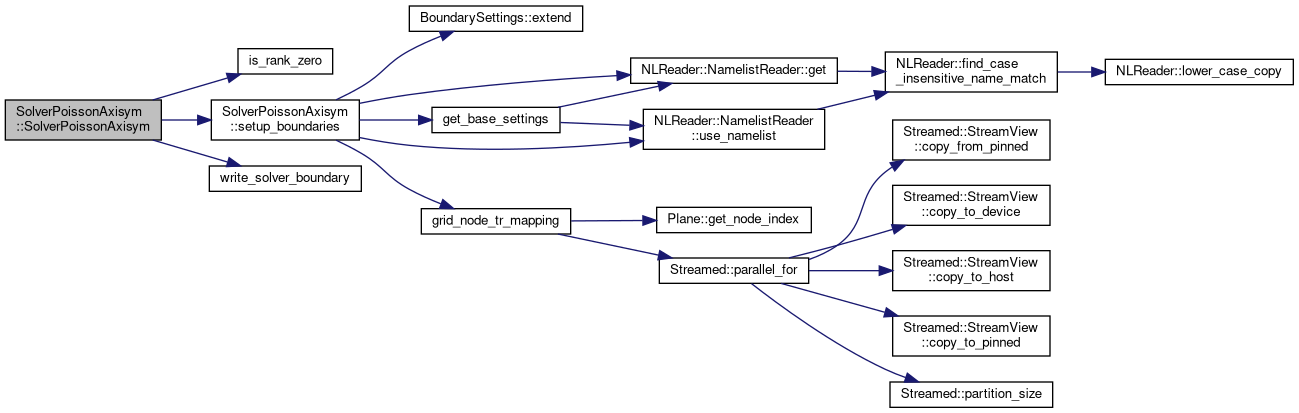

Here is the call graph for this function:

bool SolverPoissonAxisym::get_is_iter_solver ( NLReader::NamelistReader & nlr ) const

inline

< Split Poisson equation into axisymmetric and

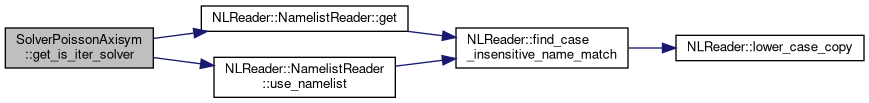

Here is the call graph for this function:

void SolverPoissonAxisym::setup_boundaries	(	NLReader::NamelistReader &	nlr,
		bool	is_XGCa,
		bool	explicit_electromagnetic,
		const MagneticField< DeviceType > &	magnetic_field,
		const Grid< DeviceType > &	grid
	)

virtual

< Outward shift of the inner boundary of the axisymmetric

< Outward shift of the inner boundary of the RHS of the axisymmetric

< Inward shift of the outer boundary of the axisymmetric

< Inward shift of the outer boundary of the RHS of the axisymmetric

< (XGCa only) False: 00-bc is phi=0 everywhere; true: 00-boundary

< If .true., use Dirichlet boundary condition \(\phi=0\)

< If .true., the axisymmetric Poisson equation is solved only inside the separatrix.

Implements Solver.

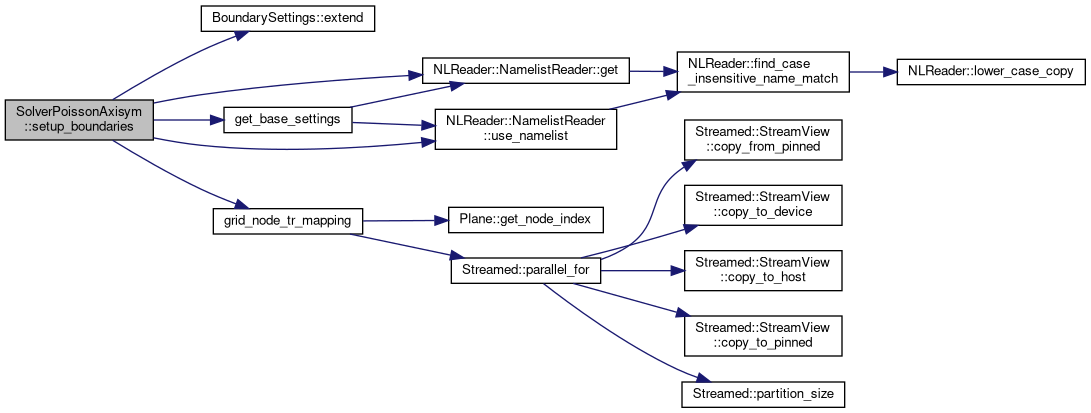

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/solver_poisson_axisym.hpp
/p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/solver_poisson_axisym.cpp
