Solver Class Reference

#include <solver.hpp>

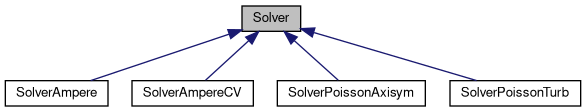

Inheritance diagram for Solver:

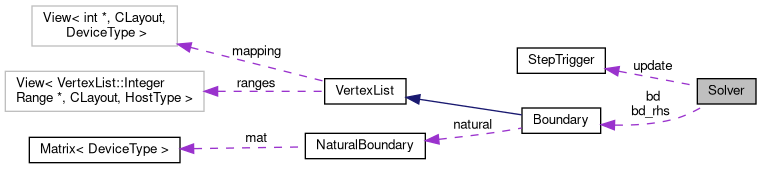

Collaboration diagram for Solver:

Public Types
enum	SOLVER_INT : int {   A =0 , A_SPEC , A_CV , A_CV_SPEC ,   P0 , H , H_SPEC }

Public Member Functions
	Solver (std::string label_in, int solver_index_in, int spec_solver_index_in, bool spectral_in, int n_rhs_in, int n_triangle_in, bool use_pade_in, bool update_solver, int update_solver_nstep)
bool	update_is_triggered (int gstep) const
void	update_helm_solver (int isolver, const View< int *, CLayout, HostType > &bd, const View< double *, CLayout, HostType > &alpha, const View< double *, CLayout, HostType > &beta)
void	update (const View< int *, CLayout, DeviceType > &bd_d)
virtual	~Solver ()=default
virtual void	setup_boundaries (NLReader::NamelistReader &nlr, bool is_XGCa, bool explicit_electromagnetic, const MagneticField< DeviceType > &magnetic_field, const Grid< DeviceType > &grid)=0

Public Attributes
std::string	label
StepTrigger	update_trigger
bool	initialized
int	solver_index
int	spec_solver_index
bool	spectral
int	n_rhs
int	n_triangle
Boundary	bd_rhs
Boundary	bd
bool	use_pade

Member Enumeration Documentation

SOLVER_INT

enum Solver::SOLVER_INT : int

Enumerator
A
A_SPEC
A_CV
A_CV_SPEC
P0
H
H_SPEC

Constructor & Destructor Documentation

Solver()

Solver::Solver	(	std::string	label_in,
		int	solver_index_in,
		int	spec_solver_index_in,
		bool	spectral_in,
		int	n_rhs_in,
		int	n_triangle_in,
		bool	use_pade_in,
		bool	update_solver,
		int	update_solver_nstep
	)

Here is the call graph for this function:

~Solver()

virtual Solver::~Solver ( )

virtualdefault

Member Function Documentation

setup_boundaries()

virtual void Solver::setup_boundaries ( NLReader::NamelistReader &  nlr, bool  is_XGCa, bool  explicit_electromagnetic, const MagneticField< DeviceType > &  magnetic_field, const Grid< DeviceType > &  grid  )

pure virtual

Implemented in SolverPoissonTurb, SolverPoissonAxisym, SolverAmpereCV, and SolverAmpere.

update()

void Solver::update

(

const View< int *, CLayout, DeviceType > &

bd_d

)

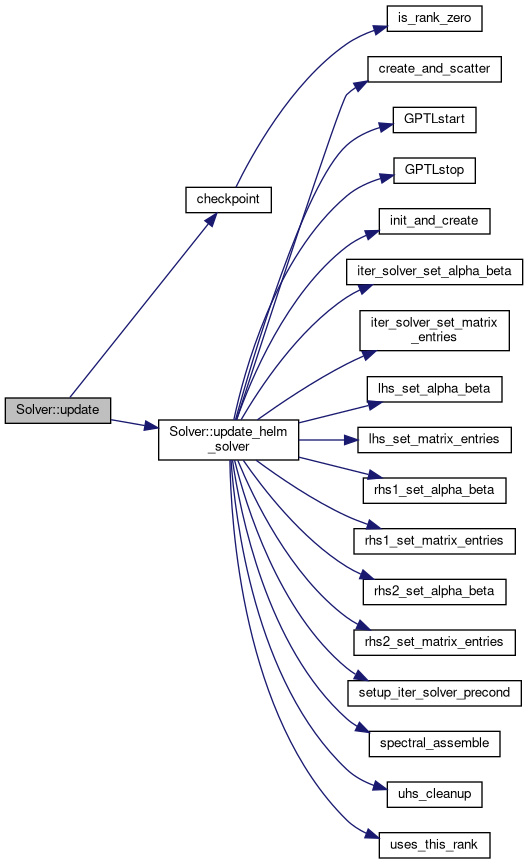

Here is the call graph for this function:

update_helm_solver()

void Solver::update_helm_solver	(	int	isolver,
		const View< int *, CLayout, HostType > &	bd,
		const View< double *, CLayout, HostType > &	alpha,
		const View< double *, CLayout, HostType > &	beta
	)

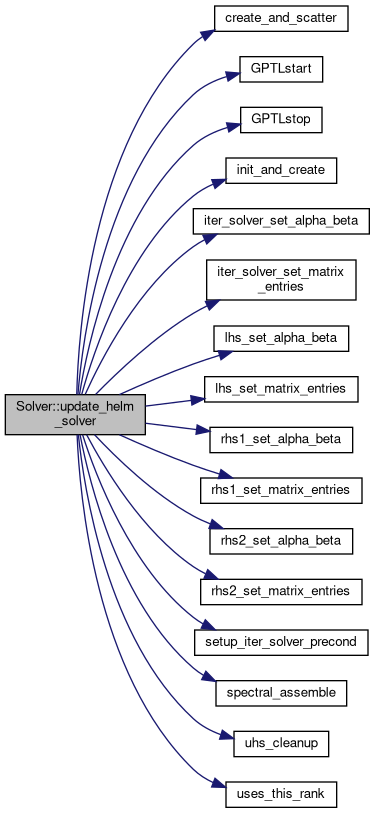

Here is the call graph for this function:

Here is the caller graph for this function:

update_is_triggered()

bool Solver::update_is_triggered

(

int

gstep

)

const

Here is the call graph for this function:

Member Data Documentation

bd

Boundary Solver::bd

bd_rhs

Boundary Solver::bd_rhs

initialized

bool Solver::initialized

label

std::string Solver::label

n_rhs

int Solver::n_rhs

n_triangle

int Solver::n_triangle

solver_index

int Solver::solver_index

spec_solver_index

int Solver::spec_solver_index

spectral

bool Solver::spectral

update_trigger

StepTrigger Solver::update_trigger

use_pade

bool Solver::use_pade

---

The documentation for this class was generated from the following files:

• /p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/solver.hpp
• /p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/solver.cpp
