#include <col_vgrids.hpp>

Collaboration diagram for CollisionVelocityGrids< Device >:

[legend]

Public Member Functions
Kokkos::DualView< int *, CLayout, Device >	count_species_in_grid (const CollisionSpecies< Device > &col_spall) const

int	count_grids () const

	CollisionVelocityGrids ()

	CollisionVelocityGrids (const CollisionSpecies< Device > &col_spall)

KOKKOS_INLINE_FUNCTION double	vp_vol_fac (int ivz) const

void	setup_one (int isp, int mesh_ind, double vth, double dsmu, double dvp, double vp_max)

KOKKOS_INLINE_FUNCTION double	mesh_r (int ibatch, int igrid, int j) const

KOKKOS_INLINE_FUNCTION double	mesh_z (int ibatch, int igrid, int j) const

KOKKOS_INLINE_FUNCTION double	mesh_r_half (int ibatch, int igrid, int j) const

KOKKOS_INLINE_FUNCTION double	mesh_z_half (int ibatch, int igrid, int j) const

KOKKOS_INLINE_FUNCTION double	local_center_volume (int ibatch, int igrid, int j) const

void	setup_all (const CollisionSpecies< Device > &col_species, const View< int *, HostType > &mesh_nodes, int mb_n_nodes)

Public Attributes
Kokkos::DualView< int *, CLayout, Device >	nspecies_in_grid

const int	n
	Number of velocity grids. More...

const int	mb_n_nodes
	Batch size. More...

const int	n_species
	Number of species total. More...

const int	nvr
	grid points in r More...

const int	nvz
	grid points in z More...

View< double ***, CLayout, HostType >	mesh_r_h

View< double ***, CLayout, HostType >	mesh_z_h

View< double ***, CLayout, Device >	vol

View< double ***, CLayout, HostType >	vol_h

View< double ****, Device >	delta_r

View< double ****, Device >	delta_z

View< double **, Kokkos::LayoutLeft, HostType >	vpar_beg_h

View< double **, Kokkos::LayoutLeft, HostType >	mesh_dz_h

View< double **, Kokkos::LayoutLeft, HostType >	mesh_dr_h

View< double **, Kokkos::LayoutLeft, Device >	vpar_beg

View< double **, Kokkos::LayoutLeft, Device >	mesh_dz

View< double **, Kokkos::LayoutLeft, Device >	mesh_dr

Kokkos::DualView< int **, CLayout, Device >	map_grid_to_species

Constructor & Destructor Documentation

◆ CollisionVelocityGrids() [1/2]

template<class Device >

CollisionVelocityGrids< Device >::CollisionVelocityGrids ( )

inline

◆ CollisionVelocityGrids() [2/2]

template<class Device >

CollisionVelocityGrids< Device >::CollisionVelocityGrids ( const CollisionSpecies< Device > & col_spall )

inline

Member Function Documentation

◆ count_grids()

template<class Device >

int CollisionVelocityGrids< Device >::count_grids ( ) const

inline

◆ count_species_in_grid()

template<class Device >

Kokkos::DualView<int*,CLayout,Device> CollisionVelocityGrids< Device >::count_species_in_grid ( const CollisionSpecies< Device > & col_spall ) const

inline

◆ local_center_volume()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::local_center_volume	(	int	ibatch,
		int	igrid,
		int	j
	)		const

inline

Here is the call graph for this function:

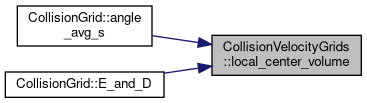

Here is the caller graph for this function:

◆ mesh_r()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::mesh_r	(	int	ibatch,
		int	igrid,
		int	j
	)		const

inline

Here is the caller graph for this function:

◆ mesh_r_half()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::mesh_r_half	(	int	ibatch,
		int	igrid,
		int	j
	)		const

inline

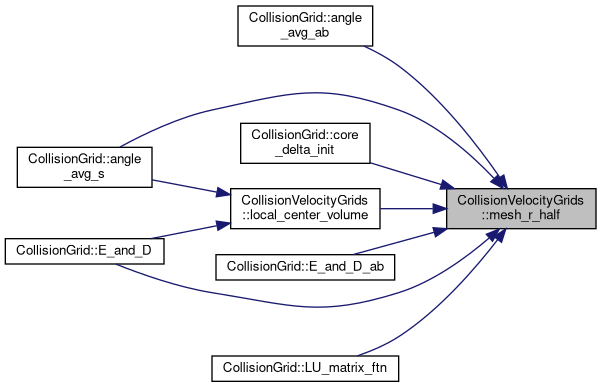

Here is the caller graph for this function:

◆ mesh_z()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::mesh_z	(	int	ibatch,
		int	igrid,
		int	j
	)		const

inline

Here is the caller graph for this function:

◆ mesh_z_half()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::mesh_z_half	(	int	ibatch,
		int	igrid,
		int	j
	)		const

inline

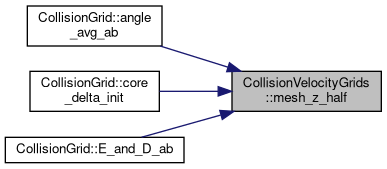

Here is the caller graph for this function:

◆ setup_all()

template<class Device >

void CollisionVelocityGrids< Device >::setup_all	(	const CollisionSpecies< Device > &	col_species,
		const View< int *, HostType > &	mesh_nodes,
		int	mb_n_nodes
	)

inline

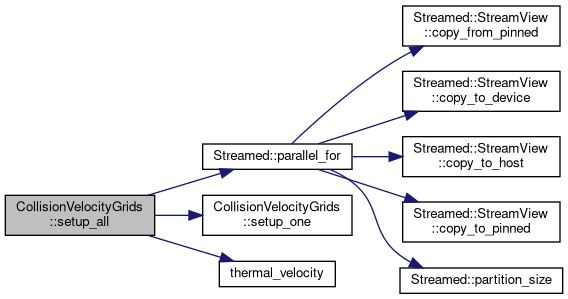

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setup_one()

template<class Device >

void CollisionVelocityGrids< Device >::setup_one	(	int	isp,
		int	mesh_ind,
		double	vth,
		double	dsmu,
		double	dvp,
		double	vp_max
	)

inline

Here is the caller graph for this function:

◆ vp_vol_fac()

template<class Device >

KOKKOS_INLINE_FUNCTION double CollisionVelocityGrids< Device >::vp_vol_fac ( int ivz ) const

inline

Get the boundary weighting factor of the velocity volume element in \(v_\parallel\) direction. The boundary weighting factor in \(v_\perp\) direction is already included in vol/vol_h. The return value is 1 for interior vertices, and 1/2 for boundary vertices.

Parameters

[in] ivz Parallel velocity grid index (0...nvz-1)

Returns: vp_vol_fac Boundary weighting factor in \(v_\parallel\) for velocity integration

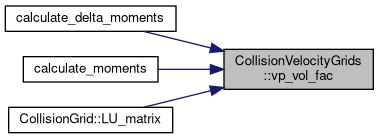

Here is the caller graph for this function:

Member Data Documentation

◆ delta_r

template<class Device >

View<double****,Device> CollisionVelocityGrids< Device >::delta_r

◆ delta_z

template<class Device >

View<double****,Device> CollisionVelocityGrids< Device >::delta_z

◆ map_grid_to_species

template<class Device >

Kokkos::DualView<int**,CLayout,Device> CollisionVelocityGrids< Device >::map_grid_to_species

◆ mb_n_nodes

template<class Device >

const int CollisionVelocityGrids< Device >::mb_n_nodes

Batch size.

◆ mesh_dr

template<class Device >

View<double**,Kokkos::LayoutLeft,Device> CollisionVelocityGrids< Device >::mesh_dr

◆ mesh_dr_h

template<class Device >

View<double**,Kokkos::LayoutLeft,HostType> CollisionVelocityGrids< Device >::mesh_dr_h

◆ mesh_dz

template<class Device >

View<double**,Kokkos::LayoutLeft,Device> CollisionVelocityGrids< Device >::mesh_dz

◆ mesh_dz_h

template<class Device >

View<double**,Kokkos::LayoutLeft,HostType> CollisionVelocityGrids< Device >::mesh_dz_h

◆ mesh_r_h

template<class Device >

View<double***,CLayout,HostType> CollisionVelocityGrids< Device >::mesh_r_h

◆ mesh_z_h

template<class Device >

View<double***,CLayout,HostType> CollisionVelocityGrids< Device >::mesh_z_h

◆ n

template<class Device >

const int CollisionVelocityGrids< Device >::n

Number of velocity grids.

◆ n_species

template<class Device >

const int CollisionVelocityGrids< Device >::n_species

Number of species total.

◆ nspecies_in_grid

template<class Device >

Kokkos::DualView<int*,CLayout,Device> CollisionVelocityGrids< Device >::nspecies_in_grid

◆ nvr

template<class Device >

const int CollisionVelocityGrids< Device >::nvr

grid points in r

◆ nvz

template<class Device >

const int CollisionVelocityGrids< Device >::nvz

grid points in z

◆ vol

template<class Device >

View<double***,CLayout,Device> CollisionVelocityGrids< Device >::vol

◆ vol_h

template<class Device >

View<double***,CLayout,HostType> CollisionVelocityGrids< Device >::vol_h

◆ vpar_beg

template<class Device >

View<double**,Kokkos::LayoutLeft,Device> CollisionVelocityGrids< Device >::vpar_beg

◆ vpar_beg_h

template<class Device >

View<double**,Kokkos::LayoutLeft,HostType> CollisionVelocityGrids< Device >::vpar_beg_h

The documentation for this struct was generated from the following file:

/p/test_ssd/builds/t3_84szKM/0/xgc/XGC-Devel/XGC_core/cpp/col_vgrids.hpp
