Functions/Subroutines | |
| subroutine | petsc_get_sizes (grid, bc, n_equation, n_boundary, xgc_petsc, petsc_xgc_bd) |
| Calculate (i) the number of equations (vertices) of the solver, (ii) the number of XGC boundary vertices included in the solver, (iii) (preliminary) mapping from XGC vertices to PETSc equations, (iv) mapping from XGC vertices to PETSc boundary conditions, all based the XGC boundary object passed as input. More... | |
| subroutine | petsc_get_bd_map (grid, bc, n_boundary, petsc_xgc_bd, petsc_bd_xgc) |
| Generate mapping from PETSc boundary conditions to XGC vertices. This requires the results of petsc_get_sizes because the number of boundary conditions is not known a priori. More... | |
| subroutine | getnnz (grid, nloc, low, high, d_nnz, o_nnz, xgc_petsc, nglobal, ierr) |
| Computes the number of non-zero entries nnz per row in the rank-local rows. More... | |
| subroutine | petsc_get_partitioning (grid, bc, b_factors, comm, num_pe, n_eq_tot_in, set_diffusion_matrix, xgc_petsc, petsc_xgc_bd, n_eq_loc, xgc_proc_out, proc_eq, ierr) |
| Generates a domain partitioning of part of the XGC mesh used by a solver (as defined by the boundary conditions bc) using Parmetis and generates a mapping between PETSc equation index and XGC MPI ranks (those in the communicator comm used by the solver). More... | |
| subroutine | petsc_get_mapping (nnode, bc, comm, num_pe, n_eq_tot, n_eq_loc, xgc_proc, proc_eq, xgc_petsc, petsc_xgc, petscloc_xgc) |
| Based on the Parmetis partition of the XGC domain, updates the mappings between XGC vertices and PETSc equations. More... | |
| subroutine | petsc_get_template_mat (grid, comm, n_eq_tot, n_eq_loc, xgc_petsc, solver_template_mat, ierr) |
| Uses pre-computed (petsc_get_partitioning) local matrix sizes and XGC vertex to PETSc equation mapping to set up a blank template matrix with sufficient pre-allocated memory. More... | |
| subroutine | petsc_get_scatter_multi_block (nnode, ksp, mat_all_blocks, mat_one_block, blocksize, varnames, n_eq_tot, n_eq_loc, petscloc_xgc, petsc_xgc, iss, to_petsc, from_petsc, ierr) |
| Sets up a PETSc scatter object for a (2D) multi-block field-split solver. More... | |
| subroutine | petsc_to_xgc (nnode, blocksize, from_petsc, field_petsc, field_xgc, ierr) |
| This routine scatters values from the distributed vector compatible with the block-matrix of the 2D diffusion model to local variables on the XGC solver grid. More... | |
| subroutine | xgc_to_petsc (nnode, blocksize, to_petsc, field_petsc, field_xgc, ierr) |
| This routine scatters values from local variable on the XGC solver grid to the distributed vector compatible with the block-matrix of the 2D diffusion model. More... | |
| subroutine | diffusion_matrix_init (diffusion_ts, grid, bc, solver_template_mat, ierr) |
| Set up a template matrix for XGC's anomalous diffusion time integrator. This is currently a system of either 4 (adiabatic electrons) or 7 (kinetic electrons) equations. Impurities are not supported yet. More... | |
Function/Subroutine Documentation
◆ diffusion_matrix_init()
| subroutine petsc_solver_module::diffusion_matrix_init | ( | type(xgc_ts) | diffusion_ts, |
| type(grid_type), intent(in) | grid, | ||
| integer, dimension(grid%nnode), intent(in) | bc, | ||
| intent(out) | solver_template_mat, | ||
| ierr | |||
| ) |
Set up a template matrix for XGC's anomalous diffusion time integrator. This is currently a system of either 4 (adiabatic electrons) or 7 (kinetic electrons) equations. Impurities are not supported yet.
- Parameters
-
[in,out] diffusion_ts PETSc time integrator object (TS) for the diffusion solver [in] grid XGC grid object, type(grid_type) [in] bc Solver boundary mask, 1 if not in boundary vertex list [out] solver_template_mat PETSc matrix with the template for the anomalous diffusion solver [out] ierr PETSc error code.

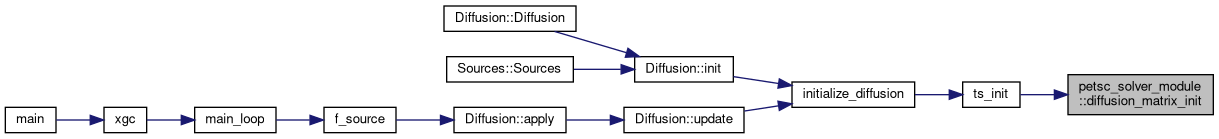

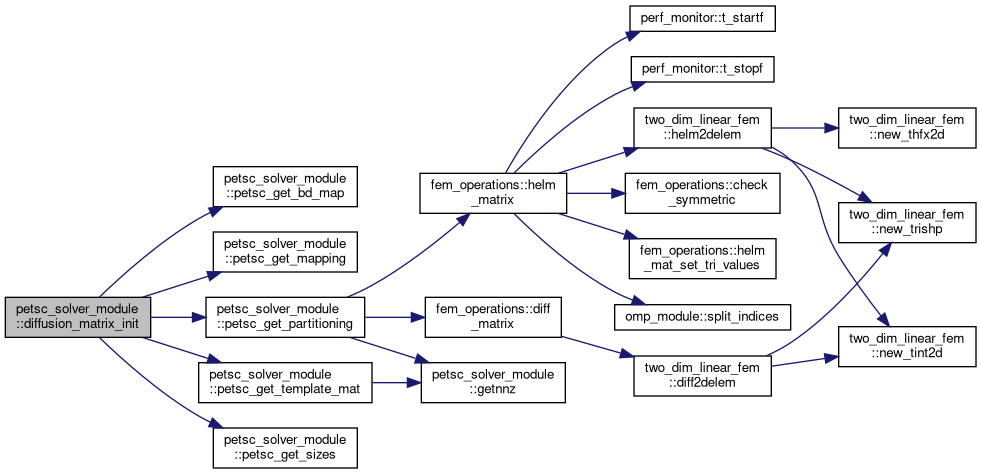

Here is the call graph for this function:
Here is the caller graph for this function:
◆ getnnz()
| subroutine petsc_solver_module::getnnz | ( | type(grid_type), intent(in) | grid, |
| nloc, | |||
| low, | |||
| high, | |||
| d_nnz, | |||
| o_nnz, | |||
| dimension(grid%nnode), intent(in) | xgc_petsc, | ||
| nglobal, | |||
| ierr | |||
| ) |
Computes the number of non-zero entries nnz per row in the rank-local rows.
- Parameters
-
[in] grid XGC grid object, type(grid_type) [in] nloc Number of equations on this rank, PetscInt [in] low Global index of the first equation on this rank, PetscInt [in] high Global index of the last equation on this rank, PetscInt [out] d_nnz Number of non-zero entries in "diagonal" local part of the matrix [out] o_nnz Number of non-zero entries in the "off-diagnonal" local part of the matrix. [in] xgc_petsc Mapping between XGC grid vertices and PETSc equations [in] nglobal Total number of equations, PetscInt [in] ierr PETSc error code

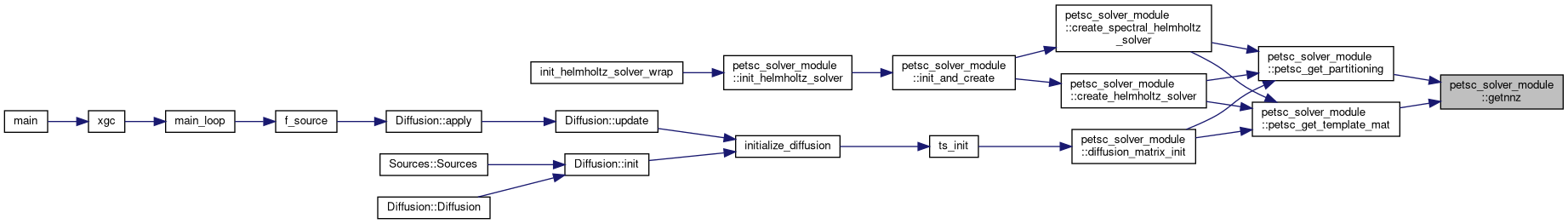

Here is the caller graph for this function:
◆ petsc_get_bd_map()
| subroutine petsc_solver_module::petsc_get_bd_map | ( | type(grid_type), intent(in) | grid, |
| integer, dimension(grid%nnode), intent(in) | bc, | ||
| intent(in) | n_boundary, | ||
| dimension(grid%nnode), intent(in) | petsc_xgc_bd, | ||
| dimension(n_boundary), intent(out) | petsc_bd_xgc | ||
| ) |
Generate mapping from PETSc boundary conditions to XGC vertices. This requires the results of petsc_get_sizes because the number of boundary conditions is not known a priori.
- Parameters
-
[in] grid XGC solver mesh, type(grid_type) [in] bc Solver boundary mask, 1 if not in boundary vertex list [in] n_boundary Number of boundary values, PetscInt [in] petsc_xgc_bd Mapping from XGC vertices to PETSc boundary conditions [out] petsc_bd_xgc Mapping fron PETSc boundary conditions to XGC vertices

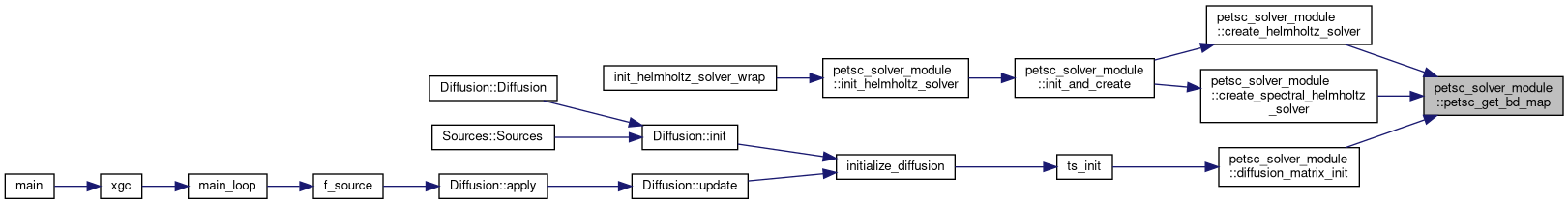

Here is the caller graph for this function:
◆ petsc_get_mapping()
| subroutine petsc_solver_module::petsc_get_mapping | ( | integer, intent(in) | nnode, |
| integer, dimension(nnode), intent(in) | bc, | ||
| integer, intent(in) | comm, | ||
| integer, intent(in) | num_pe, | ||
| intent(in) | n_eq_tot, | ||
| intent(in) | n_eq_loc, | ||
| dimension(n_eq_tot), intent(in) | xgc_proc, | ||
| dimension(0:num_pe), intent(inout) | proc_eq, | ||
| dimension(nnode), intent(out) | xgc_petsc, | ||
| dimension(n_eq_tot), intent(out) | petsc_xgc, | ||
| dimension(n_eq_loc), intent(out) | petscloc_xgc | ||
| ) |
Based on the Parmetis partition of the XGC domain, updates the mappings between XGC vertices and PETSc equations.
- Parameters
-
[in] nnode Number of XGC vertices, integer [in] bc Solver boundary mask, 1 if not in boundary vertex list [in] comm MPI comunicator for distributed matrix solver, MPI_comm [in] n_eq_tot Total number of PETSc equations, PetscInt [in] n_eq_loc Local number of equations on the current rank, PetscInt [in] xgc_proc Mapping from equation index to XGC rank, PetscInt [in] proc_eq Mapping from XGC process to PETSc equation, integer [out] xgc_petsc Mapping from XGC vertices to PETSc equation, integer [out] petsc_xgc Mapping from PETSc equation index to XGC vertices, integer [out] petscloc_xgc Mapping from local PETSc eq. to XGC vertices, integer
Here is the caller graph for this function:
◆ petsc_get_partitioning()
| subroutine petsc_solver_module::petsc_get_partitioning | ( | type(grid_type), intent(in) | grid, |
| integer, dimension(grid%nnode), intent(in) | bc, | ||
| real(kind=8), dimension(grid%ntriangle, 6), intent(in) | b_factors, | ||
| integer, intent(in) | comm, | ||
| integer, intent(in) | num_pe, | ||
| intent(in) | n_eq_tot_in, | ||
| logical, intent(in) | set_diffusion_matrix, | ||
| dimension(grid%nnode), intent(in) | xgc_petsc, | ||
| dimension(grid%nnode), intent(in) | petsc_xgc_bd, | ||
| intent(out) | n_eq_loc, | ||
| dimension(n_eq_tot_in), intent(out) | xgc_proc_out, | ||
| dimension(0:num_pe), intent(out) | proc_eq, | ||
| intent(out) | ierr | ||
| ) |
Generates a domain partitioning of part of the XGC mesh used by a solver (as defined by the boundary conditions bc) using Parmetis and generates a mapping between PETSc equation index and XGC MPI ranks (those in the communicator comm used by the solver).
- Parameters
-
[in] grid XGC solver mesh, type(grid_type) [in] bc Solver boundary mask, 1 if not in boundary vertex list [in] comm MPI communicator used by the solver, integer [in] num_pe Number of MPI ranks in communicator comm, integer [in] n_eq_tot_in Total number of equations (i.e. number of vertices in the solver), PetscInt [in] set_diffusion_matrix Whether to set diffusion or Poisson/Ampere matrix [out] n_eq_loc Number of equations on the current rank, PetscInt [out] xgc_proc Mapping from PETSc equation to XGC rank, PetscInt [out] proc_eq Mapping from XGC_process to PETSc equation number (in form of the boundaries of the domain partitioning) [out] ierr Error code

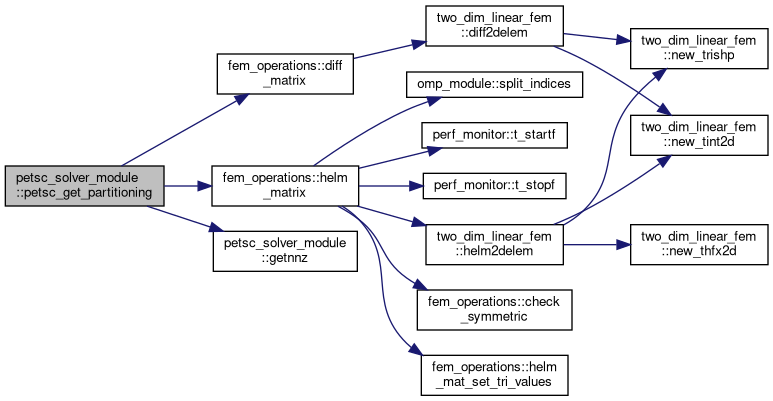

Here is the call graph for this function:

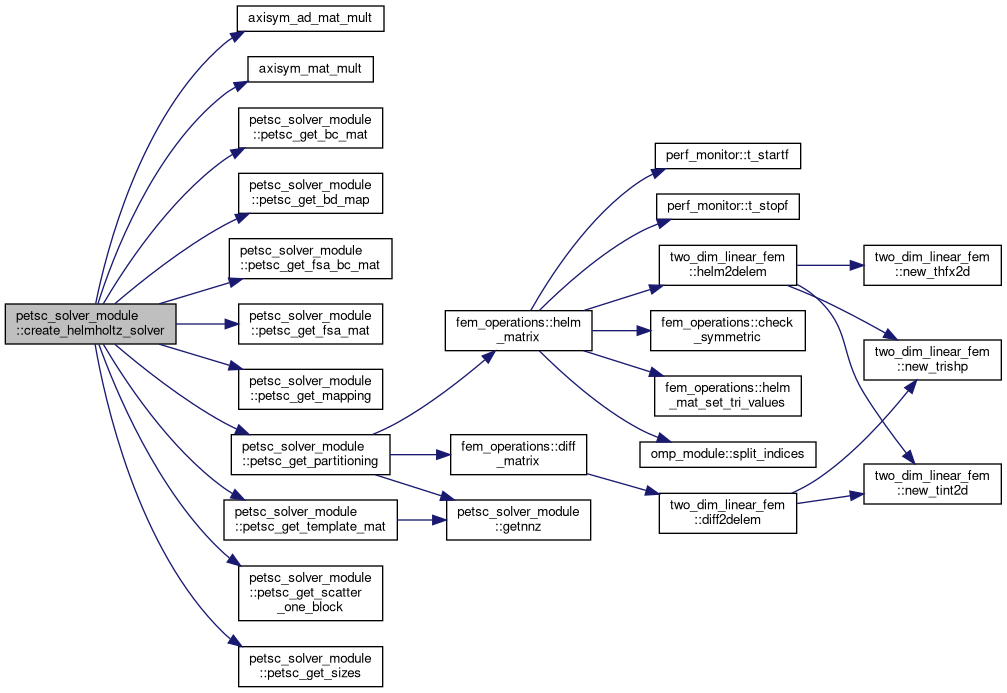

Here is the caller graph for this function:
◆ petsc_get_scatter_multi_block()
| subroutine petsc_solver_module::petsc_get_scatter_multi_block | ( | integer, intent(in) | nnode, |
| intent(in) | ksp, | ||
| mat_all_blocks, | |||
| mat_one_block, | |||
| intent(in) | blocksize, | ||
| character(*), dimension(0:blocksize-1), intent(in) | varnames, | ||
| intent(in) | n_eq_tot, | ||
| intent(in) | n_eq_loc, | ||
| dimension(n_eq_loc), intent(in) | petscloc_xgc, | ||
| dimension(n_eq_tot), intent(in) | petsc_xgc, | ||
| iss, | |||
| to_petsc, | |||
| from_petsc, | |||
| intent(out) | ierr | ||
| ) |
Sets up a PETSc scatter object for a (2D) multi-block field-split solver.
- Parameters
-
[in] nnode Number of XGC mesh vertices [in] ksp PETSc Krylov sub-space solver object, KSP [in] mat_all_blocks Global matrix with all solver blocks, Mat [in] mat_one_block Matrix of one single block, Mat [in] blocksize Number of blocks, PetscInt [in] varnames Names of the variables represented by each block, char [in] n_eq_tot Number of equations in one block, PetscInt [in] n_eq_loc Number of local equations in one block, PetscInt [in] petscloc_xgc Rank-local mapping from PETSc equations to XGC vertices, PetscInt [in] petsc_xgc Global mapping from PETSc equations to XGC vertices, PetscInt [out] iss Index sets for mapping single blocks into the global matrix, IS [out] from_petsc VecScatter object for scattering PETSc results to an XGC field, VecScatter [out] to_petsc VecScatter object for scattering XGC vectors into the global PETSc block matrix [out] ierr PETSc error code, PetscErrorCode

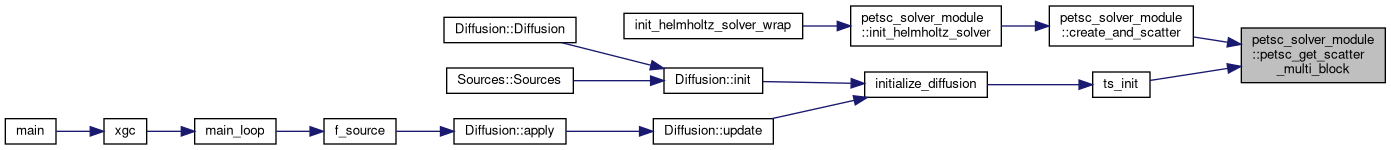

Here is the caller graph for this function:
◆ petsc_get_sizes()
| subroutine petsc_solver_module::petsc_get_sizes | ( | type(grid_type), intent(in) | grid, |
| integer, dimension(grid%nnode), intent(in) | bc, | ||
| intent(out) | n_equation, | ||
| intent(out) | n_boundary, | ||
| dimension(grid%nnode), intent(out) | xgc_petsc, | ||
| dimension(grid%nnode), intent(out) | petsc_xgc_bd | ||
| ) |
Calculate (i) the number of equations (vertices) of the solver, (ii) the number of XGC boundary vertices included in the solver, (iii) (preliminary) mapping from XGC vertices to PETSc equations, (iv) mapping from XGC vertices to PETSc boundary conditions, all based the XGC boundary object passed as input.
- Parameters
-
[in] grid XGC solver mesh, type(grid_type) [in] bc Solver boundary mask, 1 if not in boundary vertex list [out] n_equation Number of PETSc equations (matrix rows), integer [out] n_boundary Number of boundary conditions/vertices, integer [out] xgc_petsc (Preliminary) mapping from XGC vertices to PETSc equations [out] petsc_xgc_bd Mapping from XGC vertices to PETSc boundary conditions
Here is the caller graph for this function:
◆ petsc_get_template_mat()
| subroutine petsc_solver_module::petsc_get_template_mat | ( | type(grid_type), intent(in) | grid, |
| integer, intent(in) | comm, | ||
| intent(in) | n_eq_tot, | ||
| intent(in) | n_eq_loc, | ||
| dimension(grid%nnode), intent(in) | xgc_petsc, | ||
| intent(out) | solver_template_mat, | ||
| ierr | |||
| ) |
Uses pre-computed (petsc_get_partitioning) local matrix sizes and XGC vertex to PETSc equation mapping to set up a blank template matrix with sufficient pre-allocated memory.
- Parameters
-
[in] grid XGC grid object, type(grid_type) [in] comm MPI communicator for template matrix, MPI_comm [in] n_eq_tot Total number of equations, PetscInt [in] n_eq_loc Number of local equations on the current rank, PetscInt [in] xgc_petsc Mapping from XGC vertices to PETSc equation index [out] solver_template_mat Template matrix with the desired partitioning and sufficient preallocated memory. [out] ierr Error code

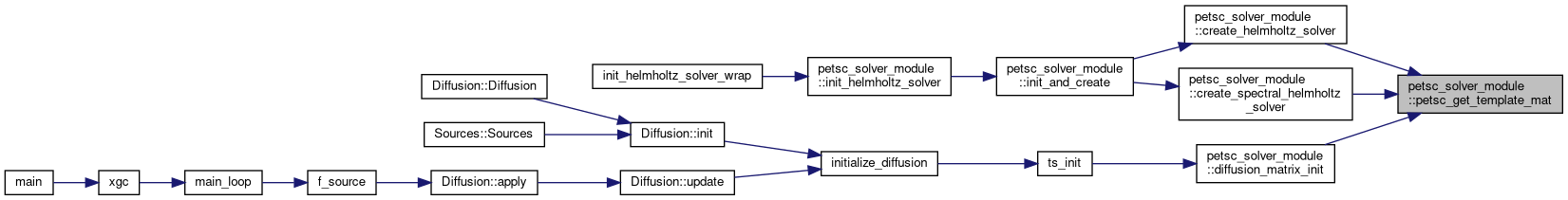

Here is the call graph for this function:
Here is the caller graph for this function:
◆ petsc_to_xgc()
| subroutine petsc_solver_module::petsc_to_xgc | ( | intent(in) | nnode, |
| intent(in) | blocksize, | ||
| dimension(0:blocksize-1), intent(in) | from_petsc, | ||
| intent(in) | field_petsc, | ||
| real (kind=8), dimension(nnode,blocksize), intent(inout) | field_xgc, | ||
| intent(out) | ierr | ||
| ) |
This routine scatters values from the distributed vector compatible with the block-matrix of the 2D diffusion model to local variables on the XGC solver grid.
- Parameters
-
[in] nnode Number of vertices per plane in XGC mesh, PetscInt [in] blocksize Number of equations, PetscInt [in] from_petsc VecScatter object for moving data from PETSc Vec to XGC mesh data, VecScatter [in] field_petsc PETSc vector with the data to be scattered, PETSc Vec [in,out] field_xgc XGC mesh array to which data is scattered, real8 [out] ierr Error code, PetscErrorCode

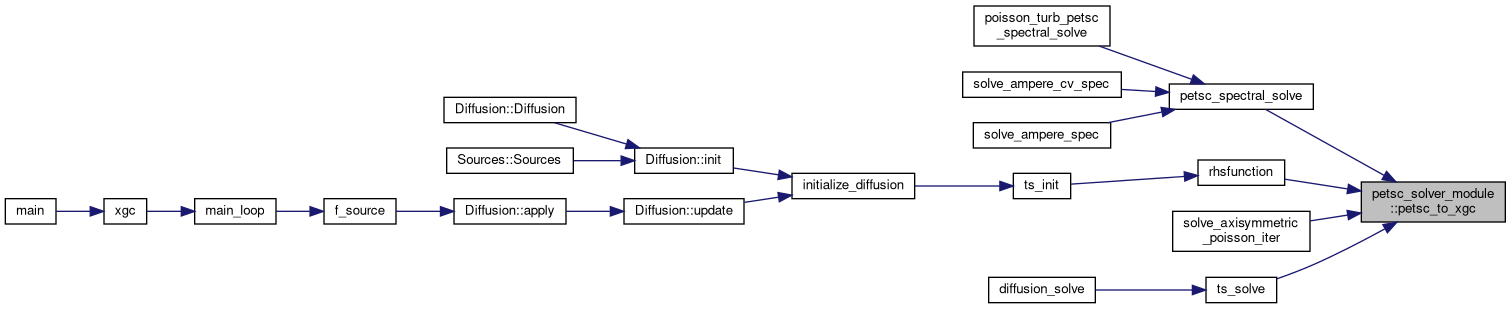

Here is the caller graph for this function:
◆ xgc_to_petsc()
| subroutine petsc_solver_module::xgc_to_petsc | ( | intent(in) | nnode, |
| intent(in) | blocksize, | ||
| dimension(0:blocksize-1), intent(in) | to_petsc, | ||
| field_petsc, | |||
| real (kind=8), dimension(nnode,blocksize), intent(in) | field_xgc, | ||
| intent(out) | ierr | ||
| ) |
This routine scatters values from local variable on the XGC solver grid to the distributed vector compatible with the block-matrix of the 2D diffusion model.
- Parameters
-
[in] nnode Number of vertices per plane in XGC mesh, PetscInt [in] blocksize Number of equations, PetscInt [in] from_petsc VecScatter object for moving data from PETSc Vec to XGC mesh data, VecScatter [in] field_petsc PETSc vector with the data to be scattered, PETSc Vec [in,out] field_xgc XGC mesh array to which data is scattered, real8 [out] ierr Error code, PetscErrorCode

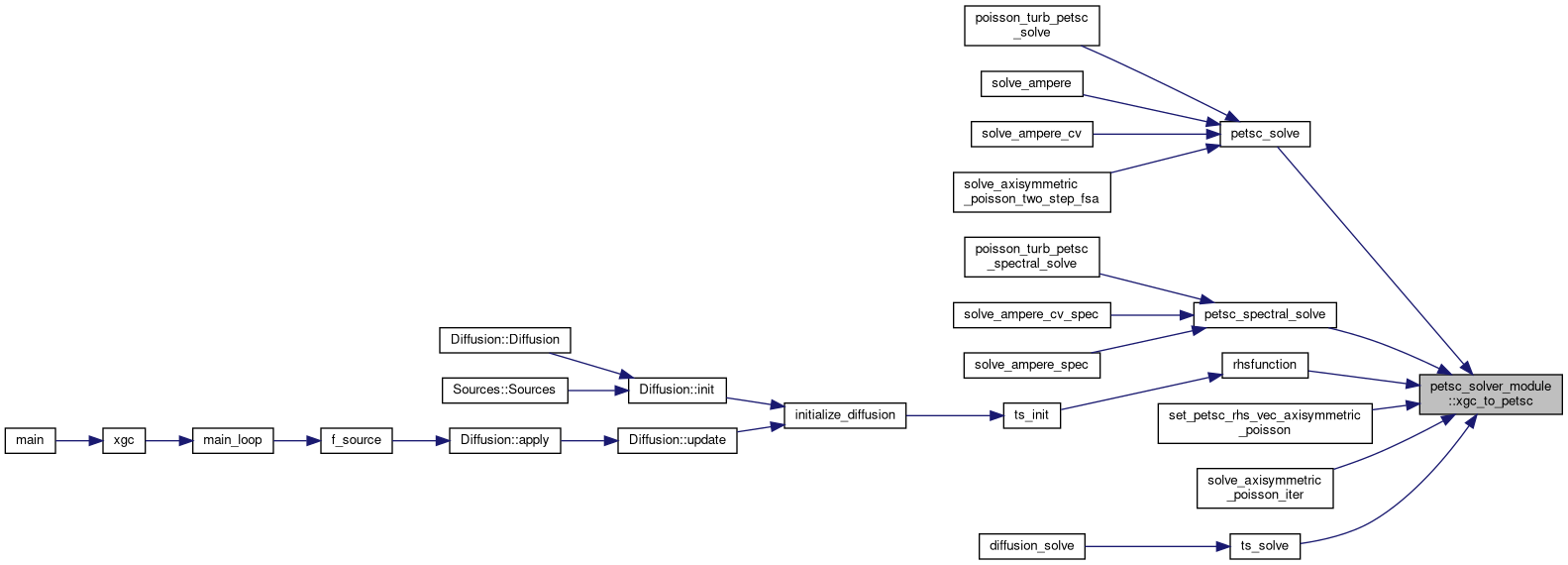

Here is the caller graph for this function:
