This module provides particle resampling capabilities. More...

Data Types
type	resamp_bin_type

Functions/Subroutines
subroutine	set_cce_buffer_id (id, inode1, inode2)

subroutine	set_cce_buffer_and_overlap_id (id1, id2, inode1, inode2)

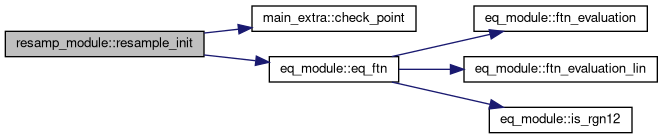

subroutine	resample_init (grid, inode1, inode2, dsmu, dvp, nmu, nvp, vp_max, mu_max, tile_size, bins, cce_sync_sendrcv)
	This routine initializes the resampling module and sets some global parameters such as v-grid size, etc. More...

subroutine	resample_finalize (bins)
	This routine cleans up the resampling module. More...

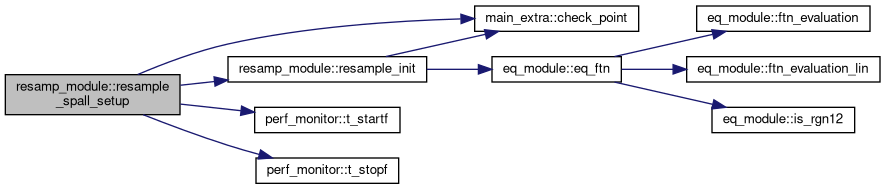

subroutine	resample_spall_setup (inode1, inode2, dsmu, dvp, nmu, nvp, vp_max, mu_max, cce_sync_sendrcv, tile_size)
	Resample the marker particles in XGC to improve phase-space coverage and reduce marker noise. More...

subroutine	set_eq_bins (eq_bin, ineq_bin)

subroutine	use_default_eq_bins ()

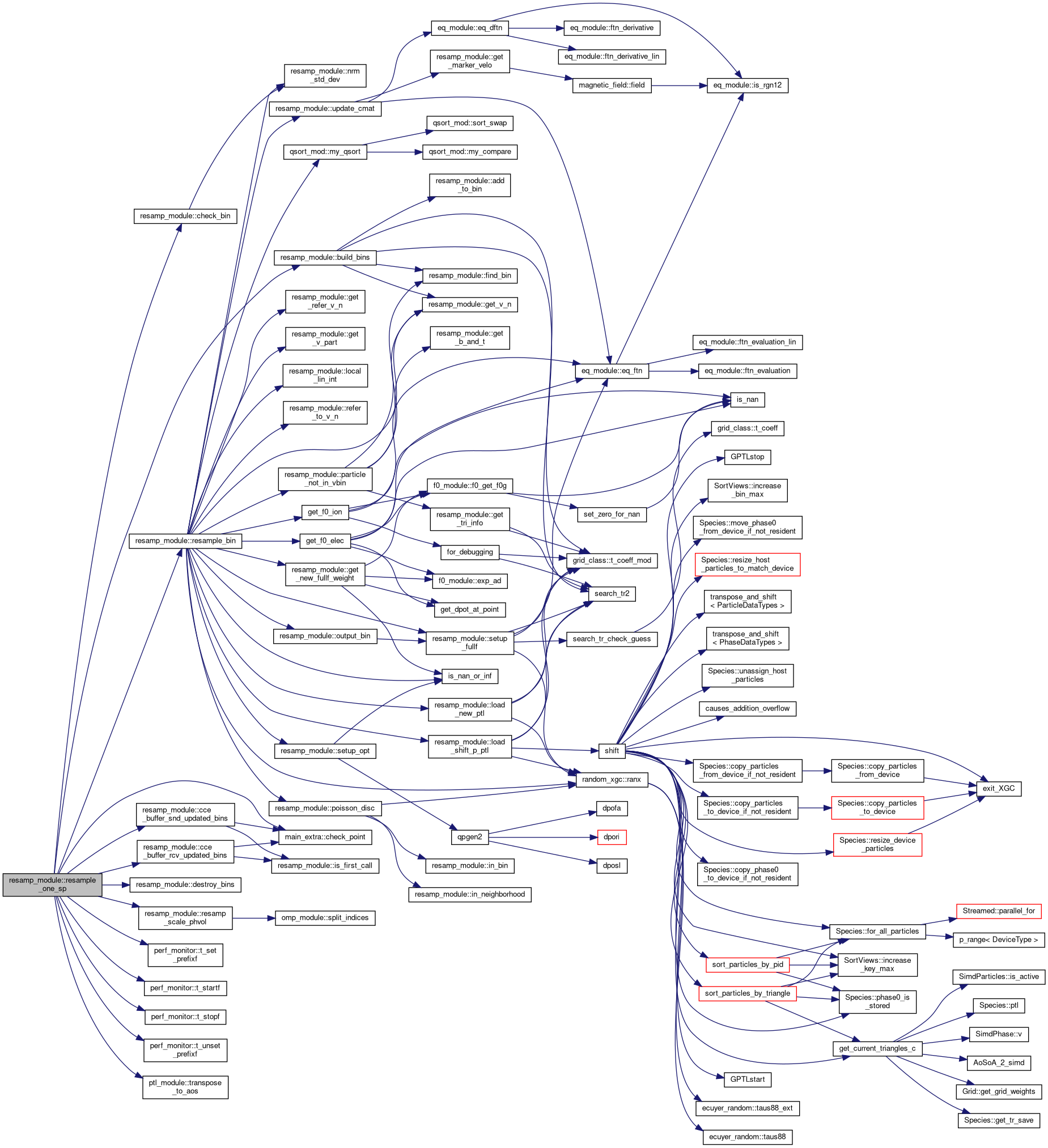

subroutine	resample_one_sp (isp, cce_sync_sendrcv)
	Resample the marker particles of one species in XGC to improve phase-space coverage and reduce marker noise. More...

subroutine	transpose_from_aos_wrapper (isp)

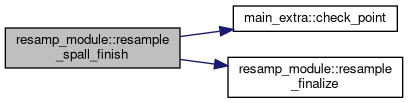

subroutine	resample_spall_finish ()

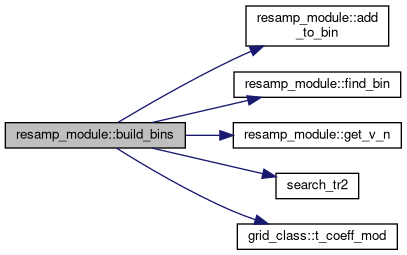

subroutine	build_bins (sp, bins, grid, cce_sync)
	Loops over particles, puts them in the appropriate bin, computes partial mean This routine sorts particles in the appropriate phase-space bin and computes the total charge in the bin. More...

subroutine	add_to_bin (bin, ptli, ind)
	Adds the data of one particle to a phase-space bin. More...

subroutine	destroy_bins (bins)
	Cleans up bin memory without deallocating the array of bins itself (can be kept for next species) More...

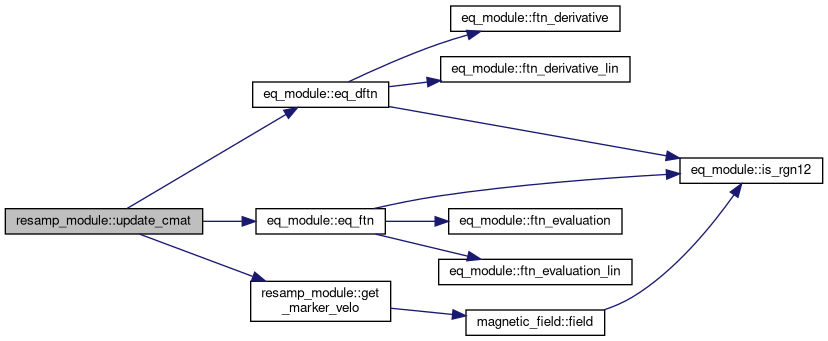

subroutine	update_cmat (grid, psn, nconstraint, nptl, vert, patch, bary, tri, psi, B, bvec, spec, pindex, part, Cmat, op_mode)
	This subroutine sets up the matrix C (constraint matrix) with the coefficients needed to compute the conserved quantities charge, parallel momentum, magnetic moment, parallel and perp. kinetic energy and the grid charge on the vertices connected to the bin. Those quantities are then obtained by multiplying the matrix C with the delta-f (--> w1) weight vector from the right. This matrix forms the basis for the QP optimization program that finds the delta-f weights for the resampled particle set. More...

subroutine	check_bin (bin, sp, cce_sync_sendrcv, resamp_auto_upsample_loc, resamp_auto_downsample_loc, resamp_var_resample_loc, outside_bin)
	This routine checks whether a bin needs to be resampled and determines the type of resampling (up-/down-/re-sampling). The chosen resampling option is stored in the bin data structure: 0) No resampling needed 1) Resampling due to high weight variance 2) Upsampling due to low particle count 3) Downsampling due to high particle count. More...

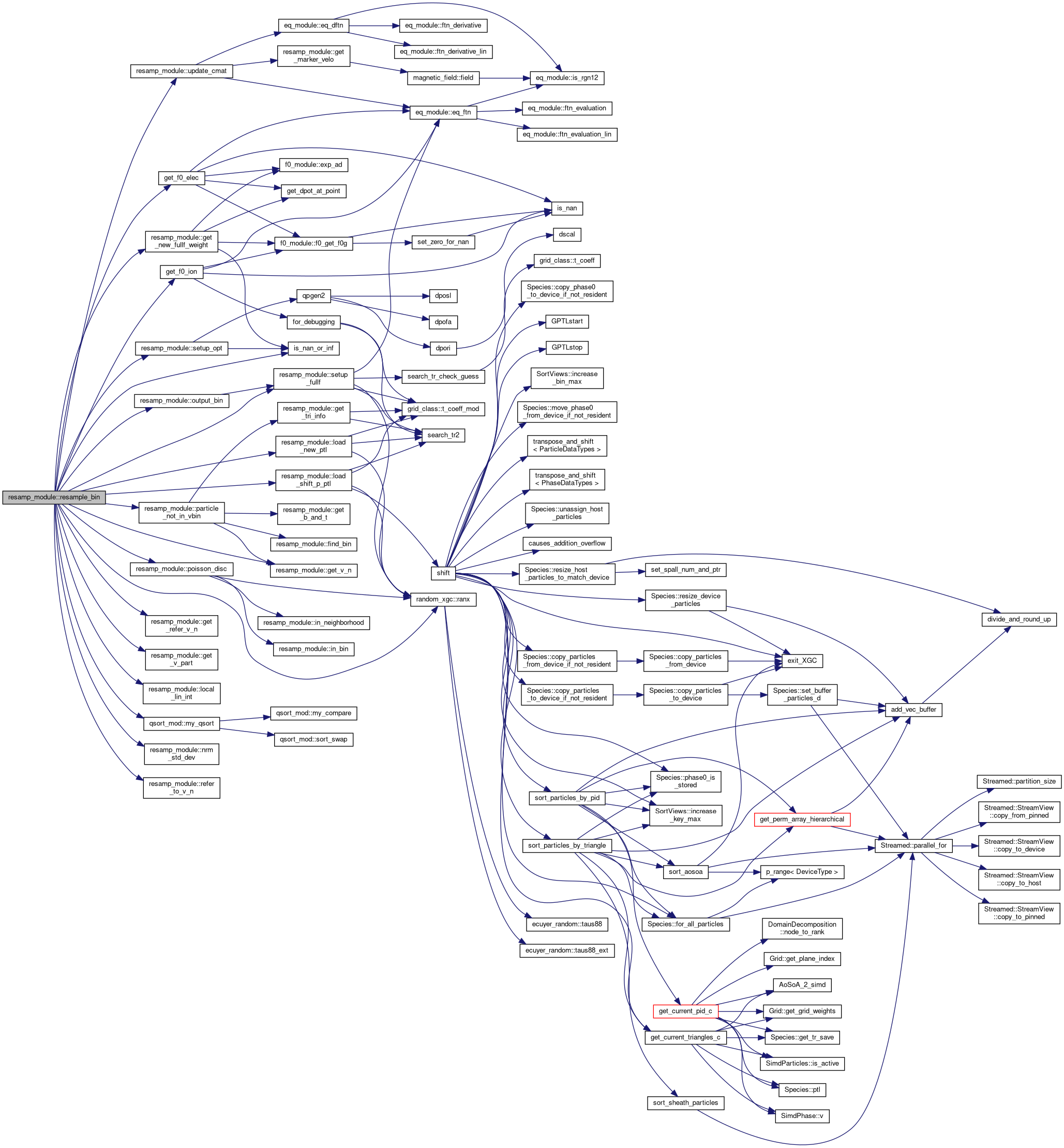

subroutine	resample_bin (bin, grid, sp, psn, cce_sync_sendrcv, start_wr_pos, resamp_failed_bins_loc, resamp_upsample_failed_loc, resamp_downsample_failed_loc, resamp_resample_failed_loc, resamp_retried_bins_loc, resamp_retried_failed_loc, resamp_fullf_failed_loc, resamp_phvol_added_loc, resamp_var_inc_upsamp_loc, resamp_var_inc_downsamp_loc, dump_problem_bins, resamp_var_inc_loc, resamp_up_hist_loc, resamp_down_hist_loc)
	The actual process of resampling the particle set in a bin happens in this routine. A bin is passed as input, the pre-determined type of resampling is executed and the weights of the new particle set are computed with a QP optimization. If the optimization is successful, the old particle set in the input variable "sp" is replaced with the new particle set. More...

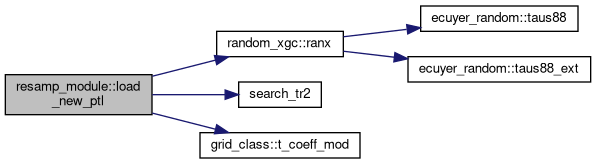

subroutine	load_new_ptl (grid, new_ptl, bin_id, itr, p, psi)
	This routine loads new particles into a bin with uniform marker density in configuration space. Particles are drawn from a rectacngle enclosing the bin volume and are accepted if inside the Voronoi volume of the bin. A more efficient loading can be achieved by pre-selecting the triangle in which to load. This functionality will be provided in a separate function. More...

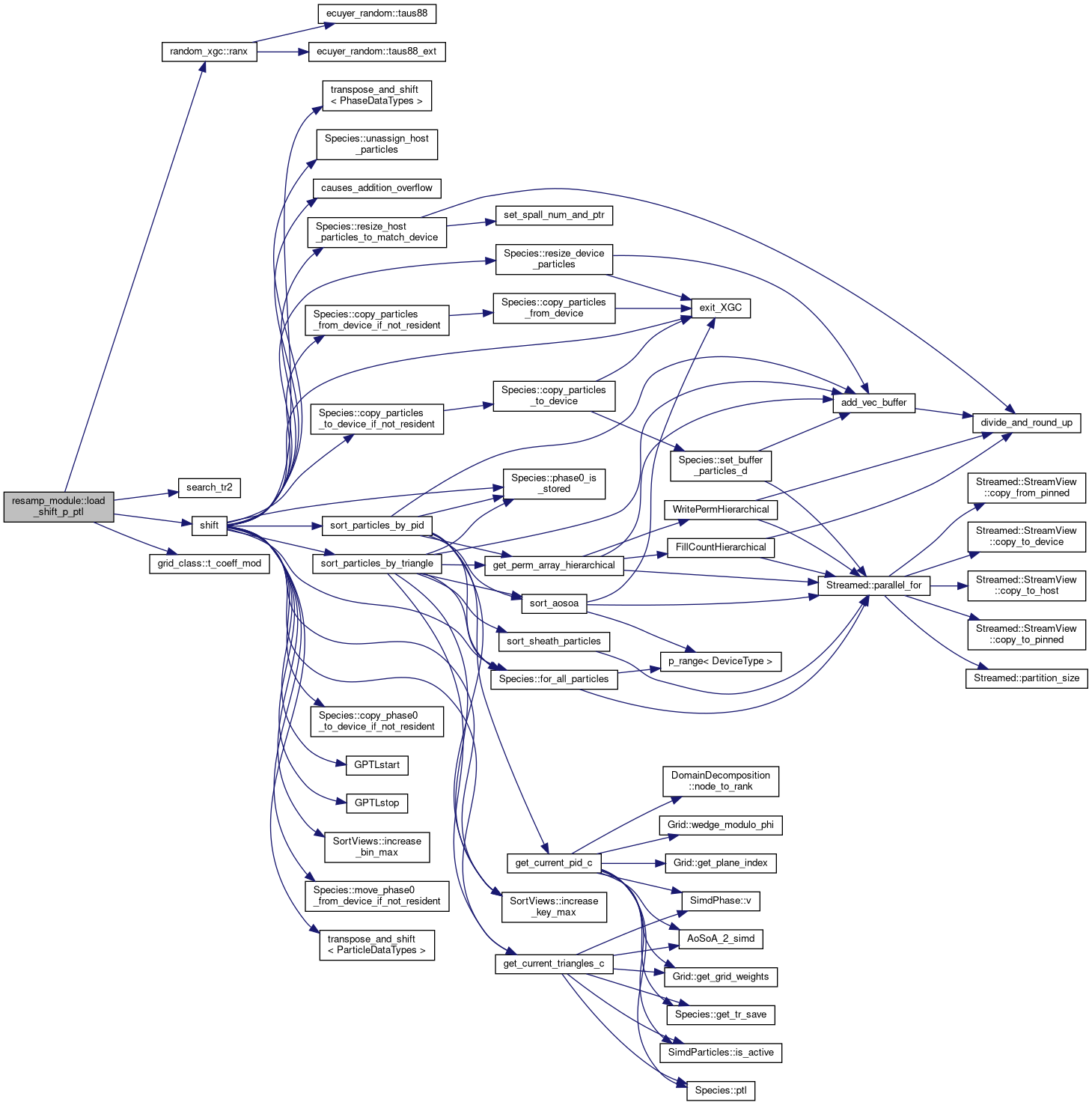

subroutine	load_shift_p_ptl (grid, new_ptl, itr, p, psi, my_node, max_shift)
	This routine shifts the particles physical coordinates within the bin. Typically used when upsampling and copying particles so that they have a non-identical trajectory. More...

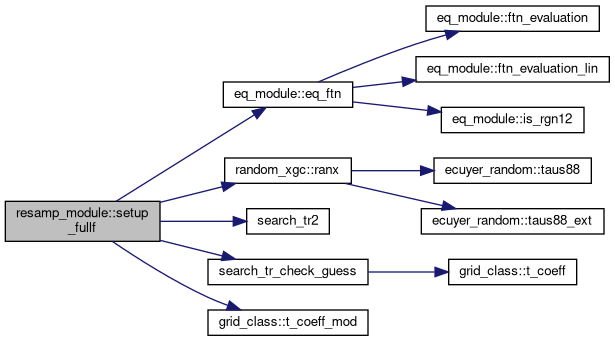

subroutine	setup_fullf (ptli, spec_type, den, flow, temp_ev, bvec, B, psi)
	Evaluate the background density, temperature, flow, magnetic field and psi at the input particle's position. More...

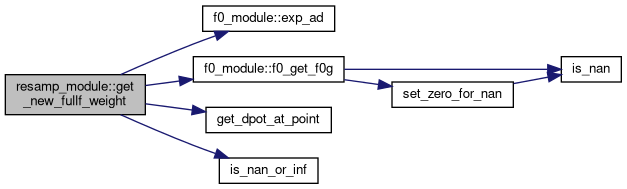

subroutine	get_new_fullf_weight (grid, psn, part, psi, B, flow, den, temp_ev, spec, tri, bary, mark_den, err)
	Compute the new full-f weight of the input particle \(w_0 = f/g\). Note that either \(w_0\) or \(f\) can be chosen freely, while the particle's phasespace volume \(\delta V = 1/g\) is determined by Liousville's theorem of phase space volume conservation. The distribution function \(f\) can in principle be anything here as long as the \(w_2\) weight is set accordingly. The goal is to choose \(w_0\) and \(w_2\) such that the weight evolution equation does not have to be changed. More...

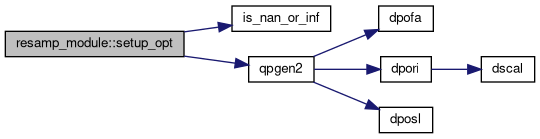

subroutine	setup_opt (nconstraint, part_num, Cmat, constraint, weights, n_eq_bin, n_ineq_bin, eq_bin, ineq_bin, grid_ineq_on, ineq_tol, positivity, ierr)
	This routine sets up the input for the QP optimization that computes the delta-f weights of the new particles. There are two types of constraints, bin and grid constraints. Bin constraints correspond to moments of the distribution function evaluated with nearest neighbor interpolation on the configuration space grid. Grid constraints correspond to moments evaluated with linear (barycentric) interpolation on the conf. space grid. Bin constraints can be enforced as equality and inequality constraints: use idx_constraint and idx_constraint2 to choose which constraint is an equality and which is an inequality constraint. Grid constraints are enforced as inequality constraints. Since grid constraints make the optimization problem much harder due to their large number, using them is optional (grid_ineq_on) A positivity constraint for the weights can be activated with the variable "positivity". This is used for full-f optimization. More...

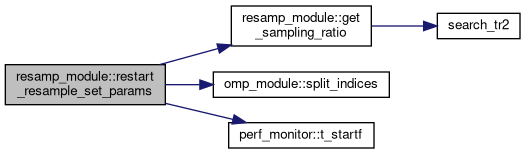

subroutine	restart_resample_set_params ()
	Move phase space density from the 5D grid over to the particles for restarting simulatin with a different grid. More...

subroutine	restart_resample_restore_params ()
	Move phase space density from the 5D grid over to the particles for restarting simulatin with a different grid. More...

subroutine	get_marker_velo (grid, psn, ptli, isp, velo, vrad)
	Evaluates the marker particle equations of motion. The results are the time derivatives of the marker position and parallel velocity (or rho, to be precise), as well as the radial velocity v.grad(psi). The results can be used in the moment preserving QP weight optimization. More...

subroutine	get_sampling_ratio (grid)
	This routine upsamples the marker population in spall for a new configuration space grid. The new grid should be denser than the current grid, i.e. require upsampling, not downsampling. This is due to particle data locality. Upsampling to a denser mesh is done on the coarse mesh, while downsampling from a fine mesh is better done with particle data arranged for the coarse mesh. The routine reads in the vertex positions of the new mesh and runs a search for each of them to associate them with the vertices of the current mesh. The ratio of new mesh vertices per current mesh vertex is the upsampling ratio. If the upsampling ratio is smaller than unity, that vertex is skipped. More...

subroutine	resamp_scale_phvol (grid, sp)
	Loops over particles and scales their phase space volume to account for particles added to empty bins. More...

subroutine	f0_upsampling_set_params ()
	set parameters for f0 upsampling More...

subroutine	f0_upsampling_restore_params ()
	restore parameters after f0 upsampling More...

integer function	cce_do_resampling (idbuf)

integer function	cce_buffer_sndrcvs_accessor (idbuf)

integer function	get_cce_buffer_nb ()

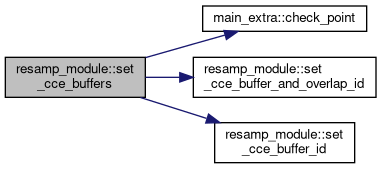

subroutine	set_cce_buffers (istep, idbuf)

subroutine	cce_reset_particle_outside (grid, sp)

subroutine	cce_buffer_snd_updated_bins (isp)

subroutine	cce_buffer_rcv_updated_bins (isp)

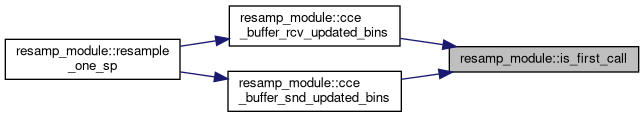

logical function	is_first_call ()

subroutine	nrm_std_dev (npart, mean, weights, var)
	This routine computes the normalized standard deviation of a set of weights, without Bessel's correction. More...

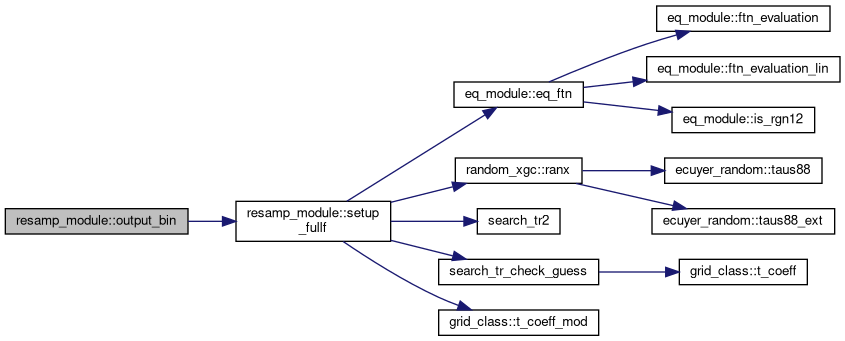

subroutine	output_bin (npnew, nconst, sp, bin, Cmat, constraint, bin_new_ptl, new_tri, new_psi, ierr, dump_problem_bins, weights)
	Routine for outputting a flagged resampling bin. This is typically due to either the failure of the quadratic program OR a high variance result, and is controlled by the input flag resamp_output_problem_bins. More...

subroutine	get_v_part (smu_n, vp_n, mu, rho, temp, B, spec)
	This subroutine returns particle velocities given normalized v-grid coordinates. More...

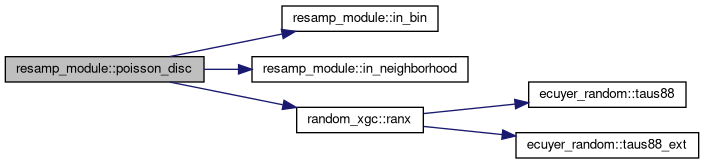

subroutine	poisson_disc (initial, corners, bin_part, bin_target, new_set, k)
	This routine returns the poisson disc sample of the new (upsamples) particles in normalized velocity coordinates (vp_n,smu_n) given initial pt locations). More...

logical function	in_neighborhood (point, indices, grid, new_set, cellsize, radius_squared)
	This function is a helper for checking if a candidate point is in the neighborhood of the current set of disc samples. More...

logical function	in_bin (point, corners)
	This function checks if a pair of normalized points lies within the rectangle given by corners. More...

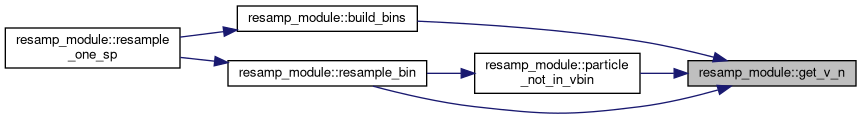

subroutine	get_v_n (smu_n, vp_n, B, temp_ev, part, spec)
	This subroutine returns normalized v-grid coordinates for a particle. More...

subroutine	get_refer_v_n (smu_n, vp_n, smu_ref, vp_ref, bin_id, err)
	This subroutine returns reference velocity coordinates in the resampling bin. More...

real(kind=8) function, dimension(2, 2)	local_lin_int (smu_ref, vp_ref)
	This function returns the 2x2 local element matrix of bilinear nodal interpolation coefficients corresponding to the particles reference coordinates in the cell. More...

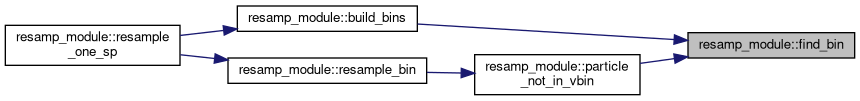

subroutine	find_bin (smu_n, vp_n, imu, ivp)
	This subroutine returns the v-grid bin a particle is in given its normalized coordinates, including high velocity bins. More...

subroutine	refer_to_v_n (smu_ref, vp_ref, smu_n, vp_n, bin_id)
	This subroutine maps reference coordinates to normalized coordinates. More...

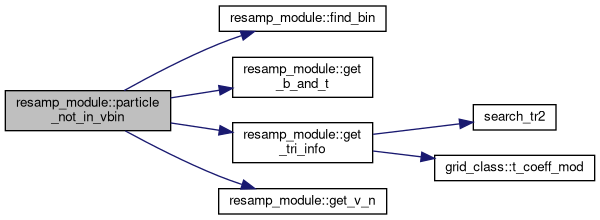

subroutine	particle_not_in_vbin (smu_ref, vp_ref, smu_n, vp_n, bin, part, num_part, index, rtemp, B, b_grid)
	This subroutine is error handling for when a particle(usually generated) does not like in the correct velocity space bin. More...

subroutine	get_tri_info (grid, part, node, itr, bary, psi)
	This subroutine returns the node, barycentric coordinates, triangle and psi value for a particle. More...

subroutine	get_b_and_t (part, spec, node, bvec, B, temp_ev)
	This subroutine returns a particle's magnetic field and temperature used for velocity grid particle location. More...

Variables
integer	resamp_rate = 2
	timesteps between subsequent resamples, placedholder, in practice ~ sml_f_source_period More...

real(8)	resamp_var = 1D4
	threshold for relative standard deviation in bin for auto-resample More...

real(8)	resamp_min_ratio = 0.5D0
	min ratio of (# of ptl)/(target # of ptl) in bin for auto-upsample More...

real(8)	resamp_max_ratio = 1.5D0
	max ratio of (# of ptl)/(target # of ptl) in bin for auto-downsample More...

integer	resamp_max_target = 4
	Overrides the number of constraints in determining the target # of ptl of a bin. More...

integer	resamp_tile_size = 2
	Bin size on the velocity space grid in cells (not vertices) (input parameter) More...

integer	resamp_tile_size_now = 2
	Used to override resamp_tile_size. More...

real(8)	resamp_ineq_tol = 1D-4
	Threshold for relative error in the inequality constraints in the QP optimization. More...

logical	resamp_restart = .false.
	Perform resampling before dumping the final restart file. More...

logical	resamp_retry = .false.
	Retry QP optimization for failed bins with relaxed inequality constraints. More...

real(8)	resamp_ineq_tol_max = 1D-3
	Maximal threshold for relative error in inequality constraints for retried bins. More...

real(8)	resamp_highv_max = 10D0
	energy cutoff of the high velocity bins v_para>f0_vp_max and v_perp>f0_smu_max More...

real(8)	resamp_highv_max_ratio = 4D0
	Downsampling threshold for high-velocity bins. More...

real(8)	resamp_var_limit = 3D0
	Increase in relative bin variance for flagging for possible rejection. More...

logical	resamp_discard_var_bins = .false.
	Discard resampled bins that increase the variance by factor of resamp_var_limit. More...

logical	resamp_keep_upsamples = .false.
	Retain upsampling results with high variance, for filling for pseudoinverse. Only relevant if resamp_discard_var_bins is .true. More...

logical	resamp_keep_downsamples = .false.
	Retain downsampling results with high variance, mainly for preventing buildup. Only relevant if resamp_discard_var_bins is .true. More...

character(len=200)	resamp_node_file = 'dum.node'
	File containing the vertex positions of the mesh for which to resample. More...

integer	resamp_nphi_new =1
	Number of poloidal planes in simulation with new mesh. More...

logical	resamp_restart_read =.false.
	Whether to read a restart file written from a simulation with different grid. More...

logical	resamp_fill_empty =.false.
	Whether to fill empty bins. More...

logical	resamp_fullf_on =.false.
	Whether to resample the full-f weights in addition to delta-f weights. More...

logical	resamp_grid_ineq_on =.false.
	Switch for using inequality constraints for the grid charge for resampling. More...

logical	resamp_distribute_evenly_subbins =.false.
	Whether to fill/remove evenly in 1x1 velocity cells in the bin when resamp_tile_size > 1 and upsampling/downsampling. More...

logical	resamp_fill_empty_subbins =.false.
	Whether to fill all empty 1x1 velocity cells in the bin and there are already particles in the bin. More...

logical	resamp_fill_empty_subbins_skip_full_bins
	If resamp_fill_empty_subbins=.true., skip a bin if it is already filled enough to do the pseudo-inverse interpolation. More...

integer	resamp_fill_empty_subbins_target =1
	If resamp_fill_empty_subbins=.true., minimum target of sub bins. More...

integer	resamp_fill_empty_subbins_corner_cell_target =1
	If resamp_fill_empty_subbins=.true., minimum target of corner cells. More...

logical	resamp_output_problem_bins =.false.
	Switch to output failed or high-variance bins as to .bp files. More...

character(16)	resamp_up_choice ='random'
	option arg for upsampled new particle selection: 'random','copy','poisson' currently added random: random velocity coordinates for new particles in bin copy: add new particles as copies of old particles with largest absolute w0*w1 weight poision: add new particles as poisson disc samples generated from the old particle set. More...

character(16)	resamp_down_choice ='weight'
	option arg for downsampled new particle selection: 'random','weight','weight+replace','volume' weight: keep particles with largest w0w1 absolute weight, deterministic weight+replace: keep particles with largest w0w1 absolute weight, allow multiple copies of same particle if split weight is still larger than next unsplit particle volume: keep particles with largest phase space volume, deterministic More...

real(kind=8)	resamp_max_shift = 1D-1
	maximum shift in local coordinates for 'copy', 'weight+replace' More...

real(kind=8), private	resamp_bin_max_fac
	threshold for auto downsample More...

real(kind=8), private	resamp_inv_bin_num
	Inverse of the number of macro bins in v-space. More...

integer, private	resamp_nmu_in
	Number of cells on original vperp/mu grid (=f0_nmu) More...

integer, private	resamp_nvp_in
	Number of cells on original v_para grid (=f0_nvp) More...

real(kind=8), private	resamp_dsmu
	v_perp/mu spacing of original v-grid (=f0_dsmu) More...

real(kind=8), private	resamp_dvp
	v_para spacing of original v-grid (=f0_dvp) More...

real(kind=8), private	resamp_mu_max
	v_perp/mu cutoff of v-grid (=f0_mu_max) More...

real(kind=8), private	resamp_vp_max
	v_para cutoff of v-grid (=f0_vp_max) More...

integer, private	resamp_musize
	Number of sampling bins in v_perp/mu direction. More...

integer, private	resamp_vpsize
	Number of sampling bins in v_para direction. More...

integer, private	resamp_inode1
	Index of the first node of local patch of the configuration space mesh (=f0_inode1) More...

integer, private	resamp_inode2
	Index of the last node of local patch of the configuration space mesh (=f0_inode2) More...

real(kind=8), dimension(:,:), allocatable, private	resamp_den
	Reference density per species for normalization. More...

real(kind=8), dimension(:,:), allocatable, private	resamp_t_ev
	Reference temperature per species for normalization. More...

real(kind=8), dimension(:,:), allocatable, private	resamp_inv_ph_vol
	Inverse phase-space volume element. More...

real(kind=8), dimension(:), allocatable, private	resamp_samp_ratio
	Upsampling ratio for restarts with finer grid. More...

logical, private	resamp_restart_mode =.false.

real(kind=8), dimension(:), allocatable, private	resamp_phvol_sum
	Sum of phase space volume of all particles on a node. More...

real(kind=8), dimension(:), allocatable, private	resamp_phvol_added
	Sum of phase space volume of particles added in empty bins. More...

real(kind=8), dimension(:,:), allocatable, private	p_save
	Holds barycentric coordinates for particles of current resampled species. More...

real(kind=8), dimension(:), allocatable, private	psi_save
	Caches psi interpolation results for multiple use during resampling. More...

integer, parameter, private	resamp_hist_size = 10
	Size of variance histogram for resampling statistics, bin width = 1 normalized std deviation. More...

integer, dimension(resamp_hist_size), private	resamp_up_hist
	Histogram of upsampling results. More...

integer, dimension(resamp_hist_size), private	resamp_down_hist
	Histogram of downsampling results. More...

integer, parameter, private	resamp_nongridmom = 8
	Maximum Number of bin moments to be conserved. More...

integer, dimension(resamp_nongridmom), private	resamp_eq_bin
	which constraints are active as equality constraints More...

integer, dimension(resamp_nongridmom), private	resamp_ineq_bin
	which constraints are active as inequality constraints More...

integer, dimension(:), allocatable, private	resamp_off_vgrid
	Counter for number of particles that are not on the v-grid. More...

integer, dimension(:), allocatable, private	resamp_on_vgrid
	Counter for number of particles that are on the v-grid. More...

integer, dimension(:), allocatable, private	tr_save

integer, private	resamp_empty_bins
	Number of empty sampling bins. More...

integer, private	resamp_resampled_bins
	Number of bins that were picked for re-/up-/down-sampling. More...

integer, private	resamp_failed_bins
	Number of bins for which re-/up-/down-sampling failed. More...

integer, private	resamp_var_resample
	Number of variance resampled bins. More...

integer, private	resamp_resample_failed
	Number of bins for which variance resampling failed. More...

integer, private	resamp_auto_upsample
	Number of upsampled bins. More...

integer, private	resamp_upsample_failed
	Number of bins for which upsampling failed. More...

integer, private	resamp_auto_downsample
	Number of downsampled bins. More...

integer, private	resamp_downsample_failed
	Number of bins for which downsampling failed. More...

integer, private	resamp_retried_bins
	Number of bins retried after failure. More...

integer, private	resamp_retried_failed
	Number of bins failed again after retry. More...

integer, private	resamp_fullf_failed
	Number of full-f failed bins. More...

integer, private	resamp_wrong_particles
	Number of particles in wwrong bins. More...

integer, private	resamp_var_inc_upsamp
	Number of bins that increased the variance tenfold while upsampling. More...

integer, private	resamp_var_inc_downsamp
	Number of bins that increased the variance tenfold while downsampling. More...

integer, private	resamp_var_inc
	Number of bins that increased the variance when resampling, RARE, usually result of ill-conditioning of matrix) More...

real(kind=8), private	resamp_smu_fac
	Factor used in the context of tapering off the marker density at high velocity. More...

real(kind=8), private	resamp_vp_fac
	Factor used in the context of tapering off the marker density at high velocity. More...

integer, private	resamp_err_count1
	Counter for w0=0 errors in get_new_fullf_weight. More...

integer, private	resamp_err_count2
	Counter for w0=0 errors in resample_bin. More...

integer, dimension(:,:), allocatable	resamp_patches
	!< node numbers of vertices contained in triangle patch of voronoi cell More...

integer, dimension(:), allocatable	resamp_patch_size
	total number of patch vertices in Voronoi cell More...

real(kind=8), dimension(:,:), allocatable	resamp_patch_rzdims
	R-Z boundaries of the Voronoi-triangle patch. More...

integer	cce_buffer_id
	Index of currently resampled buffer. More...

integer	cce_buffer_first_node

integer	cce_buffer_last_node
	node interval of current buffer More...

integer	cce_grid_nnode
	Number of node on the grid. More...

integer, parameter	cce_nbconstraint =5

real(kind=8), dimension(:,:,:,:,:,:), allocatable	fbins

integer	cce_inode1

integer	cce_inode2

logical	cce_skip_nodes

type(ptl_type), dimension(:), allocatable, target	local_particles

type(resamp_bin_type), dimension(:,:,:), allocatable	resamp_bins

logical	tmp_resamp_fill_empty

logical	tmp_resamp_retry

logical	tmp_resamp_fullf_on

logical	tmp_resamp_grid_ineq_on

logical	tmp_resamp_fill_empty_subbins

logical	tmp_resamp_distribute_evenly_subbins

logical	tmp_resamp_fill_empty_subbins_skip_full_bins

real(8)	tmp_resamp_var

real(8)	tmp_resamp_min_ratio

real(8)	tmp_resamp_max_ratio

integer	tmp_resamp_tile_size

integer	tmp_resamp_max_target

real(8)	tmp_resamp_ineq_tol

real(8)	tmp_resamp_ineq_tol_max

real(8)	tmp_resamp_highv_max

real(8)	tmp_resamp_highv_max_ratio

character(len=200)	tmp_resamp_node_file

integer	tmp_resamp_nphi_new

integer	tmp_resamp_fill_empty_subbins_target

integer	tmp_resamp_fill_empty_subbins_corner_cell_target

character(len=16)	tmp_up_choice

character(len=16)	tmp_down_choice

Detailed Description

This module provides particle resampling capabilities.

Function/Subroutine Documentation

◆ add_to_bin()

subroutine resamp_module::add_to_bin	(	type(resamp_bin_type), intent(inout)	bin,
		type(ptl_type), intent(in)	ptli,
		integer, intent(in)	ind
	)

Adds the data of one particle to a phase-space bin.

Parameters

[in,out]	bin	Phase-space bin data structure, type(resamp_bin_type)
[in]	ptli	Data of a single particle, type(ptl_type)
[in]	ind	Index of that particle in the corresponding species data structure, integer

Here is the caller graph for this function:

◆ build_bins()

subroutine resamp_module::build_bins	(	type(species_type), intent(inout)	sp,
		type(resamp_bin_type), dimension(resamp_inode1:resamp_inode2,resamp_musize+1,0:resamp_vpsize+1), intent(inout)	bins,
		type(grid_type), intent(in)	grid,
		logical, intent(in)	cce_sync
	)

Loops over particles, puts them in the appropriate bin, computes partial mean This routine sorts particles in the appropriate phase-space bin and computes the total charge in the bin.

Parameters

[in,out]	sp	Particle data structure for one species, type(species_type)
[in,out]	bins	Phase-space bin data structure, type(resamp_bin_type)
[in]	grid	XGC grid data structure, type(grid_type)
[in]	cce_sync	Whether to run build_bins for a coupling synchronization, logical

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cce_buffer_rcv_updated_bins()

subroutine resamp_module::cce_buffer_rcv_updated_bins ( integer, intent(in) isp )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cce_buffer_snd_updated_bins()

subroutine resamp_module::cce_buffer_snd_updated_bins ( integer, intent(in) isp )

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cce_buffer_sndrcvs_accessor()

integer function resamp_module::cce_buffer_sndrcvs_accessor ( integer, intent(in), value idbuf )

◆ cce_do_resampling()

integer function resamp_module::cce_do_resampling ( integer, intent(in), value idbuf )

◆ cce_reset_particle_outside()

subroutine resamp_module::cce_reset_particle_outside	(	type(grid_type), intent(in)	grid,
		type(species_type), intent(out)	sp
	)

Here is the call graph for this function:

◆ check_bin()

subroutine resamp_module::check_bin	(	type(resamp_bin_type), intent(inout)	bin,
		type(species_type), intent(in)	sp,
		integer, intent(in)	cce_sync_sendrcv,
		integer, intent(inout)	resamp_auto_upsample_loc,
		integer, intent(inout)	resamp_auto_downsample_loc,
		integer, intent(inout)	resamp_var_resample_loc,
		logical, intent(in)	outside_bin
	)

This routine checks whether a bin needs to be resampled and determines the type of resampling (up-/down-/re-sampling). The chosen resampling option is stored in the bin data structure: 0) No resampling needed 1) Resampling due to high weight variance 2) Upsampling due to low particle count 3) Downsampling due to high particle count.

Parameters

[in,out]	bin	Phase-space bin data structure, type(resamp_bin_type)
[in]	sp	Particle data, type(species_type)
[in]	cce_sync_sendrcv	for the coupling
[in,out]	resamp_auto_upsample_loc	Counter for upsampled bins
[in,out]	resamp_auto_downsample_loc	Counter for downsampled bins
[in,out]	resamp_var_resample_loc	Counter for variance-resampled bins
[in,out]	outside_bin	Counter for particles outside of a (any?) bin

We must pass all resamp counters to be updated correctly with OMP.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ destroy_bins()

subroutine resamp_module::destroy_bins ( type(resamp_bin_type), dimension(resamp_inode1:resamp_inode2,1:resamp_musize+1,0:resamp_vpsize+1), intent(inout) bins )

Cleans up bin memory without deallocating the array of bins itself (can be kept for next species)

Parameters

[in,out] bins Bin data structure, type(resamp_bin_type)

Here is the caller graph for this function:

◆ f0_upsampling_restore_params()

subroutine resamp_module::f0_upsampling_restore_params

restore parameters after f0 upsampling

◆ f0_upsampling_set_params()

subroutine resamp_module::f0_upsampling_set_params

set parameters for f0 upsampling

◆ find_bin()

subroutine resamp_module::find_bin	(	real (kind=8), intent(in)	smu_n,
		real (kind=8), intent(in)	vp_n,
		integer, intent(out)	imu,
		integer, intent(out)	ivp
	)

This subroutine returns the v-grid bin a particle is in given its normalized coordinates, including high velocity bins.

Parameters

[in]	smu_n	normalized square root mu coordinate
[in]	vp_n	normalized parallel velocity coordinate
[out]	imu	integer bin mu/vperp index
[out]	ivp	integer bin parallel velocity index

Here is the caller graph for this function:

◆ get_b_and_t()

subroutine resamp_module::get_b_and_t	(	type (ptl_type), intent(in)	part,
		integer, intent(in)	spec,
		integer, intent(in)	node,
		real(kind=8), dimension(3), intent(out)	bvec,
		real(kind=8), intent(out)	B,
		real(kind=8), intent(out)	temp_ev
	)

This subroutine returns a particle's magnetic field and temperature used for velocity grid particle location.

Parameters

[in]	part	particle phase data, type ptl_type
[in]	spec	integer, species type index
[in]	node	integer, index of Voronoi region particle is in.
[out]	B	real(8), magnetic field magnitude
[out]	bvec	real(8), magnetic field vector(3 dim)
[out]	temp_ev	real(8), background temperature at particle location.

Here is the caller graph for this function:

◆ get_cce_buffer_nb()

integer function resamp_module::get_cce_buffer_nb

◆ get_marker_velo()

subroutine resamp_module::get_marker_velo	(	type(grid_type), intent(in)	grid,
		type(psn_type), intent(in)	psn,
		type(ptl_type), intent(in)	ptli,
		integer, intent(in)	isp,
		real (kind=8), dimension(4), intent(out)	velo,
		real (kind=8), intent(out)	vrad
	)

Evaluates the marker particle equations of motion. The results are the time derivatives of the marker position and parallel velocity (or rho, to be precise), as well as the radial velocity v.grad(psi). The results can be used in the moment preserving QP weight optimization.

Parameters

[in]	grid	XGC configuration space grid, type(grid_type)
[in]	psn	E-field/potential data structure, type(psn_type)
[in]	ptli	Particle data (phase+constants), type(ptl_type)
[in]	isp	Particle species index, integer
[out]	velo	dX/dt and drho/dt, real(8)
[out]	vrad	Radial particle velocity (dX/dt).grad(psi)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_new_fullf_weight()

subroutine resamp_module::get_new_fullf_weight	(	type(grid_type), intent(in)	grid,
		type(psn_type), intent(in)	psn,
		type(ptl_type), intent(inout)	part,
		real (8), intent(in)	psi,
		real (8), intent(in)	B,
		real (8), intent(in)	flow,
		real (8), intent(in)	den,
		real (8), intent(in)	temp_ev,
		integer, intent(in)	spec,
		integer, intent(in)	tri,
		real (8), dimension(3), intent(in)	bary,
		real (8), intent(in)	mark_den,
		logical, intent(out)	err
	)

Compute the new full-f weight of the input particle \(w_0 = f/g\). Note that either \(w_0\) or \(f\) can be chosen freely, while the particle's phasespace volume \(\delta V = 1/g\) is determined by Liousville's theorem of phase space volume conservation. The distribution function \(f\) can in principle be anything here as long as the \(w_2\) weight is set accordingly. The goal is to choose \(w_0\) and \(w_2\) such that the weight evolution equation does not have to be changed.

This is from Seung-Hoe Ku's notes: \(f_p = w_1 w_0 g\) \(\frac{\mathrm{D}f_p}{\mathrm{D}t} = w_0 g \frac{\mathrm{d}w_1}{\mathrm{d}t}\) \(=-\frac{\mathrm{D}f_0}{\mathrm{D}t} + S\) \(w_1(t_2)-w_1(t_1) = -\frac{f_0(t_2)-f_0(t_1)}{w_0 g}\) \(w_2(t_2)-w_2(t=0) = -\frac{f_0(t_2)-f_0(t=0)}{w_0 g}\) Easiest choice: \(w_0 g = f_0(t=0),\quad w_2(t=0) = 0\) Then: \(1-w_2 = \frac{f_0(t)}{w_0} = \frac{f_0(t)}{f_0(t=0)}\) and \(w_1(t_2)-w_1(t_1) = -\frac{f_0(t_2)}{f_0(t=0)} + (1-w_2(t_1))\)

Over time \(f_0(t) = f_M + f_g(t)\) can become negative, so \(w_0=f_0(t)/g\) with \(w_2(t)=0\) would be negative. But we want positive full-f weights. Therefore, we choose \(w_0=\max(f_0(t_{resample}),\alpha f_M)/g > 0\). This yields \(1-w_2(t) = 1-w_2(t_{resample})-\frac{f_0(t_{resample})}{w_0 g} + \frac{f_0(t)}{w_0 g}\) In order to get \(1-w_2 = \frac{f_0(t)}{w_0 g}\), we need to set \(w_2(t_{resample})\) such that \(1- w_2(t_{resample})-\frac{f_0(t_{resample})}{w_0 g}=0\).

Parameters

[in]	grid	XGC grid data structure, type(grid_type)
[in]	psn	Field data, type(psn_type)
[in,out]	part	Input particle data, type(ptl_type)
[in]	psi	Poloidal flux at particle position, real(8)
[in]	B	Magnetic field \|B_0\|, real(8)
[in]	flow	Background mean parallel flow, real(8)
[in]	den	Background density, real(8)
[in]	temp_ev	Background temperature
[in]	spec	Species type of input particle, integer
[in]	tri	Triangle in which the particle is, integer
[in]	bary	Corresponding barycentric coordinates, real(8)
[in]	mark_den	Inverse of particle's phase space volume g=1/dV, real(8)
[out]	err	Error flag, logical

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_refer_v_n()

subroutine resamp_module::get_refer_v_n	(	real (kind=8), intent(in)	smu_n,
		real (kind=8), intent(in)	vp_n,
		real (kind=8), intent(out)	smu_ref,
		real (kind=8), intent(out)	vp_ref,
		integer, dimension(3), intent(in)	bin_id,
		logical, intent(out)	err
	)

This subroutine returns reference velocity coordinates in the resampling bin.

Parameters

[in]	smu_n	normalized square root mu coordinate
[in]	vp_n	normalized parallel velocity coordinate
[out]	smu_ref	reference (bin) square root mu coordinate
[out]	vp_ref	reference (bin) parallel velocity coordinate
[in]	bin_id	integer array of 3D bin locators
[out]	err	logical, returns .true. if ref. coords. not in [0,1]x[0,1]

Here is the caller graph for this function:

◆ get_sampling_ratio()

subroutine resamp_module::get_sampling_ratio ( type(grid_type), intent(in) grid )

This routine upsamples the marker population in spall for a new configuration space grid. The new grid should be denser than the current grid, i.e. require upsampling, not downsampling. This is due to particle data locality. Upsampling to a denser mesh is done on the coarse mesh, while downsampling from a fine mesh is better done with particle data arranged for the coarse mesh. The routine reads in the vertex positions of the new mesh and runs a search for each of them to associate them with the vertices of the current mesh. The ratio of new mesh vertices per current mesh vertex is the upsampling ratio. If the upsampling ratio is smaller than unity, that vertex is skipped.

Parameters

[in] grid XGC configuration space grid, type(grid_type)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_tri_info()

subroutine resamp_module::get_tri_info	(	type(grid_type), intent(in)	grid,
		type(ptl_type), intent(in)	part,
		integer, intent(out)	node,
		integer, intent(inout)	itr,
		real(kind=8), dimension(3), intent(inout)	bary,
		real(kind=8), intent(inout)	psi
	)

This subroutine returns the node, barycentric coordinates, triangle and psi value for a particle.

Parameters

[in]	grid	XGC grid data structure, type(grid_type)
[in]	part	current particle, type(ptl_type)
[out]	node	voronoi volume current particle is in, integer
[out]	itr	triangle particle is in, integer
[out]	bary	barycentric coordinates of particle in triangle, real(8)
[out]	psi	interpolated psi at particle location, real(8)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_v_n()

subroutine resamp_module::get_v_n	(	real (kind=8), intent(out)	smu_n,
		real (kind=8), intent(out)	vp_n,
		real (kind=8), intent(in)	B,
		real (kind=8), intent(in)	temp_ev,
		type (ptl_type), intent(in)	part,
		integer, intent(in)	spec
	)

This subroutine returns normalized v-grid coordinates for a particle.

Parameters

[out]	smu_n	normalized square root mu coordinate
[out]	vp_n	normalized parallel velocity coordinate
[in]	B	magnetic field magnitude
[in]	temp_ev	particle/reference temperature
[in]	part	type ptl_type, current particle
[in]	spec	species index, integer

Here is the caller graph for this function:

◆ get_v_part()

subroutine resamp_module::get_v_part	(	real (kind=8), intent(in)	smu_n,
		real (kind=8), intent(in)	vp_n,
		real (kind=8), intent(out)	mu,
		real (kind=8), intent(out)	rho,
		real (kind=8), intent(in)	temp,
		real (kind=8), intent(in)	B,
		integer, intent(in)	spec
	)

This subroutine returns particle velocities given normalized v-grid coordinates.

Parameters

[in]	smu_n	normalized square root mu coordinate
[in]	vp_n	normalized parallel velocity coordinate
[out]	mu	particle mu
[out]	rho	particle rho
[in]	temp	reference temperate
[in]	B	magnetic field magnitude
[in]	spec	species index, integer

Here is the caller graph for this function:

◆ in_bin()

logical function resamp_module::in_bin	(	real (kind=8), dimension(2), intent(in)	point,
		real (kind=8), dimension(2,2), intent(in)	corners
	)

This function checks if a pair of normalized points lies within the rectangle given by corners.

Parameters

[in]	point	normalized coordinates to be checked
[in]	corners	normalized coordinates of resampling bin corners

Returns: TRUE if particle inside bin

Here is the caller graph for this function:

◆ in_neighborhood()

logical function resamp_module::in_neighborhood	(	real (kind=8), dimension(2), intent(in)	point,
		integer, dimension(2), intent(in)	indices,
		integer, dimension(:,:), intent(in)	grid,
		real (kind=8), dimension(:,:), intent(in)	new_set,
		real (kind=8), intent(in)	cellsize,
		real (kind=8), intent(in)	radius_squared
	)

This function is a helper for checking if a candidate point is in the neighborhood of the current set of disc samples.

Parameters

[in]	point	normalized coordinates of candidate point
[in]	new_set	current proposal set of upsampled coordinates
[in]	cellsize	cell width of particle search grid
[in]	radius_squared	square of local disc radius
[in]	grid	2D integer array, 0 if cell is empty, otherwise contains particle index
[in]	indices	cell indices (grid) to cell containing candidate point

Here is the caller graph for this function:

◆ is_first_call()

logical function resamp_module::is_first_call

Here is the caller graph for this function:

◆ load_new_ptl()

subroutine resamp_module::load_new_ptl	(	type(grid_type), intent(in)	grid,
		type(ptl_type), intent(inout)	new_ptl,
		integer, dimension(3), intent(in)	bin_id,
		integer, intent(out)	itr,
		real (kind=8), dimension(3), intent(out)	p,
		real (kind=8), intent(out)	psi
	)

This routine loads new particles into a bin with uniform marker density in configuration space. Particles are drawn from a rectacngle enclosing the bin volume and are accepted if inside the Voronoi volume of the bin. A more efficient loading can be achieved by pre-selecting the triangle in which to load. This functionality will be provided in a separate function.

This routine loads new particles into a bin with uniform marker density in configuration space. Particles are drawn from the bin volume. First, a triangle is chosen using importance sampling with the triangle area as criterion. Then a random position in the triangle is drawn. The drawn position is accepted if inside the Voronoi volume of the bin.

Parameters

[in]	grid	XGC configuration space grid, type(grid_type)
[in,out]	new_ptl	Particle to store data in
[in]	bin_id	ID of the bin into which particle is loaded
[out]	itr	Triangle into which the particle was loaded, integer
[out]	p	Barycentric coordinates of the loaded triangle, real(8)
[out]	psi	Pol. flux at new particle's location, real(8)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ load_shift_p_ptl()

subroutine resamp_module::load_shift_p_ptl	(	type(grid_type), intent(in)	grid,
		type(ptl_type), intent(inout)	new_ptl,
		integer, intent(inout)	itr,
		real (kind=8), dimension(3), intent(out)	p,
		real (kind=8), intent(out)	psi,
		integer, intent(in)	my_node,
		real (kind=8), intent(in)	max_shift
	)

This routine shifts the particles physical coordinates within the bin. Typically used when upsampling and copying particles so that they have a non-identical trajectory.

Parameters

[in]	grid	XGC configuration space grid, type(grid_type)
[in,out]	new_ptl	Particle to store data in
[in,out]	itr	Triangle into which the particle was loaded, integer
[out]	p	Barycentric ptl coordinates in the loaded triangle, real(8)
[out]	psi	Pol. flux at new particle's location, real(8)
[in]	my_node	Node particle belongs to, shift must keep this the same!
[in]	max_shift	maximum possible shift in reference (barycentric) coordinates

Here is the call graph for this function:

Here is the caller graph for this function:

◆ local_lin_int()

real (kind=8) function, dimension(2,2) resamp_module::local_lin_int	(	real (kind=8), intent(in)	smu_ref,
		real (kind=8), intent(in)	vp_ref
	)

This function returns the 2x2 local element matrix of bilinear nodal interpolation coefficients corresponding to the particles reference coordinates in the cell.

Parameters

[in]	smu_ref	real reference coordinate of square-root mu variable
[in]	vp_ref	real reference coordinate of parallel velocity

Returns: 2x2 real matrix of bilinear interpolation coefficients

Here is the caller graph for this function:

◆ nrm_std_dev()

subroutine resamp_module::nrm_std_dev	(	integer, intent(in)	npart,
		real (8), intent(in)	mean,
		real (8), dimension(:), intent(in)	weights,
		real (8), intent(out)	var
	)

This routine computes the normalized standard deviation of a set of weights, without Bessel's correction.

Parameters

[in]	npart	number of weights in computation
[in]	mean	mean of weights, better stability of variance computation
[in]	weights	real(8) array of weights for std. deviation computation
[out]	var	Misnamed, normalized standard deviation of weights

Here is the caller graph for this function:

◆ output_bin()

subroutine resamp_module::output_bin	(	integer, intent(in)	npnew,
		integer, intent(in)	nconst,
		type (species_type), intent(in)	sp,
		type (resamp_bin_type), intent(in)	bin,
		real (kind=8), dimension(nconst,npnew), intent(in)	Cmat,
		real (kind=8), dimension(nconst), intent(in)	constraint,
		type (ptl_type), dimension(npnew), intent(in)	bin_new_ptl,
		integer, dimension(:), intent(in)	new_tri,
		real (kind=8), dimension(:), intent(in)	new_psi,
		integer, intent(in)	ierr,
		logical, intent(inout)	dump_problem_bins,
		real (kind=8), dimension(:), intent(in), optional	weights
	)

Routine for outputting a flagged resampling bin. This is typically due to either the failure of the quadratic program OR a high variance result, and is controlled by the input flag resamp_output_problem_bins.

Parameters

[in]	npnew	integer, number of target particles for resampling
[in]	nconst	integer, number of total constraints for resampling, for outputing Cmat
[in]	sp	species_type, current species being resampled
[in]	bin	resamp_bin_type, current bin being resampled and output
[in]	Cmat	real array, constraint matrix (including inequalities) for quadratic program
[in]	constraint	constraint vector for QP
[in]	bin_new_ptl	ptl_type, current set of candidate particle locations after resampling
[in]	new_tri	integer vector of triangles for candidate particles in bin
[in]	new_psi	real 8, vector of canditate particles psi values
[in]	ierr	integer, error flag
[in,out]	dump_problem_bins	thread-local value to prevent massive IO from occuring
[in]	weights	if QP produced solution with unaccetpable variance, new weights

Here is the call graph for this function:

Here is the caller graph for this function:

◆ particle_not_in_vbin()

subroutine resamp_module::particle_not_in_vbin	(	real (kind=8), intent(in)	smu_ref,
		real (kind=8), intent(in)	vp_ref,
		real (kind=8), intent(in)	smu_n,
		real (kind=8), intent(in)	vp_n,
		type (resamp_bin_type), intent(in)	bin,
		type (ptl_type), intent(in)	part,
		integer, intent(in)	num_part,
		integer, intent(in)	index,
		real (kind=8), intent(in)	rtemp,
		real (kind=8), intent(in)	B,
		real (kind=8), intent(in)	b_grid
	)

This subroutine is error handling for when a particle(usually generated) does not like in the correct velocity space bin.

Parameters

[in]	smu_ref	computed reference smu coordinate
[in]	vp_ref	computed refernce para velocity coordinate
[in]	smu_n	normalized mu velocity coordinate
[in]	vp_n	normalized parallel velocity coordinate
[in]	bin	resamp_bin_type, current resampling bin
[in]	part	ptl_type, current particle
[in]	num_part	integer, target number of particles
[in]	index	integer, which candidate particle in not_in_bin
[in]	rtemp	particles reference temperate
[in]	B	magnetic field magnitude at particle location
[in]	b_grid	real, needed component of grid magnetic field for normalization

Here is the call graph for this function:

Here is the caller graph for this function:

◆ poisson_disc()

subroutine resamp_module::poisson_disc	(	real (kind=8), dimension(:,:), intent(in)	initial,
		real (kind=8), dimension(:,:), intent(in)	corners,
		integer, intent(in)	bin_part,
		integer, intent(in)	bin_target,
		real (kind=8), dimension(:,:), intent(inout)	new_set,
		integer, intent(in)	k
	)

This routine returns the poisson disc sample of the new (upsamples) particles in normalized velocity coordinates (vp_n,smu_n) given initial pt locations).

Parameters

[in]	initial	initial particle set(old particles) normalized coordinates
[in]	corners	normalized coordinates of velocity bin corners
[in]	bin_target	number of total upsampled particles
[in]	bin_part	number of given particles
[in]	k	number of samples to generated for each active point in disc sample
[in,out]	new_set	output normalized coordinates of upsampled particle set

Here is the call graph for this function:

Here is the caller graph for this function:

◆ refer_to_v_n()

subroutine resamp_module::refer_to_v_n	(	real (kind=8), intent(in)	smu_ref,
		real (kind=8), intent(in)	vp_ref,
		real (kind=8), intent(out)	smu_n,
		real (kind=8), intent(out)	vp_n,
		integer, dimension(3), intent(in)	bin_id
	)

This subroutine maps reference coordinates to normalized coordinates.

Parameters

[out]	smu_n	normalized square root mu coordinate
[out]	vp_n	normalized parallel velocity coordinate
[in]	smu_ref	reference (bin) square root mu coordinate
[in]	vp_ref	reference (bin) parallel velocity coordinate
[in]	bin_id	integer array of 3D bin locators

Here is the caller graph for this function:

◆ resamp_scale_phvol()

subroutine resamp_module::resamp_scale_phvol	(	type(grid_type), intent(in)	grid,
		type(species_type), intent(inout)	sp
	)

Loops over particles and scales their phase space volume to account for particles added to empty bins.

Parameters

[in]	grid	XGC grid data structure, type(grid_type)
[in,out]	sp	Particle data structure for one species, type(species_type)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resample_bin()

subroutine resamp_module::resample_bin	(	type (resamp_bin_type), intent(inout)	bin,
		type (grid_type), intent(in)	grid,
		type (species_type), intent(inout)	sp,
		type (psn_type), intent(in)	psn,
		integer, intent(in)	cce_sync_sendrcv,
		integer, intent(in)	start_wr_pos,
		integer, intent(inout)	resamp_failed_bins_loc,
		integer, intent(inout)	resamp_upsample_failed_loc,
		integer, intent(inout)	resamp_downsample_failed_loc,
		integer, intent(inout)	resamp_resample_failed_loc,
		integer, intent(inout)	resamp_retried_bins_loc,
		integer, intent(inout)	resamp_retried_failed_loc,
		integer, intent(inout)	resamp_fullf_failed_loc,
		real (8), intent(inout)	resamp_phvol_added_loc,
		integer, intent(inout)	resamp_var_inc_upsamp_loc,
		integer, intent(inout)	resamp_var_inc_downsamp_loc,
		logical, intent(inout)	dump_problem_bins,
		integer, intent(inout)	resamp_var_inc_loc,
		integer, dimension(resamp_hist_size), intent(inout)	resamp_up_hist_loc,
		integer, dimension(resamp_hist_size), intent(inout)	resamp_down_hist_loc
	)

The actual process of resampling the particle set in a bin happens in this routine. A bin is passed as input, the pre-determined type of resampling is executed and the weights of the new particle set are computed with a QP optimization. If the optimization is successful, the old particle set in the input variable "sp" is replaced with the new particle set.

Parameters

[in,out]	bin	Phase-space bin data structure, type(resamp_bin_type)
[in]	grid	XGC grid data structure, type(grid_type)
[in,out]	sp	Particle data structure, type(species_type)
[in]	psn	Field data, type(psn_type)
[in]	cce_sync_sendrcv	0:no f-coupling, 1 sender, 2 receiver
[in]	start_wr_pos	Write position in sp, integer
[in,out]	resamp_failed_bins_loc	Counter for failed bins
[in,out]	resamp_upsample_failed_loc	Counter for failed upsampled bins
[in,out]	resamp_downsample_failed_loc	Counter for failed downsampled bins
[in,out]	resamp_resample_failed_loc	Counter for failed var-resampled bins
[in,out]	resamp_retried_bins_loc	Counter for retried bins
[in,out]	resamp_retried_failed_loc	Counter for bins that failed on retry
[in,out]	resamp_fullf_failed_loc	Counter for bins with failed full-f resampling
[in,out]	resamp_phvol_added_loc	Phase space volume of particles added to empty bins
[in,out]	resamp_var_inc_upsamp_loc	Counter for bins with large relative variance after upsampling
[in,out]	resamp_var_inc_downsamp_loc	Counter for bins with large relative variance after downsampling

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resample_finalize()

subroutine resamp_module::resample_finalize ( type(resamp_bin_type), dimension(:,:,:), allocatable bins )

This routine cleans up the resampling module.

Parameters

[in,out] bins Resampling bin data structure, type(resamp_bin_type)

Here is the caller graph for this function:

◆ resample_init()

subroutine resamp_module::resample_init	(	type(grid_type), intent(in)	grid,
		integer, intent(in)	inode1,
		integer, intent(in)	inode2,
		real (kind=8), intent(in)	dsmu,
		real (kind=8), intent(in)	dvp,
		integer, intent(in)	nmu,
		integer, intent(in)	nvp,
		real (kind=8), intent(in)	vp_max,
		real (kind=8), intent(in)	mu_max,
		integer, intent(in)	tile_size,
		type(resamp_bin_type), dimension(:,:,:), allocatable	bins,
		integer, intent(in)	cce_sync_sendrcv
	)

This routine initializes the resampling module and sets some global parameters such as v-grid size, etc.

Parameters

[in]	grid	XGC mesh data structure, type(grid_type)
[in]	inode1	Index of first vertex in the mesh domain, integer
[in]	inode2	Index of last vertex in the mesh domain, integer
[in]	dsmu	v_perp/mu resolution of XGC's total-f velocity grid, integer
[in]	dvp	v_para resolution of XGC's total-f v-grid, integer
[in]	nmu	Number of v_perp/mu bins in total-f v-grid, integer
[in]	nvp	Half the number of v_para bins in total-f v-grid, integer
[in]	vp_max	v_para cutoff of total-f v-grid, real(8)
[in]	mu_max	v_perp/mu cutoff of total-f v-grid, real(8)
[in]	tile_size	Resampling combines tile_size x tile_size bins of the total-f v-grid to one macro bin, integer
[in,out]	bins	Resampling phase space bins, type(resamp_bin_type)
[in]	cce_sync_sendrcv	For core-edge f-coupling, 1 if sender of constraints, 4 if receiver of constraints, all other for no f-coupling

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resample_one_sp()

subroutine resamp_module::resample_one_sp	(	integer, intent(in), value	isp,
		integer, intent(in), value	cce_sync_sendrcv
	)

Resample the marker particles of one species in XGC to improve phase-space coverage and reduce marker noise.

Parameters

[in]	isp	The species to resample
[in]	cce_sync_sendrcv	Takes values 0(nothing), 1(sender) , 2(receiver)

Here is the call graph for this function:

◆ resample_spall_finish()

subroutine resamp_module::resample_spall_finish

Here is the call graph for this function:

◆ resample_spall_setup()

subroutine resamp_module::resample_spall_setup	(	integer, intent(in), value	inode1,
		integer, intent(in), value	inode2,
		real (kind=8), intent(in), value	dsmu,
		real (kind=8), intent(in), value	dvp,
		integer, intent(in), value	nmu,
		integer, intent(in), value	nvp,
		real (kind=8), intent(in), value	vp_max,
		real (kind=8), intent(in), value	mu_max,
		integer, intent(in), value	cce_sync_sendrcv,
		integer, intent(in), value	tile_size
	)

Resample the marker particles in XGC to improve phase-space coverage and reduce marker noise.

Parameters

[in]	inode1	Index of first mesh vertex in domain, integer
[in]	inode2	Index of last mesh vertex in domain, integer
[in]	dsmu	v_perp/mu resolution of XGC's total-f velocity grid, integer
[in]	dvp	v_para resolution of XGC's total-f v-grid, integer
[in]	nmu	Number of v_perp/mu bins in total-f v-grid, integer
[in]	nvp	Half the number of v_para bins in total-f v-grid, integer
[in]	vp_max	v_para cutoff of total-f v-grid, real(8)
[in]	mu_max	v_perp/mu cutoff of total-f v-grid, real(8)
[in]	tile_size	Resampling combines tile_size x tile_size bins of the total-f v-grid to one macro bin, integer, optional
[in]	cce_sync_sendrcv	Takes values 0(nothing), 1(sender) , 4(receiver)
[in]	tile_size	Velocity space tile size, integer

Here is the call graph for this function:

◆ restart_resample_restore_params()

subroutine resamp_module::restart_resample_restore_params

Move phase space density from the 5D grid over to the particles for restarting simulatin with a different grid.

Here is the call graph for this function:

◆ restart_resample_set_params()

subroutine resamp_module::restart_resample_set_params

Move phase space density from the 5D grid over to the particles for restarting simulatin with a different grid.

Here is the call graph for this function:

◆ set_cce_buffer_and_overlap_id()

subroutine resamp_module::set_cce_buffer_and_overlap_id	(	integer, intent(in)	id1,
		integer, intent(in)	id2,
		integer, intent(in)	inode1,
		integer, intent(in)	inode2
	)

Here is the caller graph for this function:

◆ set_cce_buffer_id()

subroutine resamp_module::set_cce_buffer_id	(	integer, intent(in)	id,
		integer, intent(in)	inode1,
		integer, intent(in)	inode2
	)

Here is the caller graph for this function:

◆ set_cce_buffers()

subroutine resamp_module::set_cce_buffers	(	integer, intent(in), value	istep,
		integer, intent(in), value	idbuf
	)

Here is the call graph for this function:

◆ set_eq_bins()

subroutine resamp_module::set_eq_bins	(	integer, dimension(resamp_nongridmom), intent(in)	eq_bin,
		integer, dimension(resamp_nongridmom), intent(in)	ineq_bin
	)

◆ setup_fullf()

subroutine resamp_module::setup_fullf	(	type(ptl_type), intent(in)	ptli,
		integer, intent(in)	spec_type,
		real (8), intent(out)	den,
		real (8), intent(out)	flow,
		real (8), intent(out)	temp_ev,
		real (8), dimension(3), intent(out)	bvec,
		real (8), intent(out)	B,
		real (8), intent(inout)	psi
	)

Evaluate the background density, temperature, flow, magnetic field and psi at the input particle's position.

Parameters

[in]	ptli	Input particle data, type(ptl_type)
[in]	spec_type	Species type of input particle, integer
[out]	den	Background density, real(8)
[out]	flow	Background toroidal flow velocity, real(8)
[out]	temp_ev	Background temperature, real(8)
[out]	bvec	Magnetic field vector B, real(8)
[out]	B	Magnetic field \|B_0\|, real(8)
[out]	psi	Poloidal magnetic flux, real(8)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setup_opt()

subroutine resamp_module::setup_opt	(	integer, intent(in)	nconstraint,
		integer, intent(in)	part_num,
		real (8), dimension(nconstraint,part_num), intent(in)	Cmat,
		real (8), dimension(nconstraint), intent(inout)	constraint,
		real (8), dimension(part_num), intent(inout)	weights,
		integer, intent(in)	n_eq_bin,
		integer, intent(in)	n_ineq_bin,
		integer, dimension(resamp_nongridmom), intent(in)	eq_bin,
		integer, dimension(resamp_nongridmom), intent(in)	ineq_bin,
		logical, intent(in)	grid_ineq_on,
		real (8), intent(in)	ineq_tol,
		logical, intent(in)	positivity,
		integer, intent(out)	ierr
	)

This routine sets up the input for the QP optimization that computes the delta-f weights of the new particles. There are two types of constraints, bin and grid constraints. Bin constraints correspond to moments of the distribution function evaluated with nearest neighbor interpolation on the configuration space grid. Grid constraints correspond to moments evaluated with linear (barycentric) interpolation on the conf. space grid. Bin constraints can be enforced as equality and inequality constraints: use idx_constraint and idx_constraint2 to choose which constraint is an equality and which is an inequality constraint. Grid constraints are enforced as inequality constraints. Since grid constraints make the optimization problem much harder due to their large number, using them is optional (grid_ineq_on) A positivity constraint for the weights can be activated with the variable "positivity". This is used for full-f optimization.

Parameters

[in]	nconstraint	Number of constraints, integer
[in]	part_num	Number of particles, integer
[in]	Cmat	Constraint matrix, N_constraint x N_ptl, real(8)
[in]	constraint	Values of the constraints, real(8)
[in,out]	weights	Delta-f weights w1, N_ptl, real(8)
[in]	n_eq_bin	???
[in]	n_ineq_bin	???
[in]	eq_bin	???
[in]	ineq_bin	???
[in]	grid_ineq_on	Whether to conserve the grid charge or not, logical
[in]	ineq_tol	Error tolerance for the inequality constraints, real(8)
[in]	positivity	Whether to require weight>0, logical
[in,out]	ierr	Error flag, integer

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transpose_from_aos_wrapper()

subroutine resamp_module::transpose_from_aos_wrapper ( integer, intent(in), value isp )

Here is the call graph for this function:

◆ update_cmat()

subroutine resamp_module::update_cmat	(	type(grid_type), intent(in)	grid,
		type(psn_type), intent(in)	psn,
		integer, intent(in)	nconstraint,
		integer, intent(in)	nptl,
		integer, intent(in)	vert,
		integer, dimension(1:vert), intent(in)	patch,
		real (8), dimension(3), intent(in)	bary,
		integer, intent(in)	tri,
		real (8), intent(in)	psi,
		real (8), intent(in)	B,
		real (8), dimension(3), intent(in)	bvec,
		integer, intent(in)	spec,
		integer, intent(in)	pindex,
		type(ptl_type), intent(in)	part,
		real (8), dimension(nconstraint,nptl), intent(out)	Cmat,
		integer, intent(in)	op_mode
	)

This subroutine sets up the matrix C (constraint matrix) with the coefficients needed to compute the conserved quantities charge, parallel momentum, magnetic moment, parallel and perp. kinetic energy and the grid charge on the vertices connected to the bin. Those quantities are then obtained by multiplying the matrix C with the delta-f (--> w1) weight vector from the right. This matrix forms the basis for the QP optimization program that finds the delta-f weights for the resampled particle set.

Parameters

[in]	grid	XGC grid data structure, type(grid_type)
[in]	psn	XGC E-field/potential data, type(psn_type)
[in]	nconstraint	Number of equality+inequality constraints, integer
[in]	nptl	Number of particles in bin, integer
[in]	vert	Number of vertices connected to this bin (patch size), integer
[in]	patch	Indices of the vertices connected to this bin, integer
[in]	bary	Barycentric coordinates of the particle, real(8)
[in]	tri	Triangle in which the particle is, integer
[in]	psi	Pol. flux at particle position, real(8)
[in]	B	Local magnetic field \|B\|, real(8)
[in]	bvec	Magnetic field vector B, real(8)
[in]	spec	Species index, integer
[in]	pindex	Position of the particle in the particle set, integer
[in]	part	Data of one particle, type(ptl_type)
[in,out]	Cmat	The matrix C from the (see documentation), real(8)
[in]	op_mode	Switch for optimizing full-f weights w0 (0)or delta-f weights (1), integer

Here is the call graph for this function:

Here is the caller graph for this function:

◆ use_default_eq_bins()

subroutine resamp_module::use_default_eq_bins

Variable Documentation

◆ cce_buffer_first_node

integer resamp_module::cce_buffer_first_node

◆ cce_buffer_id

integer resamp_module::cce_buffer_id

Index of currently resampled buffer.

◆ cce_buffer_last_node

integer resamp_module::cce_buffer_last_node

node interval of current buffer

◆ cce_grid_nnode

integer resamp_module::cce_grid_nnode

Number of node on the grid.

◆ cce_inode1

integer resamp_module::cce_inode1

◆ cce_inode2

integer resamp_module::cce_inode2

◆ cce_nbconstraint

integer, parameter resamp_module::cce_nbconstraint =5

◆ cce_skip_nodes

logical resamp_module::cce_skip_nodes

◆ fbins

real (kind=8), dimension(:,:,:,:,:,:), allocatable resamp_module::fbins

◆ local_particles

type(ptl_type), dimension(:), allocatable, target resamp_module::local_particles

◆ p_save

real (kind=8), dimension(:,:), allocatable, private resamp_module::p_save

private

Holds barycentric coordinates for particles of current resampled species.

◆ psi_save

real (kind=8), dimension(:), allocatable, private resamp_module::psi_save

private

Caches psi interpolation results for multiple use during resampling.

◆ resamp_auto_downsample

integer, private resamp_module::resamp_auto_downsample

private

Number of downsampled bins.

◆ resamp_auto_upsample

integer, private resamp_module::resamp_auto_upsample

private

Number of upsampled bins.

◆ resamp_bin_max_fac

real (kind=8), private resamp_module::resamp_bin_max_fac

private

threshold for auto downsample

◆ resamp_bins

type (resamp_bin_type), dimension(:,:,:), allocatable resamp_module::resamp_bins

◆ resamp_den

real (kind=8), dimension(:,:), allocatable, private resamp_module::resamp_den

private

Reference density per species for normalization.

◆ resamp_discard_var_bins

logical resamp_module::resamp_discard_var_bins = .false.

Discard resampled bins that increase the variance by factor of resamp_var_limit.

◆ resamp_distribute_evenly_subbins

logical resamp_module::resamp_distribute_evenly_subbins =.false.

Whether to fill/remove evenly in 1x1 velocity cells in the bin when resamp_tile_size > 1 and upsampling/downsampling.

◆ resamp_down_choice

character(16) resamp_module::resamp_down_choice ='weight'

option arg for downsampled new particle selection: 'random','weight','weight+replace','volume' weight: keep particles with largest w0*w1 absolute weight, deterministic weight+replace: keep particles with largest w0*w1 absolute weight, allow multiple copies of same particle if split weight is still larger than next unsplit particle volume: keep particles with largest phase space volume, deterministic

◆ resamp_down_hist

integer, dimension(resamp_hist_size), private resamp_module::resamp_down_hist

private

Histogram of downsampling results.

◆ resamp_downsample_failed

integer, private resamp_module::resamp_downsample_failed

private

Number of bins for which downsampling failed.

◆ resamp_dsmu

real (kind=8), private resamp_module::resamp_dsmu

private

v_perp/mu spacing of original v-grid (=f0_dsmu)

◆ resamp_dvp

real (kind=8), private resamp_module::resamp_dvp

private

v_para spacing of original v-grid (=f0_dvp)

◆ resamp_empty_bins

integer, private resamp_module::resamp_empty_bins

private

Number of empty sampling bins.

◆ resamp_eq_bin

integer, dimension(resamp_nongridmom), private resamp_module::resamp_eq_bin

private

which constraints are active as equality constraints

◆ resamp_err_count1

integer, private resamp_module::resamp_err_count1

private

Counter for w0=0 errors in get_new_fullf_weight.

◆ resamp_err_count2

integer, private resamp_module::resamp_err_count2

private

Counter for w0=0 errors in resample_bin.

◆ resamp_failed_bins

integer, private resamp_module::resamp_failed_bins

private

Number of bins for which re-/up-/down-sampling failed.

◆ resamp_fill_empty

logical resamp_module::resamp_fill_empty =.false.

Whether to fill empty bins.

◆ resamp_fill_empty_subbins

logical resamp_module::resamp_fill_empty_subbins =.false.

Whether to fill all empty 1x1 velocity cells in the bin and there are already particles in the bin.

◆ resamp_fill_empty_subbins_corner_cell_target

integer resamp_module::resamp_fill_empty_subbins_corner_cell_target =1

If resamp_fill_empty_subbins=.true., minimum target of corner cells.

◆ resamp_fill_empty_subbins_skip_full_bins

logical resamp_module::resamp_fill_empty_subbins_skip_full_bins

If resamp_fill_empty_subbins=.true., skip a bin if it is already filled enough to do the pseudo-inverse interpolation.

◆ resamp_fill_empty_subbins_target

integer resamp_module::resamp_fill_empty_subbins_target =1

If resamp_fill_empty_subbins=.true., minimum target of sub bins.

◆ resamp_fullf_failed

integer, private resamp_module::resamp_fullf_failed

private

Number of full-f failed bins.

◆ resamp_fullf_on

logical resamp_module::resamp_fullf_on =.false.

Whether to resample the full-f weights in addition to delta-f weights.

◆ resamp_grid_ineq_on

logical resamp_module::resamp_grid_ineq_on =.false.

Switch for using inequality constraints for the grid charge for resampling.

◆ resamp_highv_max

real (8) resamp_module::resamp_highv_max = 10D0

energy cutoff of the high velocity bins v_para>f0_vp_max and v_perp>f0_smu_max

◆ resamp_highv_max_ratio

real (8) resamp_module::resamp_highv_max_ratio = 4D0

Downsampling threshold for high-velocity bins.

◆ resamp_hist_size

integer, parameter, private resamp_module::resamp_hist_size = 10

private

Size of variance histogram for resampling statistics, bin width = 1 normalized std deviation.

◆ resamp_ineq_bin

integer, dimension(resamp_nongridmom), private resamp_module::resamp_ineq_bin

private

which constraints are active as inequality constraints

◆ resamp_ineq_tol

real (8) resamp_module::resamp_ineq_tol = 1D-4

Threshold for relative error in the inequality constraints in the QP optimization.

◆ resamp_ineq_tol_max

real (8) resamp_module::resamp_ineq_tol_max = 1D-3

Maximal threshold for relative error in inequality constraints for retried bins.

◆ resamp_inode1

integer, private resamp_module::resamp_inode1

private

Index of the first node of local patch of the configuration space mesh (=f0_inode1)

◆ resamp_inode2

integer, private resamp_module::resamp_inode2

private

Index of the last node of local patch of the configuration space mesh (=f0_inode2)

◆ resamp_inv_bin_num

real (kind=8), private resamp_module::resamp_inv_bin_num

private

Inverse of the number of macro bins in v-space.

◆ resamp_inv_ph_vol

real (kind=8), dimension(:,:), allocatable, private resamp_module::resamp_inv_ph_vol

private

Inverse phase-space volume element.

◆ resamp_keep_downsamples

logical resamp_module::resamp_keep_downsamples = .false.

Retain downsampling results with high variance, mainly for preventing buildup. Only relevant if resamp_discard_var_bins is .true.

◆ resamp_keep_upsamples

logical resamp_module::resamp_keep_upsamples = .false.

Retain upsampling results with high variance, for filling for pseudoinverse. Only relevant if resamp_discard_var_bins is .true.

◆ resamp_max_ratio

real (8) resamp_module::resamp_max_ratio = 1.5D0

max ratio of (# of ptl)/(target # of ptl) in bin for auto-downsample

◆ resamp_max_shift

real (kind=8) resamp_module::resamp_max_shift = 1D-1

maximum shift in local coordinates for 'copy', 'weight+replace'

◆ resamp_max_target

integer resamp_module::resamp_max_target = 4

Overrides the number of constraints in determining the target # of ptl of a bin.

◆ resamp_min_ratio

real (8) resamp_module::resamp_min_ratio = 0.5D0

min ratio of (# of ptl)/(target # of ptl) in bin for auto-upsample

◆ resamp_mu_max

real (kind=8), private resamp_module::resamp_mu_max

private

v_perp/mu cutoff of v-grid (=f0_mu_max)

◆ resamp_musize

integer, private resamp_module::resamp_musize

private

Number of sampling bins in v_perp/mu direction.

◆ resamp_nmu_in

integer, private resamp_module::resamp_nmu_in

private

Number of cells on original vperp/mu grid (=f0_nmu)

◆ resamp_node_file

character (len=200) resamp_module::resamp_node_file = 'dum.node'

File containing the vertex positions of the mesh for which to resample.

◆ resamp_nongridmom

integer, parameter, private resamp_module::resamp_nongridmom = 8

private

Maximum Number of bin moments to be conserved.

◆ resamp_nphi_new

integer resamp_module::resamp_nphi_new =1

Number of poloidal planes in simulation with new mesh.

◆ resamp_nvp_in

integer, private resamp_module::resamp_nvp_in

private

Number of cells on original v_para grid (=f0_nvp)

◆ resamp_off_vgrid

integer, dimension(:), allocatable, private resamp_module::resamp_off_vgrid

private

Counter for number of particles that are not on the v-grid.

◆ resamp_on_vgrid

integer, dimension(:), allocatable, private resamp_module::resamp_on_vgrid

private

Counter for number of particles that are on the v-grid.

◆ resamp_output_problem_bins

logical resamp_module::resamp_output_problem_bins =.false.

Switch to output failed or high-variance bins as to .bp files.

◆ resamp_patch_rzdims

real (kind=8), dimension(:,:), allocatable resamp_module::resamp_patch_rzdims

R-Z boundaries of the Voronoi-triangle patch.

◆ resamp_patch_size

integer, dimension(:), allocatable resamp_module::resamp_patch_size

total number of patch vertices in Voronoi cell

◆ resamp_patches

integer, dimension(:,:), allocatable resamp_module::resamp_patches

!< node numbers of vertices contained in triangle patch of voronoi cell

◆ resamp_phvol_added

real (kind=8), dimension(:), allocatable, private resamp_module::resamp_phvol_added

private

Sum of phase space volume of particles added in empty bins.

◆ resamp_phvol_sum

real (kind=8), dimension(:), allocatable, private resamp_module::resamp_phvol_sum

private

Sum of phase space volume of all particles on a node.

◆ resamp_rate

integer resamp_module::resamp_rate = 2

timesteps between subsequent resamples, placedholder, in practice ~ sml_f_source_period

◆ resamp_resample_failed

integer, private resamp_module::resamp_resample_failed

private

Number of bins for which variance resampling failed.

◆ resamp_resampled_bins

integer, private resamp_module::resamp_resampled_bins

private

Number of bins that were picked for re-/up-/down-sampling.

◆ resamp_restart

logical resamp_module::resamp_restart = .false.

Perform resampling before dumping the final restart file.

◆ resamp_restart_mode

logical, private resamp_module::resamp_restart_mode =.false.

private

◆ resamp_restart_read

logical resamp_module::resamp_restart_read =.false.

Whether to read a restart file written from a simulation with different grid.

◆ resamp_retried_bins

integer, private resamp_module::resamp_retried_bins

private

Number of bins retried after failure.

◆ resamp_retried_failed

integer, private resamp_module::resamp_retried_failed

private

Number of bins failed again after retry.

◆ resamp_retry

logical resamp_module::resamp_retry = .false.

Retry QP optimization for failed bins with relaxed inequality constraints.

◆ resamp_samp_ratio

real (kind=8), dimension(:), allocatable, private resamp_module::resamp_samp_ratio

private

Upsampling ratio for restarts with finer grid.

◆ resamp_smu_fac

real (kind=8), private resamp_module::resamp_smu_fac

private

Factor used in the context of tapering off the marker density at high velocity.

◆ resamp_t_ev

real (kind=8), dimension(:,:), allocatable, private resamp_module::resamp_t_ev

private

Reference temperature per species for normalization.

◆ resamp_tile_size

integer resamp_module::resamp_tile_size = 2

Bin size on the velocity space grid in cells (not vertices) (input parameter)

◆ resamp_tile_size_now

integer resamp_module::resamp_tile_size_now = 2

Used to override resamp_tile_size.

◆ resamp_up_choice

character(16) resamp_module::resamp_up_choice ='random'

option arg for upsampled new particle selection: 'random','copy','poisson' currently added random: random velocity coordinates for new particles in bin copy: add new particles as copies of old particles with largest absolute w0*w1 weight poision: add new particles as poisson disc samples generated from the old particle set.

◆ resamp_up_hist

integer, dimension(resamp_hist_size), private resamp_module::resamp_up_hist

private

Histogram of upsampling results.

◆ resamp_upsample_failed

integer, private resamp_module::resamp_upsample_failed

private

Number of bins for which upsampling failed.

◆ resamp_var

real (8) resamp_module::resamp_var = 1D4

threshold for relative standard deviation in bin for auto-resample

◆ resamp_var_inc

integer, private resamp_module::resamp_var_inc

private

Number of bins that increased the variance when resampling, RARE, usually result of ill-conditioning of matrix)

◆ resamp_var_inc_downsamp

integer, private resamp_module::resamp_var_inc_downsamp

private

Number of bins that increased the variance tenfold while downsampling.

◆ resamp_var_inc_upsamp

integer, private resamp_module::resamp_var_inc_upsamp

private

Number of bins that increased the variance tenfold while upsampling.

◆ resamp_var_limit

real (8) resamp_module::resamp_var_limit = 3D0

Increase in relative bin variance for flagging for possible rejection.

◆ resamp_var_resample

integer, private resamp_module::resamp_var_resample

private

Number of variance resampled bins.

◆ resamp_vp_fac

real (kind=8), private resamp_module::resamp_vp_fac

private

Factor used in the context of tapering off the marker density at high velocity.

◆ resamp_vp_max

real (kind=8), private resamp_module::resamp_vp_max

private

v_para cutoff of v-grid (=f0_vp_max)

◆ resamp_vpsize

integer, private resamp_module::resamp_vpsize

private

Number of sampling bins in v_para direction.

◆ resamp_wrong_particles

integer, private resamp_module::resamp_wrong_particles

private

Number of particles in wwrong bins.

◆ tmp_down_choice

character (len=16) resamp_module::tmp_down_choice

◆ tmp_resamp_distribute_evenly_subbins

logical resamp_module::tmp_resamp_distribute_evenly_subbins

◆ tmp_resamp_fill_empty

logical resamp_module::tmp_resamp_fill_empty

◆ tmp_resamp_fill_empty_subbins

logical resamp_module::tmp_resamp_fill_empty_subbins

◆ tmp_resamp_fill_empty_subbins_corner_cell_target

integer resamp_module::tmp_resamp_fill_empty_subbins_corner_cell_target

◆ tmp_resamp_fill_empty_subbins_skip_full_bins

logical resamp_module::tmp_resamp_fill_empty_subbins_skip_full_bins

◆ tmp_resamp_fill_empty_subbins_target

integer resamp_module::tmp_resamp_fill_empty_subbins_target

◆ tmp_resamp_fullf_on

logical resamp_module::tmp_resamp_fullf_on

◆ tmp_resamp_grid_ineq_on

logical resamp_module::tmp_resamp_grid_ineq_on

◆ tmp_resamp_highv_max

real (8) resamp_module::tmp_resamp_highv_max

◆ tmp_resamp_highv_max_ratio

real (8) resamp_module::tmp_resamp_highv_max_ratio

◆ tmp_resamp_ineq_tol

real (8) resamp_module::tmp_resamp_ineq_tol

◆ tmp_resamp_ineq_tol_max

real (8) resamp_module::tmp_resamp_ineq_tol_max

◆ tmp_resamp_max_ratio

real (8) resamp_module::tmp_resamp_max_ratio

◆ tmp_resamp_max_target

integer resamp_module::tmp_resamp_max_target

◆ tmp_resamp_min_ratio

real (8) resamp_module::tmp_resamp_min_ratio

◆ tmp_resamp_node_file

character (len=200) resamp_module::tmp_resamp_node_file

◆ tmp_resamp_nphi_new

integer resamp_module::tmp_resamp_nphi_new

◆ tmp_resamp_retry

logical resamp_module::tmp_resamp_retry

◆ tmp_resamp_tile_size

integer resamp_module::tmp_resamp_tile_size

◆ tmp_resamp_var

real (8) resamp_module::tmp_resamp_var

◆ tmp_up_choice

character (len=16) resamp_module::tmp_up_choice

◆ tr_save

integer, dimension(:), allocatable, private resamp_module::tr_save

private

Data Types

Functions/Subroutines

Variables

Detailed Description

Function/Subroutine Documentation

◆ add_to_bin()

◆ build_bins()

◆ cce_buffer_rcv_updated_bins()

◆ cce_buffer_snd_updated_bins()

◆ cce_buffer_sndrcvs_accessor()

◆ cce_do_resampling()

◆ cce_reset_particle_outside()

◆ check_bin()

◆ destroy_bins()

◆ f0_upsampling_restore_params()

◆ f0_upsampling_set_params()

◆ find_bin()

◆ get_b_and_t()

◆ get_cce_buffer_nb()

◆ get_marker_velo()

◆ get_new_fullf_weight()

◆ get_refer_v_n()

◆ get_sampling_ratio()

◆ get_tri_info()

◆ get_v_n()

◆ get_v_part()

◆ in_bin()

◆ in_neighborhood()

◆ is_first_call()

◆ load_new_ptl()

◆ load_shift_p_ptl()

◆ local_lin_int()

◆ nrm_std_dev()

◆ output_bin()

◆ particle_not_in_vbin()

◆ poisson_disc()

◆ refer_to_v_n()

◆ resamp_scale_phvol()

◆ resample_bin()

◆ resample_finalize()

◆ resample_init()

◆ resample_one_sp()

◆ resample_spall_finish()

◆ resample_spall_setup()

◆ restart_resample_restore_params()

◆ restart_resample_set_params()

◆ set_cce_buffer_and_overlap_id()

◆ set_cce_buffer_id()

◆ set_cce_buffers()

◆ set_eq_bins()

◆ setup_fullf()

◆ setup_opt()

◆ transpose_from_aos_wrapper()

◆ update_cmat()

◆ use_default_eq_bins()

Variable Documentation

◆ cce_buffer_first_node

◆ cce_buffer_id

◆ cce_buffer_last_node

◆ cce_grid_nnode

◆ cce_inode1

◆ cce_inode2

◆ cce_nbconstraint

◆ cce_skip_nodes

◆ fbins

◆ local_particles

◆ p_save

◆ psi_save

◆ resamp_auto_downsample

◆ resamp_auto_upsample

◆ resamp_bin_max_fac

◆ resamp_bins

◆ resamp_den

◆ resamp_discard_var_bins

◆ resamp_distribute_evenly_subbins

◆ resamp_down_choice

◆ resamp_down_hist

◆ resamp_downsample_failed

◆ resamp_dsmu

◆ resamp_dvp
