Data Types | |
| type | grid_type |
Functions/Subroutines | |
| subroutine | init_fortran_grid (grid_nnode_in, grid_ntriangle_in, grid_x_in, grid_rgn_in, grid_nd_in, grid_mapping_in, basis_in) |
| subroutine | init_fortran_grid_surf (n_xpt, i_x1, i_x2, nsurf1, nsurf2, nsurf3a, nsurf3b, isurf_sep1, isurf_sep2, npsi_surf, surf_maxlen, surf_len, surf_idx) |
| subroutine | init_fortran_grid_filter_arrays (npsi_surf, surf_maxlen, theta_sort_idx, m_max_surf) |
| subroutine | init_fortran_grid_theta_qsafety (nnode, npsi_surf, theta, qsafety) |
| subroutine | init_secondary_grid_arrays (grid_psi_in, grid_grad_psi_in, grid_bfield_in) |
| subroutine | init_fortran_vols_and_areas (tr_area_h, tr_vol_h, node_vol_nearest_h, node_vol_h, node_area_h) |
| subroutine | init_fortran_psi_grid_props (npsi_surf, psi_surf, npsi_surf2, psi_surf2, psi_surf_map) |
| subroutine | alloc_fortran_gradient_mat_unit_vec (m, n, width) |
| subroutine | init_grid (grid) |
| Initializes the grid data structure from input files containing i) The (R,Z) coordinates of all vertices including whether they are wall vertices (.node file), ii) the connectivity of the vertices defining the triangles of the unstructured mesh (.ele file), iii) the flux-surface connectivity, i.e. which vertices are on the same flux-surface, and for vertices not aligned on flux-surfaces between which flux-surfaces those vertices lie. More... | |
| subroutine | init_triangle (grid) |
| subroutine | interpolate_theta (n0, n1, x0, x1, y0, y1, periodic) |
| Interpolates data onto a new theta grid. More... | |
Variables | |
| integer, parameter | grid_rgn_wall = 100 |
| real(8), parameter | grid_search_tr2_psi_null = -1D10 |
| integer, parameter | grid_min_surf_size = 5 |
| type(grid_type), target | grid_global |
Function/Subroutine Documentation
◆ alloc_fortran_gradient_mat_unit_vec()
| subroutine grid_class::alloc_fortran_gradient_mat_unit_vec | ( | integer(c_int), intent(in), value | m, |
| integer(c_int), intent(in), value | n, | ||
| integer(c_int), intent(in), value | width | ||
| ) |
Here is the call graph for this function:
◆ init_fortran_grid()
| subroutine grid_class::init_fortran_grid | ( | integer(c_int), intent(in), value | grid_nnode_in, |
| integer(c_int), intent(in), value | grid_ntriangle_in, | ||
| real (kind=8), dimension(2,grid_nnode_in), target | grid_x_in, | ||
| integer(c_int), dimension(grid_nnode_in), target | grid_rgn_in, | ||
| integer(c_int), dimension(3,grid_ntriangle_in), target | grid_nd_in, | ||
| real (kind=8), dimension(2,3,grid_ntriangle_in), target | grid_mapping_in, | ||
| integer(c_int), dimension(grid_nnode_in), target | basis_in | ||
| ) |
◆ init_fortran_grid_filter_arrays()
| subroutine grid_class::init_fortran_grid_filter_arrays | ( | integer(c_int), intent(in), value | npsi_surf, |
| integer(c_int), intent(in), value | surf_maxlen, | ||
| integer(c_int), dimension(surf_maxlen, npsi_surf), target | theta_sort_idx, | ||
| integer(c_int), dimension(npsi_surf), target | m_max_surf | ||
| ) |
◆ init_fortran_grid_surf()
| subroutine grid_class::init_fortran_grid_surf | ( | integer(c_int), intent(in), value | n_xpt, |
| integer(c_int), intent(in), value | i_x1, | ||
| integer(c_int), intent(in), value | i_x2, | ||
| integer(c_int), intent(in), value | nsurf1, | ||
| integer(c_int), intent(in), value | nsurf2, | ||
| integer(c_int), intent(in), value | nsurf3a, | ||
| integer(c_int), intent(in), value | nsurf3b, | ||
| integer(c_int), intent(in), value | isurf_sep1, | ||
| integer(c_int), intent(in), value | isurf_sep2, | ||
| integer(c_int), intent(in), value | npsi_surf, | ||
| integer(c_int), intent(in), value | surf_maxlen, | ||
| integer(c_int), dimension(npsi_surf), target | surf_len, | ||
| integer(c_int), dimension(surf_maxlen, npsi_surf), target | surf_idx | ||
| ) |
◆ init_fortran_grid_theta_qsafety()
| subroutine grid_class::init_fortran_grid_theta_qsafety | ( | integer(c_int), intent(in), value | nnode, |
| integer(c_int), intent(in), value | npsi_surf, | ||
| real(c_double), dimension(nnode), target | theta, | ||
| real(c_double), dimension(npsi_surf), target | qsafety | ||
| ) |
◆ init_fortran_psi_grid_props()
| subroutine grid_class::init_fortran_psi_grid_props | ( | integer(c_int), intent(in), value | npsi_surf, |
| real(c_double), dimension(npsi_surf), target | psi_surf, | ||
| integer(c_int), intent(in), value | npsi_surf2, | ||
| real(c_double), dimension(npsi_surf2), target | psi_surf2, | ||
| integer(c_int), dimension(npsi_surf2), target | psi_surf_map | ||
| ) |
◆ init_fortran_vols_and_areas()
| subroutine grid_class::init_fortran_vols_and_areas | ( | real(c_double), dimension(grid_global%ntriangle), target | tr_area_h, |
| real(c_double), dimension(grid_global%ntriangle), target | tr_vol_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_vol_nearest_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_vol_h, | ||
| real(c_double), dimension(grid_global%nnode), target | node_area_h | ||
| ) |
◆ init_grid()
| subroutine grid_class::init_grid | ( | type(grid_type), intent(inout) | grid | ) |
Initializes the grid data structure from input files containing i) The (R,Z) coordinates of all vertices including whether they are wall vertices (.node file), ii) the connectivity of the vertices defining the triangles of the unstructured mesh (.ele file), iii) the flux-surface connectivity, i.e. which vertices are on the same flux-surface, and for vertices not aligned on flux-surfaces between which flux-surfaces those vertices lie.
- Parameters
-
[in,out] grid memory for grid data, type(grid_type) [in] filename3 File containing the flux-surface connectivity

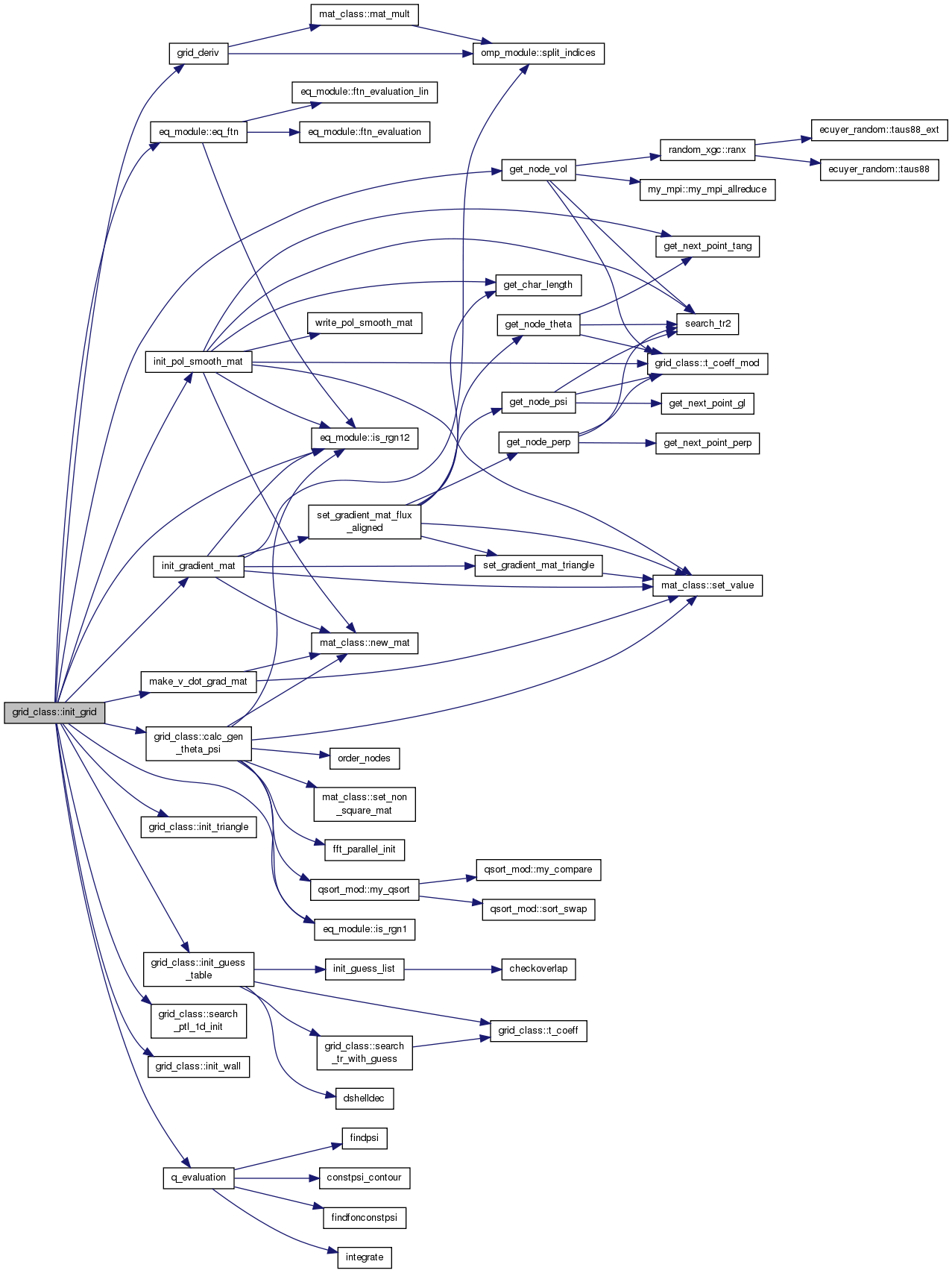

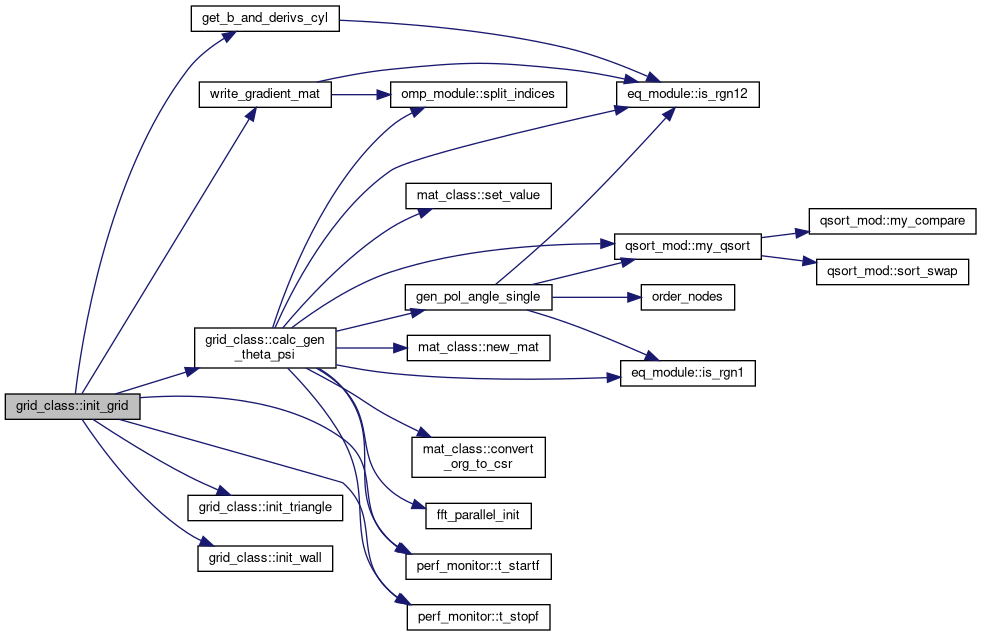

Here is the call graph for this function:

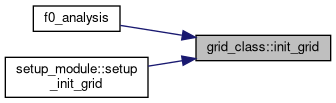

Here is the caller graph for this function:
◆ init_secondary_grid_arrays()
| subroutine grid_class::init_secondary_grid_arrays | ( | real (kind=8), dimension(grid_global%nnode), target | grid_psi_in, |
| real (kind=8), dimension(grid_global%nnode, 2) | grid_grad_psi_in, | ||
| real (kind=8), dimension(grid_global%nnode, 4) | grid_bfield_in | ||
| ) |
◆ init_triangle()
| subroutine grid_class::init_triangle | ( | type(grid_type) | grid | ) |
Here is the caller graph for this function:
◆ interpolate_theta()
| subroutine grid_class::interpolate_theta | ( | integer(c_int), intent(in), value | n0, |
| integer(c_int), intent(in), value | n1, | ||
| real (c_double), dimension(n0), intent(in) | x0, | ||
| real (c_double), dimension(n1), intent(in) | x1, | ||
| real (c_double), dimension(n0), intent(in) | y0, | ||
| real (c_double), dimension(n1), intent(out) | y1, | ||
| integer(c_int), intent(in), value | periodic | ||
| ) |
Interpolates data onto a new theta grid.
- Parameters
-
[in] n0 length of the input theta grid; integer [in] n1 length of the output theta grid; integer [in] x0 input theta grid; real(8) [in] x1 output theta grid; real(8) [in] y0 input data; real(8) [out] y1 output data; real(8) [in] periodic whether the input data is periodic; integer
Variable Documentation
◆ grid_global
| type(grid_type), target grid_class::grid_global |
◆ grid_min_surf_size
| integer, parameter grid_class::grid_min_surf_size = 5 |
◆ grid_rgn_wall
| integer, parameter grid_class::grid_rgn_wall = 100 |
◆ grid_search_tr2_psi_null
| real (8), parameter grid_class::grid_search_tr2_psi_null = -1D10 |
