#include <velocity_grid.hpp>

Public Member Functions
	VelocityGrid ()=default

	VelocityGrid (NLReader::NamelistReader &nlr)

KOKKOS_INLINE_FUNCTION double	vpar_n (int ivz) const
	Returns the parallel velocity corresponding to a given grid index. More...

KOKKOS_INLINE_FUNCTION double	vperp_n (int ivr) const
	Returns the perpendicular velocity corresponding to a given grid index. More...

KOKKOS_INLINE_FUNCTION double	mu_vol_fac (int ivr) const
	Returns a volume factor to account for edge effects in the perpendicular velocity grid. More...

KOKKOS_INLINE_FUNCTION double	vp_vol_fac (int ivz) const
	Returns a volume factor to account for edge effects in the parallel velocity grid. More...

KOKKOS_INLINE_FUNCTION VGridWeights	get_weights (double smu, double vp) const
	Determines velocity grid weights based on input values of `smu` and `vp`. More...

KOKKOS_INLINE_FUNCTION void	weight_by_inv_dsmu (VGridWeights &vgrid_wts) const
	Adjusts the perpendicular velocity grid weights by dividing by the `dsmu` value, considering edge effects. More...

KOKKOS_INLINE_FUNCTION void	weight_by_vol (double vol, VGridWeights &vgrid_wts) const
	Adjusts velocity grid weights by multiplying with a volume factor, considering edge effects. More...

KOKKOS_INLINE_FUNCTION void	weight_by_inv_vol (double inv_vol, VGridWeights &vgrid_wts) const
	Adjusts velocity grid weights by dividing by the inverse volume factor, considering edge effects. More...

Public Attributes
int	nvp
	n points in parallel velocity (not including zero) More...

double	vp_max
	max parallel velocity More...

double	dvp
	grid spacing in parallel velocity More...

int	nmu
	n points in mu (not including zero) More...

double	smu_max
	max mu More...

double	dsmu
	grid spacing in mu More...

double	inv_mu0_factor = 1.0/3.0
	Set value of lowest mu in grid –> 1/mu0_factor. More...

int	nvr
	full grid size (including zero) More...

int	nvz
	full grid size (including negative and zero) More...

int	element_order
	velocity grid finite element order (0 = nearest neighbor), (1 = linear), (2 = quadratic), (3 = cubic), .... More...

bool	pseudo_inv_on
	whether pseudo-inverse interpolation is used in velocity space More...

Constructor & Destructor Documentation

VelocityGrid::VelocityGrid ( )

default

VelocityGrid::VelocityGrid ( NLReader::NamelistReader & nlr )

inline

Here is the call graph for this function:

Member Function Documentation

KOKKOS_INLINE_FUNCTION VGridWeights VelocityGrid::get_weights	(	double	smu,
		double	vp
	)		const

inline

Determines velocity grid weights based on input values of smu and vp.

This function computes the linear weights for both the perpendicular velocity (smu) and the parallel velocity (vp) based on the provided input values. It calculates the appropriate weights and handles edge cases where the indices fall outside the valid grid range.

Parameters

smu	The perpendicular velocity value used to compute the weight for the perpendicular direction.
vp	The parallel velocity value used to compute the weight for the parallel direction.

Returns: A VGridWeights object containing the calculated weights for the velocity grid, or an invalid VGridWeights if the indices are out of bounds.

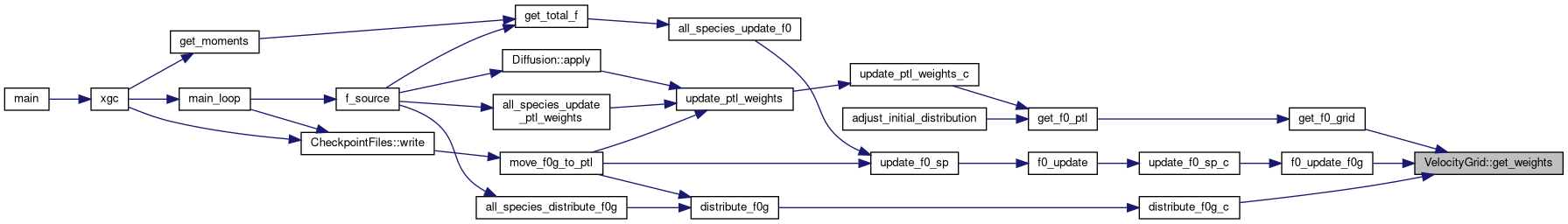

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double VelocityGrid::mu_vol_fac ( int ivr ) const

inline

Returns a volume factor to account for edge effects in the perpendicular velocity grid.

This function returns a factor to adjust the volume at the boundaries (edges) of the perpendicular velocity grid. The factor is set to 0.5 at the boundaries, and 1.0 elsewhere.

Parameters

ivr	The grid index for perpendicular velocity.

Returns: The volume factor for the given grid index.

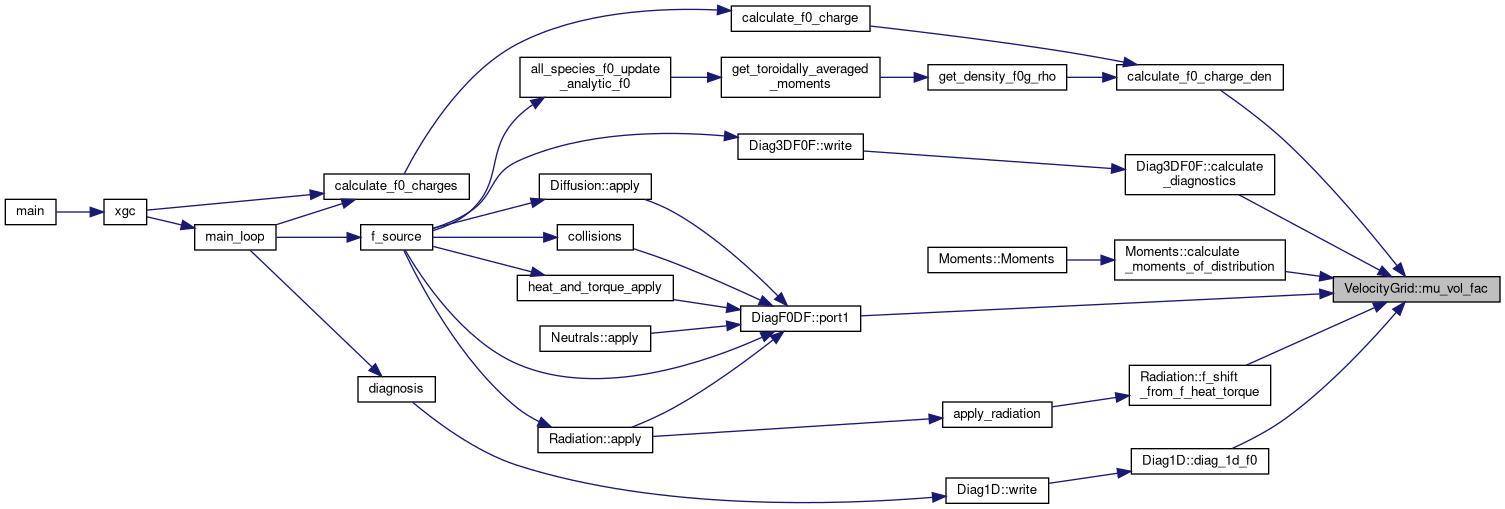

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double VelocityGrid::vp_vol_fac ( int ivz ) const

inline

Returns a volume factor to account for edge effects in the parallel velocity grid.

This function returns a factor to adjust the volume at the boundaries (edges) of the parallel velocity grid. The factor is set to 0.5 at the boundaries, and 1.0 elsewhere.

Parameters

ivz	The grid index for parallel velocity.

Returns: The volume factor for the given grid index.

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double VelocityGrid::vpar_n ( int ivz ) const

inline

Returns the parallel velocity corresponding to a given grid index.

Given a grid index in the parallel velocity direction, this function computes the corresponding velocity by subtracting the base velocity and multiplying by the velocity step size.

Parameters

ivz	The grid index for parallel velocity.

Returns: The parallel velocity corresponding to the grid index.

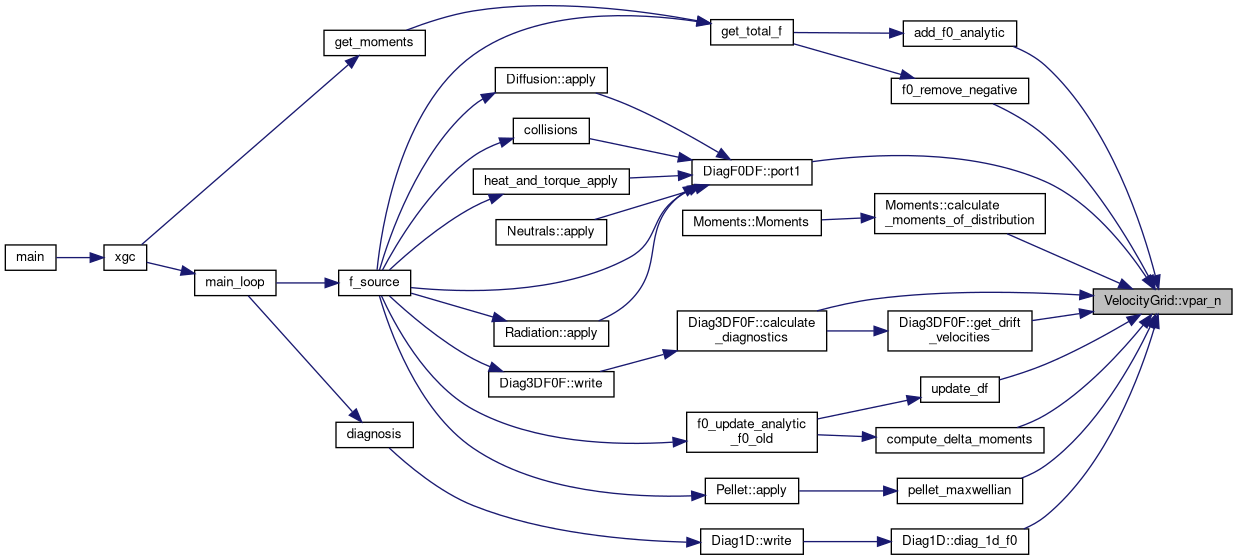

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION double VelocityGrid::vperp_n ( int ivr ) const

inline

Returns the perpendicular velocity corresponding to a given grid index.

Given a grid index in the perpendicular velocity direction, this function computes the corresponding velocity by multiplying the grid index by the perpendicular velocity step size.

Parameters

ivr	The grid index for perpendicular velocity.

Returns: The perpendicular velocity corresponding to the grid index.

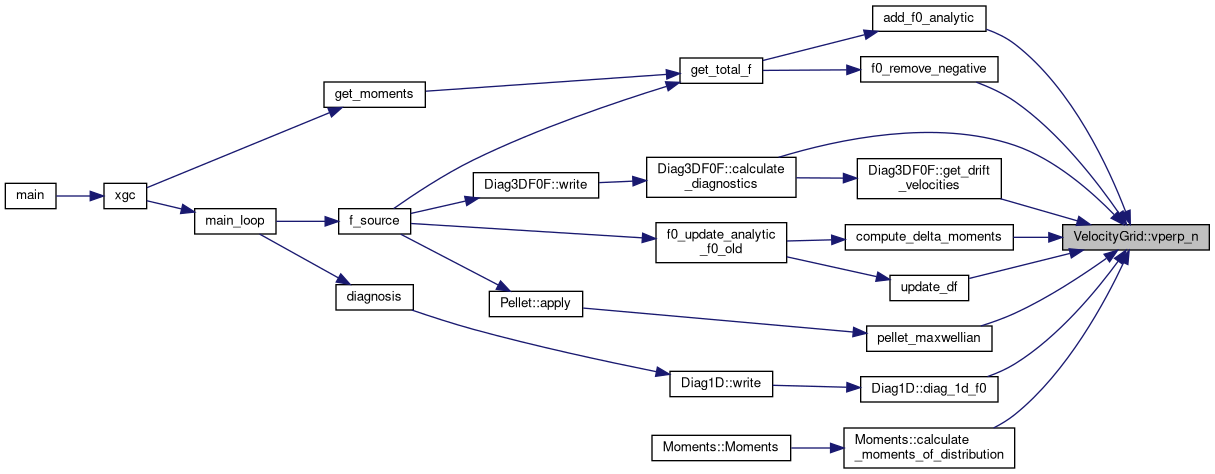

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION void VelocityGrid::weight_by_inv_dsmu ( VGridWeights & vgrid_wts ) const

inline

Adjusts the perpendicular velocity grid weights by dividing by the dsmu value, considering edge effects.

This function modifies the perpendicular velocity grid weights by dividing them by dsmu and adjusts the values at the edges based on predefined factors determined by the velocity interpolation order (here: linear –> 1/3). The edges are weighted by inv_mu0_factor for the first index and a similar factor for the last index.

Parameters

vgrid_wts The VGridWeights object to be adjusted.

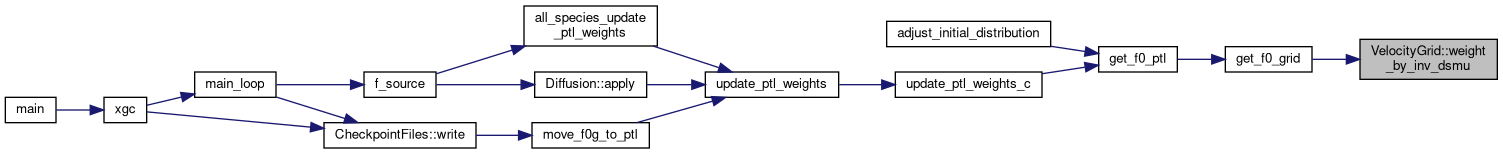

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION void VelocityGrid::weight_by_inv_vol	(	double	inv_vol,
		VGridWeights &	vgrid_wts
	)		const

inline

Adjusts velocity grid weights by dividing by the inverse volume factor, considering edge effects.

This function divides the grid weights by an inverse volume factor (inv_vol), with special handling for grid edges. At the edges, the weights are adjusted by multiplying with a factor of 2.0 for the boundary grid points, while for interior points, the factor is 1.0.

Parameters

inv_vol	The inverse volume factor to divide the weights by.
vgrid_wts	The `VGridWeights` object containing the current velocity grid weights to be adjusted.

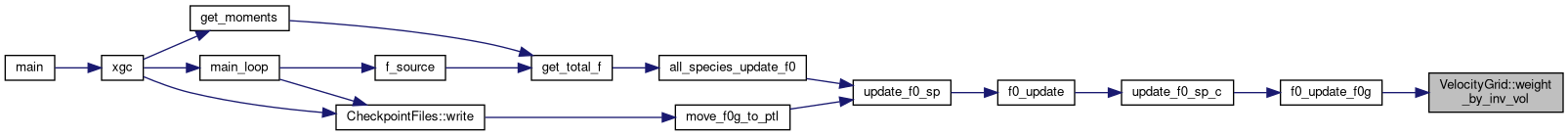

Here is the caller graph for this function:

KOKKOS_INLINE_FUNCTION void VelocityGrid::weight_by_vol	(	double	vol,
		VGridWeights &	vgrid_wts
	)		const

inline

Adjusts velocity grid weights by multiplying with a volume factor, considering edge effects.

This function multiplies the grid weights by the specified volume (vol), taking into account edge cases where the grid indices lie on the boundaries. The volume is adjusted using different factors at the edges to account for the smaller volume associated with edge grid points.

Parameters

vol	The volume factor to multiply the weights by.
vgrid_wts	The `VGridWeights` object containing the current velocity grid weights to be adjusted.

Here is the caller graph for this function:

Member Data Documentation

double VelocityGrid::dsmu

grid spacing in mu

double VelocityGrid::dvp

grid spacing in parallel velocity

int VelocityGrid::element_order

velocity grid finite element order (0 = nearest neighbor), (1 = linear), (2 = quadratic), (3 = cubic), ....

double VelocityGrid::inv_mu0_factor = 1.0/3.0

Set value of lowest mu in grid –> 1/mu0_factor.

int VelocityGrid::nmu

n points in mu (not including zero)

int VelocityGrid::nvp

n points in parallel velocity (not including zero)

int VelocityGrid::nvr

full grid size (including zero)

int VelocityGrid::nvz

full grid size (including negative and zero)

bool VelocityGrid::pseudo_inv_on

whether pseudo-inverse interpolation is used in velocity space

double VelocityGrid::smu_max

max mu

double VelocityGrid::vp_max

max parallel velocity

The documentation for this struct was generated from the following file:

/u/gitlab-xgc/builds/YGMz2TJ8/0/xgc/XGC-Devel/XGC_core/cpp/velocity_grid.hpp
