XGC1
|
#include "petsc_version_defs.h"#include <petsc/finclude/petsc.h>
Data Types | |
| module | f90moduleinterfaces |
| Explicit interfaces to somve PETSc function used by the FSA solver. More... | |
| interface | f90moduleinterfaces::pcsetapplicationcontext |
| interface | f90moduleinterfaces::pcgetapplicationcontext |
| interface | f90moduleinterfaces::matcreateshell |
| interface | f90moduleinterfaces::matshellsetcontext |
| interface | f90moduleinterfaces::matshellgetcontext |
Functions/Subroutines | |
| subroutine | init_poisson (grid, psn, iflag_dummy) |
| subroutine | pcshermanmorrisonapply (pc, xin, yout, ierr) |
| Applies a Sherman-Morrison preconditioner. More... | |
| subroutine | create_2field_solver (grid, bd, solver, solver_data) |
| Sets up a 2x2 block solver for the Poisson equation. The first row is the Poisson equation, the second row is a constraint equation for the flux-surface averaged potential. More... | |
| subroutine | make_12mat (grid, Bmat, BIdentMat, FSAMass_Te, solver, bd, scale, xgc_petsc) |
| subroutine | make_21mat (grid, Cmat, Bmat, CConstBCVec, bd, xgc_petsc) |
| subroutine | solve_axisymmetric_poisson (iflag) |
| High level Poisson solver routine for n=0, offers choice of outer iterative solver, two-step solver, and FSA solver. More... | |
| subroutine | set_rhs_poisson (grid, psn, solver, xgc_rhs, xgc_rhs00, xgc_rhs_bd, xgc_sol_bd, iflag, is_turb, is_two_step) |
| Routine to set and process the rhs arrays for both axisymmetric and turbulent poisson solvers. Also sets boundary data for XGCA. More... | |
| subroutine | set_rhs_poisson_turb (xgc_rhs, xgc_rhs00, xgc_rhs_bd, xgc_sol_bd, iflag) |
| subroutine | save_rhs_poisson (xgc_rhs, iflag, ipc) |
| Save the charge density for time averaging of the Poisson equation. More... | |
| subroutine | spectral_solver_decompose (grid, field_inout, field_ntor) |
| Decompose field into spectral components treated by the spectral solver and the rest treated by the regular solver. More... | |
| integer function | get_ntor_num_from_ntor_real (ntor_real, nphi, wedge_n) |
| Calculates the numerical toroidal mode number for a given real toroidal mode number. More... | |
| subroutine | spectral_solver_reassemble (grid, field_inout, field_ntor) |
| Reassemble the full field from the spectral components treated by the spectral solver, and the rest treated by the regular solver. More... | |
| subroutine | fourier_filter_n_m_range_parallel_wrap (field_inout, bd_width) |
| subroutine | fourier_filter_m_range_wrap (field_ntor, bd_width) |
| subroutine | fourier_filter_single_n_flex_wrap (field_inout, field_ntor, bd_width) |
| subroutine | set_petsc_rhs_vec_axisymmetric_poisson (grid, psn, solver, xgc_rhs, xgc_rhs_bd, xgc_sol_bd) |
| Places rhs and (optionally) boundary condition data into a PETSc vector. More... | |
| subroutine | set_initial_guess_axisymmetric_poisson (grid, psn) |
| Sets initial guess for the iterative axisymmetric poisson solver using the simple00 solver. The initial guess is stored in psnpot0m. More... | |
| subroutine | solve_axisymmetric_poisson_iter (grid, psn) |
| Poisson solver that uses an iterative method to solve for the axisymmetric electrostatic potential: The Poisson equation for the axisymmetric mode is
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi}_{k+1} + \frac{e n_0/T_{e,0}} \overline{\phi}_{k+1} = e \left( \langle \overline{\delta n_i} \rangle_g - \overline{\delta n_{e,NA}} \right) + \frac{e n_0/T_{e,0}} \langle \phi_{k} \rangle_{fs} \] where \(k\) is the iteration index, \(xi\) is the electric susceptibility, \(e\) is the elementary charge, \(n_0\) and \(T_0\) are the background density and temperature, \(\langle \overline{\delta n_i} \rangle_g\) is the gyroaveraged ion (gyrocenter) charge density, \(\overline{\delta n_{e,NA}}\) is the non-adiabatic electron charge density, and \(\langle\dots\rangle_{fs}\) is the the flux-surface average. \(\overline{\dots}\) is the toroidal average. More... | |
| subroutine | axisym_mat_mult (A, X, Y, ierr) |
| Subroutine used to apply the shell matrix representing the left hand side of the axisymmetric Poisson equation
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi} + \frac{e n_0/T_{e,0}} \left( \overline{\phi} - \langle \overline{\phi} \rangle_{fs} \right) \] . More... | |
| subroutine | axisym_ad_mat_mult (A, X, Y, ierr) |
| Subroutine used to apply the shell matrix representing the adiabatic term in the axisymmetric Poisson equation
\[ \frac{e n_0/T_{e,0}} \left( \overline{\phi} - \alpha(\psi) \langle \overline{\phi} \rangle_{fs} \right) \] . More... | |
| subroutine | axisym_pc_apply (pc, X, Y, ierr) |
| Subroutine used to apply the shell preconditioner used in the iterative solution of the axisymmetric Poisson equation. More... | |
| subroutine | solve_axisymmetric_poisson_two_step_fsa (grid, psn, xgc_rhs, xgc_rhs00, xgc_rhs_bd, xgc_rhs_bd00, xgc_sol_bd, xgc_sol_bd00) |
| Simple two-step 2D solver driver for the axisymmetric potential and one-step solver ("FSA-solver") with constraint equation for the flux-surface averaged potential. For the two-step solver, the RHS is the flux-surface averaged charge density, the LHS consists only of the polarization operator. The result of the 2D solve is flux-surface averaged; i.e., the result is \(\langle\phi\rangle\) The Poisson equation for the flux-surface averaged mode is
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi} = e \left\langle \left( \langle \overline{\delta n_i} \rangle_g - \overline{\delta n_{e,NA}} \right) \right\rangle_{fs} \] where \(xi\) is the electric susceptibility, \(e\) is the elementary charge, \(n_0\) is the background density, \(\langle \overline{\delta n_i} \rangle_g\) is the gyroaveraged ion (gyrocenter) charge density, \(\overline{\delta n_{e,NA}}\) is the non-adiabatic electron charge density, and \(\langle\dots\rangle_{fs}\) is the the flux-surface average. \(\overline{\dots}\) is the toroidal average. More... | |
| subroutine | post_process_axisymmetric_poisson (temp_ev_elec) |
| Routine to post process the solution from the axisymmetric poisson solver. More... | |
| subroutine | poisson_turb_petsc_solve (xgc_rhs, xgc_field) |
| Routine to solve the non-axisymmetric Poisson equation:
\[ -\nabla_\perp \cdot \xi \nabla_\perp \delta\phi + \frac{e n_0/T_{e,0}} \delta\phi = e \left( \langle \delta n_i \rangle_g - \overline{\delta n_{e,NA}} \right) \] . More... | |
| subroutine | poisson_turb_petsc_spectral_solve (xgc_rhs_spectral, xgc_field_spectral) |
| Routine to solve the non-axisymmetric Poisson equation:
\[ -\nabla_\perp \cdot \xi \nabla_\perp \delta\phi + \frac{e n_0/T_{e,0}} \delta\phi = e \left( \langle \delta n_i \rangle_g - \overline{\delta n_{e,NA}} \right) \] . More... | |
| integer(c_int) function | get_solverh_nbndry () |
| subroutine | solve_ampere_cv (xgc_rhs, xgc_rhs2, Ah) |
| subroutine | solve_ampere_cv_spec (xgc_rhs_spectral, xgc_rhs2_spectral, xgc_field_spectral) |
| subroutine | solve_ampere (xgc_rhs, xgc_rhs2, Ah) |
| subroutine | solve_ampere_spec (xgc_rhs_spectral, xgc_rhs2_spectral, xgc_field_spectral) |
| subroutine | apply_radial_hyperviscosity (input, output) |
| subroutine apply_radial_hyperviscosity | ( | real(8), dimension(grid_global%nnode) | input, |
| real(8), dimension(grid_global%nnode) | output | ||
| ) |
| subroutine axisym_ad_mat_mult | ( | A, | |
| X, | |||
| Y, | |||
| ierr | |||
| ) |
Subroutine used to apply the shell matrix representing the adiabatic term in the axisymmetric Poisson equation
\[ \frac{e n_0/T_{e,0}} \left( \overline{\phi} - \alpha(\psi) \langle \overline{\phi} \rangle_{fs} \right) \]
.
| [in] | A | Shell matrix which multiplies X, Petsc Mat |
| [in] | X | Vector to be multiplied, Petsc Vec |
| [out] | Y | Vector to store product A*X, Petsc Vec |
| [out] | ierr | PETSc Error code |
| subroutine axisym_mat_mult | ( | A, | |
| X, | |||
| Y, | |||
| ierr | |||
| ) |
Subroutine used to apply the shell matrix representing the left hand side of the axisymmetric Poisson equation
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi} + \frac{e n_0/T_{e,0}} \left( \overline{\phi} - \langle \overline{\phi} \rangle_{fs} \right) \]
.
| [in] | A | Shell matrix which multiplies X, Petsc Mat |
| [in] | X | Vector to be multiplied, Petsc Vec |
| [out] | Y | Vector to store product A*X, Petsc Vec |
| [out] | ierr | PETSc Error code |
| subroutine axisym_pc_apply | ( | pc, | |
| X, | |||
| Y, | |||
| ierr | |||
| ) |
Subroutine used to apply the shell preconditioner used in the iterative solution of the axisymmetric Poisson equation.
| [in] | pc | Shell preconditioner which is applied to residual X, Petsc PC |
| [in] | X | Residual vector, Petsc Vec |
| [out] | Y | Preconditioned residual vector, Petsc Vec |
| [out] | ierr | PETSc Error code |
| subroutine create_2field_solver | ( | type(grid_type) | grid, |
| type(boundary2_type) | bd, | ||
| type(xgc_solver) | solver, | ||
| type(solver_init_data), intent(in) | solver_data | ||
| ) |
Sets up a 2x2 block solver for the Poisson equation. The first row is the Poisson equation, the second row is a constraint equation for the flux-surface averaged potential.
| [in] | grid | XGC grid object, type(grid_type) |
| [in] | bd | Object containing the indices of the solver boundary vertices in the XGC mesh. |
| [in,out] | solver | XGC solver object into which to put the new solver, type(xgc_solver) |
| [in] | solver_data | Data needed for settug up the ssolver, type(solver_init_data) |
| subroutine fourier_filter_m_range_wrap | ( | real(kind=8), dimension(grid_global%nnode,2), intent(inout) | field_ntor, |
| real(kind=8) | bd_width | ||
| ) |
| subroutine fourier_filter_n_m_range_parallel_wrap | ( | real(kind=8), dimension(grid_global%nnode), intent(inout) | field_inout, |
| real(kind=8) | bd_width | ||
| ) |
| subroutine fourier_filter_single_n_flex_wrap | ( | real(kind=8), dimension(grid_global%nnode), intent(inout) | field_inout, |
| real(kind=8), dimension(grid_global%nnode,2), intent(out) | field_ntor, | ||
| real(kind=8) | bd_width | ||
| ) |
| integer function get_ntor_num_from_ntor_real | ( | integer, intent(in) | ntor_real, |
| integer, intent(in) | nphi, | ||
| integer, intent(in) | wedge_n | ||
| ) |
Calculates the numerical toroidal mode number for a given real toroidal mode number.

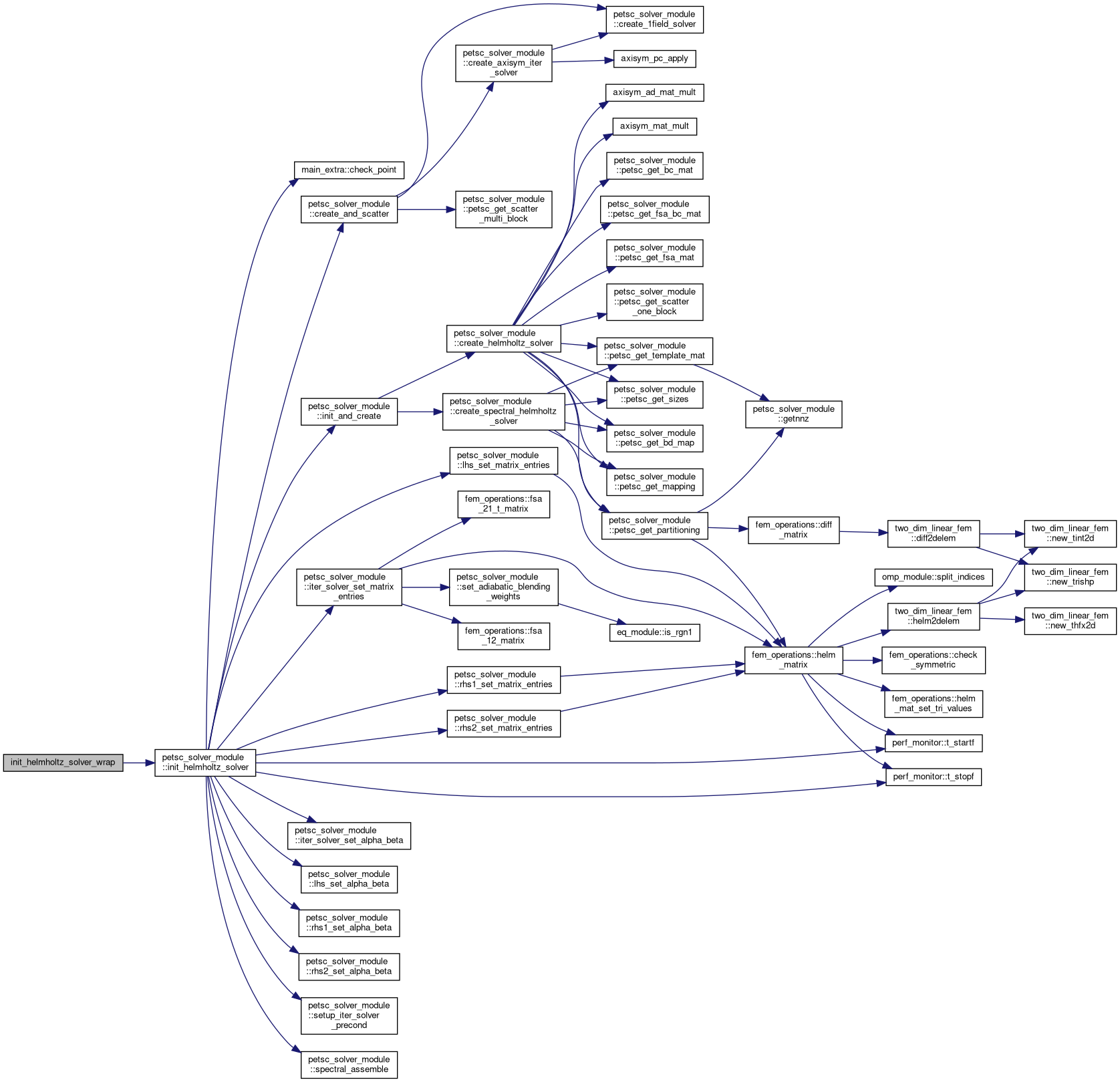

| [in] | ntor_real | Real toroidal mode number, integer |
| [in] | nphi | Number of toroidal planes per wedge, integer |
| [in] | wedge_n | Number of wedges per toroidal circuit, integer |
| integer(c_int) function get_solverh_nbndry | ( | ) |
| subroutine init_poisson | ( | type(grid_type) | grid, |
| type(psn_type) | psn, | ||
| integer | iflag_dummy | ||
| ) |
| subroutine make_12mat | ( | type(grid_type) | grid, |
| intent(out) | Bmat, | ||
| BIdentMat, | |||
| intent(in) | FSAMass_Te, | ||
| type(xgc_solver) | solver, | ||
| type(boundary2_type), intent(in) | bd, | ||
| real (8), intent(in) | scale, | ||
| dimension(grid%nnode), intent(in) | xgc_petsc | ||
| ) |
| subroutine make_21mat | ( | type(grid_type) | grid, |
| Cmat, | |||
| intent(in) | Bmat, | ||
| CConstBCVec, | |||
| type(boundary2_type), intent(in) | bd, | ||
| dimension(grid%nnode), intent(in) | xgc_petsc | ||
| ) |
| subroutine pcshermanmorrisonapply | ( | pc, | |
| xin, | |||
| yout, | |||
| ierr | |||
| ) |
Applies a Sherman-Morrison preconditioner.
| [in,out] | pc | PETCs PC object (manages preconditioners) |
| xin | ???, Vec | |
| yout | ???, Vec | |
| [out] | ierr | PETc error code |
| subroutine poisson_turb_petsc_solve | ( | real (8), dimension(grid%nnode) | xgc_rhs, |
| real (8), dimension(grid%nnode) | xgc_field | ||
| ) |
Routine to solve the non-axisymmetric Poisson equation:
\[ -\nabla_\perp \cdot \xi \nabla_\perp \delta\phi + \frac{e n_0/T_{e,0}} \delta\phi = e \left( \langle \delta n_i \rangle_g - \overline{\delta n_{e,NA}} \right) \]
.
| [in] | grid | XGC grid data object |
| [in,out] | psn | XGC field data object |
| subroutine poisson_turb_petsc_spectral_solve | ( | real (8), dimension(grid%nnode,2) | xgc_rhs_spectral, |
| real (8), dimension(grid%nnode,2) | xgc_field_spectral | ||
| ) |
Routine to solve the non-axisymmetric Poisson equation:
\[ -\nabla_\perp \cdot \xi \nabla_\perp \delta\phi + \frac{e n_0/T_{e,0}} \delta\phi = e \left( \langle \delta n_i \rangle_g - \overline{\delta n_{e,NA}} \right) \]
.
| [in] | grid | XGC grid data object |
| [in,out] | psn | XGC field data object |
| subroutine post_process_axisymmetric_poisson | ( | real(8), dimension(grid%nnode), intent(in) | temp_ev_elec | ) |
Routine to post process the solution from the axisymmetric poisson solver.
| [in] | grid | XGC grid data object |
| [in,out] | psn | XGC field data object |
| subroutine save_rhs_poisson | ( | real(8), dimension(grid%nnode) | xgc_rhs, |
| integer(c_int) | iflag, | ||
| integer(c_int) | ipc | ||
| ) |
Save the charge density for time averaging of the Poisson equation.
| [in] | grid | XGC grid data structure, type(grid_type) |
| [in,out] | psn | XGC field data structure, type(psn_type) |
| [in,out] | solver | XGC solver object, type(xgc_solver) |
| [in] | iflag | Adiabatic solve indicator, integer |
| [in] | ipc | RK2 stage index, integer |
| [out] | do_solve_poisson | Whether to solve Ampere's law after saving RHS, logical |
| subroutine set_initial_guess_axisymmetric_poisson | ( | type(grid_type), intent(in) | grid, |
| type(psn_type), intent(inout) | psn | ||
| ) |
Sets initial guess for the iterative axisymmetric poisson solver using the simple00 solver. The initial guess is stored in psnpot0m.
| [in] | grid | Solver grid data, type(grid_type) |
| [in,out] | psn | Field data; the pot0m is stored there, type(psn_type) |
| subroutine set_petsc_rhs_vec_axisymmetric_poisson | ( | type(grid_type) | grid, |
| type(psn_type) | psn, | ||
| type(xgc_solver) | solver, | ||
| real(8), dimension(grid%nnode) | xgc_rhs, | ||
| real(8), dimension(solver%n_boundary) | xgc_rhs_bd, | ||
| real(8), dimension(solver%n_boundary) | xgc_sol_bd | ||
| ) |
Places rhs and (optionally) boundary condition data into a PETSc vector.
| [in] | grid | Solver grid data, type(grid_type) |
| [in,out] | psn | Field data; the rhs XGC data is stored there, type(psn_type) |
| [in,out] | solver | XGC solver object; the rhs PETSc vector is stored there, type(xgc_solver) |
| subroutine set_rhs_poisson | ( | type(grid_type) | grid, |
| type(psn_type) | psn, | ||
| type(xgc_solver) | solver, | ||
| real(8), dimension(grid%nnode) | xgc_rhs, | ||
| real(8), dimension(grid%nnode) | xgc_rhs00, | ||
| real (8), dimension(solver%n_boundary) | xgc_rhs_bd, | ||
| real (8), dimension(solver%n_boundary) | xgc_sol_bd, | ||
| integer, intent(in) | iflag, | ||
| logical, intent(in) | is_turb, | ||
| logical, intent(in) | is_two_step | ||
| ) |
Routine to set and process the rhs arrays for both axisymmetric and turbulent poisson solvers. Also sets boundary data for XGCA.
| [in] | grid | XGC grid data object |
| [in,out] | psn | XGC field data object |
| [in,out] | solver | XGC solver object, type(xgc_solver) |
| [in] | iflag | Flag to indicate whether adiabatic elec or full eq. is solved, integer |
| [in] | is_turb | If .true. set RHS for turbulence solve, otherwise for axisymmetric solve |
| [in] | is_two_step | Whether this is for setting the RHS for the (n=0,|m|>0) step of the two-step solver |
| subroutine set_rhs_poisson_turb | ( | real(8), dimension(grid%nnode) | xgc_rhs, |
| real(8), dimension(grid%nnode) | xgc_rhs00, | ||
| real (8), dimension(psn%solverh%n_boundary) | xgc_rhs_bd, | ||
| real (8), dimension(psn%solverh%n_boundary) | xgc_sol_bd, | ||
| integer(c_int) | iflag | ||
| ) |
| subroutine solve_ampere | ( | real (8), dimension(grid%nnode) | xgc_rhs, |
| real (8), dimension(grid%nnode) | xgc_rhs2, | ||
| real (8), dimension(grid%nnode), intent(out) | Ah | ||
| ) |
| subroutine solve_ampere_cv | ( | real (8), dimension(grid%nnode) | xgc_rhs, |
| real (8), dimension(grid%nnode) | xgc_rhs2, | ||
| real (8), dimension(grid%nnode), intent(out) | Ah | ||
| ) |
| subroutine solve_ampere_cv_spec | ( | real (8), dimension(grid%nnode,2) | xgc_rhs_spectral, |
| real (8), dimension(grid%nnode,2) | xgc_rhs2_spectral, | ||
| real (8), dimension(grid%nnode,2) | xgc_field_spectral | ||
| ) |
| subroutine solve_ampere_spec | ( | real (8), dimension(grid%nnode,2) | xgc_rhs_spectral, |
| real (8), dimension(grid%nnode,2) | xgc_rhs2_spectral, | ||
| real (8), dimension(grid%nnode,2) | xgc_field_spectral | ||
| ) |
| subroutine solve_axisymmetric_poisson | ( | integer | iflag | ) |
High level Poisson solver routine for n=0, offers choice of outer iterative solver, two-step solver, and FSA solver.
| [in] | iflag | Flag to indicate whether adiabatic elec or full eq. is solved, integer |
| subroutine solve_axisymmetric_poisson_iter | ( | type(grid_type), intent(in) | grid, |
| type(psn_type), intent(inout) | psn | ||
| ) |
Poisson solver that uses an iterative method to solve for the axisymmetric electrostatic potential: The Poisson equation for the axisymmetric mode is
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi}_{k+1} + \frac{e n_0/T_{e,0}} \overline{\phi}_{k+1} = e \left( \langle \overline{\delta n_i} \rangle_g - \overline{\delta n_{e,NA}} \right) + \frac{e n_0/T_{e,0}} \langle \phi_{k} \rangle_{fs} \]
where \(k\) is the iteration index, \(xi\) is the electric susceptibility, \(e\) is the elementary charge, \(n_0\) and \(T_0\) are the background density and temperature, \(\langle \overline{\delta n_i} \rangle_g\) is the gyroaveraged ion (gyrocenter) charge density, \(\overline{\delta n_{e,NA}}\) is the non-adiabatic electron charge density, and \(\langle\dots\rangle_{fs}\) is the the flux-surface average. \(\overline{\dots}\) is the toroidal average.
The RHS and LHS of the axisymmetric equation can be Fourier-filtered (poloidal modes). The LHS of the non-axisymmetric equation can be Fourier-filtered in the toroidal and poloidal direction. The solver in both cases is a linear finite-element solver on an unstructured triangular grid.

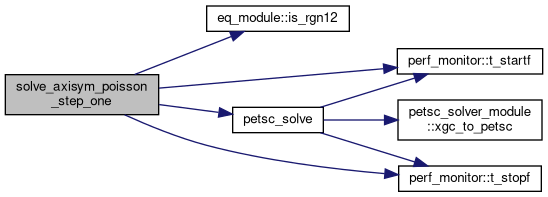

| [in] | grid | Solver grid data, type(grid_type) |
| [in,out] | psn | Field data; the potential is stored there, type(psn_type) |
| subroutine solve_axisymmetric_poisson_two_step_fsa | ( | type(grid_type), intent(in) | grid, |
| type(psn_type), intent(inout) | psn, | ||
| real (8), dimension(grid%nnode) | xgc_rhs, | ||
| real (8), dimension(grid%nnode) | xgc_rhs00, | ||
| real (8), dimension(psn%solverh%n_boundary) | xgc_rhs_bd, | ||
| real (8), dimension(psn%solver00%n_boundary) | xgc_rhs_bd00, | ||
| real (8), dimension(psn%solverh%n_boundary) | xgc_sol_bd, | ||
| real (8), dimension(psn%solver00%n_boundary) | xgc_sol_bd00 | ||
| ) |
Simple two-step 2D solver driver for the axisymmetric potential and one-step solver ("FSA-solver") with constraint equation for the flux-surface averaged potential. For the two-step solver, the RHS is the flux-surface averaged charge density, the LHS consists only of the polarization operator. The result of the 2D solve is flux-surface averaged; i.e., the result is \(\langle\phi\rangle\) The Poisson equation for the flux-surface averaged mode is
\[ -\nabla_\perp \cdot \xi \nabla_\perp \overline{\phi} = e \left\langle \left( \langle \overline{\delta n_i} \rangle_g - \overline{\delta n_{e,NA}} \right) \right\rangle_{fs} \]
where \(xi\) is the electric susceptibility, \(e\) is the elementary charge, \(n_0\) is the background density, \(\langle \overline{\delta n_i} \rangle_g\) is the gyroaveraged ion (gyrocenter) charge density, \(\overline{\delta n_{e,NA}}\) is the non-adiabatic electron charge density, and \(\langle\dots\rangle_{fs}\) is the the flux-surface average. \(\overline{\dots}\) is the toroidal average.
NOTE: The two-step solver does not support non-zero Dirichlet boundary conditions!
The FSA solver solves the same equation as the outer-iterative solver (solve_axisymmetric_poisson_iter), but with a twist. The flux-surface averaged potential is treated as an independent field \(\lambda\) in the Poisson equation. In order to make the equation consistent, a second (constraint) equation is added that enforces \(\lambda=\langle\phi\rangle_{fs}\). So the FSA solver solves a 2x2 block system.
| [in] | grid | Solver grid data, type(grid_type) |
| [in,out] | psn | Field data; the potential is stored there, type(psn_type) |
| subroutine spectral_solver_decompose | ( | type(grid_type), intent(in) | grid, |
| real(kind=8), dimension(grid%nnode), intent(inout) | field_inout, | ||
| real(kind=8), dimension(grid%nnode,2), intent(out) | field_ntor | ||
| ) |
Decompose field into spectral components treated by the spectral solver and the rest treated by the regular solver.
| [in] | grid | XGC grid object, type(grid_type) |
| [in,out] | field_inout | Input data, real(8) |
| [out] | field_ntor | Output |
| subroutine spectral_solver_reassemble | ( | type(grid_type), intent(in) | grid, |
| real(kind=8), dimension(grid%nnode), intent(inout) | field_inout, | ||
| real(kind=8), dimension(grid%nnode,2), intent(inout) | field_ntor | ||
| ) |
Reassemble the full field from the spectral components treated by the spectral solver, and the rest treated by the regular solver.
| [in] | grid | XGC grid object, type(grid_type) |
| [in,out] | field_inout | Input data, real(8) |
| [in,out] | field_ntor | Output |
1.8.5
