Module for variables and routines related to the logical sheath boundary condition. More...

Functions/Subroutines
subroutine	init_sheath_mod (sheath_mode)
	Initializes sheath module, i.e. memory allocation initialization of variables, and for sheath_mode==2 identification of vertex groups among the wall vertices. More...

subroutine	distribute_leftover_charge (iref, iref_max, solved, use_global_balance, sheath_elost_en, loss_shift, num_solved, num_failed, q_avail, delta_q, num_rebalanced)
	Distributes the leftover charge. More...

subroutine	calculate_sheath_dep (sheath_dep, sheath_dep_inv)
	This new version of the logical sheath adustment does three things: 1) compute use energy distribution of incoming electrons to find the new sheath potential and 2) loop over electrons and decide which ones penetrate the sheath. More...

subroutine	find_sheath_pot (dep, loss_shift, iep0, loss, solved, sheath_dep, sheath_elost_en)
	Finds sheath potential at which the electron loss is (approx.) equal to the ion loss plus a given shift (loss_shift) More...

subroutine	sheath_adjust_mode1_fort ()
	Old sheath calculation (sheath_mode==1) Based on the electron and ion losses at the wall nodes a new value of the sheath potential is determined by adjusting the previous value by a certain amount --> feedback control loop. More...

Variables
integer	sheath_nep =100
	number of energy grid bins for sheath calculation More...

real(kind=8), dimension(:,:,:), allocatable, target	sheath_en_max
	Parallel velo cutoff (normalized to sqrt(T_e)) for sheath potential calculation. More...

real(kind=8), dimension(:), allocatable, target	sheath_te_ev
	Initial wall temperature for normalization. More...

integer	sheath_nphi
	Number of poloidal planes for sheath potential. More...

real(8), dimension(:,:), allocatable, target	sheath_pot
	Sheath potential on the wall nodes. More...

real(8), dimension(:,:), allocatable, target	sheath_lost
	Total charge lost to the wall. More...

real(8), dimension(:,:), allocatable, target	sheath_ilost
	Ion charge lost to the wall. More...

integer	sheath_ngroups
	Number of vertex groups for sheath calculation. More...

integer	sheath_group_maxlen
	Max. number of members of a sheath vertex group. More...

integer, dimension(:), allocatable	sheath_igroup
	Index of group to which a wall vertex belongs. More...

integer, dimension(:), allocatable	sheath_group_len
	Number of vertices that belong to a group. More...

integer, dimension(:,:), allocatable	sheath_group_idx
	Indices of wall vertices that belong to a group. More...

Detailed Description

Module for variables and routines related to the logical sheath boundary condition.

Function/Subroutine Documentation

◆ calculate_sheath_dep()

subroutine sheath_module::calculate_sheath_dep	(	real(8), dimension(grid_global%nwall,sheath_nphi)	sheath_dep,
		real(8), dimension(grid_global%nwall,sheath_nphi)	sheath_dep_inv
	)

This new version of the logical sheath adustment does three things: 1) compute use energy distribution of incoming electrons to find the new sheath potential and 2) loop over electrons and decide which ones penetrate the sheath.

Here is the call graph for this function:

◆ distribute_leftover_charge()

subroutine sheath_module::distribute_leftover_charge	(	integer, intent(in), value	iref,
		integer, intent(in), value	iref_max,
		integer, dimension(grid_global%nwall,sheath_nphi), intent(in)	solved,
		integer, intent(in), value	use_global_balance,
		real (kind=8), dimension(0:sheath_nep,grid_global%nwall,sheath_nphi), intent(in)	sheath_elost_en,
		real(8), dimension(grid_global%nwall,sheath_nphi), intent(inout)	loss_shift,
		integer, dimension(grid_global%nwall,sheath_nphi), intent(inout)	num_solved,
		integer, dimension(grid_global%nwall,sheath_nphi), intent(inout)	num_failed,
		real(8), dimension(grid_global%nwall), intent(inout)	q_avail,
		real(8), dimension(grid_global%nwall,sheath_nphi), intent(inout)	delta_q,
		integer, intent(inout)	num_rebalanced
	)

Distributes the leftover charge.

Parameters

[in]	grid	Unstructured mesh data, type(grid_type)
[in]	iref	Loop iteration
[in]	iref_max	Total number of iterations
[in]	solved	Whether this bin has been solved
[in,out]	loss_shift	The loss shift
[in,out]	num_solved	number of bins solved
[in,out]	num_failed	number of bins failed
[in,out]	q_avail	q_avail
[in,out]	delta_q	delta_q
[in,out]	num_rebalanced	num_rebalanced

Here is the call graph for this function:

◆ find_sheath_pot()

subroutine sheath_module::find_sheath_pot	(	real (kind=8), dimension(grid_global%nwall,sheath_nphi), intent(in)	dep,
		real (kind=8), dimension(grid_global%nwall,sheath_nphi), intent(in)	loss_shift,
		integer, dimension(grid_global%nwall,sheath_nphi), intent(inout)	iep0,
		real (kind=8), dimension(grid_global%nwall,sheath_nphi), intent(out)	loss,
		integer, dimension(grid_global%nwall,sheath_nphi), intent(out)	solved,
		real (kind=8), dimension(grid_global%nwall,sheath_nphi), intent(in)	sheath_dep,
		real (kind=8), dimension(0:sheath_nep,grid_global%nwall,sheath_nphi)	sheath_elost_en
	)

Finds sheath potential at which the electron loss is (approx.) equal to the ion loss plus a given shift (loss_shift)

Parameters

[in]	grid	Unstructured mesh data, type(grid_type)
[in]	dep	Resolution of energy grid, real(8)
[in]	loss_shift	Shift in lost charge used for global loss balance, real(8)
[in,out]	iep0	Used for refinement of sheath potential on fine energy grid, integer
[out]	loss	Approx. charge loss determined on energy grid, real(8)
[out]	solved	Whether local charge balance is successful on a node, logical

Here is the call graph for this function:

◆ init_sheath_mod()

subroutine sheath_module::init_sheath_mod ( integer, intent(in), value sheath_mode )

Initializes sheath module, i.e. memory allocation initialization of variables, and for sheath_mode==2 identification of vertex groups among the wall vertices.

Parameters

[in]	grid	Unstructured mesh data, type(grid_type)
[in]	sheath_mode	Operating mode of the sheath calculation: 1) 1) feedback control adjustment 2) Instantaneous sheath adjustment based on energy distribution of incoming electrons

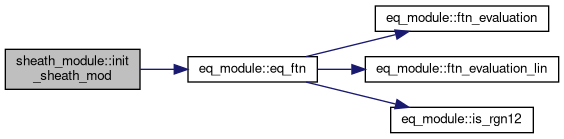

Here is the call graph for this function:

◆ sheath_adjust_mode1_fort()

subroutine sheath_module::sheath_adjust_mode1_fort

Old sheath calculation (sheath_mode==1) Based on the electron and ion losses at the wall nodes a new value of the sheath potential is determined by adjusting the previous value by a certain amount --> feedback control loop.

Parameters

[in] grid Unstructured mesh data, type(grid_type)

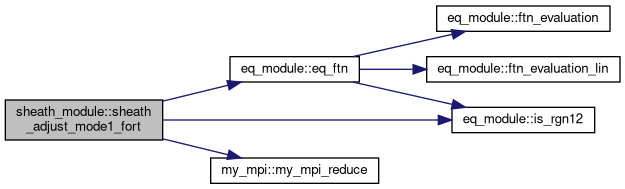

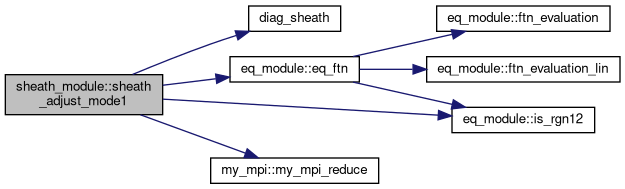

Here is the call graph for this function:

Variable Documentation

◆ sheath_en_max

real (kind=8), dimension(:,:,:), allocatable, target sheath_module::sheath_en_max

Parallel velo cutoff (normalized to sqrt(T_e)) for sheath potential calculation.

◆ sheath_group_idx

integer, dimension(:,:), allocatable sheath_module::sheath_group_idx

Indices of wall vertices that belong to a group.

◆ sheath_group_len

integer, dimension(:), allocatable sheath_module::sheath_group_len

Number of vertices that belong to a group.

◆ sheath_group_maxlen

integer sheath_module::sheath_group_maxlen

Max. number of members of a sheath vertex group.

◆ sheath_igroup

integer, dimension(:), allocatable sheath_module::sheath_igroup

Index of group to which a wall vertex belongs.

◆ sheath_ilost

real (8), dimension(:,:), allocatable, target sheath_module::sheath_ilost

Ion charge lost to the wall.

◆ sheath_lost

real (8), dimension(:,:), allocatable, target sheath_module::sheath_lost

Total charge lost to the wall.

◆ sheath_nep

integer sheath_module::sheath_nep =100

number of energy grid bins for sheath calculation

◆ sheath_ngroups

integer sheath_module::sheath_ngroups

Number of vertex groups for sheath calculation.

◆ sheath_nphi

integer sheath_module::sheath_nphi

Number of poloidal planes for sheath potential.

◆ sheath_pot

real (8), dimension(:,:), allocatable, target sheath_module::sheath_pot

Sheath potential on the wall nodes.

◆ sheath_te_ev

real (kind=8), dimension(:), allocatable, target sheath_module::sheath_te_ev

Initial wall temperature for normalization.
