#include "adios_macro.h"
#include "mom_module.F90"

Include dependency graph for f0module.F90:

Modules
module	f0_module

Macros
#define	OMP_ATOMIC !$omp atomic

Functions/Subroutines
real(8) function	f0_module::exp_ad (x)
	adjusted exponential function for adiabatic response More...

subroutine	f0_module::set_f0_f0g_ptr (f0_inode1_new, f0_inode2_new, f0_f0g_cpp)

subroutine	f0_module::f0_init_decomposed_ptrs (f0_T_ev_cpp, f0_fg_T_ev_cpp, f0_inv_grid_vol_cpp, f0_grid_vol_cpp, f0_grid_vol_vonly_cpp, f0_den_cpp, f0_flow_cpp)

subroutine	f0_module::f0_get_f0g (grid, isp, itr, p, phi, mu_n_in, vp_n, f0g, err)
	Interpolates the grid distribution function to real space, velocity space location given by node, mu_n,vp_n. In poloidal plane it uses nearest neighbor and velocity space linear interpolation. More...

subroutine	f0_module::f0_set_ptrs (nnode, f0_delta_n_cpp, f0_delta_u_cpp, f0_delta_T_cpp)
	Sets pointers to cpp arrays for f0 arrays. More...

real(8) function	f0_module::f0_mu_vol_fac (ivr)
	Returns the v_perp/mu boundary factor for velocity integration Boundary vertices have only half the volume of an interior vertex. More...

real(8) function	f0_module::f0_vp_vol_fac (ivz)
	Returns the v_parallel boundary factor for velocity integration Boundary vertices have only half the volume of an interior vertex. More...

subroutine	f_heat_torque_2 (isp, mass, f0_f, f0_df0g, dt)
	Applies heat and torque sources Uses functionalities from mom_module and diffusion.F90 The modification df of the distribution function is evaluated with a set of orthonormal basis polynomials in v-space The following logic is applied: Toroidal rotation and torque source are treated as rigid body rotation. The time derivative of the angular velocity is dw/dt = T/I_tot, where T is the external torque and I_tot is the total moment of inertia of each source region. From dw/dt one obtains the time derivative of the local mean flow as du_para/dt = R B/B_phi * dw/dt * S(psi). S(psi) is the shape function of the source region. The change of the total energy in each region is given by delta_E_tot=Pdelta_t, where P is the input power. The change of the energy at each node is proportional to the energy at the node delta_E_loc = delta_E_tot/E_tot S(psi) E_loc. This makes sure that sum(delta_E_locS(psi_loc))=delta_E_tot. The change of the local temperature is the difference between delta_E_loc and the change of the kinetic energy of the mean flow: delta_T_loc = 2/(3envol) * [delta_E_loc - m/2 n vol (2 u*delta_u + delta_u^2)]. More...

subroutine	poly_basis_setup (grid, isp, f0_f, n_poly, polynom, polynom_norm)
	Sets up a moment matrix of the current plasma distribution function and computes orthonormal polynomial basis for scaling of the plasma distribution function Polynomials: lambda_i = sum_[j=1]^4 c_[i,j] gamma_j where gamma_1 = 1, gamma_2 = v_\|\|, gamma_3 = v_\|\|^2, gamma_4 = v_pe^2, Inner product <lambda_i,lambda_j> = int[lambda_i lambda_j f d^3 v] Moment matrix defined by inner products <gamma_i,gamma_j> Gamma = \| <1,1> <1 ,v_\|\|> <1 ,v_\|\|^2> <1 ,v_pe^2> \| \| <v_\|\|,v_\|\|> <v_\|\| ,v_\|\|^2> <v_\|\| ,v_pe^2> \| \| <v_\|\|^2,v_\|\|^2> <v_\|\|^2,v_pe^2> \| \| <v_pe^2,v_pe^2> \|. More...

subroutine	eval_scaling_polynom (grid, den0, den, u_para, T_para, T_perp, isp, f0_f, delta_f, n_poly, polynom, polynom_norm)
	Computes the new distribution function after a diffusion time step by evaluating the scaling polynomials with the precomputed basis polynomials and the new moments (n,v_\|\|,mu,v_\|\|^2) More...

subroutine	f_heat_torque_org (isp, mass, c_m, t_ev, f0_f, f0_df0g, dt)

subroutine	get_radial_factor (psi, dr, dz, pi, po, bdi, bdo, over_w, special_mode, ishape, factor)
	sub-subroutine to get radial (psi) factor trapezoid or gaussian More...

subroutine	check_inside_source_region (special_mode, rgn, dr, dz, psi, bdi, bdo, rad_sqr, is_affected)

Variables
integer	f0_module::f0_nmu

integer	f0_module::f0_nvp

real(8), dimension(:,:,:,:), pointer	f0_module::f0_f0g => NULL()
	Stores the slow varying grid part of the distribution function. More...

real(8)	f0_module::f0_smu_max

real(8)	f0_module::f0_vp_max

real(8)	f0_module::f0_dsmu

real(8)	f0_module::f0_dvp

real(8), dimension(:,:), pointer	f0_module::f0_inv_grid_vol

real(8), dimension(:,:), pointer	f0_module::f0_grid_vol

real(8), dimension(:,:), pointer	f0_module::f0_grid_vol_vonly

real(8), dimension(:,:), pointer	f0_module::f0_den

real(8), dimension(:,:), pointer	f0_module::f0_t_ev

real(8), dimension(:,:), pointer	f0_module::f0_flow

real(8), dimension(:,:), pointer	f0_module::f0_fg_t_ev

real(8), dimension(:,:), pointer	f0_module::f0_delta_n
	Flux-surface averaged change of density. More...

real(8), dimension(:,:), pointer	f0_module::f0_delta_u
	Flux-surface averaged change of parallel flow. More...

real(8), dimension(:,:), pointer	f0_module::f0_delta_t
	Flux-surface averaged change of temperature. More...

real(kind=8), parameter	f0_module::f0_mu0_factor =3D0
	Set value of lowest mu in grid --> 1/f0_mu0_factor. More...

logical	f0_module::f0_use_linear_adiabatic = .false.

real(8), parameter	f0_module::f0_linear_adiabatic_bd =0.7

Macro Definition Documentation

◆ OMP_ATOMIC

#define OMP_ATOMIC !$omp atomic

Function/Subroutine Documentation

◆ check_inside_source_region()

subroutine check_inside_source_region	(	integer, intent(in)	special_mode,
		integer, intent(in)	rgn,
		real (8), intent(in)	dr,
		real (8), intent(in)	dz,
		real (8), intent(in)	psi,
		real (8), intent(in)	bdi,
		real (8), intent(in)	bdo,
		real (8), intent(in)	rad_sqr,
		logical, intent(out)	is_affected
	)

Here is the caller graph for this function:

◆ eval_scaling_polynom()

subroutine eval_scaling_polynom	(	type(grid_type), intent(in)	grid,
		real (kind=8), dimension(f0_inode1:f0_inode2), intent(in)	den0,
		real (kind=8), dimension(f0_inode1:f0_inode2), intent(in)	den,
		real (kind=8), dimension(f0_inode1:f0_inode2), intent(in)	u_para,
		real (kind=8), dimension(f0_inode1:f0_inode2), intent(in)	T_para,
		real (kind=8), dimension(f0_inode1:f0_inode2), intent(in)	T_perp,
		integer, intent(in)	isp,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(in)	f0_f,
		real (kind=8), dimension(-f0_nvp:f0_nvp,f0_inode1:f0_inode2,0:f0_nmu), intent(out)	delta_f,
		integer, intent(in)	n_poly,
		real (8), dimension(n_poly,n_poly,f0_inode1:f0_inode2), intent(inout)	polynom,
		real (8), dimension(n_poly,f0_inode1:f0_inode2), intent(inout)	polynom_norm
	)

Computes the new distribution function after a diffusion time step by evaluating the scaling polynomials with the precomputed basis polynomials and the new moments (n,v_||,mu,v_||^2)

Ansatz: g = sum_[i=1]^4 d_i lambda_i f ==> d_i = int(lambda_i g d^3v) / <lambda_i,lambda_i> = sum_[j=1]^4 c_[i,j] int(gamma_j g d^3v) / <lambda_i,lambda_i> After some manipulation —> g = f sum_[k=1]^4 D_k gamma_k with D_k = sum_[i,j=1]^4 int(gamma_j g d^3v * c_[i,j]*c_[i,k] / <lambda_i,lambda_i>

Parameters

[in]	grid	Grid data, type(gridtype)
[in]	den0	Density prior to diffusion step, real(8)
[in]	den	Density after diffusion step, real(8)
[in]	u_para	Parallel flow after diffusion step, real(8)
[in]	T_para	Para. Temperature after diffusion step, real(8)
[in]	T_perp	Perp. Temperature after diffusion step, real(8)
[in]	alpha	Ratio of parallel to perp temperature prior to diffusion step, real(8)
[in]	isp	Species index, integer
[in]	f0_f	Full distribution function, real(8)
[out]	delta_f	Change of the distribution function due to anomalous diffusion, real(8)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ f_heat_torque_2()

subroutine f_heat_torque_2	(	integer, intent(in), value	isp,
		real(8), intent(in), value	mass,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(in)	f0_f,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(inout)	f0_df0g,
		real(8), intent(in), value	dt
	)

Applies heat and torque sources Uses functionalities from mom_module and diffusion.F90 The modification df of the distribution function is evaluated with a set of orthonormal basis polynomials in v-space The following logic is applied: Toroidal rotation and torque source are treated as rigid body rotation. The time derivative of the angular velocity is dw/dt = T/I_tot, where T is the external torque and I_tot is the total moment of inertia of each source region. From dw/dt one obtains the time derivative of the local mean flow as du_para/dt = R B/B_phi * dw/dt * S(psi). S(psi) is the shape function of the source region. The change of the total energy in each region is given by delta_E_tot=P*delta_t, where P is the input power. The change of the energy at each node is proportional to the energy at the node delta_E_loc = delta_E_tot/E_tot * S(psi) E_loc. This makes sure that sum(delta_E_loc*S(psi_loc))=delta_E_tot. The change of the local temperature is the difference between delta_E_loc and the change of the kinetic energy of the mean flow: delta_T_loc = 2/(3*e*n*vol) * [delta_E_loc - m/2 n vol (2 u*delta_u + delta_u^2)].

Parameters

[in]	isp	Species index (integer)
[in]	mass	Species particle mass (real(8))
[in]	narea	Number of source areas (integer)
[in]	f0_f	Full distribution function
[in,out]	f0_df0g	Distribution function

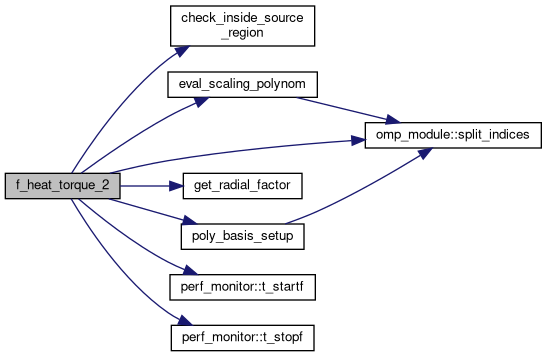

Here is the call graph for this function:

◆ f_heat_torque_org()

subroutine f_heat_torque_org	(	integer, intent(in), value	isp,
		real(8), intent(in), value	mass,
		real(8), intent(in), value	c_m,
		real(8), dimension(grid%nnode), intent(in)	t_ev,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(in)	f0_f,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(inout)	f0_df0g,
		real(8), intent(in), value	dt
	)

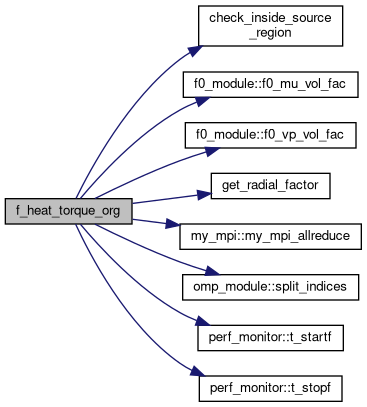

Here is the call graph for this function:

◆ get_radial_factor()

subroutine get_radial_factor	(	real (8), intent(in)	psi,
		real (8), intent(in)	dr,
		real (8), intent(in)	dz,
		real (8), intent(in)	pi,
		real (8), intent(in)	po,
		real (8), intent(in)	bdi,
		real (8), intent(in)	bdo,
		real (8), intent(in)	over_w,
		integer, intent(in)	special_mode,
		integer, intent(in)	ishape,
		real (8), intent(out)	factor
	)

sub-subroutine to get radial (psi) factor trapezoid or gaussian

Here is the caller graph for this function:

◆ poly_basis_setup()

subroutine poly_basis_setup	(	type(grid_type), intent(in)	grid,
		integer, intent(in)	isp,
		real (8), dimension(-f0_nvp:f0_nvp, f0_inode1:f0_inode2, 0:f0_nmu, ptl_isp:ptl_nsp), intent(in)	f0_f,
		integer, intent(in)	n_poly,
		real (8), dimension(n_poly,n_poly,f0_inode1:f0_inode2), intent(inout)	polynom,
		real (8), dimension(n_poly,f0_inode1:f0_inode2), intent(inout)	polynom_norm
	)

Sets up a moment matrix of the current plasma distribution function and computes orthonormal polynomial basis for scaling of the plasma distribution function Polynomials: lambda_i = sum_[j=1]^4 c_[i,j] gamma_j where gamma_1 = 1, gamma_2 = v_||, gamma_3 = v_||^2, gamma_4 = v_pe^2, Inner product <lambda_i,lambda_j> = int[lambda_i lambda_j f d^3 v] Moment matrix defined by inner products <gamma_i,gamma_j> Gamma = | <1,1> <1 ,v_||> <1 ,v_||^2> <1 ,v_pe^2> | | <v_||,v_||> <v_|| ,v_||^2> <v_|| ,v_pe^2> | | <v_||^2,v_||^2> <v_||^2,v_pe^2> | | <v_pe^2,v_pe^2> |.

===> <lambda_i,lambda_j> = sum_[k,l=1]^4 c_[i,k] Gamma_[k,l] c_[j,l] ==> lambda_i^T.A.lambda_k The coefficients c_[i,l] are calculated with Gram-Schmidt process lambda_i = gamma_i - sum_[j=1]^[i-1] <gamma_i,lambda_j>/<lambda_j,lambda_j> lambda_j

The coefficients of the basis polynomials are stored in a 4x4 matrix, The inner products in the matrix A are stored in a 10-element vector starting with the main diagonal, then going through the upper side diagonals.

The moments in the matrix Gamma are evaluated from the global variable storing the distribution function --> f0_f

The coefficients c_[i,j] of the basis polynomials are stored in "diff_polynom" and the norms <lambda_i,lambda_i> are stored in "polynom_norm"

Parameters

[in]	grid	Grid data, type(grid_type)
[in]	isp	Species index, integer
[in]	f0_f	full distribution function, real(8)

Here is the call graph for this function:

Here is the caller graph for this function:
