Simulation< Device > Class Template Reference

#include <sml.hpp>

Public Member Functions

 Simulation (NLReader::NamelistReader &nlr, double transit_time_in=1.0, double psi_norm=1.0)


Public Attributes

int bounce
 Bounce routine switch 0 for off, 1 for inner boundary, 2 for both boundaries. More...

int bounce_zero_weight
 If ==1 and bounce>0, set particle weights to zero after bouncing from the outer boundary. More...

double bounce_buffer
 Buffer width between sml_outpsi and where the particle actually bounces (must be >=0) More...

double dt
 Time step (s) More...

double transit_time
 Torodial transit time of an ion with the characteristic energy. More...

int sheath_mode
 Type of sheath (0 is none) More...

bool sheath_adjust
 Whether to adjust the sheath. More...

bool ptb_3db_on
 Toggle for ptb_3db. More...

bool drift_on
 Toggle for using drift. More...

bool neutrals
 Toggle for using neutrals. More...

bool diag_heat_on
 Use heat diagnostics in sheath. More...

bool xz_00_up
 Use upper region of xz when obtaining 00 mode. More...

int mstep
 Max number of time steps. More...

int nrk
 Order of Runge-Kutta time integration of particles + fields. More...

bool electron_on
 Use kinetic electrons. More...

bool limit_marker_den
 Whether to limit marker density. More...

int special
 Special run (eg single particle, poincare) More...

int nthreads
 Number of OMP threads on the host. More...

bool field_solver_on =true
 If false, charge deposition and field solve is skipped. More...

bool helmholtz_spectral
 Whether to solve Helmholtz-type equations with toroidally spectral solver. More...

bool thermal_bath_on
 Switch on thermal-bath and coarse-graining operation, see ccm_param parameters. More...

bool split_weight_scheme
 Whether to use the split-weight scheme. More...

bool dwdt_fix_bg

bool dwdt_exb_only

bool em_mixed_variable
 Switch for use of mixed-variable formulation. More...

bool em_control_variate
 Switch for use of control variate method. More...

int em_pullback_mode

double em_pullback_dampfac
 Damping term gamma on -b.grad(phi) in pullback mode 4. More...

bool em_control_variate_final_cv

bool em_control_variate_flag

int em_control_variate_niter
 Number of iterations for Ampere solve with control-variate method. More...

bool em_b_para_eff
 Effective dB_|| via a modified grad-B drift (Joiner et al., PoP, 2010) More...

bool em_es_step

bool em_dAsdt_filter_on
 Switch for applying Fourier filters on RHS of dAs/dt equation (pullback mode 4) More...

bool no_turb
 Set all non-axisymmetric field perturbations to zero (electromagnetic version only) More...

bool em_n0
 Include n=0 electromagnetic mode. More...

bool em_dAsdt_hypvis
 Use radial hyperviscosity in dA_s/dt (push_As) More...

bool exclude_private
 Whether to exclude private region in ion charge deposition. More...

bool grad_psitheta

bool iter_solver

int poisson_solver_type

bool update_poisson_solver
 Whether poisson solver is updated. More...

bool iter_solver_converge

bool positive_phi00_sol

bool heuristic_priv_pot

bool poisson_natural_boundary

int add_pot0

bool dpot_bd_apply
 Damp (n=0,m>0) potential towards the magnetic axis. More...

double dpot_bd_width
 Decay length (normalized flux) for (n=0,m>0) potential towards the magnetic axis. More...

bool poisson_bias
 Whether to use a (0,0) bias potential on top of phi_00. More...

int poisson_bias_start
 Time step in which the bias potential is started. More...

bool poisson_adia_wall
 EXPERIMENTAL! DON'T USE UNLESS ADVISED BY AN EXPERT. More...

double dpot_te_limit
 Max absolute value of dpot/temp in getf0. More...

bool em_use_dpot_te_limit
 In EM simulation: whether to force usage of the min-max limiter on the turbulent potential fluctuation. More...

bool no_fp_in_f

double f0_grid_alpha

bool f0_update_analytic

bool f0_update_analytic_local
 If .false. –> flux-surface average update, .true. –> local. More...

double f0_update_analytic_alpha
 Separate alpha from sml_f0_grid_alpha for Maxwellian contribution. More...

double f0_update_analytic_damp_width

int f0_grid_alpha_start

bool ignore_f0g

bool symmetric_f
 Enforce axisymmetry of the total distribution function on the grid. More...

double update_g_alpha

bool diff_on

bool resamp_on
 Do resampling. More...

bool resamp_for_final_restart_write
 Perform resampling before dumping the final restart file. More...

bool resamp_restart_read
 Whether to read a restart file written from a simulation with different grid. More...

bool field_aligned_initial

bool flat_marker

double marker_temp_factor

double marker_temp_factor2

double marker_temp_factor3

double flat_marker_decay_start1

double flat_marker_decay_start2

double flat_marker_cutoff1

double flat_marker_cutoff2

double flat_marker_width1

double flat_marker_width2

double initial_deltaf_noise

double marker_min_temp

double low_mu_fill_population

double time
 Current simulation time. More...

int gstep
 Current time step. More...

bool multirate_timestepping
 Use multirate timestepping. More...

int mr_factor

double mr_psi_max
 maximum normalized psi value of each multirate region More...

int mstep_rmp_es

int mstep_rmp_em

int rmp_es_to_em_dt_ratio
 Ratio of EM to ES time step size in RMP penetration calculation. More...

bool use_em_bounds

bool em_exclude_private

double bd_ext_delta_Ai

double bd_ext_delta_Ao

bool cce_coupling_on
 Core-edge coupling flag. More...

bool use_unfused_electron_push_kernel

bool loop_voltage_on
 Inductive current drive: loop voltage (from Faraday's law curl(E)=-dB/dt) More...

bool loop_voltage_fsa
 Make loop voltage and current drive flux-functions if true (default: true) More...

double loop_voltage

double loop_voltage_psimax
 Inductive current drive: outer boundary (in pol. flux) of the loop voltage. More...

bool current_drive_on

double current_drive_p
 Current drive PID controller: factor for proportional controller ( \(P\)) More...

double current_drive_i
 Current drive PID controller: factor for integral controller ( \(I\)) More...

double current_drive_d
 Current drive PID controller: factor for derivative controller ( \(D\)) More...

int mode_select_mode

double mode_select_inpsi

double mode_select_outpsi

double mode_select_bd_width


Static Public Attributes

static constexpr bool is_XGCa = false
 Equivalent to the preprocessor flag for now. More...

static constexpr bool reduced_deltaf = false
 Equivalent to the preprocessor flag for now. More...

static constexpr bool separate_n0 = true
 Equivalent to the preprocessor flag for now. More...

static constexpr bool explicit_electromagnetic = false
 Equivalent to the preprocessor flag for now. More...

static constexpr bool old_f0_update_analytic = false
 Equivalent to the preprocessor flag for now. More...

static constexpr int nhybrid = 2
 Number of iterations in electrostatic electron weight evolution scheme. More...


Constructor & Destructor Documentation

template<class Device >
Simulation< Device >::Simulation ( NLReader::NamelistReader nlr,
double  transit_time_in = 1.0,
double  psi_norm = 1.0
)

Constructor for simulation

< Shift of inner boundary of n!=0 Ampere solver (LHS) outwards relative to sml_inpsi

< Shift of outer boundary of n!=0 Ampere solver (LHS) inwards relative to sml_outpsi

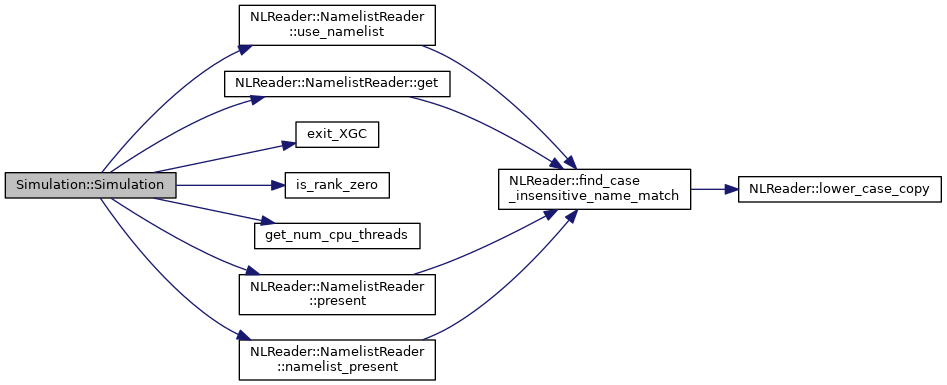

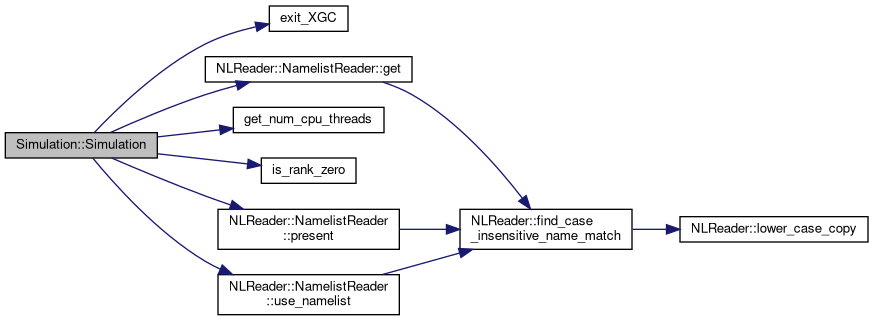

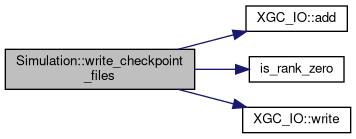

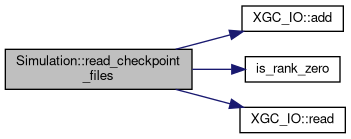

Here is the call graph for this function:

Member Data Documentation

template<class Device>
int Simulation< Device >::add_pot0

Set the potential on the solver boundary equal to the flux-surface

!! averaged potential (implies \(\delta\phi_wall=0\)). !! This is supposed to prevent a sheath-like potential drop at the mesh !! boundary and make sure that the logical sheath model takes care of !! the sheath physics. Also, it should prevent \(\delta\phi/\phi\sim1\). Additional electrostatic potential: (0) for off, (1) for reading data from file !! (2) for simple neoclassical axisymmetric field (not operational)

template<class Device>
double Simulation< Device >::bd_ext_delta_Ai
template<class Device>
double Simulation< Device >::bd_ext_delta_Ao
template<class Device>
int Simulation< Device >::bounce

Bounce routine switch 0 for off, 1 for inner boundary, 2 for both boundaries.

template<class Device>
double Simulation< Device >::bounce_buffer

Buffer width between sml_outpsi and where the particle actually bounces (must be >=0)

template<class Device>
int Simulation< Device >::bounce_zero_weight

If ==1 and bounce>0, set particle weights to zero after bouncing from the outer boundary.

template<class Device>
bool Simulation< Device >::cce_coupling_on

Core-edge coupling flag.

template<class Device>
double Simulation< Device >::current_drive_d

Current drive PID controller: factor for derivative controller ( \(D\))

template<class Device>
double Simulation< Device >::current_drive_i

Current drive PID controller: factor for integral controller ( \(I\))

template<class Device>
bool Simulation< Device >::current_drive_on

Whether to use dynamic current drive via adjustments of the loop voltage ! The controller output is implemented as ! \(V_{loop} = 2\pi R \eta_\parallel P \left[\Delta j_\parallel + I \int_0^t \Delta j_\parallel \mathrm{d}\tau + D \frac{\partial \Delta j_\parallel}{\partial t} \right] \) ! Time integral and derivative are with respect to the ion time step instead of time, so \(1/I\) is the integration time scale, ! and \(D\) is the derivative time scale

template<class Device>
double Simulation< Device >::current_drive_p

Current drive PID controller: factor for proportional controller ( \(P\))

template<class Device>
bool Simulation< Device >::diag_heat_on

Use heat diagnostics in sheath.

template<class Device>
bool Simulation< Device >::diff_on
template<class Device>
bool Simulation< Device >::dpot_bd_apply

Damp (n=0,m>0) potential towards the magnetic axis.

template<class Device>
double Simulation< Device >::dpot_bd_width

Decay length (normalized flux) for (n=0,m>0) potential towards the magnetic axis.

template<class Device>
double Simulation< Device >::dpot_te_limit

Max absolute value of dpot/temp in getf0.

template<class Device>
bool Simulation< Device >::drift_on

Toggle for using drift.

template<class Device>
double Simulation< Device >::dt

Time step (s)

template<class Device>
bool Simulation< Device >::dwdt_exb_only
template<class Device>
bool Simulation< Device >::dwdt_fix_bg
template<class Device>
bool Simulation< Device >::electron_on

Use kinetic electrons.

template<class Device>
bool Simulation< Device >::em_b_para_eff

Effective dB_|| via a modified grad-B drift (Joiner et al., PoP, 2010)

template<class Device>
bool Simulation< Device >::em_control_variate

Switch for use of control variate method.

template<class Device>
bool Simulation< Device >::em_control_variate_final_cv
template<class Device>
bool Simulation< Device >::em_control_variate_flag
template<class Device>
int Simulation< Device >::em_control_variate_niter

Number of iterations for Ampere solve with control-variate method.

template<class Device>
bool Simulation< Device >::em_dAsdt_filter_on

Switch for applying Fourier filters on RHS of dAs/dt equation (pullback mode 4)

template<class Device>
bool Simulation< Device >::em_dAsdt_hypvis

Use radial hyperviscosity in dA_s/dt (push_As)

template<class Device>
bool Simulation< Device >::em_es_step

If true, the ES algorithm will be used within the EM code (details in XGC_core/module.F90)

template<class Device>
bool Simulation< Device >::em_exclude_private
template<class Device>
bool Simulation< Device >::em_mixed_variable

Switch for use of mixed-variable formulation.

template<class Device>
bool Simulation< Device >::em_n0

Include n=0 electromagnetic mode.

template<class Device>
double Simulation< Device >::em_pullback_dampfac

Damping term gamma on -b.grad(phi) in pullback mode 4.

template<class Device>
int Simulation< Device >::em_pullback_mode

(0) ??? (1) ??? (2) ??? (3) mixed-variable pullback with dA_s/dt=0, (4) pullback using Ohm's law dA_s/dt + b.grad(phi) = 0 (5) pullback using dA_s/dt + b.grad(phi) = -eta*j

template<class Device>
bool Simulation< Device >::em_use_dpot_te_limit

In EM simulation: whether to force usage of the min-max limiter on the turbulent potential fluctuation.

template<class Device>
bool Simulation< Device >::exclude_private

Whether to exclude private region in ion charge deposition.

template<class Device>
constexpr bool Simulation< Device >::explicit_electromagnetic = false
static

Equivalent to the preprocessor flag for now.

template<class Device>
double Simulation< Device >::f0_grid_alpha

Fraction of the particle weight that is transferred to the background distribution function (particle noise control) every sml_f_source_period time steps. As a rule of thumb, sml_f0_grid_alpha=sml_dt*sml_f_source_period can be used.

template<class Device>
int Simulation< Device >::f0_grid_alpha_start

For delayed onset of total-f particle noise control. (must be >=1) Values >1 cause a linear ramp-up of sml_f0_grid_alpha from 0 to its input value from time step 1 to sml_f0_grid_alpha_start.

template<class Device>
bool Simulation< Device >::f0_update_analytic

Switch on/off the update of the analytic part of the distribution function

template<class Device>
double Simulation< Device >::f0_update_analytic_alpha

Separate alpha from sml_f0_grid_alpha for Maxwellian contribution.

template<class Device>
double Simulation< Device >::f0_update_analytic_damp_width

For width of \(\exp^{-(x/w)^2}\) damping factor for updating density/temperature of the analytical f0

template<class Device>
bool Simulation< Device >::f0_update_analytic_local

If .false. –> flux-surface average update, .true. –> local.

template<class Device>
bool Simulation< Device >::field_aligned_initial
template<class Device>
bool Simulation< Device >::field_solver_on =true

If false, charge deposition and field solve is skipped.

template<class Device>
bool Simulation< Device >::flat_marker
template<class Device>
double Simulation< Device >::flat_marker_cutoff1
template<class Device>
double Simulation< Device >::flat_marker_cutoff2
template<class Device>
double Simulation< Device >::flat_marker_decay_start1
template<class Device>
double Simulation< Device >::flat_marker_decay_start2
template<class Device>
double Simulation< Device >::flat_marker_width1
template<class Device>
double Simulation< Device >::flat_marker_width2
template<class Device>
bool Simulation< Device >::grad_psitheta

If true, gradiant operator is calculated as \((\hat{\boldsymbol{\psi}}\cdot\nabla,\hat{\boldsymbol{\theta}}^\ast)\cdot\nabla\) instead of \((R,Z)\) coordinates.

template<class Device>
int Simulation< Device >::gstep

Current time step.

template<class Device>
bool Simulation< Device >::helmholtz_spectral

Whether to solve Helmholtz-type equations with toroidally spectral solver.

template<class Device>
bool Simulation< Device >::heuristic_priv_pot

Override the Poisson solver in the private region and replace the solution by !! the separatrix potential scaled with the initial electron temperature

template<class Device>
bool Simulation< Device >::ignore_f0g

Ignore f0g in f0 calculation. When true, it skips the update of den_f0_h, instead using the initialized value (which is zero). This is helpful to density conservation of heating when f0g is noisy due to insufficient number of particles.

template<class Device>
double Simulation< Device >::initial_deltaf_noise
template<class Device>
constexpr bool Simulation< Device >::is_XGCa = false
static

Equivalent to the preprocessor flag for now.

template<class Device>
bool Simulation< Device >::iter_solver

For sml_poisson_solver_type=0: Split Poisson equation into axisymmetric and !! non-axisymmetric parts. The axisymmetric part has the !! flux-surface averaged potential on the RHS. Solve !! iteratively by lagging the RHS potential by one !! iteration. Stop after sml_iter_solver_niter iterations. !! If .false., split Poisson equation into !! flux-surface averaged part and rest (assuming that the !! polarization term commutes with the flux-surface !! average) and the rest; solve in two steps.

template<class Device>
bool Simulation< Device >::iter_solver_converge

If .true., keep taking iterations in PETSc until termination criteria is met, !! i.e. until a residual tolerance is reached or it is determined that the iterations !! have diverged or exceeded sml_iter_solver_max_it. If .false., take a fixed number !! of iterations set from sml_iter_solver_niter.

template<class Device>
bool Simulation< Device >::limit_marker_den

Whether to limit marker density.

template<class Device>
double Simulation< Device >::loop_voltage

Initial value for the loop-voltage ! Positive loop voltage corresponds to an electron torque opposite to the toroidal ! direction (clockwise looking down on the torus, i.e. in negative Z-direction).

template<class Device>
bool Simulation< Device >::loop_voltage_fsa

Make loop voltage and current drive flux-functions if true (default: true)

template<class Device>
bool Simulation< Device >::loop_voltage_on

Inductive current drive: loop voltage (from Faraday's law curl(E)=-dB/dt)

template<class Device>
double Simulation< Device >::loop_voltage_psimax

Inductive current drive: outer boundary (in pol. flux) of the loop voltage.

template<class Device>
double Simulation< Device >::low_mu_fill_population
template<class Device>
double Simulation< Device >::marker_min_temp
template<class Device>
double Simulation< Device >::marker_temp_factor
template<class Device>
double Simulation< Device >::marker_temp_factor2
template<class Device>
double Simulation< Device >::marker_temp_factor3
template<class Device>
double Simulation< Device >::mode_select_bd_width
template<class Device>
double Simulation< Device >::mode_select_inpsi
template<class Device>
int Simulation< Device >::mode_select_mode
template<class Device>
double Simulation< Device >::mode_select_outpsi
template<class Device>
int Simulation< Device >::mr_factor
                    multirate timestepping for core region ions; mr_ratio (> 1) is the

factor used to accelerate the core region physics.

template<class Device>
double Simulation< Device >::mr_psi_max

maximum normalized psi value of each multirate region

template<class Device>
int Simulation< Device >::mstep

Max number of time steps.

template<class Device>
int Simulation< Device >::mstep_rmp_em

Number of electromagnetic time steps for RMP penetration calculation with damped Newton iteration

template<class Device>
int Simulation< Device >::mstep_rmp_es

Number of electrostatic time steps for RMP penetration calculation with damped Newton iteration

template<class Device>
bool Simulation< Device >::multirate_timestepping

Use multirate timestepping.

template<class Device>
bool Simulation< Device >::neutrals

Toggle for using neutrals.

template<class Device>
constexpr int Simulation< Device >::nhybrid = 2
static

Number of iterations in electrostatic electron weight evolution scheme.

template<class Device>
bool Simulation< Device >::no_fp_in_f

If .true. the distribution function used for the source routines will not include particle information (only for testing)

template<class Device>
bool Simulation< Device >::no_turb

Set all non-axisymmetric field perturbations to zero (electromagnetic version only)

template<class Device>
int Simulation< Device >::nrk

Order of Runge-Kutta time integration of particles + fields.

template<class Device>
int Simulation< Device >::nthreads

Number of OMP threads on the host.

template<class Device>
constexpr bool Simulation< Device >::old_f0_update_analytic = false
static

Equivalent to the preprocessor flag for now.

template<class Device>
bool Simulation< Device >::poisson_adia_wall

EXPERIMENTAL! DON'T USE UNLESS ADVISED BY AN EXPERT.

template<class Device>
bool Simulation< Device >::poisson_bias

Whether to use a (0,0) bias potential on top of phi_00.

template<class Device>
int Simulation< Device >::poisson_bias_start

Time step in which the bias potential is started.

template<class Device>
bool Simulation< Device >::poisson_natural_boundary
template<class Device>
int Simulation< Device >::poisson_solver_type

(0) Simple axisymmetric Poisson solver (single equation) !! (–> see sml_iter_solver) !! (1) Linear Poisson equation for the axisymmetric !! potential (as in sml_iter_solver=.true.) but !! with constraint equation for the flux-surface averaged !! potential on the RHS. Solved with Schur complement solver. !! Much faster and accurate than the iterative solver, but !! causes instability in simulations with open field-lines. !! (2) Non-linear Poisson equation

template<class Device>
bool Simulation< Device >::positive_phi00_sol

EXPERIMENTAL! DON'T USE UNLESS ADVISED BY AN EXPERT !! If true, makes sure that \(\langle\phi\rangle > 0\) in SOL and !! private flux region by adding a constant to \(\phi\)

template<class Device>
bool Simulation< Device >::ptb_3db_on

Toggle for ptb_3db.

template<class Device>
constexpr bool Simulation< Device >::reduced_deltaf = false
static

Equivalent to the preprocessor flag for now.

template<class Device>
bool Simulation< Device >::resamp_for_final_restart_write

Perform resampling before dumping the final restart file.

template<class Device>
bool Simulation< Device >::resamp_on

Do resampling.

template<class Device>
bool Simulation< Device >::resamp_restart_read

Whether to read a restart file written from a simulation with different grid.

template<class Device>
int Simulation< Device >::rmp_es_to_em_dt_ratio

Ratio of EM to ES time step size in RMP penetration calculation.

template<class Device>
constexpr bool Simulation< Device >::separate_n0 = true
static

Equivalent to the preprocessor flag for now.

template<class Device>
bool Simulation< Device >::sheath_adjust

Whether to adjust the sheath.

template<class Device>
int Simulation< Device >::sheath_mode

Type of sheath (0 is none)

template<class Device>
int Simulation< Device >::special

Special run (eg single particle, poincare)

template<class Device>
bool Simulation< Device >::split_weight_scheme

Whether to use the split-weight scheme.

template<class Device>
bool Simulation< Device >::symmetric_f

Enforce axisymmetry of the total distribution function on the grid.

template<class Device>
bool Simulation< Device >::thermal_bath_on

Switch on thermal-bath and coarse-graining operation, see ccm_param parameters.

template<class Device>
double Simulation< Device >::time

Current simulation time.

template<class Device>
double Simulation< Device >::transit_time

Torodial transit time of an ion with the characteristic energy.

template<class Device>
double Simulation< Device >::update_g_alpha

Fraction of the numerical marker particle density that is transferred to the g2

template<class Device>
bool Simulation< Device >::update_poisson_solver

Whether poisson solver is updated.

template<class Device>
bool Simulation< Device >::use_em_bounds
template<class Device>
bool Simulation< Device >::use_unfused_electron_push_kernel
template<class Device>
bool Simulation< Device >::xz_00_up

Use upper region of xz when obtaining 00 mode.


The documentation for this class was generated from the following files:
