PolynomialBasis< Device > Class Template Reference

#include <poly_basis.hpp>

Collaboration diagram for PolynomialBasis< Device >:
Collaboration graph
[legend]

Public Member Functions

View< double ***, CLayout, Device > compute_inner_product (const View< double ***, CLayout, Device > &dist_in) const

PolynomialBasisDistribution
< Device >
get_coefficients (const View< double ***, CLayout, Device > &inner_prod_matrix) const

template<typename F >
void add_basis (int &basis_ind, F func)

template<typename... Fs>
 PolynomialBasis (const UniformRange &xrange_in, const UniformRange &yrange_in, Fs...funcs)

PolynomialBasisDistribution
< Device >
get_distribution (const View< double ***, CLayout, Device > &dist_in) const

template<typename F >
View< double **, CLayout, Device > get_moments (const int nnode, F lambda_func) const

View< double ***, CLayout, Device > get_scaling (const PolynomialBasisDistribution< Device > &polynom, const View< double **, CLayout, Device > &g_mom) const


Private Types

using exec_space = typename Device::execution_space


Private Attributes

int n_poly

UniformRange xrange

UniformRange yrange

View< double ***, CLayout, Device > bases

View< double ***, CLayout,
HostType
bases_h

View< double ****, CLayout,
Device >
matrix


Member Typedef Documentation

template<class Device>
using PolynomialBasis< Device >::exec_space = typename Device::execution_space
private

Constructor & Destructor Documentation

template<class Device>
template<typename... Fs>
PolynomialBasis< Device >::PolynomialBasis ( const UniformRange xrange_in,
const UniformRange yrange_in,
Fs...  funcs
)
inline

Constructor for a polynomial basis with one polynomial per provided function, evaluated with the range and resolution specified by xrange_in and yrange_in. The resulting basis will be able to evaluate all given functions at any point within the specified ranges.

Parameters
[in]xrange_inA uniform range object specifying the interval on which the polynomials should have support in the first dimension
[in]yrange_inA uniform range object specifying the interval on which the polynomials should have support in the second dimension
[in]funcsThe desired basis functions on two dimensions

Here is the call graph for this function:

Member Function Documentation

template<class Device>
template<typename F >
void PolynomialBasis< Device >::add_basis ( int &  basis_ind,
func
)
inline

Adds a new basis for the polynomial representation

Parameters
[in,out]basis_indOffset index that is incremented so that the next basis is added to the next index in bases_h
[in]funcFunction representating the new basis on two dimensions (x, y)

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
View<double***, CLayout, Device> PolynomialBasis< Device >::compute_inner_product ( const View< double ***, CLayout, Device > &  dist_in) const
inline

Sets up a moment matrix of the current plasma distribution function and computes orthonormal polynomial basis for scaling of the plasma distribution function Polynomials: lambda_i = sum_[j=1]^4 c_[i,j] gamma_j where gamma_1 = 1, gamma_2 = v_||, gamma_3 = v_pe, gamma_4 = v_||^2, gamma_5 = v_pe^2 Inner product <lambda_i,lambda_j> = int[lambda_i lambda_j f d^3 v] Moment matrix defined by inner products <gamma_i,gamma_j> Gamma = | <1,1> <1 ,v_||> <1 ,v_pe> <1 ,v_||^2> <1 ,v_pe^2> | | <v_||,v_||> <v_||,v_pe> <v_|| ,v_||^2> <v_|| ,v_pe^2> | | <v_pe,v_pe> <v_pe ,v_||^2> <v_pe ,v_pe^2> | | <v_||^2,v_||^2> <v_||^2,v_pe^2> | | <v_pe^2,v_pe^2> | or Gamma = | <1,1> <1 ,v_||> <1 ,v_||^2> <1 ,v_pe^2> | | <v_||,v_||> <v_|| ,v_||^2> <v_|| ,v_pe^2> | | <v_||^2,v_||^2> <v_||^2,v_pe^2> | | <v_pe^2,v_pe^2> |

===> <lambda_i,lambda_j> = sum_[k,l=1]^5 c_[i,k] Gamma_[k,l] c_[j,l] ==> lambda_i^T.A.lambda_k The coefficients c_[i,l] are calculated with Gram-Schmidt process lambda_i = gamma_i - sum_[j=1]^[i-1] <gamma_i,lambda_j>/<lambda_j,lambda_j> lambda_j

The coefficients of the basis polynomials are stored in a 4x4 matrix, The inner products in the matrix A are stored in a 10-element vector starting with the main diagonal, then going through the upper side diagonals.

The moments in the matrix Gamma are evaluated from the global variable storing the distribution function –> f0_f

The coefficients c_[i,j] of the basis polynomials are stored in a PolynomialBasisDistribution struct.

Parameters
[in]dist_inThe distribution function to be represented by polynomials return The inner product representation of dist_in

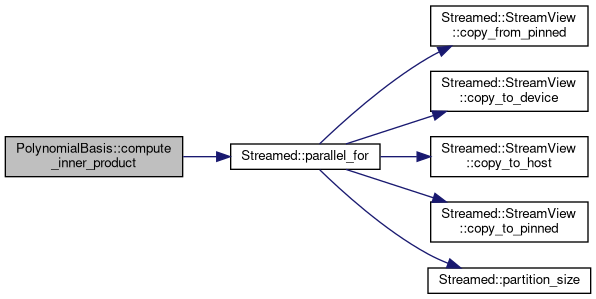

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
PolynomialBasisDistribution<Device> PolynomialBasis< Device >::get_coefficients ( const View< double ***, CLayout, Device > &  inner_prod_matrix) const
inline

Given the inner product matrix built from an input distribution, calculate and return the distribution with polynomial representation

Parameters
[in]inner_prod_matrixThe inner product matrix
Returns
The polynomial representation of the distribution used to calculate the inner product matrix

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
PolynomialBasisDistribution<Device> PolynomialBasis< Device >::get_distribution ( const View< double ***, CLayout, Device > &  dist_in) const
inline

Constructs a polynomial representation of the input distribution

Parameters
[in]dist_inThe distribution function to be represented by polynomials return The polynomial representation of the distribution used to calculate the inner product matrix

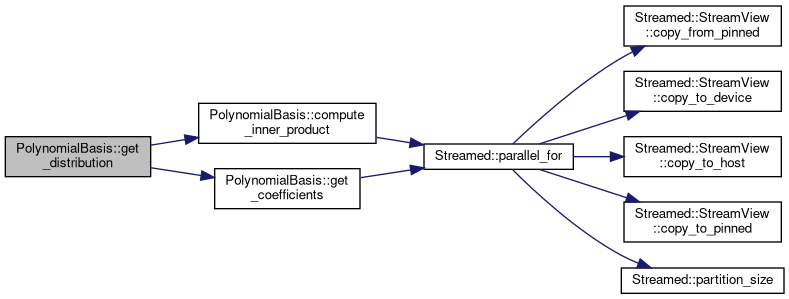

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
template<typename F >
View<double**, CLayout, Device> PolynomialBasis< Device >::get_moments ( const int  nnode,
lambda_func
) const
inline

Computes moments of the distribution using a user-defined kernel function

Parameters
[in]nnodeNumber of mesh nodes to loop over
[in]lambda_funcUser defined kernel function for a single mesh node return The array of new moments

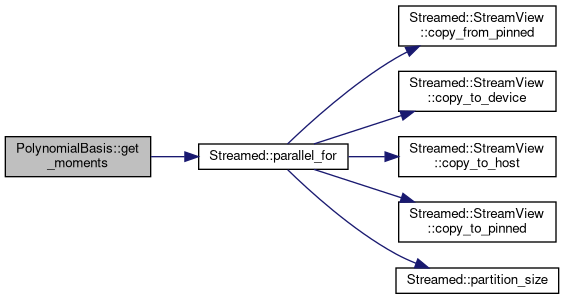

Here is the call graph for this function:

Here is the caller graph for this function:

template<class Device>
View<double***, CLayout, Device> PolynomialBasis< Device >::get_scaling ( const PolynomialBasisDistribution< Device > &  polynom,
const View< double **, CLayout, Device > &  g_mom
) const
inline

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

template<class Device>
View<double***, CLayout, Device> PolynomialBasis< Device >::bases
private
template<class Device>
View<double***, CLayout, HostType> PolynomialBasis< Device >::bases_h
private
template<class Device>
View<double****, CLayout, Device> PolynomialBasis< Device >::matrix
private
template<class Device>
int PolynomialBasis< Device >::n_poly
private
template<class Device>
UniformRange PolynomialBasis< Device >::xrange
private
template<class Device>
UniformRange PolynomialBasis< Device >::yrange
private

The documentation for this class was generated from the following file:
